◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51581 - TFR/TFS LHD EUROPE ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#151525) — 13 parça

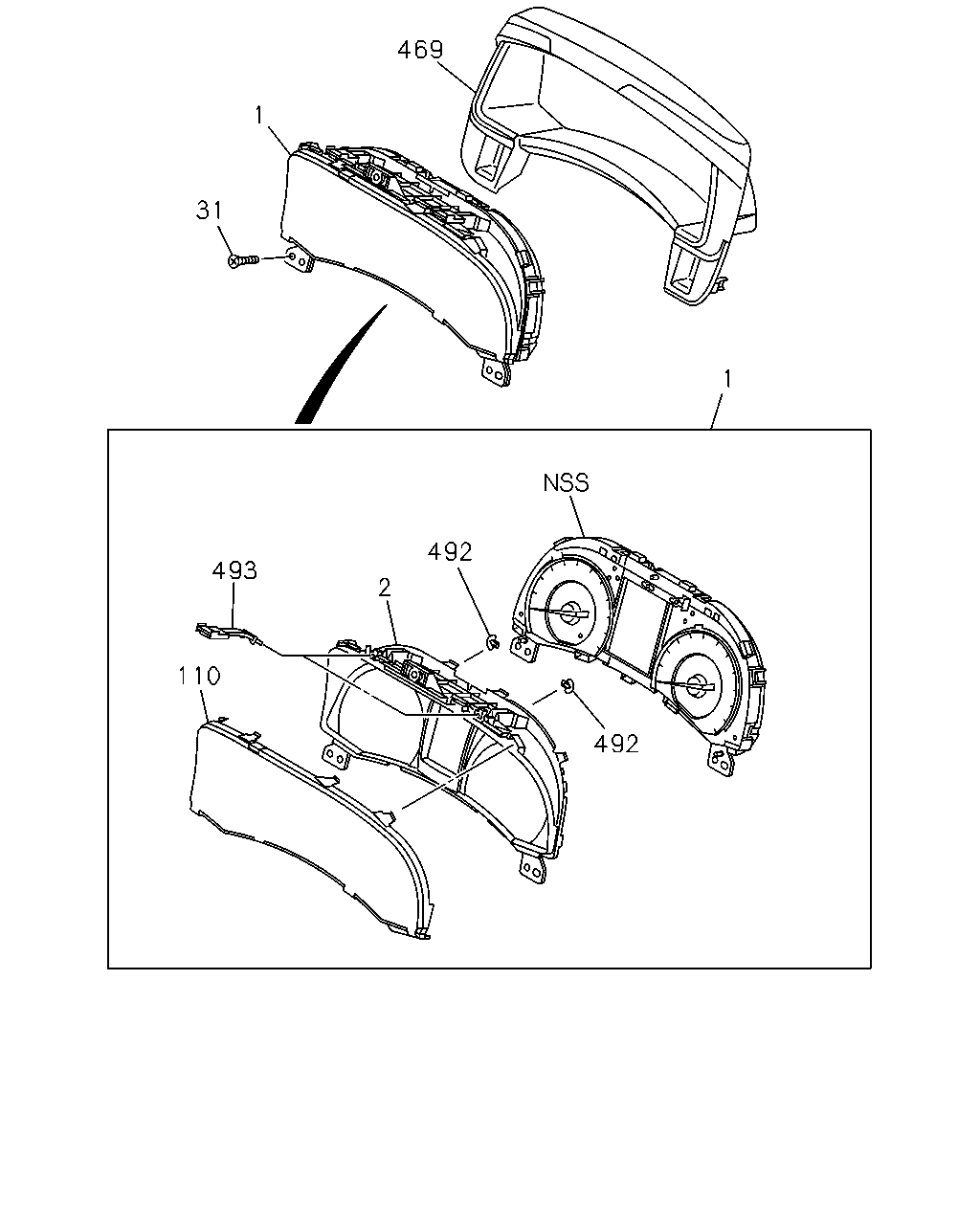

çizim 451754
31 1 469 1 493 110 2 492 492
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
M/T AISIN 6 SPEED(RNU) ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> 		8-98209-564-0 01 1 1410- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
M/T AISIN 6 SPEED(RNU) EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98156-143-7 01 1 1410- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
M/T AISIN 6 SPEED(RNU) 		8-98156-143-7 01 1 1410- ● ●
1 09.735 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN(MA1) ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> 		8-98209-562-0 01 1 1410- ● ●
1 09.735 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN(MA1) EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98156-141-7 01 1 1410- ● ●
2 09.735 PANEL; CLUSTER
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> 		8-98163-884-0 01 1 1410- ● ● ● ●
2 09.735 PANEL; CLUSTER
EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98163-885-0 01 1 1410- ● ● ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
08.083 M5X16 TAPPING 		8-98167-449-0 03 1 1410- ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> 		8-98163-882-0 01 1 1410- ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98163-883-0 01 1 1410- ● ● ● ● ● ●
469 16.080 PLATE; INSTRUMENT PANEL
BLACK 		8-97416-628-1 01 1 1410- ● ● ● ● ● ●
492 09.743 PANEL; TURN LENS
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> 		8-98163-886-0 02 1 1410- ● ● ● ●
493 09.743 PANEL; TOP LIGHT PRISM
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> 		8-98163-887-0 02 1 1410- ● ● ● ●
