◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51581 - TFR/TFS LHD EUROPE ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#151523) — 191 parça

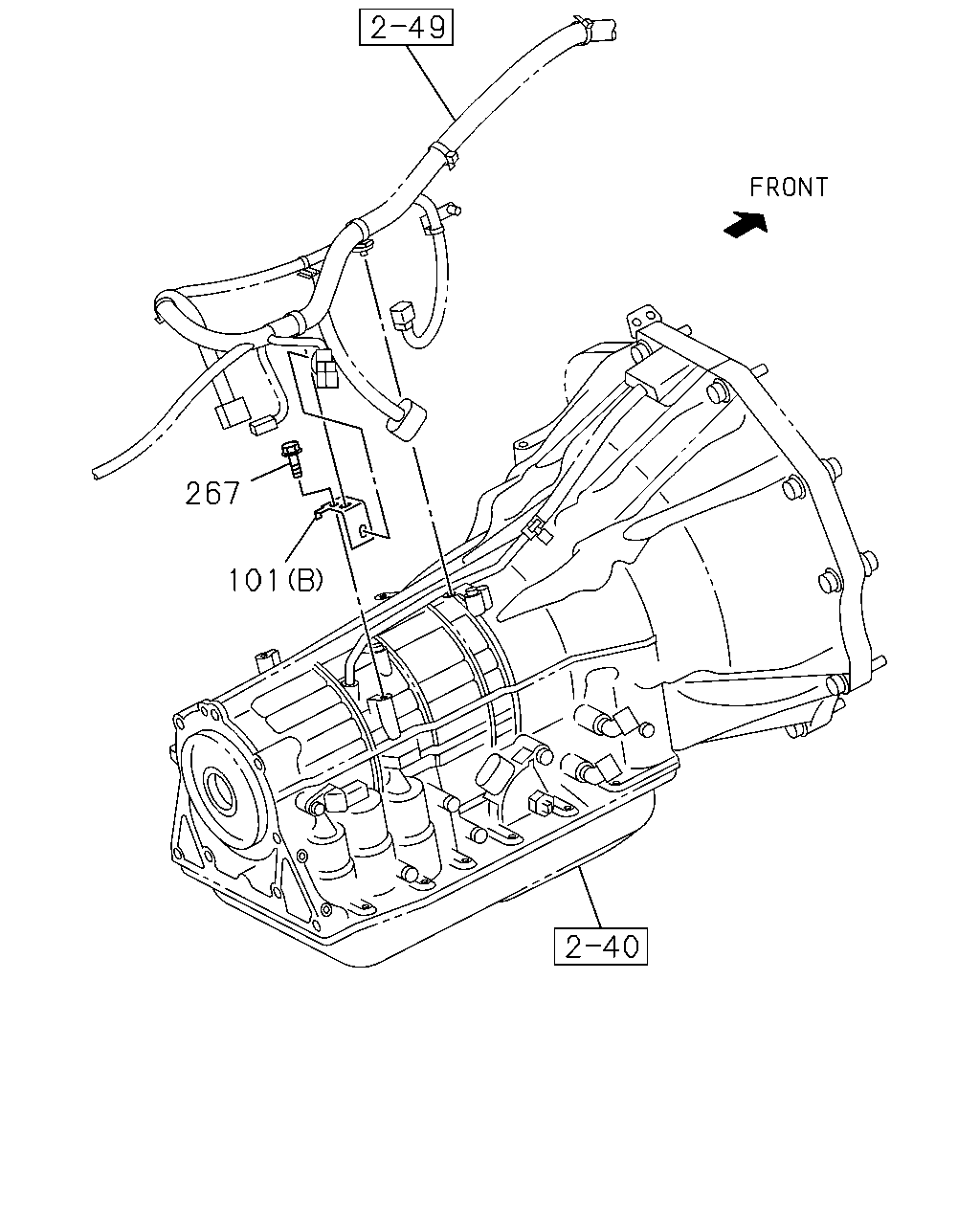

çizim 449280
101 267
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
101 02.483 BRACKET; HARNESS CONNECTOR
A/T 5 SPEED-AISIN(MA1) (B) 		8-98182-490-1 01 1 1410- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(A) 		8-98102-999-0 01 1 1410- ● ● ● ● ● ●
267 02.483 BOLT; BRKT
A/T 5 SPEED-AISIN(MA1) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1410- ● ●

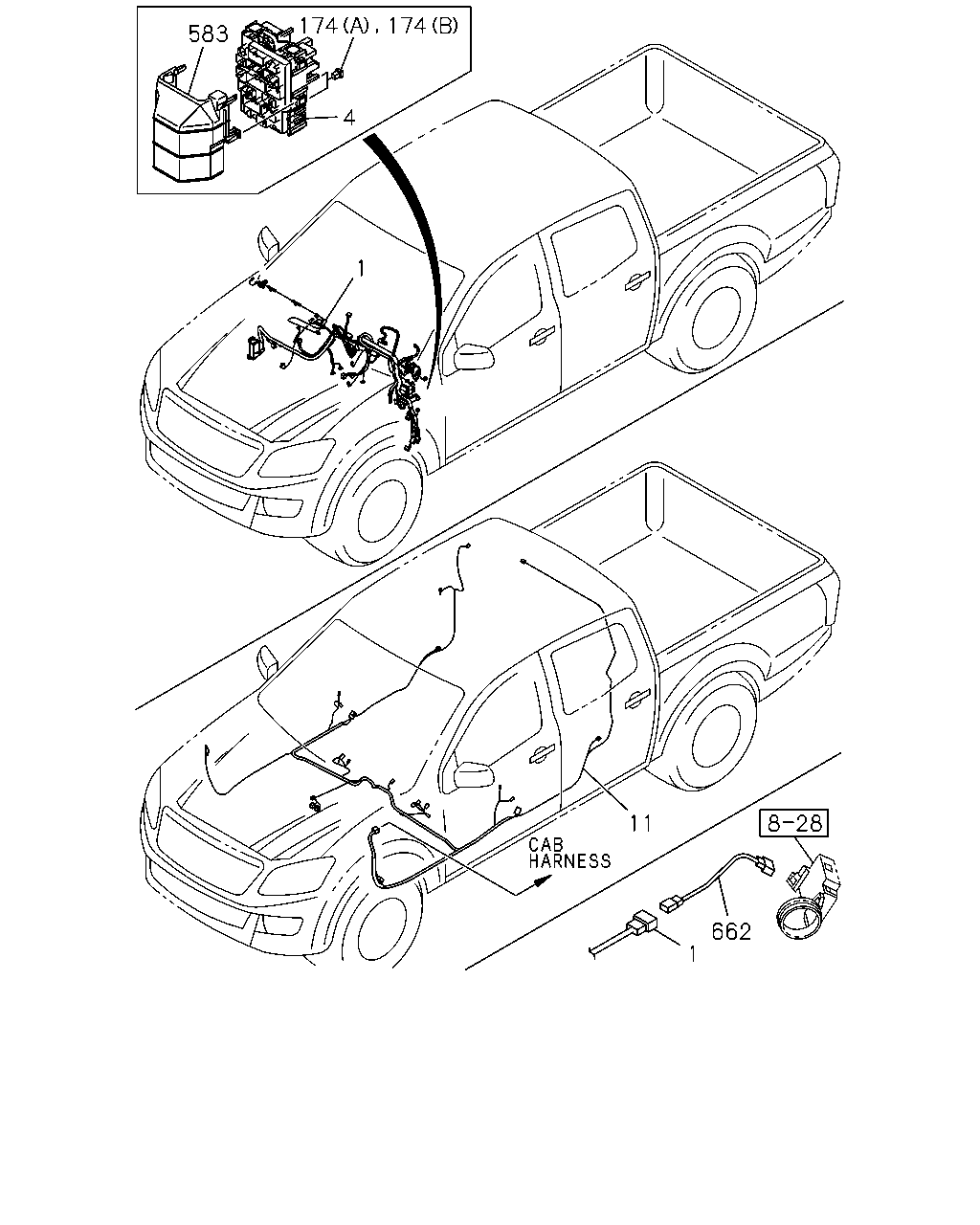

çizim 449460
583 174 174 11 662 1 4 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.480 HARNESS; CAB
INTERIOR BASIC(RBA) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98326-376-0 01 1 1507- ● ●
1 02.480 HARNESS; CAB
INTERIOR BASIC(RBA) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98326-376-0 01 1 1507- ● ●
1 02.480 HARNESS; CAB
INTERIOR BASIC(RBA) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98251-144-1 01 1 1410-1506 ● ● ● ●
1 02.480 HARNESS; CAB
INTERIOR BASIC(RBA) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM CUSTOM<UW6>,REMOTE CONT D OOR LOCK W/ANTI THEFT<7KY> 		8-98251-144-1 01 1 1507- ● ●
1 02.480 HARNESS; CAB
INTERIOR BASIC(RBA) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTE M CUSTOM<UW6>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98251-144-1 01 1 1507- ● ●
1 02.480 HARNESS; CAB
INTERIOR BASIC(RBA) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-479-7 01 1 1410- ● ● ● ●
1 02.480 HARNESS; CAB
AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98160-479-7 01 1 1410- ● ●
1 02.480 HARNESS; CAB
INTERIOR BASIC(RBA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-480-6 01 1 1410-1506 ● ● ● ●
1 02.480 HARNESS; CAB
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. AUTO DOOR LOCK<AU4> 		8-98160-480-6 01 1 1410-1506 ● ●
1 02.480 HARNESS; CAB
INTERIOR BASIC(RBA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6>,REM OTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-480-6 01 1 1507- ● ●
1 02.480 HARNESS; CAB
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. AUTO DOOR LOCK<AU4> 		8-98160-480-6 01 1 1507- ● ●
1 02.480 HARNESS; CAB
INTERIOR BASIC(RBA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPE AKER SYSTEM CUSTOM<UW6>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-480-6 01 1 1507- ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-473-7 01 1 1410-1506 ● ● ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-473-7 01 1 1507- ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-473-7 01 1 1507- ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98160-474-7 01 1 1410-1506 ● ● ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98160-474-7 01 1 1507- ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98160-474-7 01 1 1507- ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-471-8 01 1 1410-1506 ● ● ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-471-8 01 1 1507- ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-471-8 01 1 1507- ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98160-472-7 01 1 1410-1506 ● ● ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98160-472-7 01 1 1507- ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98160-472-7 01 1 1507- ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-478-7 01 1 1410-1506 ● ● ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-478-7 01 1 1507- ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-478-7 01 1 1507- ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-475-7 01 1 1410-1506 ● ● ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-475-7 01 1 1507- ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-475-7 01 1 1507- ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98166-752-0 01 1 1410- ● ● ● ● ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> 		8-98160-576-7 01 1 1410- ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1> 		8-98160-578-7 01 1 1410- ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HEATER FRT SEAT<KA1> 		8-98160-577-7 01 1 1410- ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. HEATER FRT SEAT<KA1> 		8-98160-579-7 01 1 1410- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) 		8-98160-561-2 01 1 1410- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98160-562-6 01 1 1410- ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HEATER FRT SEAT<KA1> HIGH RIDE SUSPENSION(7YC) 		8-98160-647-8 01 1 1410- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HEATER FRT SEAT<KA1> 		8-98160-647-8 01 1 1410- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HIGH RIDE SUSPENSION(7YC) EXC. HEATER FRT SEAT<KA1> 		8-98160-632-8 01 1 1410- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> EXC. HEATER FRT SEAT<KA1> 		8-98160-632-8 01 1 1410- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> HEATER FRT SEAT<KA1> HIGH RIDE SUSPENSION(7YC) 		8-98160-637-8 01 1 1410- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> HEATER FRT SEAT<KA1> 		8-98160-637-8 01 1 1410- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> EXC. HEATER FRT SEAT<KA1> 		8-98160-605-8 01 1 1410- ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. AUTO DOOR LOCK<AU4>,HEATER FRT SEAT<KA1> 		8-98160-622-8 01 1 1410- ● ●
174 08.965 FUSE; SLOW BLOW
(C) 120A WHITE 		1-82516-028-1 AR 1 1410- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-98079-191-0 AR 1 1410- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(D) 40A GREEN 		8-98079-192-0 AR 1 1410- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(D) 50A RED 		8-98079-193-0 AR 1 1410- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(D) 		8-97219-407-0 AR 1 1410- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(E) 60A YELLOW 		8-98197-288-0 AR 1 1410- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 20A BLUE 		8-98079-189-0 AR 1 1410-1506 ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 20A BLUE 		8-98079-189-0 02 1 1507- ● ● ● ● ● ●
583 02.559 COVER; HARNESS
M/T AISIN 6 SPEED(RNU) 		8-98179-407-0 01 1 1410- ● ● ● ● ● ●
662 02.525 HARNESS; IMMOBILIZER 8-98163-074-0 01 1 1410- ● ● ● ● ● ●
çizim 451456
655
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
655 02.480 RETAINER
08.077 		8-97182-405-0 01 1 1410- ● ● ● ● ● ●
çizim 451577
4 734 750 749
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 02.483 BOX ASM; FUSE,HARNESS 8-98166-752-0 01 1 1410- ● ● ● ● ● ●
734 02.694 RELAY; ACC SOCKET
09.778 12V YAZAKI 		8-97309-293-0 01 1 1410- ● ● ● ● ● ●
749 02.694 RELAY; POWER WINDOW
09.778 12V YAZAKI 		8-97309-293-0 01 1 1410- ● ● ● ● ● ●
750 02.694 RELAY; RR DEFOGGER
09.778 12V YAZAKI 		8-97309-293-0 01 1 1410- ● ● ● ● ● ●

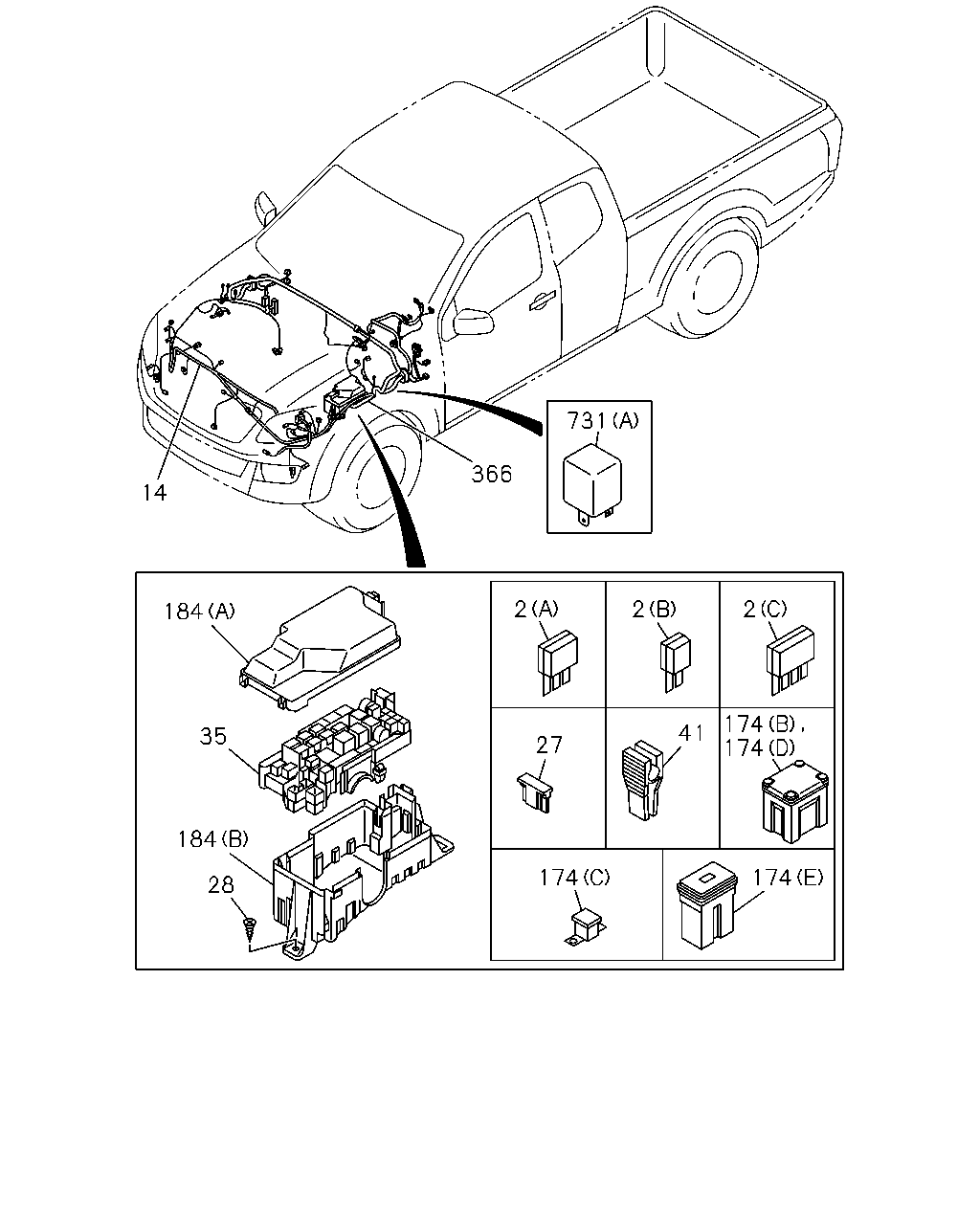

çizim 451779
14 366 731 2 2 2 27 41 174 174 174 174 184 28 35 184
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 02.483 DIODE; CABLE HARNESS
(C) BLACK 4P-1.5A 		8-94381-730-0 AR 1 1410- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1410- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1410- ● ● ● ● ● ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-353-1 01 1 1410- ● ● ● ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> HEADLAMPS PROJECTOR BEAM<8LH> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98159-352-1 01 1 1410- ● ● ● ●
14 02.727 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98159-351-1 01 1 1410- ● ● ● ●
14 02.727 HARNESS; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-350-1 01 1 1410- ● ● ● ●
14 02.727 HARNESS; HEADLAMP
EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,HEADLAMPS PROJECT OR BEAM<8LH> 		8-98159-342-1 01 1 1410- ● ● ● ●
14 02.727 HARNESS; HEADLAMP 8-98159-342-1 01 1 1410- ● ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1410- ● ● ● ● ● ●
27 08.965 FUSE UNIT
02.485 15A BLUE 		8-98054-258-0 AR 1 1410- ● ● ● ● ● ●
27 08.965 FUSE UNIT
02.485 20A YELLOW 		8-98054-259-0 AR 1 1410- ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX 8-97249-192-0 02 1 1410- ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-98113-097-0 01 1 1410- ● ● ● ● ● ●
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 1410- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(C) 120A WHITE 		1-82516-028-1 AR 1 1410- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-98079-191-0 AR 1 1410- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(D) 40A GREEN 		8-98079-192-0 AR 1 1410- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(D) 50A RED 		8-98079-193-0 AR 1 1410- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(D) 		8-97219-407-0 AR 1 1410- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(E) 60A YELLOW 		8-98197-288-0 AR 1 1410- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 20A BLUE 		8-98079-189-0 AR 1 1410-1506 ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 20A BLUE 		8-98079-189-0 02 1 1507- ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(A) 		8-98113-098-0 01 1 1410- ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(B) 		8-98113-099-0 01 1 1410- ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) 		8-98270-151-2 01 1 1410- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98270-151-2 01 1 1410- ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98270-138-2 01 1 1410- ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-98270-150-2 01 1 1410- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98270-150-2 01 1 1410- ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98270-137-2 01 1 1410- ●
731 02.483 RELAY; DRL
02.485 (A) 12V YAZAKI 		8-97309-292-0 01 1 1410- ● ● ● ● ● ●
731 02.483 RELAY; DRL
09.778 (B) 12V YAZAKI 		8-97309-293-0 01 1 1410- ● ● ● ● ● ●

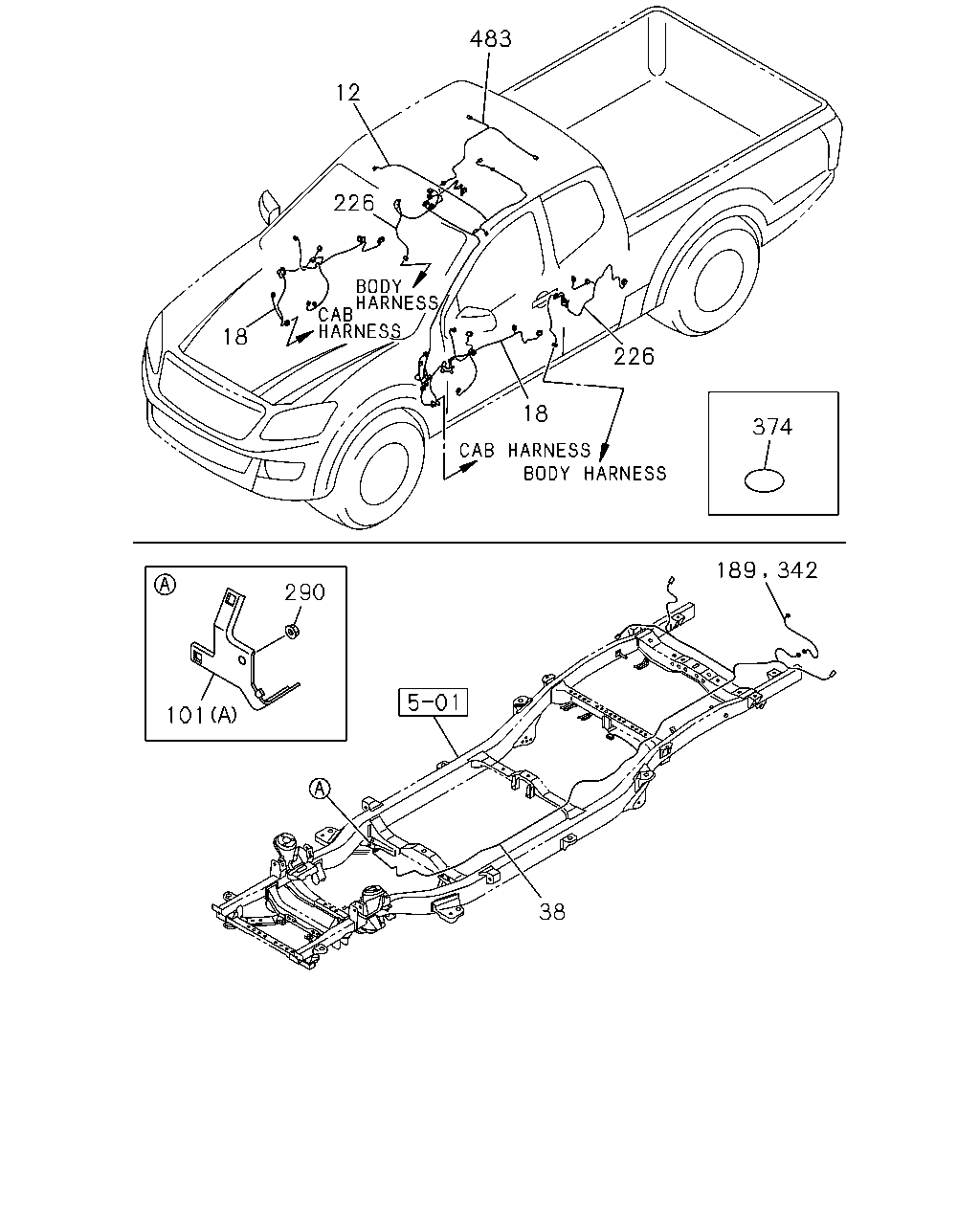

çizim 451879
12 226 18 18 226 374 342 189 483 38 290 101
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 02.480 HARNESS; ROOF
MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> 		8-98159-482-5 01 1 1410- ● ● ● ●
12 02.480 HARNESS; ROOF
MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-481-4 01 1 1410- ● ● ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> 		8-98159-484-5 01 1 1410- ● ● ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-483-4 01 1 1410- ● ● ● ●
12 02.480 HARNESS; ROOF
6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> 		8-98272-274-1 01 1 1410- ● ● ● ●
12 02.480 HARNESS; ROOF
EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-480-4 01 1 1410- ● ● ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5) 		8-98159-332-0 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98159-333-4 01 1 1410- ● ●
18 02.480 HARNESS; DOOR
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98225-358-0 01 1 1410- ● ● ● ●
18 02.480 HARNESS; DOOR
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98225-360-0 01 1 1410- ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-493-3 01 1 1410- ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-515-2 01 1 1410- ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98159-495-3 01 1 1410- ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-517-2 01 1 1410- ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98159-517-2 01 1 1410- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98159-497-3 01 1 1410- ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98159-497-3 01 1 1410- ● ●
18 02.480 HARNESS; DOOR
DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> 		8-98159-523-3 01 1 1410- ● ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EXC. AUTO DOOR LOCK<AU4> 		8-98159-523-3 01 1 1410- ● ●
18 02.480 HARNESS; DOOR
DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> 		8-98159-499-4 01 1 1410- ● ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EXC. AUTO DOOR LOCK<AU4> 		8-98159-499-4 01 1 1410- ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> 		8-98159-498-2 01 1 1410- ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> 		8-98159-518-2 01 1 1410- ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4> 		8-98159-500-2 01 1 1410- ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4> 		8-98159-524-2 01 1 1410- ● ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98159-327-3 01 1 1410- ● ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98159-327-3 01 1 1410- ● ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) REAR STEP BUMPER(VF6) 		8-98159-327-3 01 1 1410- ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63) 		8-98159-327-3 01 1 1410- ● ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98159-327-3 01 1 1410- ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-329-3 01 1 1410- ● ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. REAR STEP BUMPER(VF6) 		8-98159-329-3 01 1 1410- ●
38 02.480 HARNESS; CHAS
REAR BODY DELETE(8HH) 		8-98159-328-3 01 1 1410- ● ● ● ●
38 02.480 HARNESS; CHAS
RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) REAR BODY DELETE(8HH) 		8-98159-328-3 01 1 1410- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
A/T 5 SPEED-AISIN(MA1) (B) 		8-98182-490-1 01 1 1410- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(A) 		8-98102-999-0 01 1 1410- ● ● ● ● ● ●
189 02.480 HARNESS; EXT
HIGH RIDE SUSPENSION(7YC) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98140-863-0 01 1 1410- ● ●
189 02.480 HARNESS; EXT
REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98140-863-0 01 1 1410- ● ●
189 02.480 HARNESS; EXT
REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6) 		8-98140-863-0 01 1 1410- ●
189 02.480 HARNESS; EXT
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98140-863-0 01 1 1410- ● ●
189 02.480 HARNESS; EXT
EXC. REAR STEP BUMPER(VF6) 		8-98140-863-0 01 1 1410- ●
226 02.480 HARNESS; RR DOOR 8-98159-355-6 01 1 1410- ● ●
226 02.480 HARNESS; RR DOOR 8-98167-613-6 01 1 1410- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-533-3 01 1 1410- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-534-3 01 1 1410- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98159-527-3 01 1 1410- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98159-528-3 01 1 1410- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 6-SPEAKER SYSTEM BASE<UW5> 		8-98159-535-3 01 1 1410- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 6-SPEAKER SYSTEM BASE<UW5> 		8-98159-536-3 01 1 1410- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> EXC. 6-SPEAKER SYSTEM BASE<UW5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-525-3 01 1 1410- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> EXC. 6-SPEAKER SYSTEM BASE<UW5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-526-3 01 1 1410- ● ●
290 02.483 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 01 1 1410- ● ● ● ● ● ●
342 02.480 HARNESS; EXT,LICENSE LAMP
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98137-579-2 01 1 1410- ● ● ● ●
342 02.480 HARNESS; EXT,LICENSE LAMP
REAR STEP BUMPER(VF6) 		8-98137-579-2 01 1 1410- ● ●
374 02.530 PLUG; HARNESS CONNECTOR
EXC. AUTO DOOR LOCK<AU4>,6-SPEAKER SYSTEM BASE<UW5> 02.559 D=58 BLACK 		8-97302-191-0 02 1 1410- ● ●
483 02.480 HARNESS; EXT,RADIO
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98165-202-2 01 1 1410- ● ● ● ●
483 02.480 HARNESS; EXT,RADIO
6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> 		8-98129-592-2 01 1 1410- ● ● ● ●

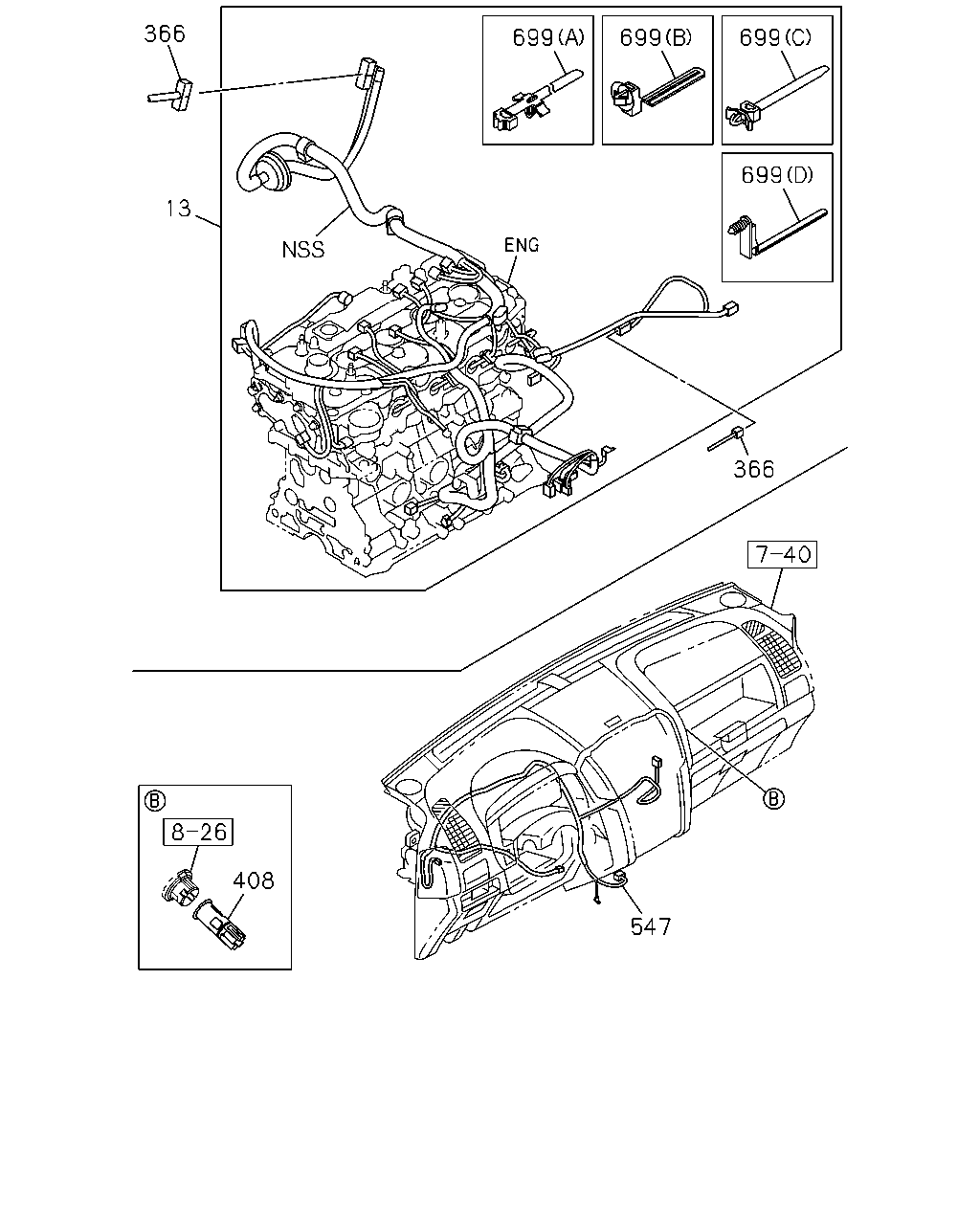

çizim 451953
366 13 699 699 699 699 366 547 408
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
13 02.525 HARNESS; ENG
M/T AISIN 6 SPEED(RNU) 		8-98188-433-7 01 1 1410- ● ● ●
13 02.525 HARNESS; ENG
A/T 5 SPEED-AISIN(MA1) 		8-98260-550-0 01 1 1410- ● ●
13 02.525 HARNESS; ENG
M/T AISIN 6 SPEED(RNU) 		8-98260-551-0 01 1 1410- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) 		8-98270-151-2 01 1 1410- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98270-151-2 01 1 1410- ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98270-138-2 01 1 1410- ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-98270-150-2 01 1 1410- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98270-150-2 01 1 1410- ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98270-137-2 01 1 1410- ●
408 02.575 SOCKET ASM; ACCESSORY
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98123-115-0 01 1 1410- ● ● ● ● ● ●
547 02.480 HARNESS; CABLE,SRS 8-98163-069-2 01 1 1410- ● ● ● ●
547 02.480 HARNESS; CABLE,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98159-337-2 01 1 1410- ● ●
547 02.480 HARNESS; CABLE,SRS
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98163-068-2 01 1 1410- ● ●
699 02.559 CLIP; ENG HARNESS
M/T AISIN 6 SPEED(RNU) (A) L=170.3 		1-09987-182-0 01 1 1410- ● ● ●
699 02.559 CLIP; ENG HARNESS
M/T AISIN 6 SPEED(RNU) (B) L=155 		8-97173-307-0 01 1 1410- ● ● ●
699 02.559 CLIP; ENG HARNESS
M/T AISIN 6 SPEED(RNU) (B) L=140 		8-97378-707-0 01 1 1410- ● ● ●
699 02.559 CLIP; ENG HARNESS
M/T AISIN 6 SPEED(RNU) (C) L=146.2 		8-98052-677-0 01 1 1410- ● ● ●
699 02.559 CLIP; ENG HARNESS
M/T AISIN 6 SPEED(RNU) (D) 		8-98182-511-0 02 1 1410- ● ● ●
çizim 467263
366 731 736 738 739 741 743 742 744 746 737 745 747 748
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) 		8-98270-151-2 01 1 1410- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98270-151-2 01 1 1410- ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98270-138-2 01 1 1410- ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-98270-150-2 01 1 1410- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98270-150-2 01 1 1410- ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98270-137-2 01 1 1410- ●
731 02.483 RELAY; DRL
02.485 (A) 12V YAZAKI 		8-97309-292-0 01 1 1410- ● ● ● ● ● ●
731 02.483 RELAY; DRL
09.778 (B) 12V YAZAKI 		8-97309-293-0 01 1 1410- ● ● ● ● ● ●
736 02.694 RELAY; STARTER CUT
02.485 12V YAZAKI 		8-97309-292-0 01 1 1410- ● ● ● ● ● ●
737 02.694 RELAY; DIMMER
02.485 12V YAZAKI 		8-97309-292-0 01 1 1410- ● ● ● ● ● ●
738 02.694 RELAY; HEADLAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 1410- ● ● ● ● ● ●
739 02.694 RELAY; TAIL LAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 1410- ● ● ● ● ● ●
741 02.694 RELAY; HORN
09.778 12V YAZAKI 		8-97309-293-0 01 1 1410- ● ● ● ● ● ●
742 02.694 RELAY; THERMO
09.778 12V YAZAKI 		8-97309-293-0 01 1 1410- ● ● ● ● ● ●
743 02.694 RELAY; A/C COMPRESSOR
09.778 12V YAZAKI 		8-97309-293-0 01 1 1410- ● ● ● ● ● ●
744 02.694 RELAY; RR FOG LAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 1410- ● ● ● ● ● ●
745 02.694 RELAY; HEATER
03.670 12V YAZAKI 		8-98146-834-0 01 1 1410- ● ● ● ● ● ●
746 02.694 RELAY; ECM,MAIN
03.670 12V YAZAKI 		8-98146-834-0 01 1 1410- ● ● ● ● ● ●
747 02.694 RELAY; GLOW
02.100 12V YAZAKI 		8-98146-837-0 01 1 1410- ● ● ● ● ● ●
748 02.694 RELAY; STARTER
02.100 12V YAZAKI 		8-98146-837-0 01 1 1410- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
