Isuzu WW
▶
PICKUP
▶
TFR
▶
51581 - TFR/TFS LHD EUROPE
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-60 - SEAT BELT
▶
7-60 — SEAT BELT
(#151519) — 24 parça
Tümü
A - TFB6CF
B - TFB6SF
C - TFB6WF
D - TFS6CF
E - TFS6SF
F - TFS6WF
◀

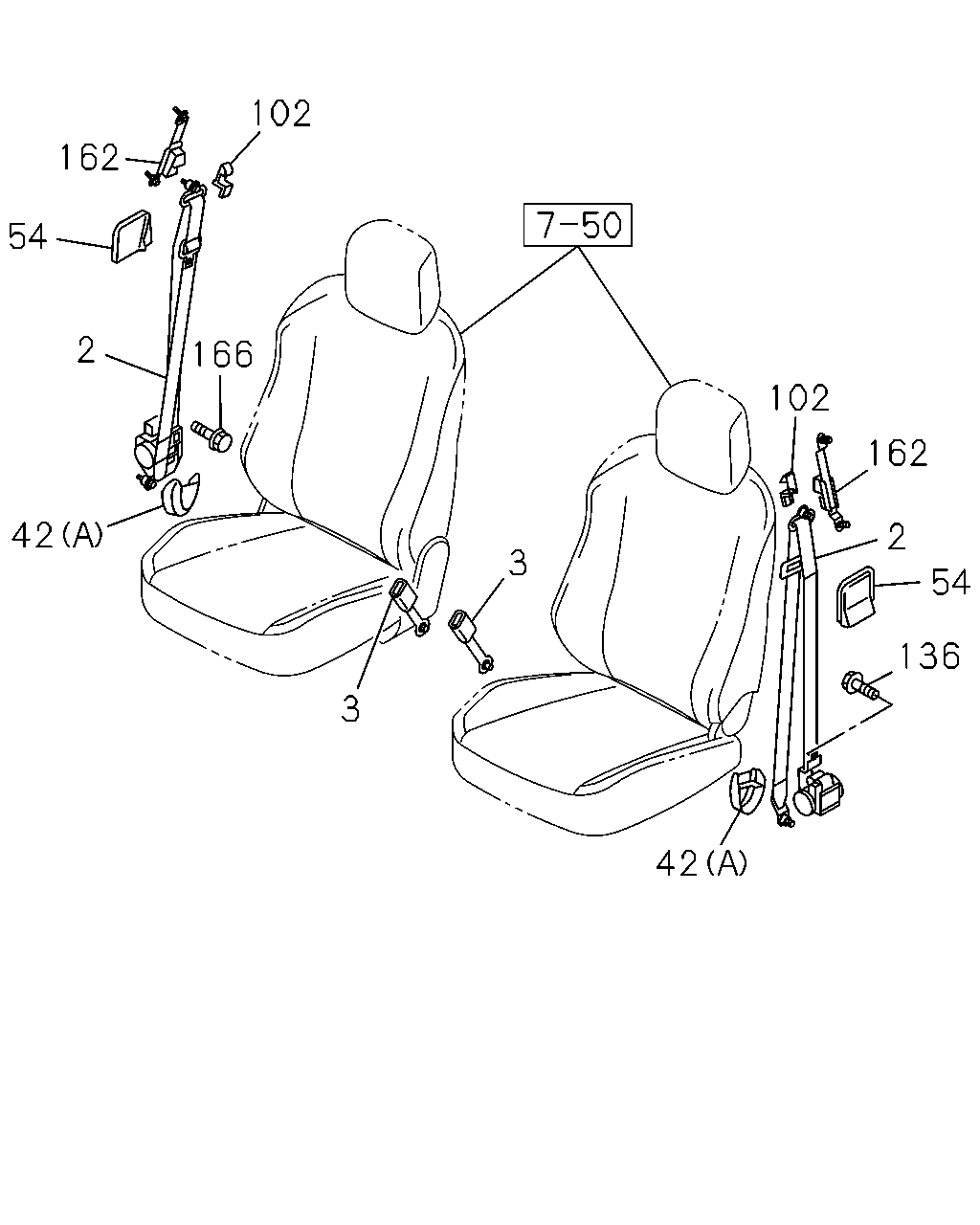

[760A] FRONT (15 parça)

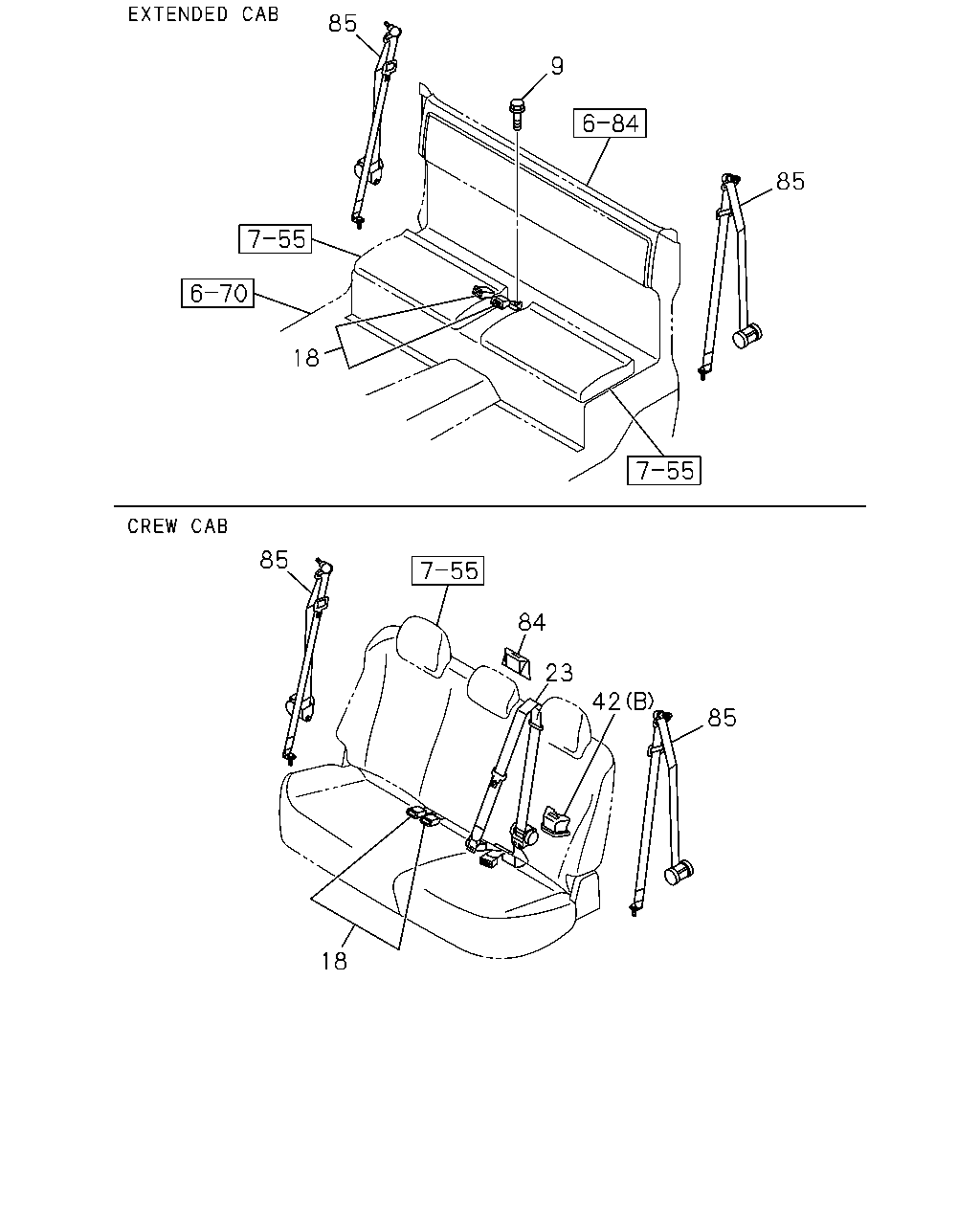

[760A] REAR (9 parça)
▶
136
2
162
102
54
42
3
3
42
2
54
162
102
166
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
2
16.714 BELT; SEAT,TONGUE SIDE
BLACK
8-97423-663-0
01
1
1410-
●
●
●
●
●
●
2
16.714 BELT; SEAT,TONGUE SIDE
BLACK
8-97423-666-0
01
1
1410-
●
●
●
●
●
●
3
16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER(AK5) BLACK
8-97416-839-0
01
1
1410-
●
●
3
16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER(AK5) BLACK
8-97426-632-0
01
1
1410-
●
●
3
16.714 BELT; SEAT,BUCKLE SIDE
BLACK
8-97426-631-0
01
1
1410-
●
●
●
●
3
16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) BLACK
8-97426-631-0
01
1
1410-
●
●
3
16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) BLACK
8-97426-630-0
01
1
1410-
●
●
●
●
●
●
42
16.578 COVER; SEAT BELT
(A) BLACK
8-97417-001-0
02
1
1410-
●
●
42
16.578 COVER; SEAT BELT
INTERIOR BASIC(RBA) (B) BLACK
8-97417-408-0
01
1
1410-
●
●
54
16.714 BEZEL; SEAT BELT
16.165 BLACK
8-97416-758-1
01
1
1410-
●
●
54
16.714 BEZEL; SEAT BELT
16.165 BLACK
8-97416-760-1
01
1
1410-
●
●
102
16.714 COVER; SHOULDER ANCHOR
BLACK
8-97416-646-2
02
1
1410-
●
●
●
●
●
●
136
16.714 BOLT; SEAT BELT
02.343 M6X16 FLANGE
0-28650-616-0
01
1
1410-
●
●
●
●
●
●
162
16.714 ADJUSTER; SEAT BELT
BLACK
8-97416-645-1
02
1
1410-
●
●
●
●
●
●
166
16.714 BOLT; SEAT BELT ANCHOR
02.343 M6X16 FLANGE
0-28650-616-0
01
1
1410-
●
●
●
●
●
●
85
18
85
85
84
23
42
85
18
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
9
16.714 BOLT; SEAT BELT ANCHOR
JUMP SEAT<AJ2> 16.682 M12X27.5 W/PL WASHER
8-98050-319-0
01
1
1410-
●
●
18
16.714 BELT; SEAT,RR
JUMP SEAT<AJ2> BLACK
8-97417-403-3
01
1
1410-
●
●
18
16.714 BELT; SEAT,RR
BLACK
8-97416-937-1
01
1
1410-
●
●
23
16.714 BELT; SEAT,CENTER
BLACK
8-97417-405-3
01
1
1410-
●
●
42
16.578 COVER; SEAT BELT
(A) BLACK
8-97417-001-0
02
1
1410-
●
●
42
16.578 COVER; SEAT BELT
INTERIOR BASIC(RBA) (B) BLACK
8-97417-408-0
01
1
1410-
●
●
84
16.714 COVER; RETRACTOR,RR SEAT BELT
BLACK
8-97417-409-1
01
1
1410-
●
●
85
16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> BLACK
8-97423-669-0
02
1
1410-
●
●
85
16.714 BELT; SEAT,RR OUTER
BLACK
8-97423-669-0
02
1
1410-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
