Sayfa 7-50 - Isuzu EPC

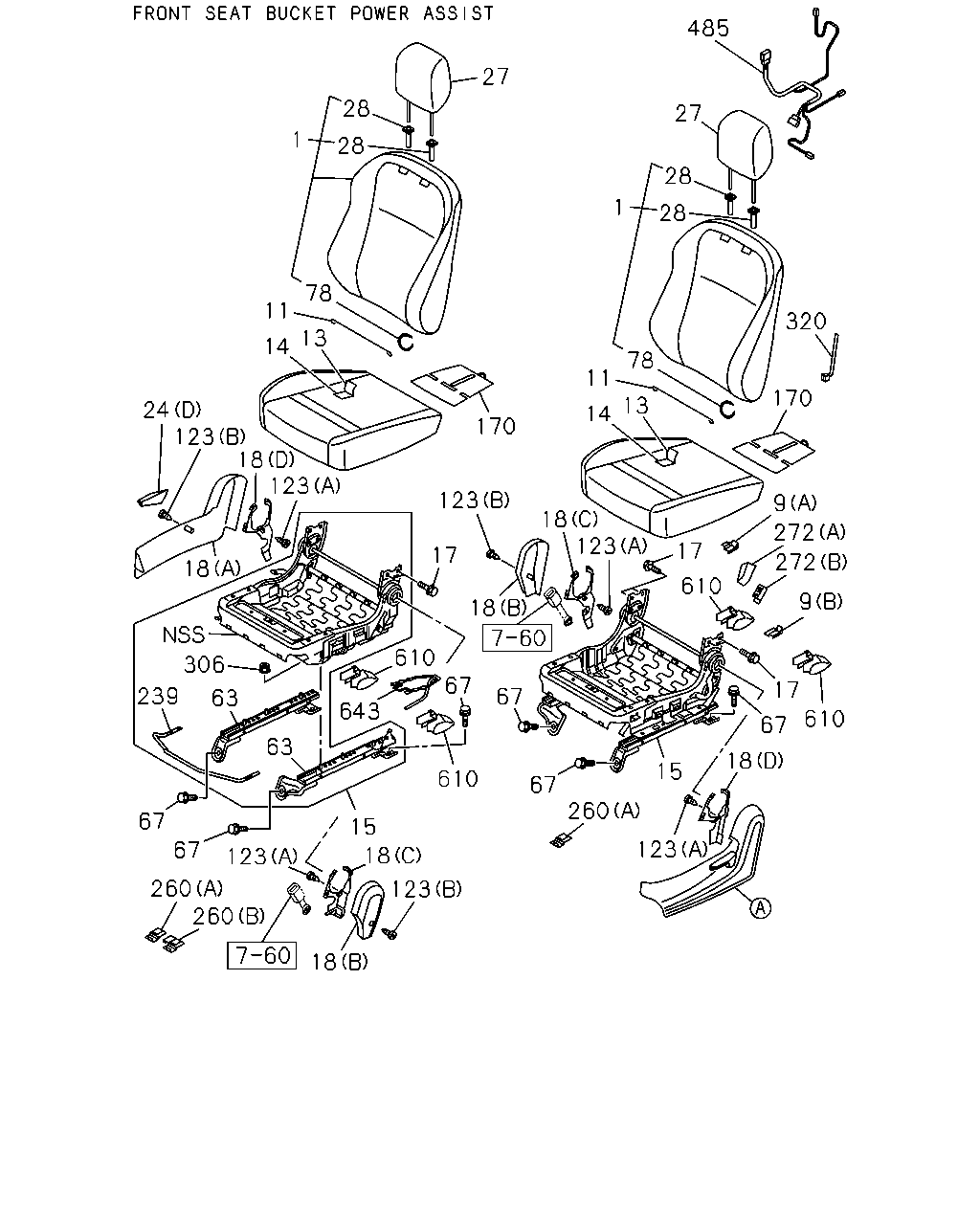

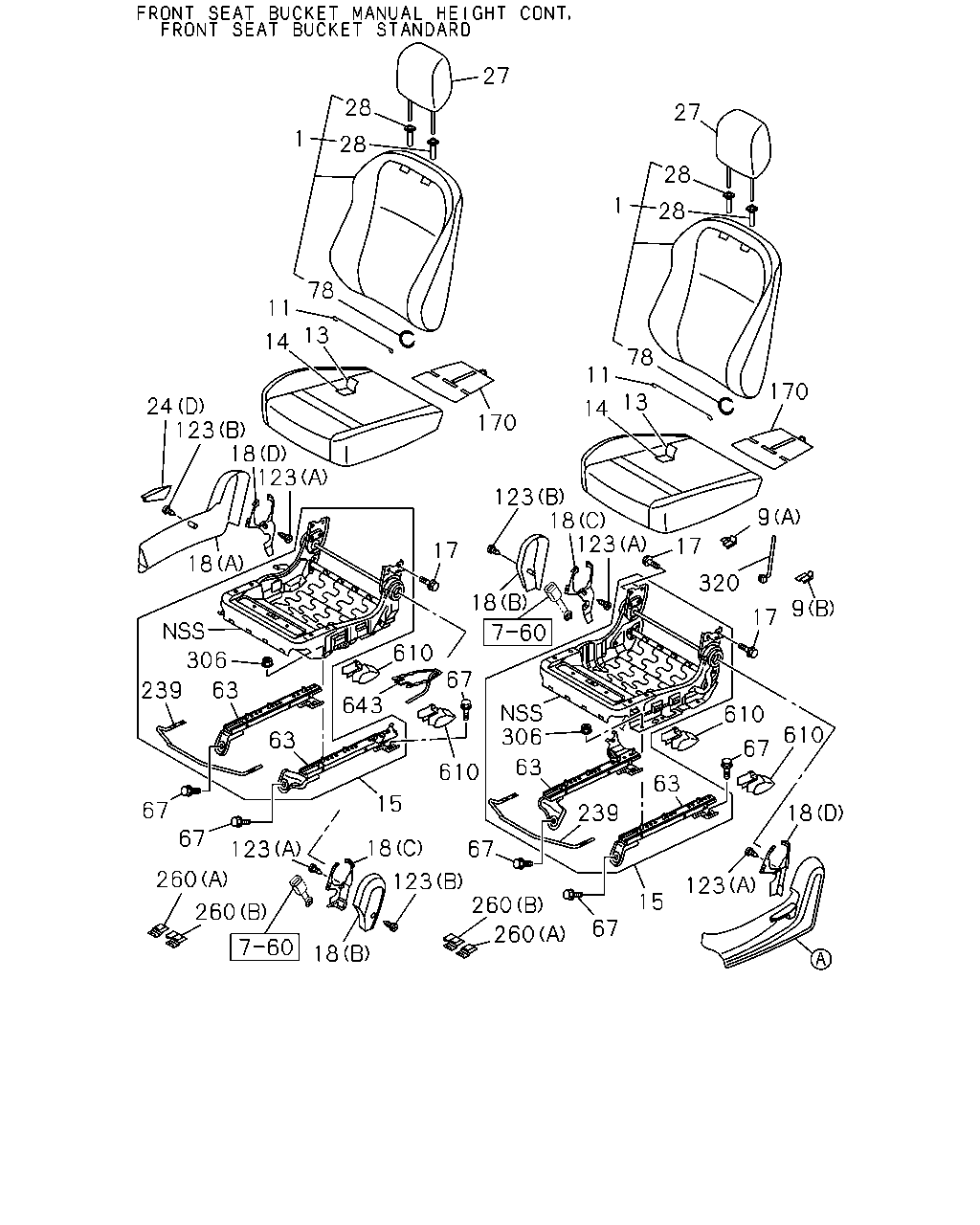

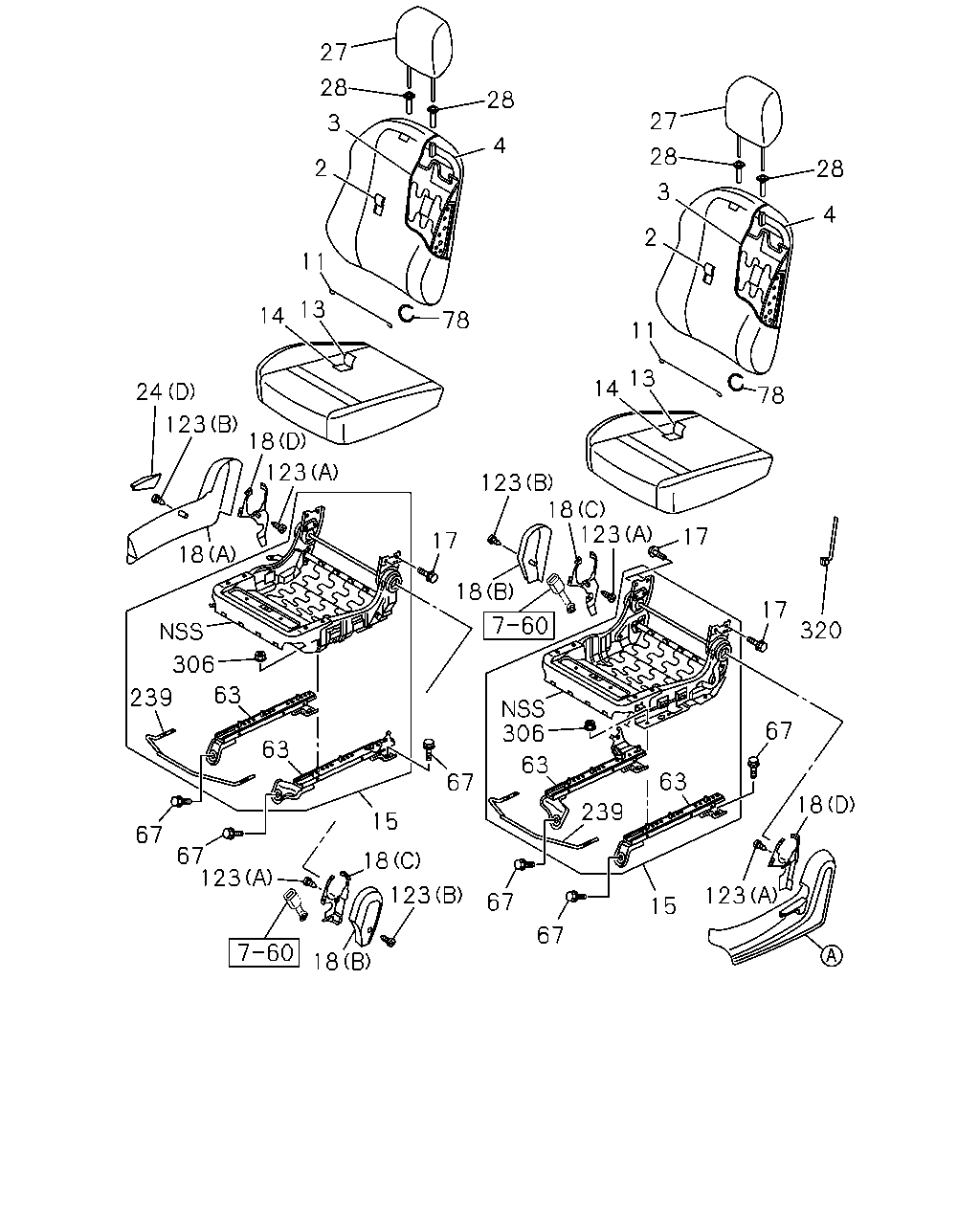

7-50 — FRONT SEAT (#151517) — 636 parça

27 28 28 1 1 27 28 28 170 78 13 11 14 9 9 17 320 17 610 610 67 18 123 63 15 67 239 260 260 123 18 67 63 306 610 15 67 610 643 18 260 260 123 67 67 18 17 123 18 123 170 78 13 11 14 24 123 18 123 18 306 63 63 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.720 BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) HEATER FRT SEAT<KA1> SEAT TRIM LEATHER<6TB> BLACK	8-97465-172-0	01	1	1410-1410	●	●	●	●
1	16.720 BACK ASM; SEAT INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) HEATER FRT SEAT<KA1> SEAT TRIM LEATHER<6TB> BLACK	8-97465-172-0	01	1	1411-	●	●	●	●
1	16.720 BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. HEATER FRT SEAT<KA1> BLACK	8-97465-170-0	01	1	1410-1410	●	●	●	●
1	16.720 BACK ASM; SEAT INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. HEATER FRT SEAT<KA1> BLACK	8-97465-170-0	01	1	1411-	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> BLACK	8-97465-175-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1> BLACK	8-97465-173-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-412-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97425-412-0	01	1	1410-					●	●
1	16.720 BACK ASM; SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-417-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97425-417-0	01	1	1410-					●	●
1	16.720 BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HEATER FRT SEAT<KA1> BLACK	8-97423-903-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. HEATER FRT SEAT<KA1> BLACK	8-97423-900-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) HEATER FRT SEAT<KA1> BLACK	8-97423-902-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> BLACK	8-97423-901-0	01	1	1410-	●	●	●	●
9	16.682 COVER; SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) OUTER	8-98273-209-0	01	1	1410-1410	●	●	●	●
9	16.682 COVER; SIDE INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) OUTER	8-98273-209-0	01	1	1411-	●	●	●	●
9	16.682 COVER; SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) INNER	8-98273-213-0	01	1	1410-1410	●	●	●	●
9	16.682 COVER; SIDE INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) INNER	8-98273-213-0	01	1	1411-	●	●	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (A) INNER BLACK	8-97424-603-0	01	1	1410-1410	●	●	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) OUTER BLACK	8-97424-606-0	01	1	1410-1410	●	●	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) OUTER	8-98273-218-0	01	1	1410-	●	●	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (A) INNER	8-98273-220-0	01	1	1410-	●	●	●	●
11	16.682 WIRE; SEAT BACK SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98220-094-0	02	1	1410-1410	●	●	●	●
11	16.682 WIRE; SEAT BACK	8-98220-094-0	02	1	1410-1410					●	●
11	16.682 WIRE; SEAT BACK	8-98220-094-0	01	1	1411-	●	●	●	●	●	●
11	16.682 WIRE; SEAT BACK	8-98220-094-0	01	1	1411-	●	●	●	●	●	●
11	16.682 WIRE; SEAT BACK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-094-0	01	1	1410-1410	●	●	●	●
11	16.682 WIRE; SEAT BACK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-094-0	01	1	1410-1410	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> BLACK	8-97465-280-0	01	1	1410-1410	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> BLACK	8-97465-280-0	01	1	1411-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> BLACK	8-97465-268-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1> BLACK	8-97465-266-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-157-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97423-157-0	01	1	1410-					●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-159-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97423-159-0	01	1	1410-					●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-146-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) BLACK	8-97425-109-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> BLACK	8-97423-149-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97423-188-0	01	1	1410-					●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97423-189-0	01	1	1410-					●	●
14	16.716 PAD; FRT SEAT CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98187-562-0	01	1	1410-1410	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98187-562-0	01	1	1411-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-705-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-695-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)	8-98187-695-0	01	1	1410-					●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-558-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION	8-98187-558-0	01	1	1410-					●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-700-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-560-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER(AK5)	8-98187-557-0	01	1	1410-					●	●
15	16.716 FRAME; CUSHION,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98224-308-0	01	1	1410-1410	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98224-308-0	01	1	1411-	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> EXC. HEATER FRT SEAT<KA1>	8-98187-715-3	01	1	1410-	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT	8-98187-715-3	01	1	1410-					●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91)	8-98230-519-1	01	1	1410-	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5)	8-98187-567-2	01	1	1410-					●	●
15	16.716 FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5)	8-98187-568-2	01	1	1410-					●	●
15	16.716 FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)	8-98187-714-3	01	1	1410-	●	●	●	●	●	●
17	16.682 BOLT; RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98220-045-0	08	1	1410-1410	●	●	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	08	1	1410-1410					●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1411-	●	●	●	●	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1411-	●	●	●	●	●	●
17	16.682 BOLT; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-045-0	04	1	1410-1410	●	●	●	●
17	16.682 BOLT; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-045-0	04	1	1410-1410	●	●	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-098-0	01	1	1410-1410	●	●	●	●
18	16.682 COVER; RECLINING INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-098-0	01	1	1411-	●	●	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (D) BLACK	8-97424-608-0	01	1	1410-1410	●	●	●	●
18	16.682 COVER; RECLINING INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (D) BLACK	8-97424-608-0	01	1	1411-	●	●	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (C) BLACK	8-97424-610-0	01	1	1410-1410	●	●	●	●
18	16.682 COVER; RECLINING INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (C) BLACK	8-97424-610-0	01	1	1411-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> EXC. HEATER FRT SEAT<KA1> (A) BLACK	8-97424-092-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-092-0	01	1	1410-					●	●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-096-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-090-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-582-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-585-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-515-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-515-0	01	1	1410-					●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (C) BLACK	8-97424-516-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-516-0	01	1	1410-					●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-611-0	01	1	1410-1410	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-611-0	01	1	1411-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) BLACK	8-97424-612-0	01	1	1410-1410	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) BLACK	8-97424-612-0	01	1	1411-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (C) BLACK	8-97424-597-0	01	1	1410-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-591-0	01	1	1410-	●	●	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-518-0	01	1	1410-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-518-0	01	1	1410-					●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-146-0	01	1	1410-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-146-0	01	1	1410-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-146-0	02	1	1410-1410	●	●	●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97425-146-0	02	1	1410-1410					●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-146-0	01	1	1411-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-146-0	01	1	1411-	●	●	●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97425-146-0	01	1	1411-					●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97425-146-0	01	1	1411-					●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97424-716-0	02	1	1410-1410					●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97424-716-0	01	1	1411-					●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97424-716-0	01	1	1411-					●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97424-664-0	01	1	1410-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97424-664-0	01	1	1410-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.716 LOCK BLACK	8-97424-665-0	02	1	1410-1410	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 LOCK BLACK	8-97424-665-0	02	1	1410-1410					●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-665-0	01	1	1411-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-665-0	01	1	1411-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 LOCK BLACK	8-97424-665-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 LOCK BLACK	8-97424-665-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.716 FREE BLACK	8-97424-666-0	02	1	1410-1410	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 FREE BLACK	8-97424-666-0	02	1	1410-1410					●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-666-0	01	1	1411-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-666-0	01	1	1411-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 FREE BLACK	8-97424-666-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 FREE BLACK	8-97424-666-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 LOCK BLACK	8-97424-499-0	02	1	1410-1410					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 LOCK BLACK	8-97424-499-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 LOCK BLACK	8-97424-499-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 FREE BLACK	8-97424-500-0	02	1	1410-1410					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 FREE BLACK	8-97424-500-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 FREE BLACK	8-97424-500-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.716 LOCK BLACK	8-97424-665-0	01	1	1410-1410	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.716 LOCK BLACK	8-97424-665-0	01	1	1410-1410	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.716 FREE BLACK	8-97424-666-0	01	1	1410-1410	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.716 FREE BLACK	8-97424-666-0	01	1	1410-1410	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> EXC. HEATER FRT SEAT<KA1> OUTER	8-98224-312-1	01	1	1410-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE OUTER	8-98224-312-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) INNER	8-98230-520-1	01	1	1410-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER(AK5) INNER	8-98220-096-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER(AK5) OUTER	8-98220-097-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER(AK5) OUTER	8-98224-186-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER(AK5) INNER	8-98224-187-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) OUTER	8-98224-309-1	01	1	1410-	●	●	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) INNER	8-98224-311-1	01	1	1410-	●	●	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> OUTER	8-98224-310-1	01	1	1410-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) OUTER	8-98224-310-1	01	1	1410-				●	●
67	16.682 BOLT; FRT SEAT TO BODY M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1410-	●	●	●	●	●	●
78	16.680 RING; SNAP SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	24	1	1410-1410	●	●	●	●
78	16.680 RING; SNAP 16.724	8-98220-068-0	24	1	1410-1410					●	●
78	16.680 RING; SNAP SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	12	1	1411-	●	●	●	●
78	16.680 RING; SNAP SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	12	1	1411-	●	●	●	●
78	16.680 RING; SNAP 16.724	8-98220-068-0	12	1	1411-					●	●
78	16.680 RING; SNAP 16.724	8-98220-068-0	12	1	1411-					●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	17	1	1410-	●	●	●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	17	1	1410-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) HEATER FRT SEAT<KA1> SEAT TRIM LEATHER<6TB> (B) M4X10	8-98220-086-0	04	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) HEATER FRT SEAT<KA1> SEAT TRIM LEATHER<6TB> (B) M4X10	8-98220-086-0	04	1	1411-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. HEATER FRT SEAT<KA1> (B) M4X10	8-98220-086-0	05	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	05	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. HEATER FRT SEAT<KA1> (B) M4X10	8-98220-086-0	05	1	1411-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	05	1	1411-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	04	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	04	1	1410-1410					●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	06	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	06	1	1410-1410					●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) M4X10	8-98220-086-0	03	1	1410-1410	●	●	●	●
170	16.716 HEATER ASM; FRT SEAT CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) HEATER FRT SEAT<KA1> SEAT TRIM LEATHER<6TB>	8-98224-219-0	01	1	1410-1410	●	●	●	●
170	16.716 HEATER ASM; FRT SEAT CUSHION INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) HEATER FRT SEAT<KA1> SEAT TRIM LEATHER<6TB>	8-98224-219-0	01	1	1411-	●	●	●	●
170	16.716 HEATER ASM; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1>	8-98224-498-0	01	1	1410-	●	●	●	●
170	16.716 HEATER ASM; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HEATER FRT SEAT<KA1>	8-98231-305-0	01	1	1410-	●	●	●	●
170	16.716 HEATER ASM; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) HEATER FRT SEAT<KA1>	8-98231-306-0	01	1	1410-	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	02	1	1410-1410	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT	8-98220-104-0	02	1	1410-1410					●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	01	1	1411-	●	●	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	01	1	1411-	●	●	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98220-104-0	01	1	1411-	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	01	1	1410-1410	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	01	1	1410-1410	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98220-104-0	01	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) HEATER FRT SEAT<KA1> (A)	8-98224-267-0	02	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS INTERIOR BASIC(RBA) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91), HEATER FRT SEAT<KA1> (A)	8-98224-267-0	02	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A)	8-98224-267-0	02	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (A)	8-98224-267-0	02	1	1410-1410					●	●
260	16.682 CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) HEATER FRT SEAT<KA1> (A)	8-98224-267-0	02	1	1411-	●	●	●	●
260	16.682 CLIP; HARNESS INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A)	8-98224-267-0	02	1	1411-	●	●	●	●
260	16.682 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (B)	8-98224-497-0	01	1	1410-	●	●	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. HEATER FRT SEAT<KA1> (A)	8-98224-267-0	01	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A)	8-98224-267-0	01	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A)	8-98224-267-0	01	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (A)	8-98224-267-0	01	1	1411-	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (A)	8-98224-267-0	01	1	1411-	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. HEATER FRT SEAT<KA1> (A)	8-98224-267-0	01	1	1411-	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A)	8-98224-267-0	01	1	1411-	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A)	8-98224-267-0	01	1	1411-	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	14	1	1410-1410	●	●	●	●
306	16.682 NUT; SEAT ADJ M8 FLANGE	8-98220-087-0	14	1	1410-1410					●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	07	1	1411-	●	●	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	07	1	1411-	●	●	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> M8 FLANGE	8-98220-087-0	07	1	1411-	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	07	1	1410-1410	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	07	1	1410-1410	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> M8 FLANGE	8-98220-087-0	07	1	1410-1410	●	●	●	●
320	16.679 CLIP; BAND,SEAT 16.686	8-98220-048-0	AR	1	1410-	●	●	●	●	●	●
610	16.682 COVER; LEG,FRT SEAT BLACK	8-97416-785-4	04	1	1410-	●	●	●	●
643	16.682 SENSOR; REMINDER AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)	8-98184-734-0	01	1	1410-	●	●	●	●	●	●

27 3 28 28 4 2 11 14 78 13 24 18 123 123 18 306 63 63 239 67 67 123 15 18 123 67 67 15 123 239 67 306 63 63 67 17 17 320 123 123 17 18 14 13 11 78 4 28 27 3 2 28 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.724 COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97423-177-0	02	1	1410-1410					●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97423-177-0	01	1	1411-					●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97423-177-0	01	1	1411-					●	●
3	16.720 PAD; FRT SEAT BACK AIR BAG DRIVER & PASSENGER(AK5)	8-98187-524-0	02	1	1410-1410					●	●
3	16.720 PAD; FRT SEAT BACK AIR BAG DRIVER & PASSENGER(AK5)	8-98187-524-0	01	1	1411-					●	●
3	16.720 PAD; FRT SEAT BACK AIR BAG DRIVER & PASSENGER(AK5)	8-98187-524-0	01	1	1411-					●	●
4	16.720 FRAME ASM; FRT SEAT AIR BAG DRIVER & PASSENGER(AK5)	8-98187-533-0	02	1	1410-1410					●	●
4	16.720 FRAME ASM; FRT SEAT AIR BAG DRIVER & PASSENGER(AK5)	8-98187-533-0	01	1	1411-					●	●
4	16.720 FRAME ASM; FRT SEAT AIR BAG DRIVER & PASSENGER(AK5)	8-98187-533-0	01	1	1411-					●	●
11	16.682 WIRE; SEAT BACK SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98220-094-0	02	1	1410-1410	●	●	●	●
11	16.682 WIRE; SEAT BACK	8-98220-094-0	02	1	1410-1410					●	●
11	16.682 WIRE; SEAT BACK	8-98220-094-0	01	1	1411-	●	●	●	●	●	●
11	16.682 WIRE; SEAT BACK	8-98220-094-0	01	1	1411-	●	●	●	●	●	●
11	16.682 WIRE; SEAT BACK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-094-0	01	1	1410-1410	●	●	●	●
11	16.682 WIRE; SEAT BACK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-094-0	01	1	1410-1410	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> BLACK	8-97465-280-0	01	1	1410-1410	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> BLACK	8-97465-280-0	01	1	1411-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> BLACK	8-97465-268-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1> BLACK	8-97465-266-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-157-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97423-157-0	01	1	1410-					●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-159-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97423-159-0	01	1	1410-					●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-146-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) BLACK	8-97425-109-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> BLACK	8-97423-149-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97423-188-0	01	1	1410-					●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97423-189-0	01	1	1410-					●	●
14	16.716 PAD; FRT SEAT CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98187-562-0	01	1	1410-1410	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98187-562-0	01	1	1411-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-705-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-695-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)	8-98187-695-0	01	1	1410-					●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-558-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION	8-98187-558-0	01	1	1410-					●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-700-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-560-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER(AK5)	8-98187-557-0	01	1	1410-					●	●
15	16.716 FRAME; CUSHION,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98224-308-0	01	1	1410-1410	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98224-308-0	01	1	1411-	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> EXC. HEATER FRT SEAT<KA1>	8-98187-715-3	01	1	1410-	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT	8-98187-715-3	01	1	1410-					●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91)	8-98230-519-1	01	1	1410-	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5)	8-98187-567-2	01	1	1410-					●	●
15	16.716 FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5)	8-98187-568-2	01	1	1410-					●	●
15	16.716 FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)	8-98187-714-3	01	1	1410-	●	●	●	●	●	●
17	16.682 BOLT; RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98220-045-0	08	1	1410-1410	●	●	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	08	1	1410-1410					●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1411-	●	●	●	●	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1411-	●	●	●	●	●	●
17	16.682 BOLT; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-045-0	04	1	1410-1410	●	●	●	●
17	16.682 BOLT; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-045-0	04	1	1410-1410	●	●	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-098-0	01	1	1410-1410	●	●	●	●
18	16.682 COVER; RECLINING INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-098-0	01	1	1411-	●	●	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (D) BLACK	8-97424-608-0	01	1	1410-1410	●	●	●	●
18	16.682 COVER; RECLINING INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (D) BLACK	8-97424-608-0	01	1	1411-	●	●	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (C) BLACK	8-97424-610-0	01	1	1410-1410	●	●	●	●
18	16.682 COVER; RECLINING INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (C) BLACK	8-97424-610-0	01	1	1411-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> EXC. HEATER FRT SEAT<KA1> (A) BLACK	8-97424-092-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-092-0	01	1	1410-					●	●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-096-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-090-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-582-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-585-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-515-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-515-0	01	1	1410-					●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (C) BLACK	8-97424-516-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-516-0	01	1	1410-					●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-611-0	01	1	1410-1410	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-611-0	01	1	1411-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) BLACK	8-97424-612-0	01	1	1410-1410	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) BLACK	8-97424-612-0	01	1	1411-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (C) BLACK	8-97424-597-0	01	1	1410-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-591-0	01	1	1410-	●	●	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-518-0	01	1	1410-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-518-0	01	1	1410-					●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-146-0	01	1	1410-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-146-0	01	1	1410-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-146-0	02	1	1410-1410	●	●	●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97425-146-0	02	1	1410-1410					●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-146-0	01	1	1411-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-146-0	01	1	1411-	●	●	●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97425-146-0	01	1	1411-					●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97425-146-0	01	1	1411-					●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97424-716-0	02	1	1410-1410					●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97424-716-0	01	1	1411-					●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97424-716-0	01	1	1411-					●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97424-664-0	01	1	1410-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97424-664-0	01	1	1410-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.716 LOCK BLACK	8-97424-665-0	02	1	1410-1410	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 LOCK BLACK	8-97424-665-0	02	1	1410-1410					●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-665-0	01	1	1411-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-665-0	01	1	1411-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 LOCK BLACK	8-97424-665-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 LOCK BLACK	8-97424-665-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.716 FREE BLACK	8-97424-666-0	02	1	1410-1410	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 FREE BLACK	8-97424-666-0	02	1	1410-1410					●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-666-0	01	1	1411-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-666-0	01	1	1411-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 FREE BLACK	8-97424-666-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 FREE BLACK	8-97424-666-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 LOCK BLACK	8-97424-499-0	02	1	1410-1410					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 LOCK BLACK	8-97424-499-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 LOCK BLACK	8-97424-499-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 FREE BLACK	8-97424-500-0	02	1	1410-1410					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 FREE BLACK	8-97424-500-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 FREE BLACK	8-97424-500-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.716 LOCK BLACK	8-97424-665-0	01	1	1410-1410	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.716 LOCK BLACK	8-97424-665-0	01	1	1410-1410	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.716 FREE BLACK	8-97424-666-0	01	1	1410-1410	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.716 FREE BLACK	8-97424-666-0	01	1	1410-1410	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> EXC. HEATER FRT SEAT<KA1> OUTER	8-98224-312-1	01	1	1410-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE OUTER	8-98224-312-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) INNER	8-98230-520-1	01	1	1410-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER(AK5) INNER	8-98220-096-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER(AK5) OUTER	8-98220-097-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER(AK5) OUTER	8-98224-186-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER(AK5) INNER	8-98224-187-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) OUTER	8-98224-309-1	01	1	1410-	●	●	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) INNER	8-98224-311-1	01	1	1410-	●	●	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> OUTER	8-98224-310-1	01	1	1410-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) OUTER	8-98224-310-1	01	1	1410-				●	●
67	16.682 BOLT; FRT SEAT TO BODY M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1410-	●	●	●	●	●	●
78	16.680 RING; SNAP SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	24	1	1410-1410	●	●	●	●
78	16.680 RING; SNAP 16.724	8-98220-068-0	24	1	1410-1410					●	●
78	16.680 RING; SNAP SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	12	1	1411-	●	●	●	●
78	16.680 RING; SNAP SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	12	1	1411-	●	●	●	●
78	16.680 RING; SNAP 16.724	8-98220-068-0	12	1	1411-					●	●
78	16.680 RING; SNAP 16.724	8-98220-068-0	12	1	1411-					●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	17	1	1410-	●	●	●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	17	1	1410-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) HEATER FRT SEAT<KA1> SEAT TRIM LEATHER<6TB> (B) M4X10	8-98220-086-0	04	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) HEATER FRT SEAT<KA1> SEAT TRIM LEATHER<6TB> (B) M4X10	8-98220-086-0	04	1	1411-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. HEATER FRT SEAT<KA1> (B) M4X10	8-98220-086-0	05	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	05	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. HEATER FRT SEAT<KA1> (B) M4X10	8-98220-086-0	05	1	1411-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	05	1	1411-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	04	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	04	1	1410-1410					●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	06	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	06	1	1410-1410					●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) M4X10	8-98220-086-0	03	1	1410-1410	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	02	1	1410-1410	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT	8-98220-104-0	02	1	1410-1410					●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	01	1	1411-	●	●	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	01	1	1411-	●	●	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98220-104-0	01	1	1411-	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	01	1	1410-1410	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	01	1	1410-1410	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98220-104-0	01	1	1410-1410	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	14	1	1410-1410	●	●	●	●
306	16.682 NUT; SEAT ADJ M8 FLANGE	8-98220-087-0	14	1	1410-1410					●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	07	1	1411-	●	●	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	07	1	1411-	●	●	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> M8 FLANGE	8-98220-087-0	07	1	1411-	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	07	1	1410-1410	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	07	1	1410-1410	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> M8 FLANGE	8-98220-087-0	07	1	1410-1410	●	●	●	●
320	16.679 CLIP; BAND,SEAT 16.686	8-98220-048-0	AR	1	1410-	●	●	●	●	●	●

27 28 28 1 78 11 13 14 24 123 18 123 18 306 63 239 63 67 67 260 260 18 123 123 18 15 610 67 67 67 610 643 17 18 123 170 18 123 17 610 260 123 15 18 67 610 17 9 272 272 9 170 14 13 11 78 320 28 28 1 27 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.720 BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) HEATER FRT SEAT<KA1> SEAT TRIM LEATHER<6TB> BLACK	8-97465-172-0	01	1	1410-1410	●	●	●	●
1	16.720 BACK ASM; SEAT INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) HEATER FRT SEAT<KA1> SEAT TRIM LEATHER<6TB> BLACK	8-97465-172-0	01	1	1411-	●	●	●	●
1	16.720 BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. HEATER FRT SEAT<KA1> BLACK	8-97465-170-0	01	1	1410-1410	●	●	●	●
1	16.720 BACK ASM; SEAT INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. HEATER FRT SEAT<KA1> BLACK	8-97465-170-0	01	1	1411-	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> BLACK	8-97465-175-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1> BLACK	8-97465-173-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-412-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97425-412-0	01	1	1410-					●	●
1	16.720 BACK ASM; SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-417-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97425-417-0	01	1	1410-					●	●
1	16.720 BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HEATER FRT SEAT<KA1> BLACK	8-97423-903-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. HEATER FRT SEAT<KA1> BLACK	8-97423-900-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) HEATER FRT SEAT<KA1> BLACK	8-97423-902-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> BLACK	8-97423-901-0	01	1	1410-	●	●	●	●
9	16.682 COVER; SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) OUTER	8-98273-209-0	01	1	1410-1410	●	●	●	●
9	16.682 COVER; SIDE INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) OUTER	8-98273-209-0	01	1	1411-	●	●	●	●
9	16.682 COVER; SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) INNER	8-98273-213-0	01	1	1410-1410	●	●	●	●
9	16.682 COVER; SIDE INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) INNER	8-98273-213-0	01	1	1411-	●	●	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (A) INNER BLACK	8-97424-603-0	01	1	1410-1410	●	●	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) OUTER BLACK	8-97424-606-0	01	1	1410-1410	●	●	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) OUTER	8-98273-218-0	01	1	1410-	●	●	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (A) INNER	8-98273-220-0	01	1	1410-	●	●	●	●
11	16.682 WIRE; SEAT BACK SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98220-094-0	02	1	1410-1410	●	●	●	●
11	16.682 WIRE; SEAT BACK	8-98220-094-0	02	1	1410-1410					●	●
11	16.682 WIRE; SEAT BACK	8-98220-094-0	01	1	1411-	●	●	●	●	●	●
11	16.682 WIRE; SEAT BACK	8-98220-094-0	01	1	1411-	●	●	●	●	●	●
11	16.682 WIRE; SEAT BACK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-094-0	01	1	1410-1410	●	●	●	●
11	16.682 WIRE; SEAT BACK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-094-0	01	1	1410-1410	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> BLACK	8-97465-280-0	01	1	1410-1410	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> BLACK	8-97465-280-0	01	1	1411-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> BLACK	8-97465-268-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1> BLACK	8-97465-266-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-157-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97423-157-0	01	1	1410-					●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-159-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97423-159-0	01	1	1410-					●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-146-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) BLACK	8-97425-109-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> BLACK	8-97423-149-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97423-188-0	01	1	1410-					●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97423-189-0	01	1	1410-					●	●
14	16.716 PAD; FRT SEAT CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98187-562-0	01	1	1410-1410	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98187-562-0	01	1	1411-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-705-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-695-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)	8-98187-695-0	01	1	1410-					●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-558-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION	8-98187-558-0	01	1	1410-					●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-700-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-560-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER(AK5)	8-98187-557-0	01	1	1410-					●	●
15	16.716 FRAME; CUSHION,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98224-308-0	01	1	1410-1410	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98224-308-0	01	1	1411-	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> EXC. HEATER FRT SEAT<KA1>	8-98187-715-3	01	1	1410-	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT	8-98187-715-3	01	1	1410-					●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91)	8-98230-519-1	01	1	1410-	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5)	8-98187-567-2	01	1	1410-					●	●
15	16.716 FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5)	8-98187-568-2	01	1	1410-					●	●
15	16.716 FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)	8-98187-714-3	01	1	1410-	●	●	●	●	●	●
17	16.682 BOLT; RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98220-045-0	08	1	1410-1410	●	●	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	08	1	1410-1410					●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1411-	●	●	●	●	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1411-	●	●	●	●	●	●
17	16.682 BOLT; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-045-0	04	1	1410-1410	●	●	●	●
17	16.682 BOLT; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-045-0	04	1	1410-1410	●	●	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-098-0	01	1	1410-1410	●	●	●	●
18	16.682 COVER; RECLINING INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-098-0	01	1	1411-	●	●	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (D) BLACK	8-97424-608-0	01	1	1410-1410	●	●	●	●
18	16.682 COVER; RECLINING INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (D) BLACK	8-97424-608-0	01	1	1411-	●	●	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (C) BLACK	8-97424-610-0	01	1	1410-1410	●	●	●	●
18	16.682 COVER; RECLINING INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (C) BLACK	8-97424-610-0	01	1	1411-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> EXC. HEATER FRT SEAT<KA1> (A) BLACK	8-97424-092-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-092-0	01	1	1410-					●	●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-096-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-090-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-582-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-585-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-515-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-515-0	01	1	1410-					●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (C) BLACK	8-97424-516-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-516-0	01	1	1410-					●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-611-0	01	1	1410-1410	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-611-0	01	1	1411-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) BLACK	8-97424-612-0	01	1	1410-1410	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) BLACK	8-97424-612-0	01	1	1411-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (C) BLACK	8-97424-597-0	01	1	1410-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-591-0	01	1	1410-	●	●	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-518-0	01	1	1410-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-518-0	01	1	1410-					●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-146-0	01	1	1410-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-146-0	01	1	1410-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-146-0	02	1	1410-1410	●	●	●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97425-146-0	02	1	1410-1410					●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-146-0	01	1	1411-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-146-0	01	1	1411-	●	●	●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97425-146-0	01	1	1411-					●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97425-146-0	01	1	1411-					●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97424-716-0	02	1	1410-1410					●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97424-716-0	01	1	1411-					●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97424-716-0	01	1	1411-					●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97424-664-0	01	1	1410-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97424-664-0	01	1	1410-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.716 LOCK BLACK	8-97424-665-0	02	1	1410-1410	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 LOCK BLACK	8-97424-665-0	02	1	1410-1410					●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-665-0	01	1	1411-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-665-0	01	1	1411-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 LOCK BLACK	8-97424-665-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 LOCK BLACK	8-97424-665-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.716 FREE BLACK	8-97424-666-0	02	1	1410-1410	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 FREE BLACK	8-97424-666-0	02	1	1410-1410					●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-666-0	01	1	1411-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-666-0	01	1	1411-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 FREE BLACK	8-97424-666-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 FREE BLACK	8-97424-666-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 LOCK BLACK	8-97424-499-0	02	1	1410-1410					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 LOCK BLACK	8-97424-499-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 LOCK BLACK	8-97424-499-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 FREE BLACK	8-97424-500-0	02	1	1410-1410					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 FREE BLACK	8-97424-500-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 FREE BLACK	8-97424-500-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.716 LOCK BLACK	8-97424-665-0	01	1	1410-1410	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.716 LOCK BLACK	8-97424-665-0	01	1	1410-1410	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.716 FREE BLACK	8-97424-666-0	01	1	1410-1410	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.716 FREE BLACK	8-97424-666-0	01	1	1410-1410	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> EXC. HEATER FRT SEAT<KA1> OUTER	8-98224-312-1	01	1	1410-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE OUTER	8-98224-312-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) INNER	8-98230-520-1	01	1	1410-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER(AK5) INNER	8-98220-096-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER(AK5) OUTER	8-98220-097-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER(AK5) OUTER	8-98224-186-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER(AK5) INNER	8-98224-187-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) OUTER	8-98224-309-1	01	1	1410-	●	●	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) INNER	8-98224-311-1	01	1	1410-	●	●	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> OUTER	8-98224-310-1	01	1	1410-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) OUTER	8-98224-310-1	01	1	1410-				●	●
67	16.682 BOLT; FRT SEAT TO BODY M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1410-	●	●	●	●	●	●
78	16.680 RING; SNAP SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	24	1	1410-1410	●	●	●	●
78	16.680 RING; SNAP 16.724	8-98220-068-0	24	1	1410-1410					●	●
78	16.680 RING; SNAP SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	12	1	1411-	●	●	●	●
78	16.680 RING; SNAP SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	12	1	1411-	●	●	●	●
78	16.680 RING; SNAP 16.724	8-98220-068-0	12	1	1411-					●	●
78	16.680 RING; SNAP 16.724	8-98220-068-0	12	1	1411-					●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	17	1	1410-	●	●	●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	17	1	1410-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) HEATER FRT SEAT<KA1> SEAT TRIM LEATHER<6TB> (B) M4X10	8-98220-086-0	04	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) HEATER FRT SEAT<KA1> SEAT TRIM LEATHER<6TB> (B) M4X10	8-98220-086-0	04	1	1411-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. HEATER FRT SEAT<KA1> (B) M4X10	8-98220-086-0	05	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	05	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. HEATER FRT SEAT<KA1> (B) M4X10	8-98220-086-0	05	1	1411-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	05	1	1411-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	04	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	04	1	1410-1410					●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	06	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	06	1	1410-1410					●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) M4X10	8-98220-086-0	03	1	1410-1410	●	●	●	●
170	16.716 HEATER ASM; FRT SEAT CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) HEATER FRT SEAT<KA1> SEAT TRIM LEATHER<6TB>	8-98224-219-0	01	1	1410-1410	●	●	●	●
170	16.716 HEATER ASM; FRT SEAT CUSHION INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) HEATER FRT SEAT<KA1> SEAT TRIM LEATHER<6TB>	8-98224-219-0	01	1	1411-	●	●	●	●
170	16.716 HEATER ASM; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1>	8-98224-498-0	01	1	1410-	●	●	●	●
170	16.716 HEATER ASM; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HEATER FRT SEAT<KA1>	8-98231-305-0	01	1	1410-	●	●	●	●
170	16.716 HEATER ASM; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) HEATER FRT SEAT<KA1>	8-98231-306-0	01	1	1410-	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	02	1	1410-1410	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT	8-98220-104-0	02	1	1410-1410					●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	01	1	1411-	●	●	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	01	1	1411-	●	●	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98220-104-0	01	1	1411-	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	01	1	1410-1410	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	01	1	1410-1410	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98220-104-0	01	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) HEATER FRT SEAT<KA1> (A)	8-98224-267-0	02	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS INTERIOR BASIC(RBA) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91), HEATER FRT SEAT<KA1> (A)	8-98224-267-0	02	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A)	8-98224-267-0	02	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (A)	8-98224-267-0	02	1	1410-1410					●	●
260	16.682 CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) HEATER FRT SEAT<KA1> (A)	8-98224-267-0	02	1	1411-	●	●	●	●
260	16.682 CLIP; HARNESS INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A)	8-98224-267-0	02	1	1411-	●	●	●	●
260	16.682 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (B)	8-98224-497-0	01	1	1410-	●	●	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. HEATER FRT SEAT<KA1> (A)	8-98224-267-0	01	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A)	8-98224-267-0	01	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A)	8-98224-267-0	01	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (A)	8-98224-267-0	01	1	1411-	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (A)	8-98224-267-0	01	1	1411-	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. HEATER FRT SEAT<KA1> (A)	8-98224-267-0	01	1	1411-	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A)	8-98224-267-0	01	1	1411-	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A)	8-98224-267-0	01	1	1411-	●	●	●	●
272	16.682 COVER; SEAT RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A)	8-98273-215-0	01	1	1410-1410	●	●	●	●
272	16.682 COVER; SEAT RECLINING INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A)	8-98273-215-0	01	1	1411-	●	●	●	●
272	16.682 COVER; SEAT RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B)	8-98273-216-0	01	1	1410-1410	●	●	●	●
272	16.682 COVER; SEAT RECLINING INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B)	8-98273-216-0	01	1	1411-	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	14	1	1410-1410	●	●	●	●
306	16.682 NUT; SEAT ADJ M8 FLANGE	8-98220-087-0	14	1	1410-1410					●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	07	1	1411-	●	●	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	07	1	1411-	●	●	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> M8 FLANGE	8-98220-087-0	07	1	1411-	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	07	1	1410-1410	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	07	1	1410-1410	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> M8 FLANGE	8-98220-087-0	07	1	1410-1410	●	●	●	●
320	16.679 CLIP; BAND,SEAT 16.686	8-98220-048-0	AR	1	1410-	●	●	●	●	●	●
485	16.682 HARNESS; FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) HEATER FRT SEAT<KA1> SEAT TRIM LEATHER<6TB> 16.716	8-98231-310-0	01	1	1410-1410	●	●	●	●
485	16.682 HARNESS; FRT SEAT INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) HEATER FRT SEAT<KA1> SEAT TRIM LEATHER<6TB> 16.716	8-98231-310-0	01	1	1411-	●	●	●	●
485	16.682 HARNESS; FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. HEATER FRT SEAT<KA1>	8-98231-308-0	01	1	1410-1410	●	●	●	●
485	16.682 HARNESS; FRT SEAT INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. HEATER FRT SEAT<KA1>	8-98231-308-0	01	1	1411-	●	●	●	●
610	16.682 COVER; LEG,FRT SEAT BLACK	8-97416-785-4	04	1	1410-	●	●	●	●
643	16.682 SENSOR; REMINDER AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)	8-98184-734-0	01	1	1410-	●	●	●	●	●	●

486 601 18 24 24 18 123 24 228 20 228 228 24 18 24 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-098-0	01	1	1410-1410	●	●	●	●
18	16.682 COVER; RECLINING INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-098-0	01	1	1411-	●	●	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (D) BLACK	8-97424-608-0	01	1	1410-1410	●	●	●	●
18	16.682 COVER; RECLINING INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (D) BLACK	8-97424-608-0	01	1	1411-	●	●	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (C) BLACK	8-97424-610-0	01	1	1410-1410	●	●	●	●
18	16.682 COVER; RECLINING INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (C) BLACK	8-97424-610-0	01	1	1411-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> EXC. HEATER FRT SEAT<KA1> (A) BLACK	8-97424-092-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-092-0	01	1	1410-					●	●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-096-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-090-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-582-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-585-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-515-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-515-0	01	1	1410-					●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (C) BLACK	8-97424-516-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-516-0	01	1	1410-					●	●
20	16.682 CAP; RECLINING ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) BLACK	8-97424-600-0	01	1	1410-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-611-0	01	1	1410-1410	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-611-0	01	1	1411-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) BLACK	8-97424-612-0	01	1	1410-1410	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) BLACK	8-97424-612-0	01	1	1411-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (C) BLACK	8-97424-597-0	01	1	1410-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-591-0	01	1	1410-	●	●	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-518-0	01	1	1410-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-518-0	01	1	1410-					●	●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) HEATER FRT SEAT<KA1> SEAT TRIM LEATHER<6TB> (B) M4X10	8-98220-086-0	04	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) HEATER FRT SEAT<KA1> SEAT TRIM LEATHER<6TB> (B) M4X10	8-98220-086-0	04	1	1411-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. HEATER FRT SEAT<KA1> (B) M4X10	8-98220-086-0	05	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	05	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. HEATER FRT SEAT<KA1> (B) M4X10	8-98220-086-0	05	1	1411-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	05	1	1411-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	04	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	04	1	1410-1410					●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	06	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	06	1	1410-1410					●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) M4X10	8-98220-086-0	03	1	1410-1410	●	●	●	●
228	16.714 SCREW; KNOB SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) M5X10	8-98224-268-0	03	1	1410-	●	●	●	●
486	16.682 SWITCH; POWER SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98224-263-0	01	1	1410-1410	●	●	●	●
486	16.682 SWITCH; POWER SEAT INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98224-263-0	01	1	1411-	●	●	●	●
601	16.682 SCREW; SWITCH FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> M4X12	8-98224-269-0	02	1	1410-1410	●	●	●	●
601	16.682 SCREW; SWITCH INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> M4X12	8-98224-269-0	02	1	1411-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
