◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51581 - TFR/TFS LHD EUROPE ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#151502) — 16 parça

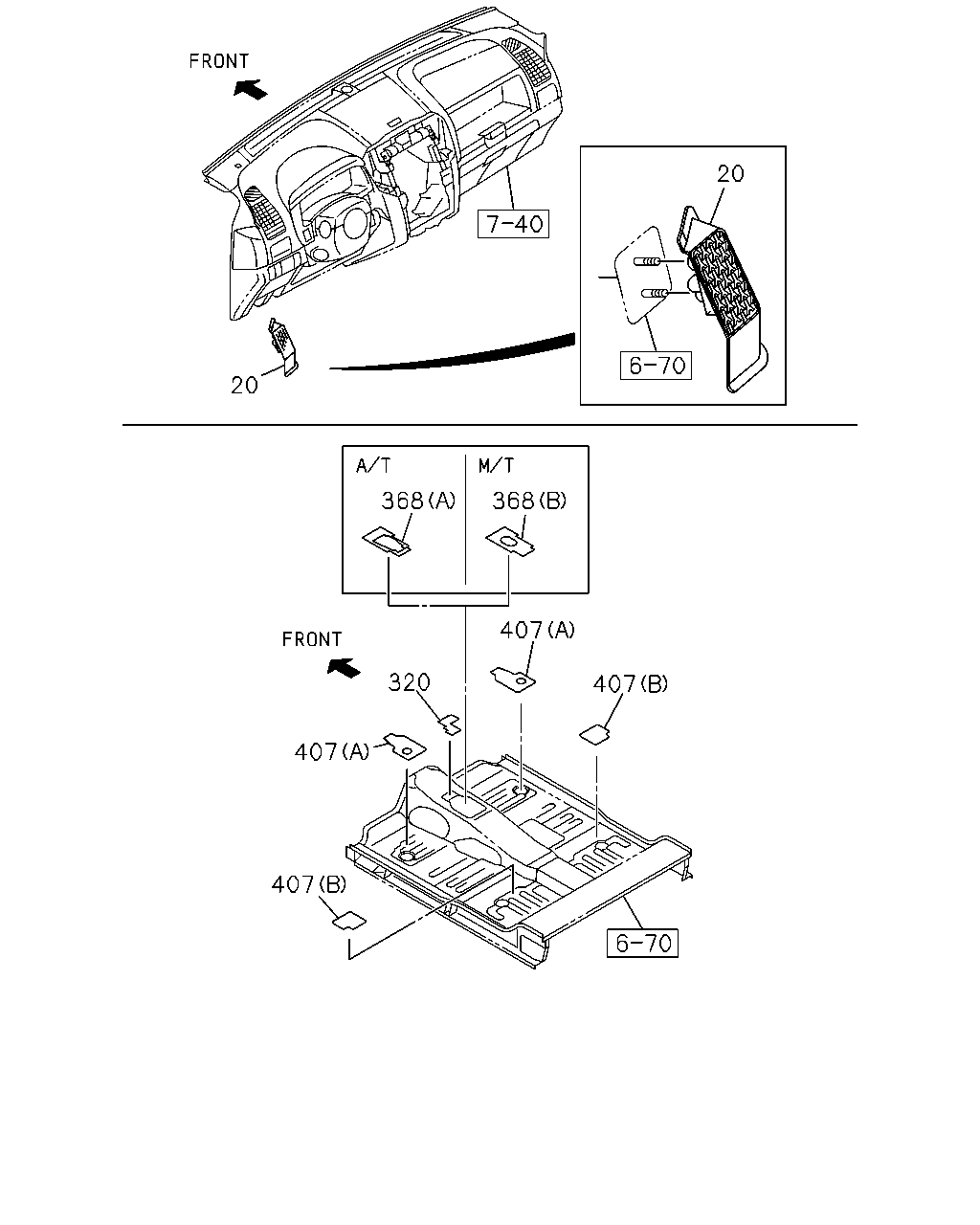

çizim 449148
20 20 368 368 320 407 407 407 407
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
20 16.547 REST; FOOT 8-98102-836-2 01 1 1410- ● ● ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
FRONT CONSOLE W/LID<D55> 		8-98166-704-0 01 1 1410- ● ●
320 16.549 INSULATOR; FLOOR,FRT 8-98166-704-0 01 1 1410- ● ●
320 16.549 INSULATOR; FLOOR,FRT
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 		8-98166-704-0 01 1 1410- ● ●
368 16.549 INSULATOR; FLOOR,RR
M/T AISIN 6 SPEED(RNU) FRONT CONSOLE W/LID<D55> (B) 		8-98166-706-0 01 1 1410- ● ●
368 16.549 INSULATOR; FLOOR,RR
M/T AISIN 6 SPEED(RNU) (B) 		8-98166-706-0 01 1 1410- ● ●
368 16.549 INSULATOR; FLOOR,RR
M/T AISIN 6 SPEED(RNU) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98166-706-0 01 1 1410- ● ●
368 16.549 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN(MA1) FRONT CONSOLE W/LID<D55> (A) 		8-98166-707-0 01 1 1410- ●
368 16.549 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN(MA1) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98166-707-0 01 1 1410- ●
407 16.850 DEADENER; FLOOR PANEL
JUMP SEAT<AJ2> (A) 		8-98103-655-1 02 1 1410-1505 ● ●
407 16.850 DEADENER; FLOOR PANEL
(A) 		8-98103-655-1 02 1 1410-1505 ● ●
407 16.850 DEADENER; FLOOR PANEL
(A) 		8-98103-655-1 02 1 1506- ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
JUMP SEAT<AJ2> (B) 		8-98155-918-0 02 1 1410-1505 ● ●
407 16.850 DEADENER; FLOOR PANEL
(B) 		8-98155-918-0 02 1 1410-1505 ● ●
407 16.850 DEADENER; FLOOR PANEL
(B) 		8-98155-918-0 02 1 1506- ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
(A) 		8-98103-655-1 01 1 1410- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
