◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51581 - TFR/TFS LHD EUROPE ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#151501) — 16 parça

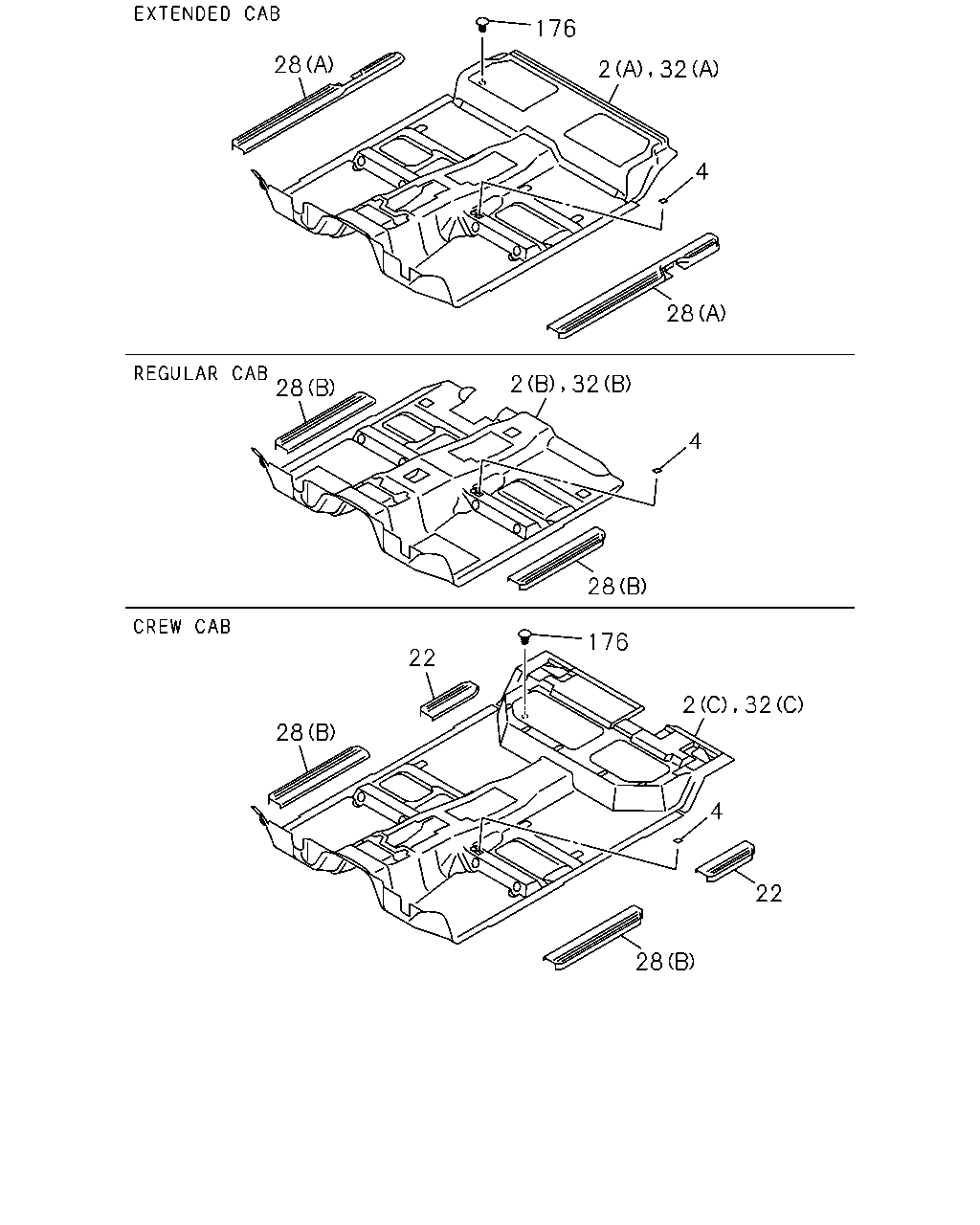

çizim 450979
28 176 2 32 4 28 28 2 32 4 28 22 28 176 2 32 4 22 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.800 MAT; FLOOR
JUMP SEAT<AJ2> COVERING FLOOR VINYL<B38> FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97423-028-8 01 1 1410- ● ●
2 16.800 MAT; FLOOR
COVERING FLOOR VINYL<B38> (B) BLACK 		8-97423-031-5 01 1 1410- ● ●
2 16.800 MAT; FLOOR
COVERING FLOOR VINYL<B38> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97423-045-6 01 1 1410- ● ●
4 16.547 INSULATOR; FRT 8-98185-968-0 04 1 1410- ● ● ● ● ● ●
22 16.870 PLATE; SILL,RR
BLACK 		8-97416-948-5 01 1 1410- ● ●
22 16.870 PLATE; SILL,RR
BLACK 		8-97416-950-5 01 1 1410- ● ●
28 16.870 PLATE; SILL,FRT
(A) BLACK 		8-97416-669-2 01 1 1410- ● ●
28 16.870 PLATE; SILL,FRT
(A) BLACK 		8-97416-671-2 01 1 1410- ● ●
28 16.870 PLATE; SILL,FRT
(B) BLACK 		8-97416-944-3 01 1 1410- ● ● ● ●
28 16.870 PLATE; SILL,FRT
(B) BLACK 		8-97416-946-3 01 1 1410- ● ● ● ●
32 16.800 CARPET; FLOOR
JUMP SEAT<AJ2> FRONT CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38> (A) BLACK 		8-97423-021-6 01 1 1410- ● ●
32 16.800 CARPET; FLOOR
FRONT CONSOLE W/LID<D55> EXC. JUMP SEAT<AJ2>,COVERING FLOOR VINYL<B38> (A) BLACK 		8-97423-020-5 01 1 1410- ● ●
32 16.800 CARPET; FLOOR
EXC. COVERING FLOOR VINYL<B38> (B) BLACK 		8-97417-423-5 01 1 1410- ● ●
32 16.800 CARPET; FLOOR
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38> (C) BLACK 		8-97423-033-5 01 1 1410- ● ●
176 16.870 RETAINER; CARPET
BLACK 		8-97416-667-0 10 1 1410- ● ● ● ●
176 16.870 RETAINER; CARPET
BLACK 		8-97416-667-0 02 1 1410- ● ●
