6-10 — ENGINE HOOD AND LOCK (#151484) — 34 parça

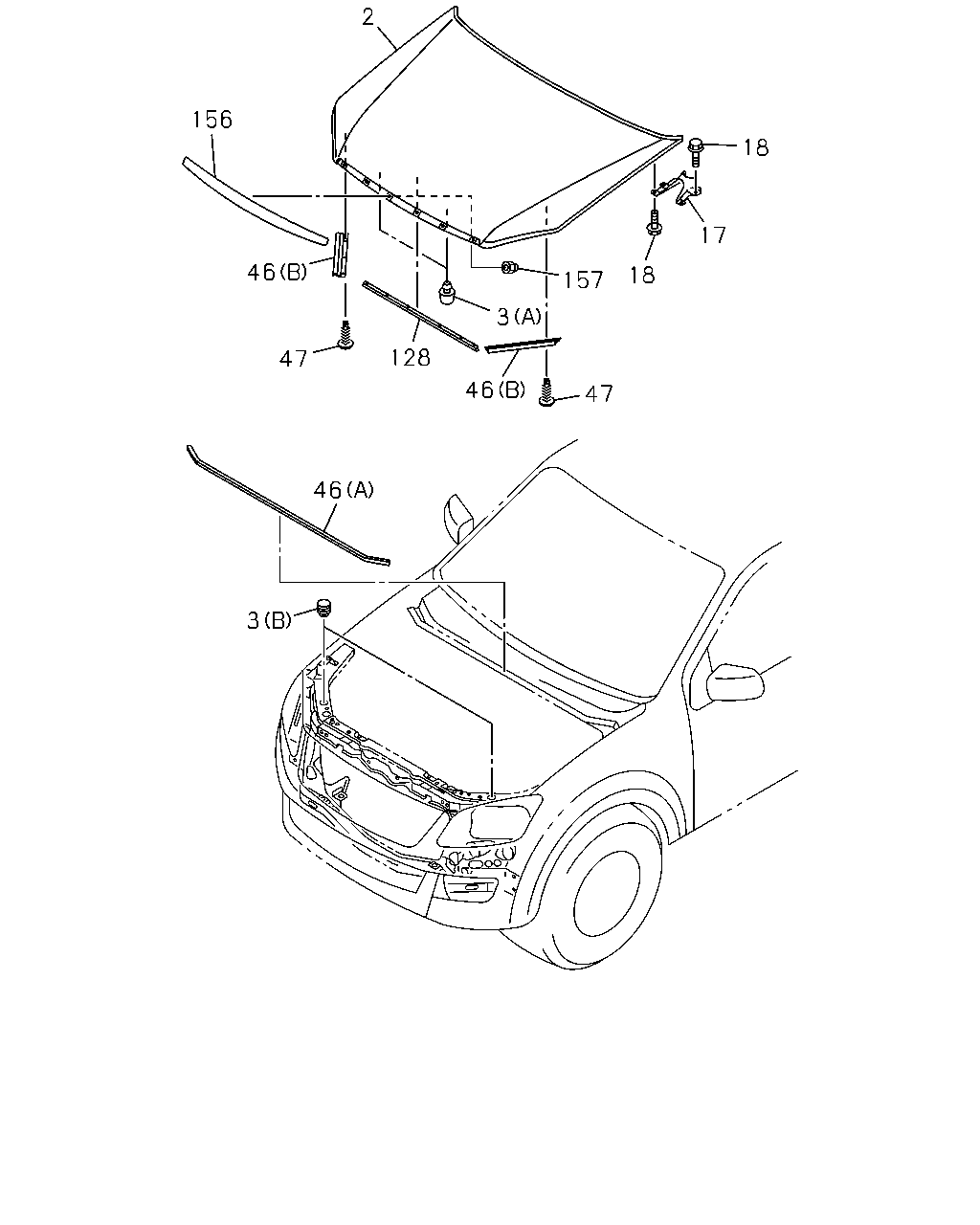

çizim 451087
156 2 46 47 128 46 3 47 157 18 17 18 46 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 08.000 PANEL; ENG HOOD 8-98193-818-0 01 1 1410- ● ● ● ● ● ●
3 08.077 BUFFER; ENG HOOD,FRT
(A) 		8-97948-266-0 02 1 1410- ● ● ● ● ● ●
3 08.077 BUFFER; ENG HOOD,FRT
(B) 		8-98195-454-0 02 1 1410- ● ● ● ● ● ●
17 08.015 HINGE; ENG HOOD 8-98104-099-2 01 1 1410- ● ● ● ● ● ●
17 08.015 HINGE; ENG HOOD 8-98104-100-2 01 1 1410- ● ● ● ● ● ●
18 08.015 BOLT; HINGE
M8X16 		8-98056-122-0 04 1 1410- ● ● ● ● ● ●
18 08.015 BOLT; HINGE
M8X16 		8-98056-122-0 04 1 1410- ● ● ● ● ● ●
46 01.272 SEAL; ENG HOOD
(A) 		8-98065-805-1 01 1 1410- ● ● ● ● ● ●
46 01.272 SEAL; ENG HOOD
(B) 		8-98160-815-1 01 1 1410- ● ● ● ● ● ●
46 01.272 SEAL; ENG HOOD
(B) 		8-98165-802-1 01 1 1410- ● ● ● ● ● ●
47 08.095 CLIP; HOOD SEAL
16.069 OD=12 L=14.8 		8-94279-921-0 06 1 1410- ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98102-230-0 01 1 1410- ● ● ● ●
128 08.010 SEAL; PLATFORM
AIR CONDITIONER MANUAL CONT(C60) 		8-98102-230-0 01 1 1410- ● ●
156 08.010 MOLDING; HOOD
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> PLATED 		8-98269-566-0 01 1 1410-1505 ● ● ● ●
156 08.010 MOLDING; HOOD
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> PLATED 		8-98269-566-0 01 1 1506- ● ● ● ● ● ●
156 08.010 MOLDING; HOOD
EXC. BODY COLOR KEYED RAD GRILLE<TL1> ,BRIGHT RAD GRILLE<V22> 		8-98181-163-3 01 1 1410-1505 ● ● ● ●
156 08.010 MOLDING; HOOD 8-98181-163-3 01 1 1410-1505 ● ●
156 08.010 MOLDING; HOOD
EXC. BODY COLOR KEYED RAD GRILLE<TL1> ,BRIGHT RAD GRILLE<V22> 		8-98181-163-3 01 1 1506- ● ● ● ● ● ●
157 08.010 NUT; MOLDING
08.155 M6 CAP NUT 		8-98049-850-0 06 1 1410- ● ● ● ● ● ●

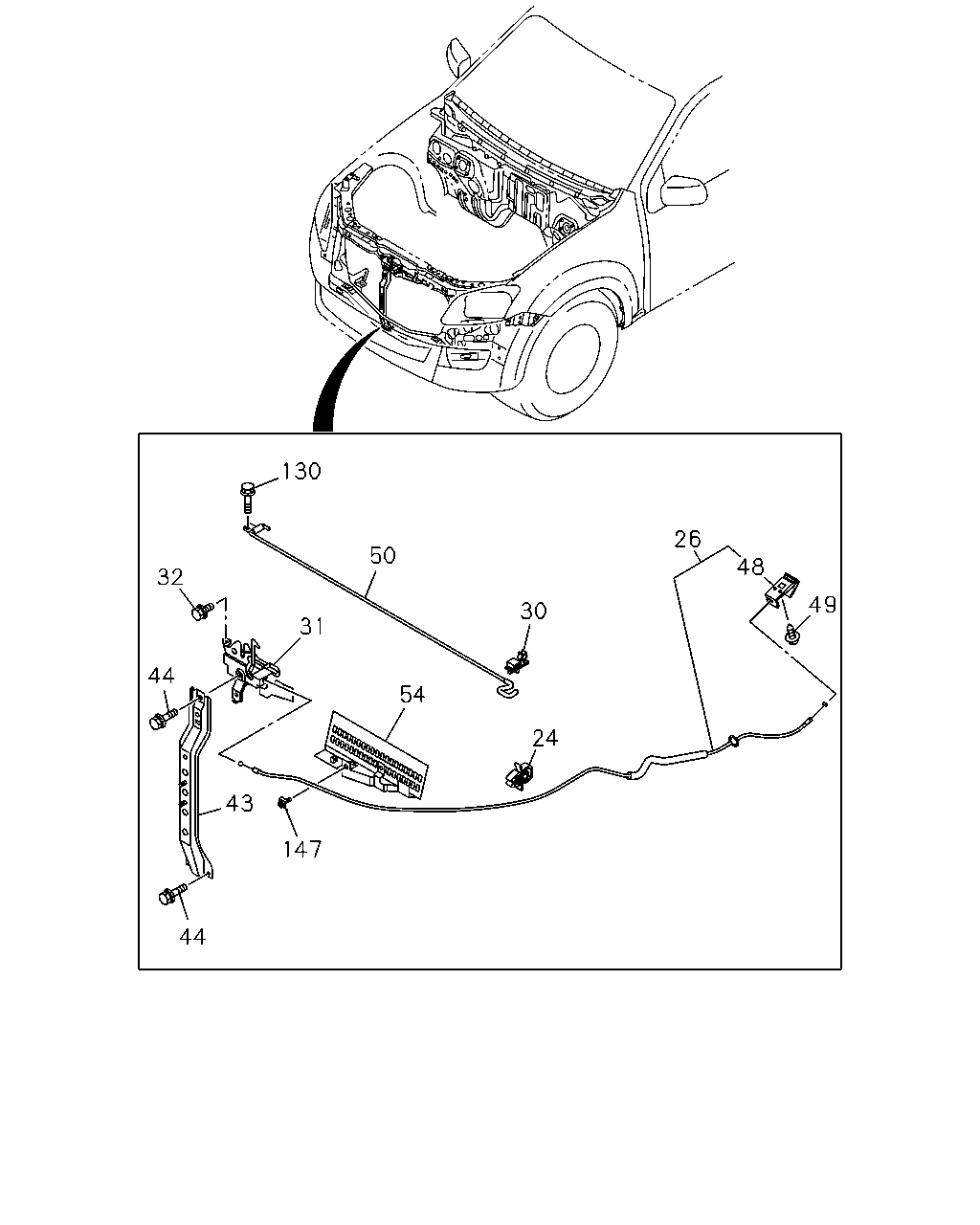

çizim 451127
24 49 48 26 30 50 130 31 54 147 43 44 44 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
24 08.077 CLIP; CONT CABLE 8-97182-405-0 04 1 1410- ● ● ● ● ● ●
26 08.075 CABLE; ENG HOOD CONT 8-98071-760-1 01 1 1410- ● ● ● ● ● ●
30 08.077 CLIP; SUPPORT ROD,HOOD 8-97301-356-0 01 1 1410- ● ● ● ● ● ●
31 08.083 LOCK; ENG HOOD
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98074-564-4 01 1 1410- ● ● ● ●
31 08.083 LOCK; ENG HOOD
EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98074-563-4 01 1 1410- ● ● ● ●
31 08.083 LOCK; ENG HOOD 8-98074-563-4 01 1 1410- ● ●
32 08.077 BOLT; HOOD LK
M6X20 W/PL WASHER 		8-97370-668-0 02 1 1410- ● ● ● ● ● ●
43 08.077 STAY; ENG HOOD,FRT END 8-98165-341-0 01 1 1410- ● ● ● ● ● ●
44 08.077 BOLT; STAY,HOOD
M6X20 W/PL WASHER 		8-97370-668-0 04 1 1410- ● ● ● ● ● ●
48 08.083 LEVER; ENG HOOD 8-98204-979-0 01 1 1410- ● ● ● ● ● ●
49 08.083 SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING 		8-98167-449-0 02 1 1410- ● ● ● ● ● ●
50 08.015 ROD; SUPPORT,ENG HOOD 8-98101-948-1 01 1 1410- ● ● ● ● ● ●
54 08.054 PROTECTOR; ENG HOOD CABLE 8-98160-812-2 01 1 1410- ● ● ● ● ● ●
130 08.077 BOLT; SUPPORT ROD,HOOD
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 1410- ● ● ● ● ● ●
147 08.013 CLIP; COVER
08.154 		8-94221-150-0 02 1 1410- ● ● ● ● ● ●
