6-05 — FRONT PANEL (#151482) — 85 parça

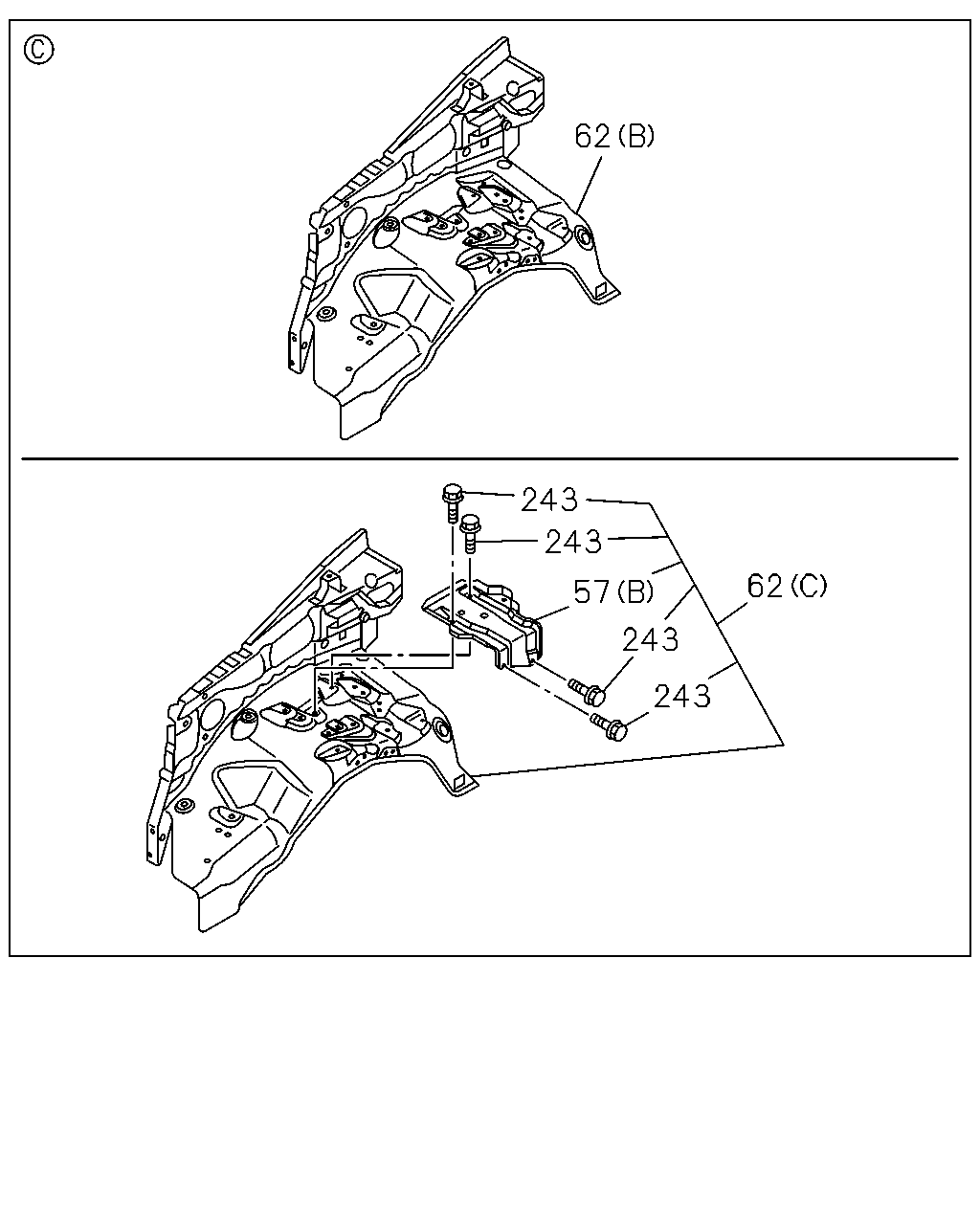

çizim 449277
62 243 243 62 57 243 243
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
57 02.333 TRAY; BATTERY
BATTERY 75D26L-DUAL(TQ9) (B) 		8-98103-305-2 01 1 1410- ● ● ● ●
57 02.333 TRAY; BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) 		8-98103-305-2 01 1 1410- ● ●
57 02.333 TRAY; BATTERY
(A) 		8-98104-480-5 01 1 1410- ● ● ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 		8-98193-272-2 01 1 1410- ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) 		8-98256-639-2 01 1 1410- ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) 		8-98256-639-2 01 1 1410- ● ●
62 08.153 PANEL; WHEEL HOUSE
BATTERY 75D26L-DUAL(TQ9) (C) 		8-98183-629-3 01 1 1410- ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (C) 		8-98183-629-3 01 1 1410- ● ●
62 08.153 PANEL; WHEEL HOUSE
HIGH RIDE SUSPENSION(7YC) (D) 		8-98213-050-0 01 1 1410- ● ●
62 08.153 PANEL; WHEEL HOUSE
HIGH RIDE SUSPENSION(7YC) (D) 		8-98213-051-0 01 1 1410- ● ●
62 08.153 PANEL; WHEEL HOUSE
(A) 		8-98103-211-2 01 1 1410- ● ● ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98077-252-4 01 1 1410- ● ●
62 08.153 PANEL; WHEEL HOUSE
(D) 		8-98077-252-4 01 1 1410- ●
62 08.153 PANEL; WHEEL HOUSE
EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98077-255-4 01 1 1410- ● ●
62 08.153 PANEL; WHEEL HOUSE
(D) 		8-98077-255-4 01 1 1410- ●
62 08.153 PANEL; WHEEL HOUSE
(D) 		8-98077-254-7 01 1 1410- ● ● ●
62 08.153 PANEL; WHEEL HOUSE
(D) 		8-98077-256-6 01 1 1410- ● ● ●
243 02.334 BOLT; BATTERY TRAY
BATTERY 75D26L-DUAL(TQ9) 00.206 M6X12 FLANGE 		0-28450-612-0 04 1 1410- ● ● ● ●
243 02.334 BOLT; BATTERY TRAY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 00.206 M6X12 FLANGE 		0-28450-612-0 04 1 1410- ● ●

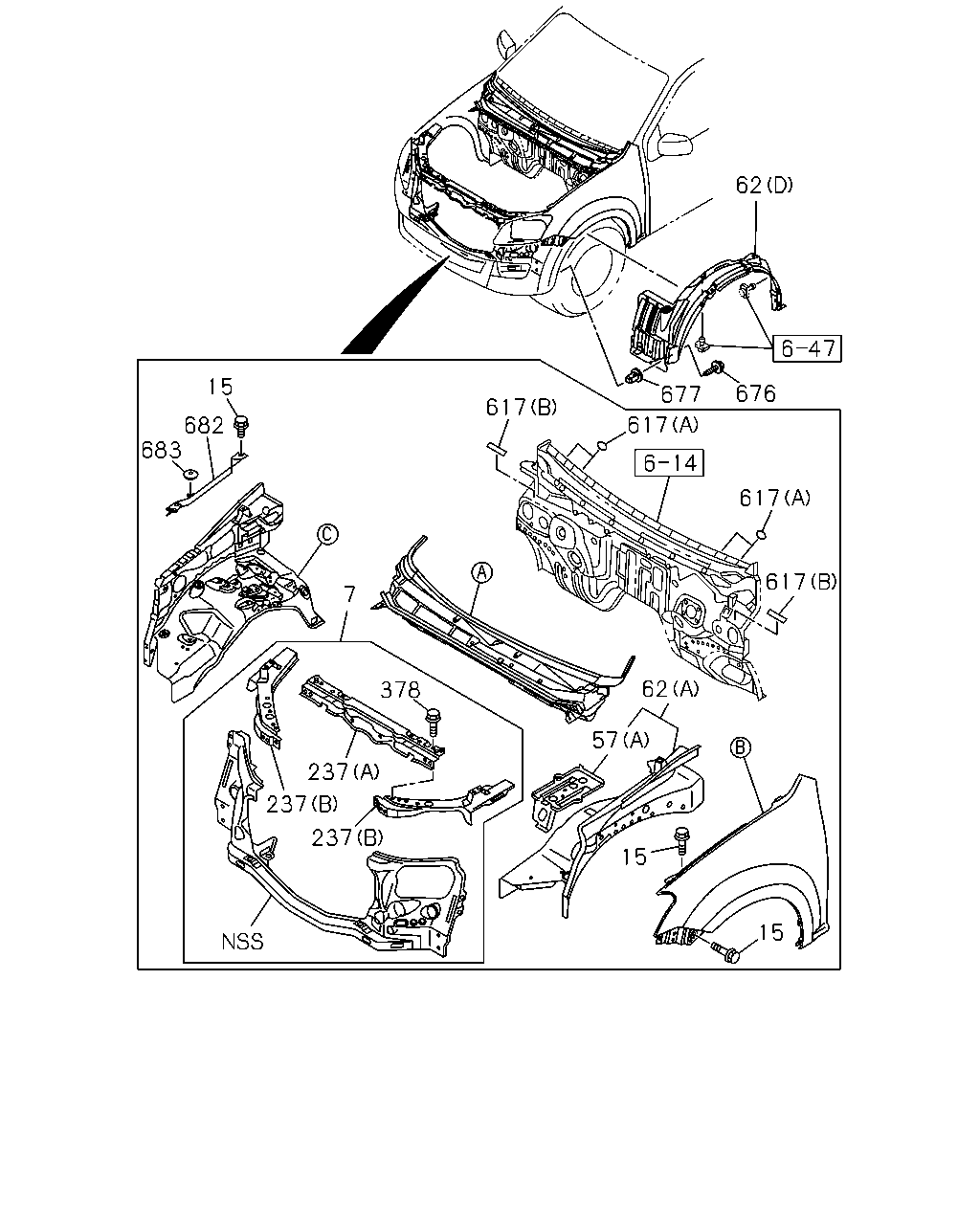

çizim 450999
62 676 677 617 617 617 617 15 682 683 7 378 237 237 237 62 57 15 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
7 01.271 PANEL; DEFLECTOR 8-98103-202-0 01 1 1410- ● ● ● ● ● ●
15 08.143 BOLT; FENDER
M6X15 W/LK&PL WASHER 		8-98167-615-0 12 1 1410- ● ● ● ● ● ●
57 02.333 TRAY; BATTERY
BATTERY 75D26L-DUAL(TQ9) (B) 		8-98103-305-2 01 1 1410- ● ● ● ●
57 02.333 TRAY; BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) 		8-98103-305-2 01 1 1410- ● ●
57 02.333 TRAY; BATTERY
(A) 		8-98104-480-5 01 1 1410- ● ● ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 		8-98193-272-2 01 1 1410- ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) 		8-98256-639-2 01 1 1410- ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) 		8-98256-639-2 01 1 1410- ● ●
62 08.153 PANEL; WHEEL HOUSE
BATTERY 75D26L-DUAL(TQ9) (C) 		8-98183-629-3 01 1 1410- ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (C) 		8-98183-629-3 01 1 1410- ● ●
62 08.153 PANEL; WHEEL HOUSE
HIGH RIDE SUSPENSION(7YC) (D) 		8-98213-050-0 01 1 1410- ● ●
62 08.153 PANEL; WHEEL HOUSE
HIGH RIDE SUSPENSION(7YC) (D) 		8-98213-051-0 01 1 1410- ● ●
62 08.153 PANEL; WHEEL HOUSE
(A) 		8-98103-211-2 01 1 1410- ● ● ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98077-252-4 01 1 1410- ● ●
62 08.153 PANEL; WHEEL HOUSE
(D) 		8-98077-252-4 01 1 1410- ●
62 08.153 PANEL; WHEEL HOUSE
EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98077-255-4 01 1 1410- ● ●
62 08.153 PANEL; WHEEL HOUSE
(D) 		8-98077-255-4 01 1 1410- ●
62 08.153 PANEL; WHEEL HOUSE
(D) 		8-98077-254-7 01 1 1410- ● ● ●
62 08.153 PANEL; WHEEL HOUSE
(D) 		8-98077-256-6 01 1 1410- ● ● ●
237 01.263 SUPPORT; DEFLECTOR
(A) 		8-98104-224-4 01 1 1410- ● ● ● ● ● ●
237 01.263 SUPPORT; DEFLECTOR
(B) 		8-98104-244-4 01 1 1410- ● ● ● ● ● ●
237 01.263 SUPPORT; DEFLECTOR
(B) 		8-98104-253-4 01 1 1410- ● ● ● ● ● ●
378 01.269 BOLT; SUPPORT
03.342 M6X12 FLANGE 		0-28060-612-0 08 1 1410- ● ● ● ● ● ●
617 08.131 SEAL; DASH
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 1410- ● ● ● ● ● ●
617 08.131 SEAL; DASH
(C) T=5.0 		8-98134-005-0 01 1 1410- ● ● ● ● ● ●
617 08.131 SEAL; DASH
(B) 110X10 		8-98192-905-0 02 1 1410- ● ● ● ● ● ●
676 16.125 BOLT; WHEEL HOUSE
07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 02 1 1410- ● ● ● ● ● ●
677 16.125 NUT; WHEEL HOUSE
09.190 D=9.7X9.7 L=8 		8-94222-314-0 02 1 1410- ● ● ● ● ● ●
682 08.228 PROTECTOR; HEAT,ENG 8-98139-849-3 01 1 1410- ● ● ● ● ● ●
683 08.228 RIVET; PROTECTOR,HEAT
17.490 		8-98057-864-0 02 1 1410- ● ● ● ● ● ●

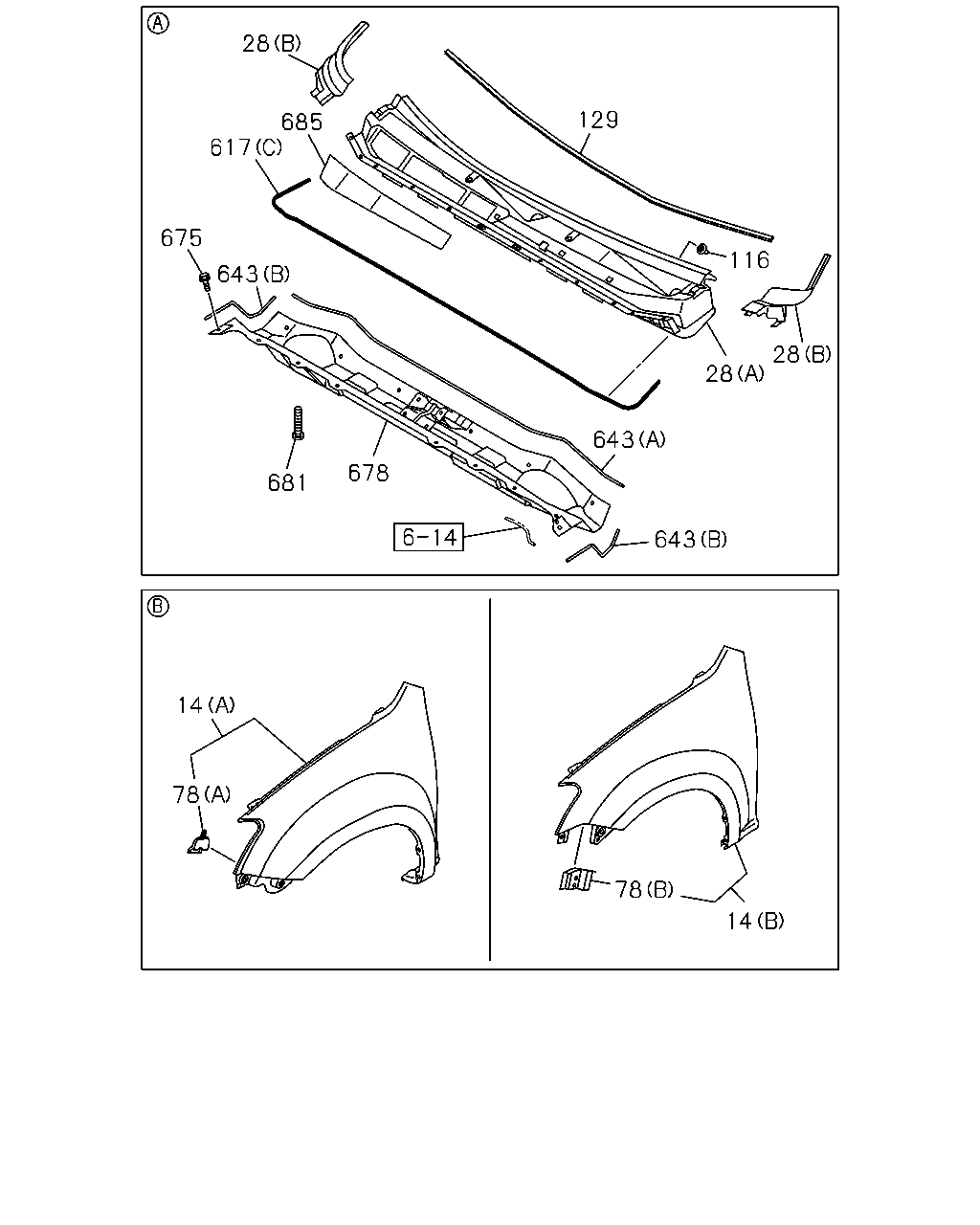

çizim 451200
28 617 685 675 643 681 678 643 643 28 28 14 78 78 14 129 116
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
14 08.130 FENDER; FRT
HIGH RIDE SUSPENSION(7YC) (A) 		8-98181-029-0 01 1 1410- ● ●
14 08.130 FENDER; FRT
(A) 		8-98181-029-0 01 1 1410- ● ● ●
14 08.130 FENDER; FRT
HIGH RIDE SUSPENSION(7YC) (A) 		8-98181-030-0 01 1 1410- ● ●
14 08.130 FENDER; FRT
(A) 		8-98181-030-0 01 1 1410- ● ● ●
14 08.130 FENDER; FRT
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98103-206-1 01 1 1410- ● ●
14 08.130 FENDER; FRT
(B) 		8-98103-206-1 01 1 1410- ●
14 08.130 FENDER; FRT
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98103-208-1 01 1 1410- ● ●
14 08.130 FENDER; FRT
(B) 		8-98103-208-1 01 1 1410- ●
28 16.125 COVER; DASH COWL
(B) 		8-98133-981-6 01 1 1410- ● ● ● ● ● ●
28 16.125 COVER; DASH COWL
(B) 		8-98133-982-5 01 1 1410- ● ● ● ● ● ●
28 16.125 COVER; DASH COWL
(A) 		8-98194-237-2 01 1 1410- ● ● ● ● ● ●
78 16.125 BRACKET; FENDER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-033-1 01 1 1410- ● ●
78 16.125 BRACKET; FENDER
(A) 		8-98104-033-1 01 1 1410- ● ● ●
78 16.125 BRACKET; FENDER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-034-1 01 1 1410- ● ●
78 16.125 BRACKET; FENDER
(A) 		8-98104-034-1 01 1 1410- ● ● ●
78 16.125 BRACKET; FENDER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-031-2 01 1 1410- ● ●
78 16.125 BRACKET; FENDER
(B) 		8-98104-031-2 01 1 1410- ●
78 16.125 BRACKET; FENDER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-032-2 01 1 1410- ● ●
78 16.125 BRACKET; FENDER
(B) 		8-98104-032-2 01 1 1410- ●
116 12.800 CLIP; COWL COVER 8-98134-004-1 06 1 1410- ● ● ● ● ● ●
129 16.125 FINISHER; COWL COVER 8-98133-991-0 01 1 1410- ● ● ● ● ● ●
617 08.131 SEAL; DASH
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 1410- ● ● ● ● ● ●
617 08.131 SEAL; DASH
(C) T=5.0 		8-98134-005-0 01 1 1410- ● ● ● ● ● ●
617 08.131 SEAL; DASH
(B) 110X10 		8-98192-905-0 02 1 1410- ● ● ● ● ● ●
643 08.131 SEAL; COWL
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9) (A) 		8-98110-283-1 01 1 1410- ● ● ● ●
643 08.131 SEAL; COWL
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) 		8-98110-283-1 01 1 1410- ● ●
643 08.131 SEAL; COWL
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9) (B) 		8-98110-284-1 02 1 1410- ● ● ● ●
643 08.131 SEAL; COWL
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) 		8-98110-284-1 02 1 1410- ● ●
675 08.143 BOLT; PANEL
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9) M6X12 W/PL WASHER 		8-98180-459-2 08 1 1410- ● ● ● ●
675 08.143 BOLT; PANEL
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) M6X12 W/PL WASHER 		8-98180-459-2 08 1 1410- ● ●
678 08.143 PANEL; COWL
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 		8-98065-804-3 01 1 1410- ● ● ● ● ● ●
678 08.143 PANEL; COWL
BATTERY 75D26L-DUAL(TQ9) 		8-98123-887-5 01 1 1410- ● ● ● ●
678 08.143 PANEL; COWL
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 		8-98123-887-5 01 1 1410- ● ●
681 02.333 STUD; BATTERY
BATTERY 75D26L-DUAL(TQ9) 		8-98191-340-0 04 1 1410- ● ● ● ●
681 02.333 STUD; BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 		8-98191-340-0 04 1 1410- ● ●
685 16.125 FINISHER; COWL 8-98194-211-0 01 1 1410- ● ● ● ● ● ●
