4-80 — ROAD WHEEL (#151473) — 26 parça

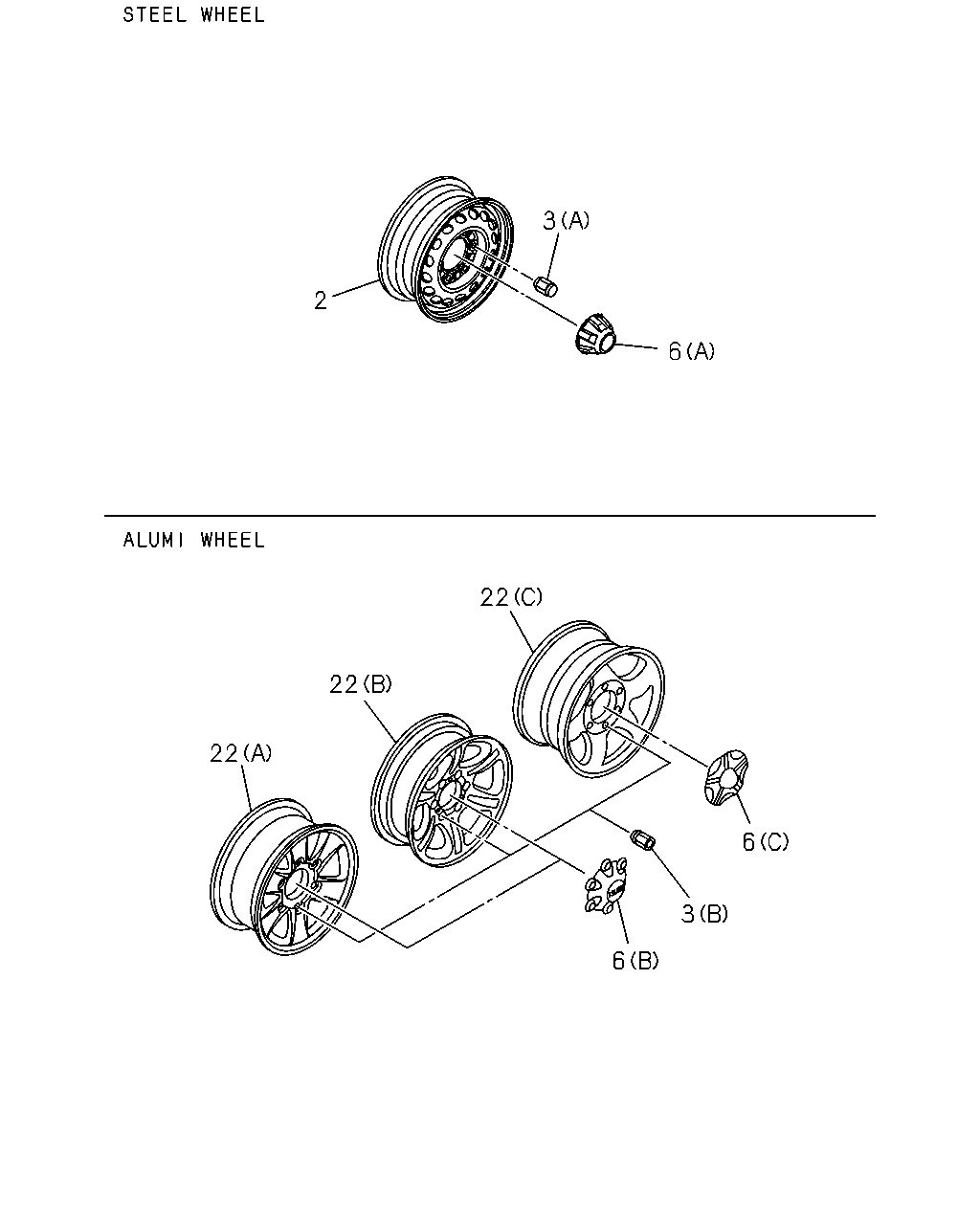

2 3 6 22 22 22 6 3 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	05.803 WHEEL; DISC FRT&RR 215/70R15C DUNLOP TIRE(CWP) DISC WHEEL 15X6.5-41 STEEL(BSY) FRONT,REAR 15X6.5J OFFSET=41 6-HOLE STEEL WHEEL	8-98218-140-0	04	1	1410-	●	●
2	05.803 WHEEL; DISC DISC WHEEL 15X6.5-41 STEEL(BSY) FRONT,REAR 15X6.5J OFFSET=41 6-HOLE STEEL WHEEL	8-98218-140-0	04	1	1410-			●
2	05.803 WHEEL; DISC FRT&RR 215/70R15C DUNLOP TIRE(CWP) DISC WHEEL 15X6.5-41 STEEL(BSY),DISC WHEEL 15X6.5-41 ALUMI(PF3) SPARE 15X6.5J OFFSET=41 6-HOLE STEEL WHEEL	8-98218-140-0	01	1	1410-	●	●
2	05.803 WHEEL; DISC DISC WHEEL 15X6.5-41 STEEL(BSY),DISC WHEEL 15X6.5-41 ALUMI(PF3) SPARE 15X6.5J OFFSET=41 6-HOLE STEEL WHEEL	8-98218-140-0	01	1	1410-			●
2	05.803 WHEEL; DISC FRT&RR 245/70R16(QCQ) DISC WHEEL 16X7-33 ALUMI(PF4),DISC WHEEL 16X7-33 STEEL(QC1) SPARE 16X7.0J OFFSET=33 6-HOLE STEEL WHEEL	8-98218-148-0	01	1	1410-	●	●		●	●
2	05.803 WHEEL; DISC FRT&RR 245/70R16(QCQ) DISC WHEEL 16X7-33 STEEL(QC1) FRONT,REAR 16X7.0J OFFSET=33 6-HOLE STEEL WHEEL	8-98218-148-0	04	1	1410-	●	●		●	●	●
2	05.803 WHEEL; DISC FRT&RR 255/65R17(QZX) DISC WHEEL 17X7-33 ALUMI(PFE) SPARE 17X7.0J OFFSET=33 6-HOLE STEEL WHEEL	8-98218-149-0	01	1	1410-	●	●		●	●
3	05.813 NUT; WHEEL,FRT AXLE DISC WHEEL 15X6.5-41 STEEL(BSY),DISC WHEEL 16X7-33 STEEL(QC1) (A) M12 H=30.5	8-97333-108-0	24	1	1410-	●	●
3	05.813 NUT; WHEEL,FRT AXLE DISC WHEEL 15X6.5-41 STEEL(BSY) (A) M12 H=30.5	8-97333-108-0	24	1	1410-			●
3	05.813 NUT; WHEEL,FRT AXLE DISC WHEEL 16X7-33 STEEL(QC1) (A) M12 H=30.5	8-97333-108-0	24	1	1410-				●	●	●
3	05.813 NUT; WHEEL,FRT AXLE DISC WHEEL 17X7-33 ALUMI(PFE),DISC WHEEL 15X6.5-41 ALUMI(PF3),DISC WHEEL 16X7-33 ALUMI(PF4) (B) M12 H=23	8-98101-983-0	24	1	1410-	●	●
3	05.813 NUT; WHEEL,FRT AXLE DISC WHEEL 15X6.5-41 ALUMI(PF3) (B) M12 H=23	8-98101-983-0	24	1	1410-			●
3	05.813 NUT; WHEEL,FRT AXLE DISC WHEEL 17X7-33 ALUMI(PFE),DISC WHEEL 16X7-33 ALUMI(PF4) (B) M12 H=23	8-98101-983-0	24	1	1410-				●	●	●
6	05.858 CAP; WHEEL DISC WHEEL 17X7-33 ALUMI(PFE) (C) ISUZU MARK	8-98107-318-3	04	1	1410-	●	●		●	●	●
6	05.858 CAP; WHEEL DISC WHEEL 15X6.5-41 ALUMI(PF3),DISC WHEEL 16X7-33 ALUMI(PF4) (B) ISUZU MARK	8-98102-993-0	04	1	1410-	●	●
6	05.858 CAP; WHEEL DISC WHEEL 15X6.5-41 ALUMI(PF3) (B) ISUZU MARK	8-98102-993-0	04	1	1410-			●
6	05.858 CAP; WHEEL DISC WHEEL 16X7-33 ALUMI(PF4) (B) ISUZU MARK	8-98102-993-0	04	1	1410-				●	●	●
6	05.858 CAP; WHEEL INTERIOR BASIC(RBA) DISC WHEEL 15X6.5-41 STEEL(BSY) EXC. HIGH RIDE SUSPENSION(7YC) (A) ISUZU MARK	8-97301-998-1	04	1	1410-	●	●
6	05.858 CAP; WHEEL DISC WHEEL 15X6.5-41 STEEL(BSY) (A) ISUZU MARK	8-97301-998-1	04	1	1410-			●
6	05.858 CAP; WHEEL INTERIOR BASIC(RBA) DISC WHEEL 16X7-33 STEEL(QC1) (A) ISUZU MARK	8-98160-806-0	04	1	1410-	●	●
6	05.858 CAP; WHEEL INTERIOR CUSTOM(RBD) DISC WHEEL 15X6.5-41 STEEL(BSY),DISC WHEEL 16X7-33 STEEL(QC1) (A) ISUZU MARK	8-98160-806-0	04	1	1410-	●	●
6	05.858 CAP; WHEEL DISC WHEEL 16X7-33 STEEL(QC1) (A) ISUZU MARK	8-98160-806-0	04	1	1410-				●	●	●
22	05.809 WHEEL; DISC,AL FRT&RR 215/70R15C DUNLOP TIRE(CWP) DISC WHEEL 15X6.5-41 ALUMI(PF3) (B) FRONT,REAR 15X6.5J OFFSET=41 6-HOLE	8-98218-150-0	04	1	1410-	●	●
22	05.809 WHEEL; DISC,AL DISC WHEEL 15X6.5-41 ALUMI(PF3) (B) FRONT,REAR 15X6.5J OFFSET=41 6-HOLE	8-98218-150-0	04	1	1410-			●
22	05.809 WHEEL; DISC,AL FRT&RR 245/70R16(QCQ) DISC WHEEL 16X7-33 ALUMI(PF4) (A) FRONT,REAR 16X7.0J OFFSET=33 6-HOLE	8-98218-151-0	04	1	1410-	●	●		●	●	●
22	05.809 WHEEL; DISC,AL FRT&RR 255/65R17(QZX) DISC WHEEL 17X7-33 ALUMI(PFE) (C) FRONT,REAR 17X7.0J OFFSET=33 6-HOLE	8-98259-995-0	04	1	1410-	●	●		●	●	●
