Sayfa 4-65 - Isuzu EPC

4-65 — REAR LEAF SPRING (#151472) — 155 parça

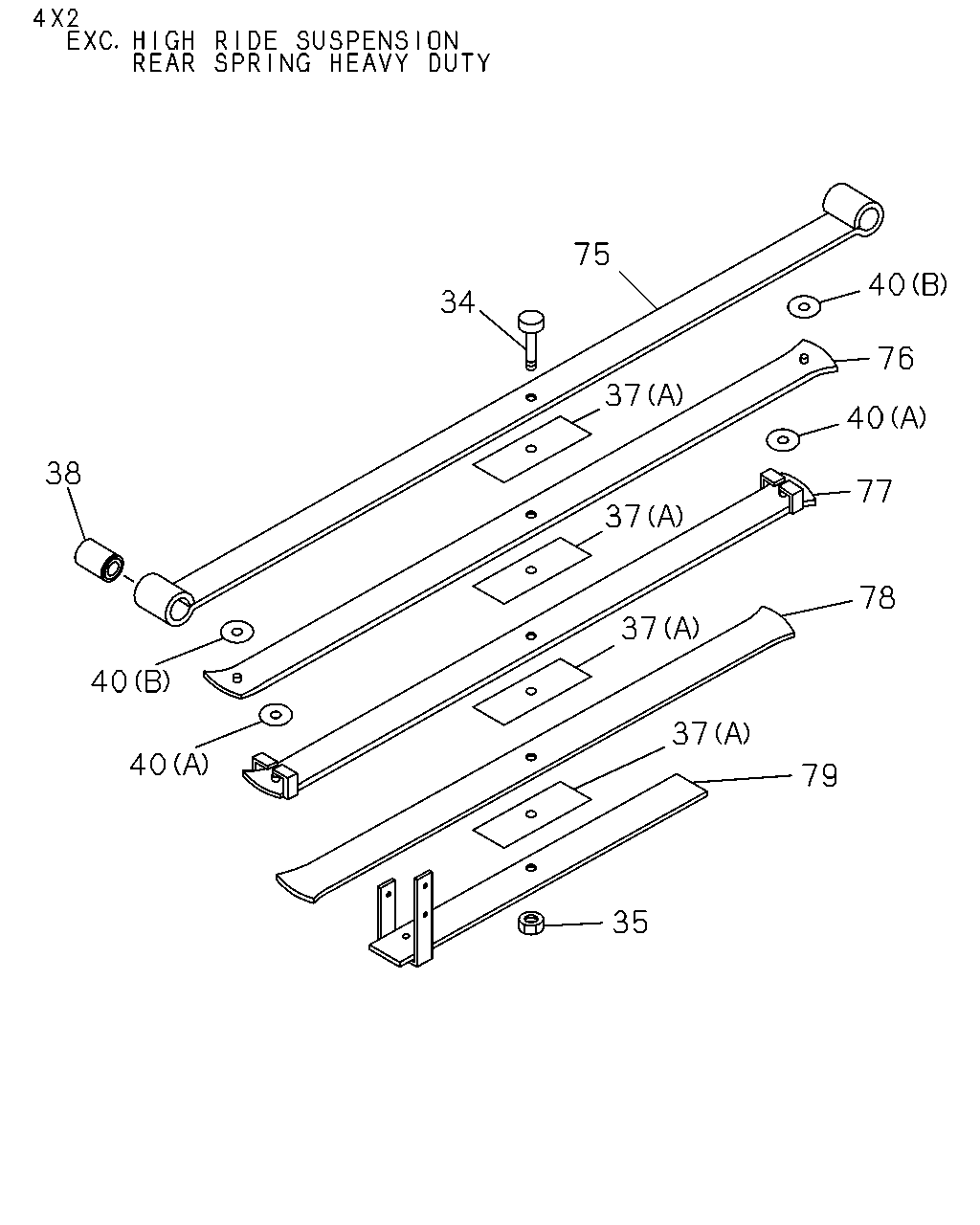

38 40 40 34 75 37 40 76 78 77 40 79 37 37 37 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: B = 8-98201-544-2, 98201544	8-97304-264-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X62 ASM PART: A = 8-98201-543-3, 98201543	8-97947-234-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: C = 8-98282-590-1, 98282590, D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: C = 8-98282-590-1, 98282590, D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544	8-97945-821-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544	8-97947-195-0	04	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98161-302-0	03	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: C = 8-98282-590-1, 98282590	8-98161-302-0	02	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (B) ASM PART: C = 8-98282-590-1, 98282590, D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98288-935-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544	8-98296-471-0	04	1	1505-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98296-472-0	03	1	1505-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: C = 8-98282-590-1, 98282590	8-98296-472-0	02	1	1505-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544, C = 8-98282-590-1, 98282590, D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: B = 8-98201-544-2, 98201544, C = 8-98282-590-1, 98282590	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: B = 8-98201-544-2, 98201544, C = 8-98282-590-1, 98282590	8-97947-218-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-98201-543-3, 98201543, D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98218-583-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-98201-543-3, 98201543, D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98218-584-0	02	1	-
75	07.505 SPRING; LEAF,NO 1,RR ASM PART: C = 8-98282-590-1, 98282590	8-97947-446-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR ASM PART: D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98193-953-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-417-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-422-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: C = 8-98282-590-1, 98282590	8-97947-447-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-418-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-423-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98218-574-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-98282-590-1, 98282590	8-97947-448-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-419-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-424-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: D = 8-98282-593-1, 98282593	8-98218-575-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: E = 8-98282-594-1, 98282594	8-98218-577-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98193-957-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-420-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-425-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: C = 8-98282-590-1, 98282590	8-98215-883-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: C = 8-98282-590-1, 98282590	8-97947-450-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-421-2	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-426-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98215-882-0	01	1	-

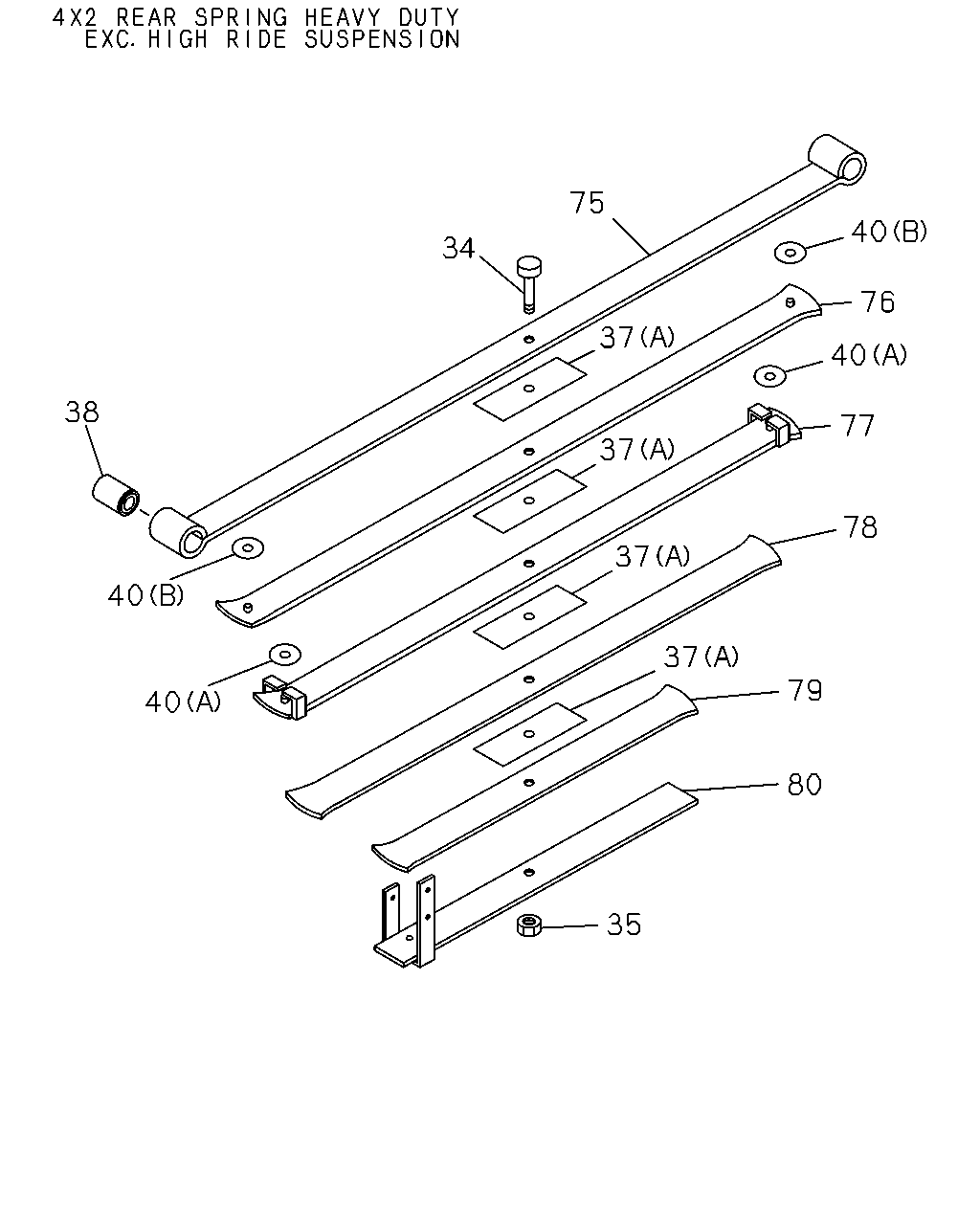

38 34 75 37 37 37 37 80 35 40 40 77 78 79 40 76 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: B = 8-98201-544-2, 98201544	8-97304-264-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X62 ASM PART: A = 8-98201-543-3, 98201543	8-97947-234-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: C = 8-98282-590-1, 98282590, D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: C = 8-98282-590-1, 98282590, D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544	8-97945-821-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544	8-97947-195-0	04	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98161-302-0	03	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: C = 8-98282-590-1, 98282590	8-98161-302-0	02	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (B) ASM PART: C = 8-98282-590-1, 98282590, D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98288-935-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544	8-98296-471-0	04	1	1505-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98296-472-0	03	1	1505-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: C = 8-98282-590-1, 98282590	8-98296-472-0	02	1	1505-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544, C = 8-98282-590-1, 98282590, D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: B = 8-98201-544-2, 98201544, C = 8-98282-590-1, 98282590	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: B = 8-98201-544-2, 98201544, C = 8-98282-590-1, 98282590	8-97947-218-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-98201-543-3, 98201543, D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98218-583-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-98201-543-3, 98201543, D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98218-584-0	02	1	-
75	07.505 SPRING; LEAF,NO 1,RR ASM PART: C = 8-98282-590-1, 98282590	8-97947-446-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR ASM PART: D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98193-953-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-417-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-422-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: C = 8-98282-590-1, 98282590	8-97947-447-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-418-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-423-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98218-574-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-98282-590-1, 98282590	8-97947-448-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-419-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-424-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: D = 8-98282-593-1, 98282593	8-98218-575-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: E = 8-98282-594-1, 98282594	8-98218-577-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98193-957-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-420-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-425-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: C = 8-98282-590-1, 98282590	8-98215-883-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: C = 8-98282-590-1, 98282590	8-97947-450-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-421-2	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-426-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98215-882-0	01	1	-
80	07.505 SPRING; LEAF,NO 6,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-427-1	01	1	-

38 40 40 35 75 37 37 37 78 79 34 77 40 76 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: B = 8-98201-544-2, 98201544	8-97304-264-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X62 ASM PART: A = 8-98201-543-3, 98201543	8-97947-234-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: C = 8-98282-590-1, 98282590, D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: C = 8-98282-590-1, 98282590, D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544	8-97945-821-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544	8-97947-195-0	04	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98161-302-0	03	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: C = 8-98282-590-1, 98282590	8-98161-302-0	02	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (B) ASM PART: C = 8-98282-590-1, 98282590, D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98288-935-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544	8-98296-471-0	04	1	1505-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98296-472-0	03	1	1505-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: C = 8-98282-590-1, 98282590	8-98296-472-0	02	1	1505-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544, C = 8-98282-590-1, 98282590, D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: B = 8-98201-544-2, 98201544, C = 8-98282-590-1, 98282590	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: B = 8-98201-544-2, 98201544, C = 8-98282-590-1, 98282590	8-97947-218-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-98201-543-3, 98201543, D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98218-583-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-98201-543-3, 98201543, D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98218-584-0	02	1	-
75	07.505 SPRING; LEAF,NO 1,RR ASM PART: C = 8-98282-590-1, 98282590	8-97947-446-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR ASM PART: D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98193-953-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-417-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-422-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: C = 8-98282-590-1, 98282590	8-97947-447-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-418-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-423-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98218-574-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-98282-590-1, 98282590	8-97947-448-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-419-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-424-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: D = 8-98282-593-1, 98282593	8-98218-575-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: E = 8-98282-594-1, 98282594	8-98218-577-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98193-957-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-420-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-425-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: C = 8-98282-590-1, 98282590	8-98215-883-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: C = 8-98282-590-1, 98282590	8-97947-450-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-421-2	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-426-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98215-882-0	01	1	-

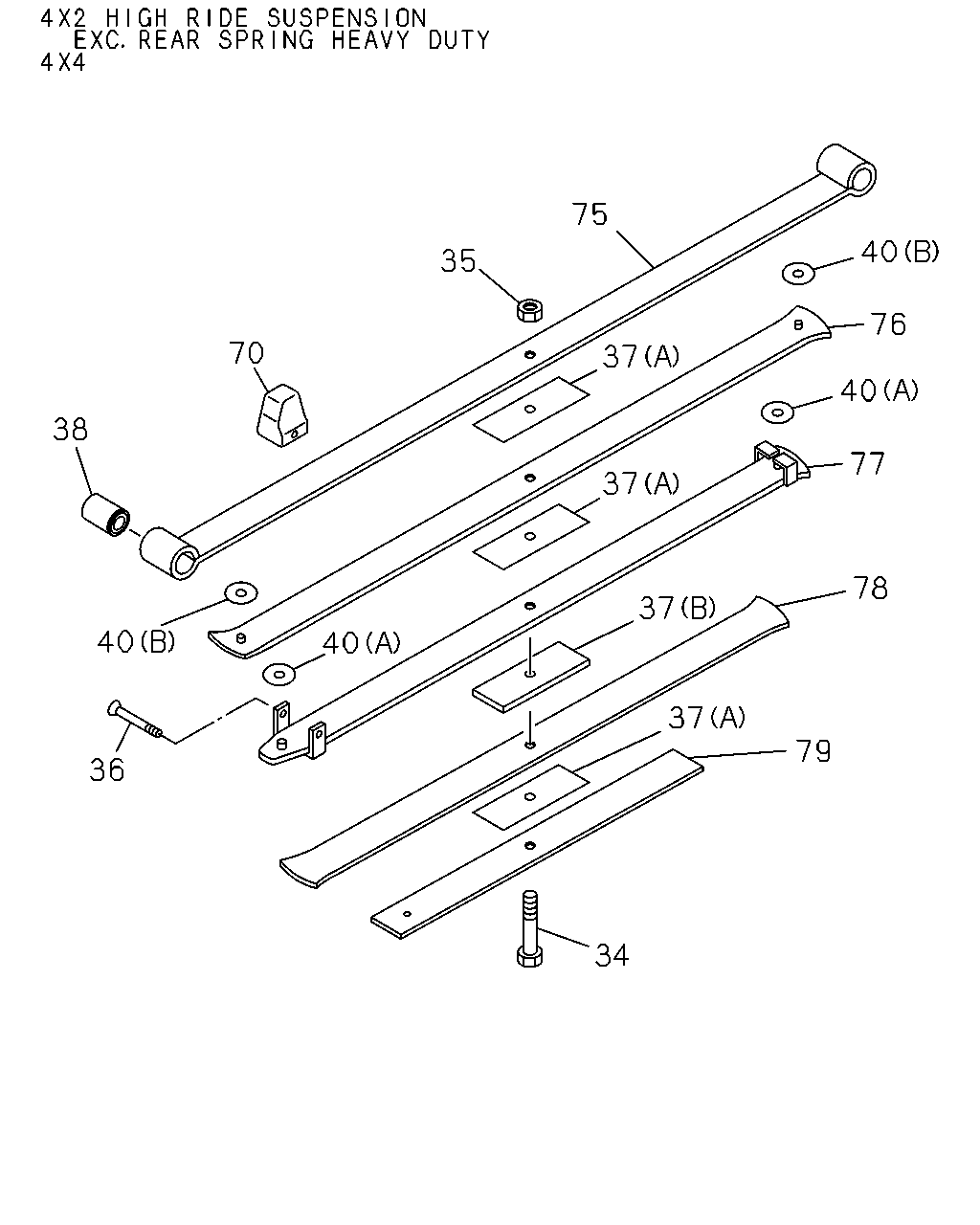

38 40 36 40 34 79 37 37 78 77 40 76 40 37 37 75 35 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: B = 8-98201-544-2, 98201544	8-97304-264-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X62 ASM PART: A = 8-98201-543-3, 98201543	8-97947-234-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: C = 8-98282-590-1, 98282590, D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: C = 8-98282-590-1, 98282590, D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544	8-97945-821-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR ASM PART: D = 8-98282-593-1, 98282593	8-98161-948-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544	8-97947-195-0	04	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98161-302-0	03	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: C = 8-98282-590-1, 98282590	8-98161-302-0	02	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (B) ASM PART: C = 8-98282-590-1, 98282590, D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98288-935-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544	8-98296-471-0	04	1	1505-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98296-472-0	03	1	1505-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: C = 8-98282-590-1, 98282590	8-98296-472-0	02	1	1505-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544, C = 8-98282-590-1, 98282590, D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: B = 8-98201-544-2, 98201544, C = 8-98282-590-1, 98282590	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: B = 8-98201-544-2, 98201544, C = 8-98282-590-1, 98282590	8-97947-218-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-98201-543-3, 98201543, D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98218-583-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-98201-543-3, 98201543, D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98218-584-0	02	1	-
70	07.505 RUBBER; LEAF SPR,RR ASM PART: D = 8-98282-593-1, 98282593	8-98170-912-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR ASM PART: C = 8-98282-590-1, 98282590	8-97947-446-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR ASM PART: D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98193-953-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-417-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-422-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: C = 8-98282-590-1, 98282590	8-97947-447-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-418-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-423-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98218-574-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-98282-590-1, 98282590	8-97947-448-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-419-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-424-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: D = 8-98282-593-1, 98282593	8-98218-575-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: E = 8-98282-594-1, 98282594	8-98218-577-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98193-957-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-420-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-425-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: C = 8-98282-590-1, 98282590	8-98215-883-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: C = 8-98282-590-1, 98282590	8-97947-450-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-421-2	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-426-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: D = 8-98282-593-1, 98282593, E = 8-98282-594-1, 98282594	8-98215-882-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
