◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51581 - TFR/TFS LHD EUROPE ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#151471) — 10 parça

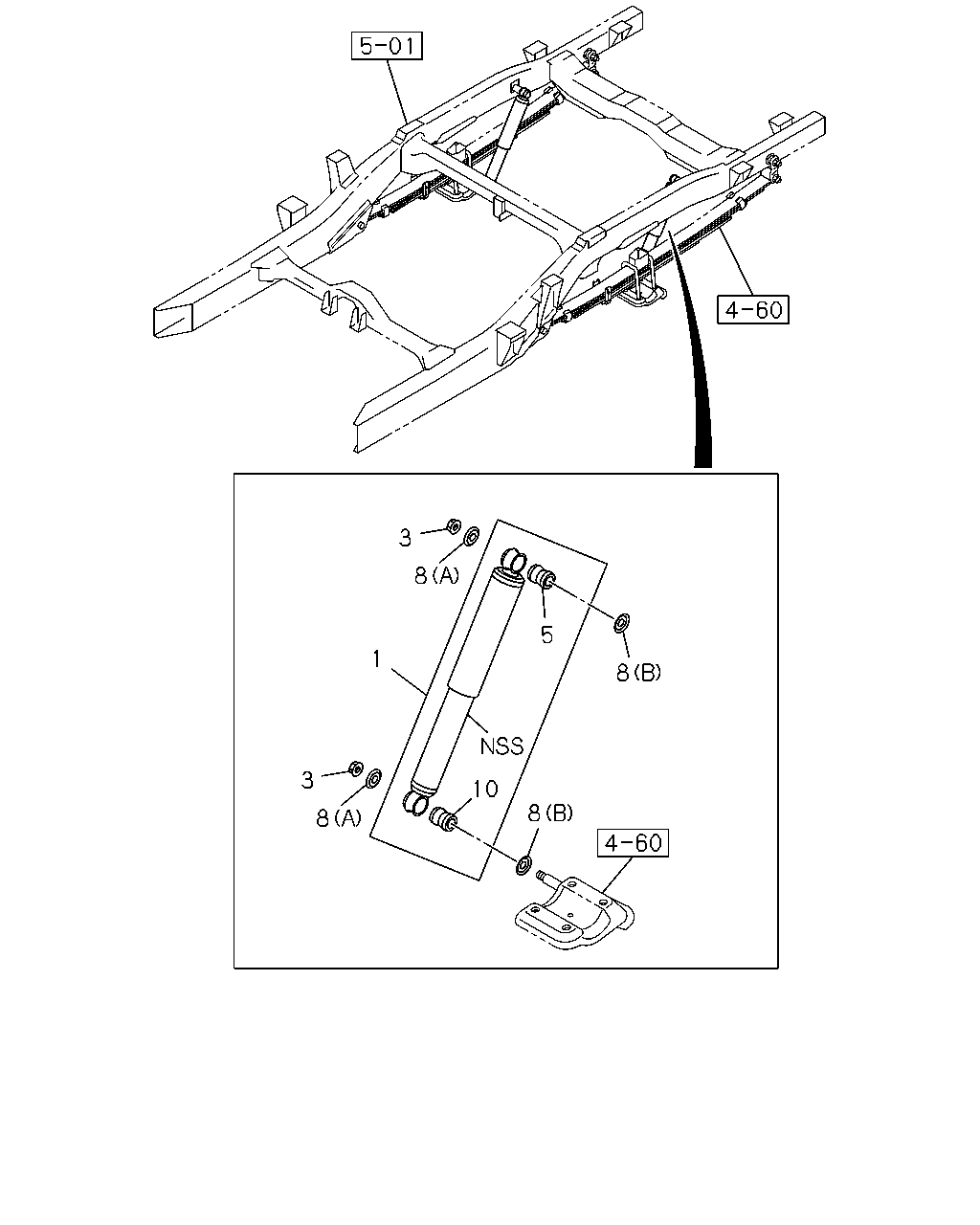

çizim 450793
3 8 5 8 10 8 3 8 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) 		8-97947-017-2 02 1 1410- ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98211-979-0 02 1 1410- ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) 		8-97947-016-2 02 1 1410- ● ●
1 07.395 ABSORBER ASM; SHOCK,RR 8-97947-016-2 02 1 1410- ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50), HIGHRIDE SUSPENSION(7YC) 		8-97947-013-2 02 1 1410- ● ● ●
3 07.347 NUT; S/ABS
M12 FLANGE 		8-97256-670-0 04 1 1410- ● ● ● ● ● ●
5 07.388 BUSHING; RUBBER,S/ABS,UPR 8-97302-810-0 02 1 1410- ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
(A) ID=12.5 		8-98005-969-0 04 1 1410- ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
(B) ID=16.5 		8-98005-970-0 04 1 1410- ● ● ● ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS 8-97302-810-0 02 1 1410- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
