◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51581 - TFR/TFS LHD EUROPE ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#151467) — 32 parça

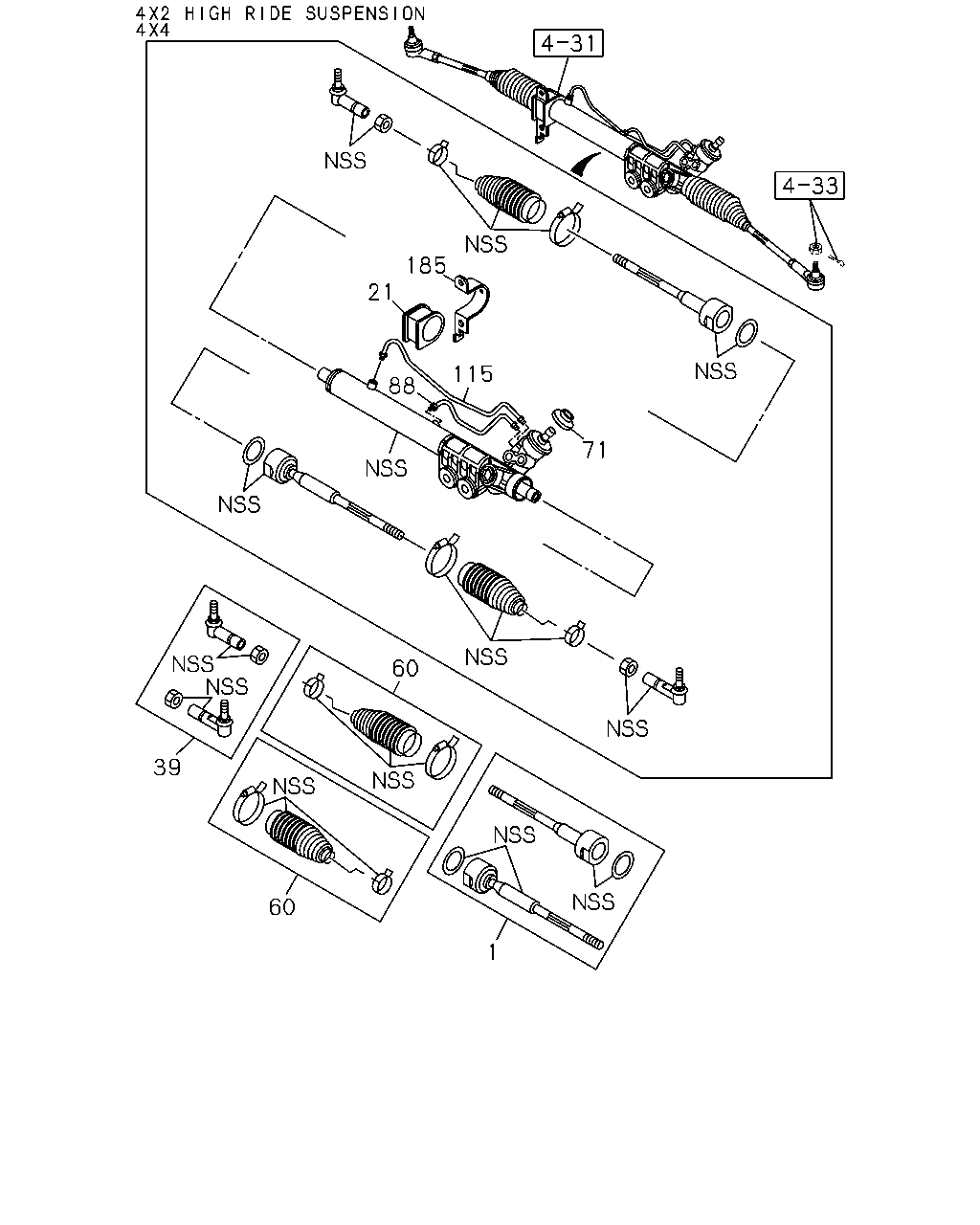

çizim 450331
185 21 115 71 88 60 39 60 1
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97946-132-0, 97946132 		8-98164-967-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97946-130-1, 97946130 		8-98165-055-0 02 1 -
21 06.509 RUBBER; MTG,PINION SIDE
ASM PART: A = 8-97946-130-1, 97946130 		8-97304-908-0 01 1 -
21 06.509 RUBBER; MTG,PINION SIDE
ASM PART: B = 8-97946-132-0, 97946132 		8-97945-426-0 01 1 -
39 06.233 ROD END ASM; OUTER
ASM PART: A = 8-97946-130-1, 97946130 		8-98055-746-0 02 1 -
39 06.233 ROD END ASM; OUTER
ASM PART: B = 8-97946-132-0, 97946132 		8-98056-551-0 01 1 -
60 06.242 BOOT KIT; STRG HSG
ASM PART: B = 8-97946-132-0, 97946132 		8-97945-423-0 02 1 -
60 06.242 BOOT KIT; STRG HSG
ASM PART: A = 8-97946-130-1, 97946130 		8-98055-745-0 02 1 -
71 06.242 COVER; DUST,STRG UNIT
ASM PART: B = 8-97946-132-0, 97946132 		8-98164-972-0 01 1 -
71 06.242 COVER; DUST,STRG UNIT
ASM PART: A = 8-97946-130-1, 97946130 		8-98165-054-0 01 1 -
88 06.671 PIPE; HSG TO VLV
ASM PART: B = 8-97946-132-0, 97946132 		8-98185-988-0 01 1 -
88 06.671 PIPE; HSG TO VLV
ASM PART: A = 8-97946-130-1, 97946130 		8-98189-122-0 01 1 -
115 06.671 PIPE; HSG TO VLV
ASM PART: B = 8-97946-132-0, 97946132 		8-98185-987-0 01 1 -
115 06.671 PIPE; HSG TO VLV
ASM PART: A = 8-97946-130-1, 97946130 		8-98189-123-0 01 1 -
185 06.509 BRACKET; P/S
ASM PART: B = 8-97946-132-0, 97946132 		8-98164-968-0 01 1 -
185 06.509 BRACKET; P/S
ASM PART: A = 8-97946-130-1, 97946130 		8-98165-053-0 01 1 -

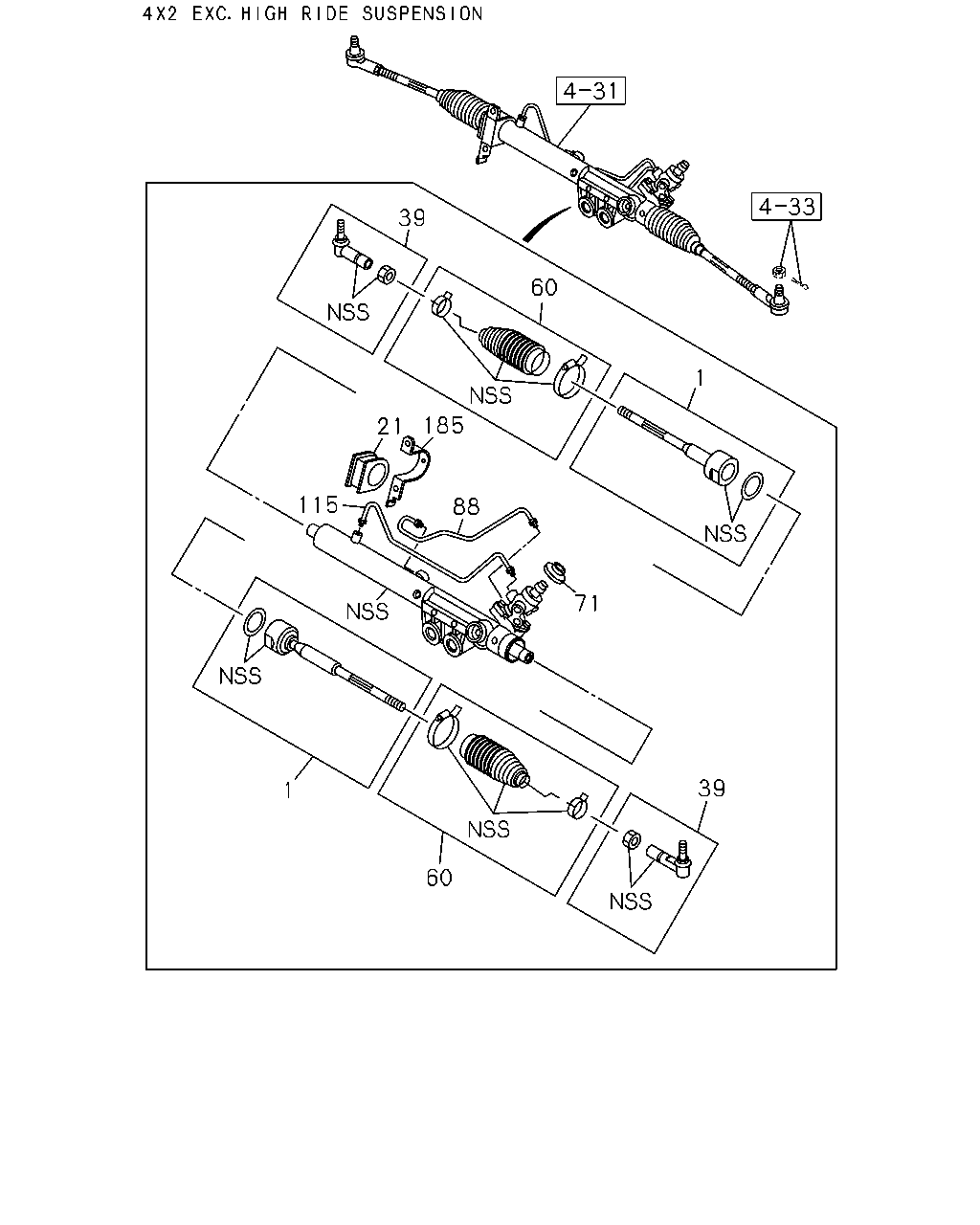

çizim 450696
1 60 39 185 21 88 71 115 39 60 1
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97946-132-0, 97946132 		8-98164-967-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97946-130-1, 97946130 		8-98165-055-0 02 1 -
21 06.509 RUBBER; MTG,PINION SIDE
ASM PART: A = 8-97946-130-1, 97946130 		8-97304-908-0 01 1 -
21 06.509 RUBBER; MTG,PINION SIDE
ASM PART: B = 8-97946-132-0, 97946132 		8-97945-426-0 01 1 -
39 06.233 ROD END ASM; OUTER
ASM PART: A = 8-97946-130-1, 97946130 		8-98055-746-0 02 1 -
39 06.233 ROD END ASM; OUTER
ASM PART: B = 8-97946-132-0, 97946132 		8-98056-551-0 01 1 -
60 06.242 BOOT KIT; STRG HSG
ASM PART: B = 8-97946-132-0, 97946132 		8-97945-423-0 02 1 -
60 06.242 BOOT KIT; STRG HSG
ASM PART: A = 8-97946-130-1, 97946130 		8-98055-745-0 02 1 -
71 06.242 COVER; DUST,STRG UNIT
ASM PART: B = 8-97946-132-0, 97946132 		8-98164-972-0 01 1 -
71 06.242 COVER; DUST,STRG UNIT
ASM PART: A = 8-97946-130-1, 97946130 		8-98165-054-0 01 1 -
88 06.671 PIPE; HSG TO VLV
ASM PART: B = 8-97946-132-0, 97946132 		8-98185-988-0 01 1 -
88 06.671 PIPE; HSG TO VLV
ASM PART: A = 8-97946-130-1, 97946130 		8-98189-122-0 01 1 -
115 06.671 PIPE; HSG TO VLV
ASM PART: B = 8-97946-132-0, 97946132 		8-98185-987-0 01 1 -
115 06.671 PIPE; HSG TO VLV
ASM PART: A = 8-97946-130-1, 97946130 		8-98189-123-0 01 1 -
185 06.509 BRACKET; P/S
ASM PART: B = 8-97946-132-0, 97946132 		8-98164-968-0 01 1 -
185 06.509 BRACKET; P/S
ASM PART: A = 8-97946-130-1, 97946130 		8-98165-053-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
