3-58 — FIXING PARTS; OIL PIPING (#151453) — 42 parça

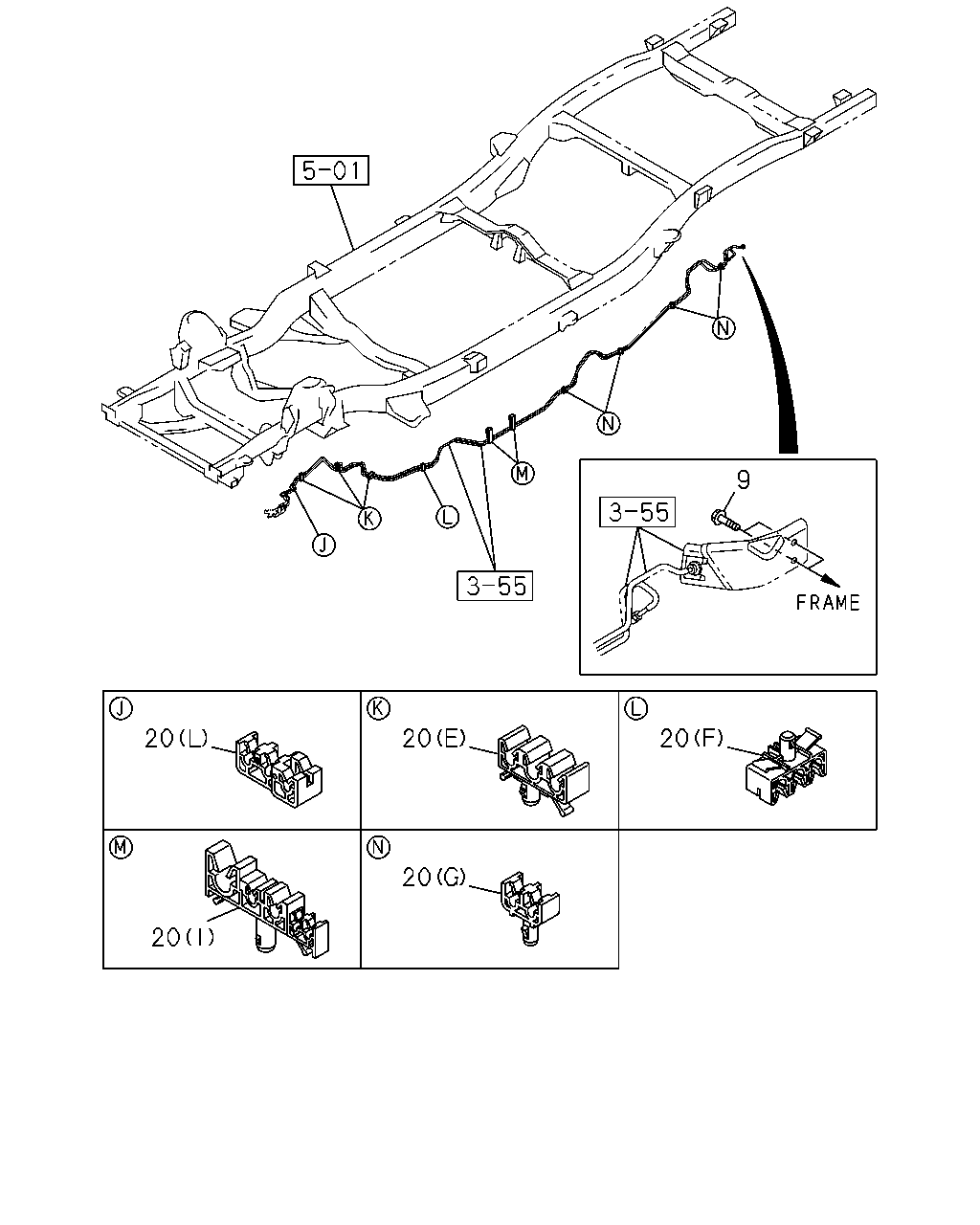

çizim 449359
20 20 20 20 20 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1410- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(J) ID=4.8X2 		8-94389-060-0 01 1 1410- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(A) ID=4.8X3 		8-94487-369-0 02 1 1410- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
03.162 (F) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 01 1 1410- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(K) ID=6.8X2 		8-97251-122-0 02 1 1410- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(G) ID=6.8X2 		8-97251-124-0 04 1 1410- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(H) ID=4.76 		8-97300-443-0 01 1 1410- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(B) ID=4.76X3 		8-98113-388-0 02 1 1410- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76X3 & 6.35X1 OR 10X1 		8-98113-389-0 02 1 1410- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(M) 		8-98113-393-0 02 1 1410- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 		8-98113-394-0 02 1 1410- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(D) ID=4.76 OR 6.8X3 		8-98113-396-0 01 1 1410- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 03 1 1410- ● ●
20 04.686 CLIP; BRK PIPE
04.685 (E) ID=4.76X3 		8-97216-721-1 03 1 1410- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 02 1 1410- ● ●
20 04.686 CLIP; BRK PIPE
04.685 (E) ID=4.76X3 		8-97216-721-1 02 1 1410- ●
20 04.686 CLIP; BRK PIPE
EXC. HIGH RIDE SUSPENSION(7YC) 03.162 (L) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1410- ● ●
20 04.686 CLIP; BRK PIPE
03.162 (L) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1410- ●

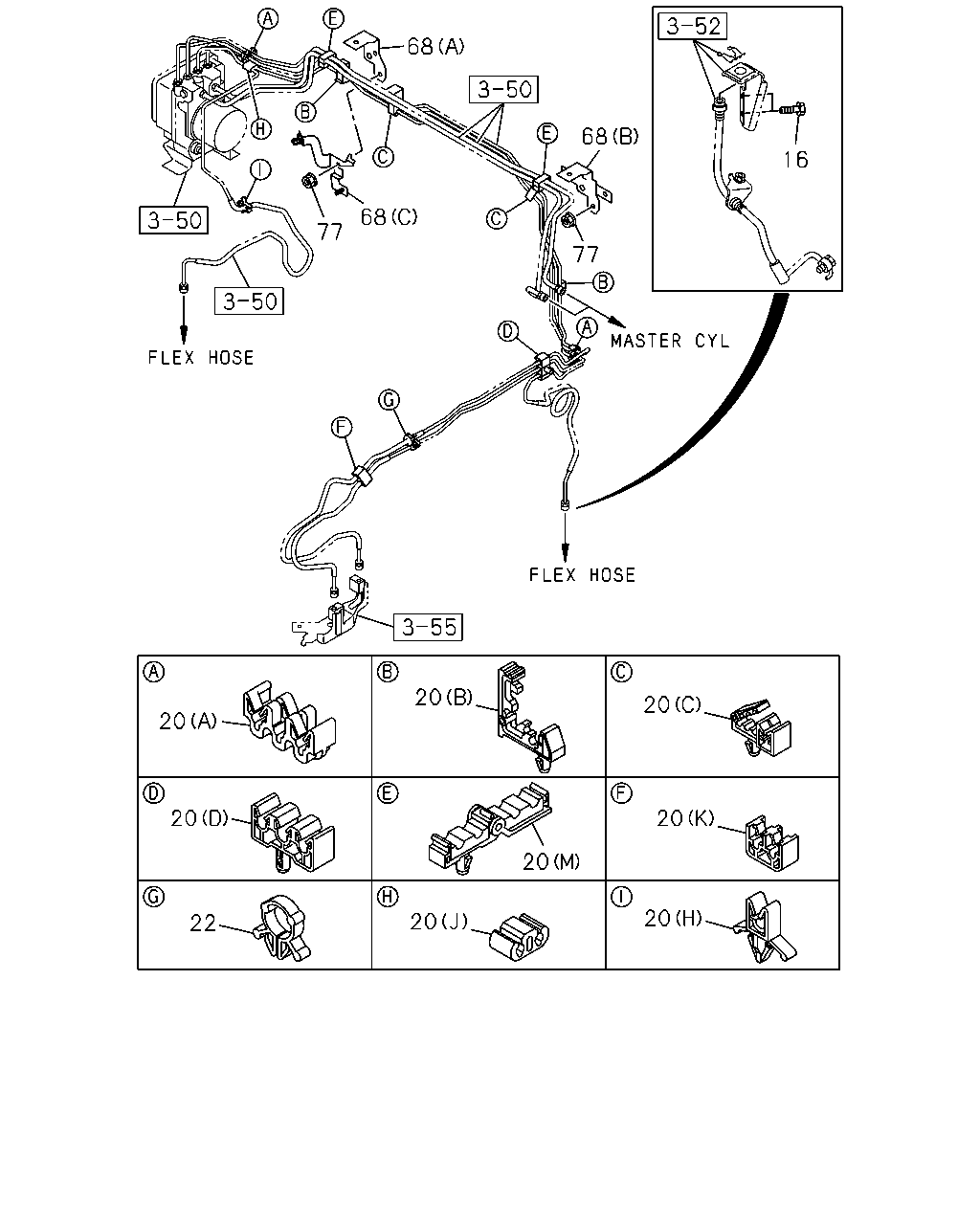

çizim 450317
77 68 68 68 77 16 20 20 20 20 20 20 22 20 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 04.686 BOLT; BRKT TO FRAME
HIGH RIDE SUSPENSION(7YC) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1410- ● ●
16 04.686 BOLT; BRKT TO FRAME
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1410- ● ● ●
20 04.686 CLIP; BRK PIPE
(J) ID=4.8X2 		8-94389-060-0 01 1 1410- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(A) ID=4.8X3 		8-94487-369-0 02 1 1410- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
03.162 (F) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 01 1 1410- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(K) ID=6.8X2 		8-97251-122-0 02 1 1410- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(G) ID=6.8X2 		8-97251-124-0 04 1 1410- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(H) ID=4.76 		8-97300-443-0 01 1 1410- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(B) ID=4.76X3 		8-98113-388-0 02 1 1410- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76X3 & 6.35X1 OR 10X1 		8-98113-389-0 02 1 1410- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(M) 		8-98113-393-0 02 1 1410- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 		8-98113-394-0 02 1 1410- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(D) ID=4.76 OR 6.8X3 		8-98113-396-0 01 1 1410- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 03 1 1410- ● ●
20 04.686 CLIP; BRK PIPE
04.685 (E) ID=4.76X3 		8-97216-721-1 03 1 1410- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 02 1 1410- ● ●
20 04.686 CLIP; BRK PIPE
04.685 (E) ID=4.76X3 		8-97216-721-1 02 1 1410- ●
20 04.686 CLIP; BRK PIPE
EXC. HIGH RIDE SUSPENSION(7YC) 03.162 (L) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1410- ● ●
20 04.686 CLIP; BRK PIPE
03.162 (L) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1410- ●
22 04.686 CLIP; PIPE TO FRAME
16.065 ID=9 		5-09707-027-0 02 1 1410- ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
(A) 		8-98099-790-0 01 1 1410- ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
(B) 		8-98099-791-0 01 1 1410- ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
06.522 (C) 		8-98187-830-0 01 1 1410- ● ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
01.062 M6 FLANGE 		0-91180-106-0 02 1 1410- ● ● ● ● ● ●
