◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51581 - TFR/TFS LHD EUROPE ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#151452) — 29 parça

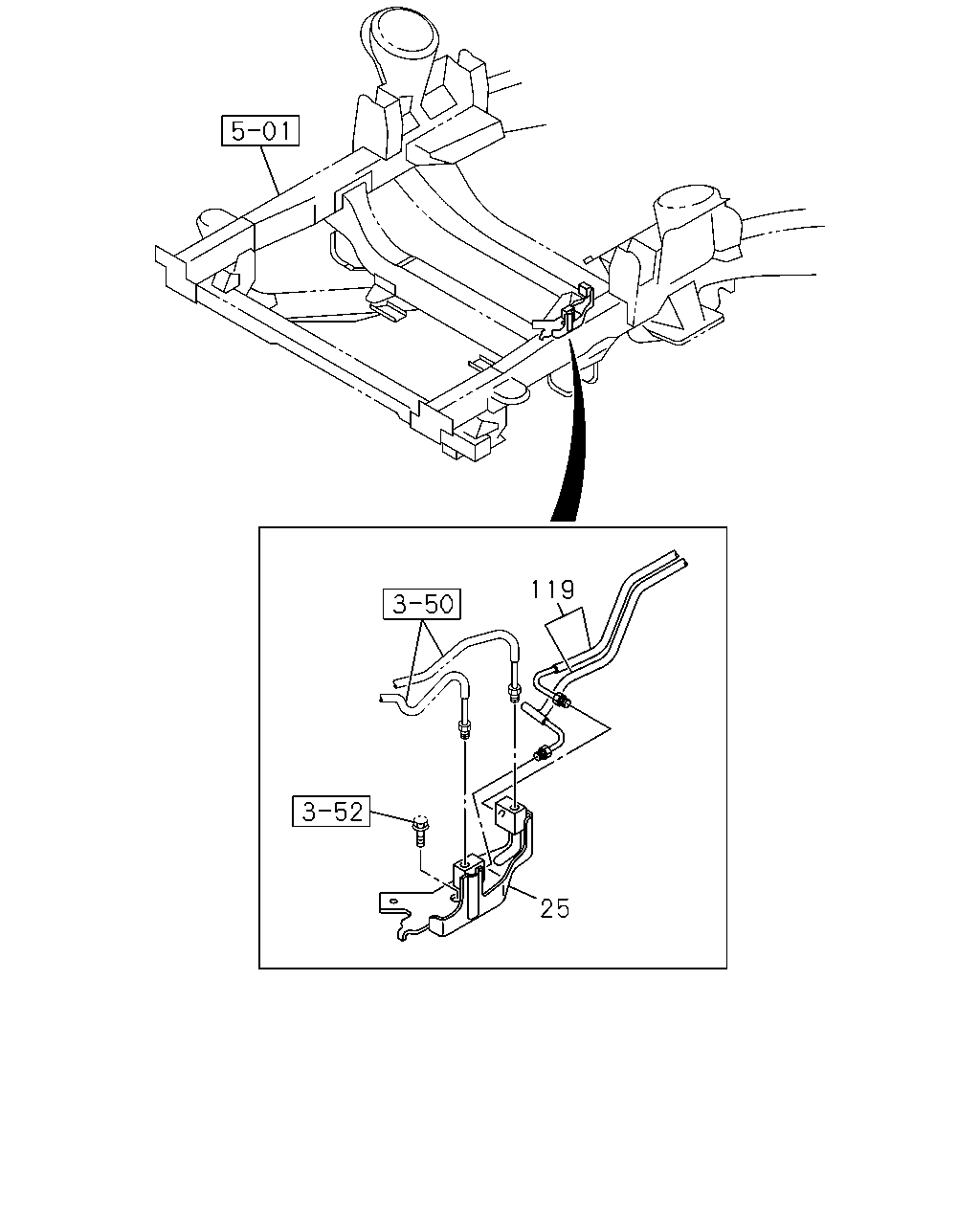

çizim 449163
25 119
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
25 04.686 CONNECTOR 8-98099-785-1 01 1 1410- ● ● ● ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION(7YC) 		8-98099-740-4 01 1 1410- ● ●
119 04.685 PIPE; BRK,2WAY TO RR 8-98099-740-4 01 1 1410- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98155-586-2 01 1 1410- ● ●
119 04.685 PIPE; BRK,2WAY TO RR 8-98155-586-2 01 1 1410- ●

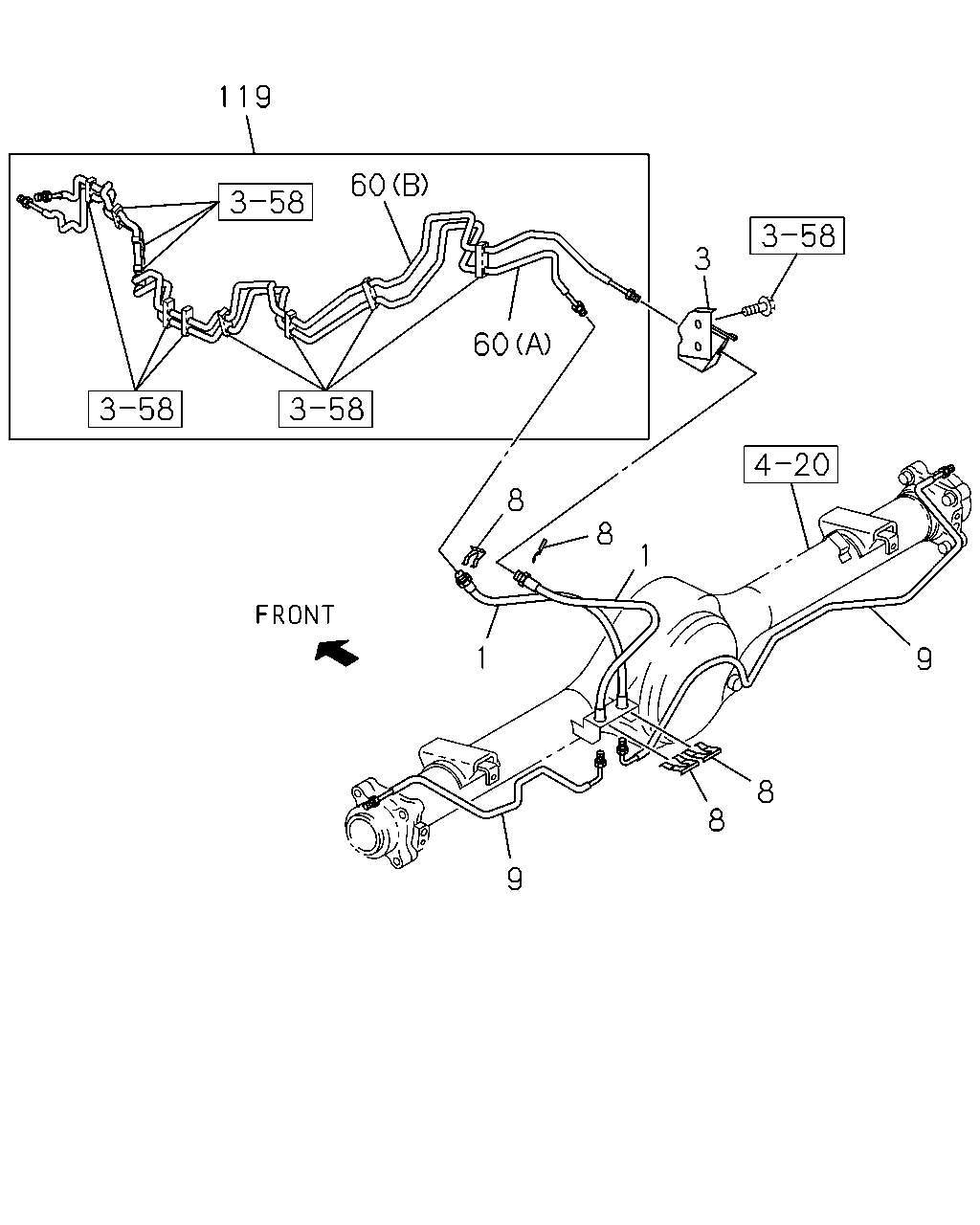

çizim 450571
119 60 60 3 8 8 1 9 8 8 9 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,RR BRK 8-97947-133-1 01 1 1410- ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK 8-98067-085-1 01 1 1410- ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK 8-98102-358-1 01 1 1410- ● ● ● ● ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 1410- ● ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-98103-455-1 01 1 1410- ● ●
9 04.685 PIPE; BRK,RR AXLE 8-98103-455-1 01 1 1410- ● ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-98103-456-1 01 1 1410- ● ●
9 04.685 PIPE; BRK,RR AXLE 8-98103-456-1 01 1 1410- ● ● ●
9 04.685 PIPE; BRK,RR AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98151-580-0 01 1 1410- ● ●
9 04.685 PIPE; BRK,RR AXLE 8-98151-580-0 01 1 1410- ●
9 04.685 PIPE; BRK,RR AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98151-581-0 01 1 1410- ● ●
9 04.685 PIPE; BRK,RR AXLE 8-98151-581-0 01 1 1410- ●
60 04.685 PIPE ASM; BRK
HIGH RIDE SUSPENSION(7YC) (A) 		8-98099-741-4 01 1 1410- ● ●
60 04.685 PIPE ASM; BRK
(A) 		8-98099-741-4 01 1 1410- ● ● ●
60 04.685 PIPE ASM; BRK
HIGH RIDE SUSPENSION(7YC) (B) 		8-98099-742-4 01 1 1410- ● ●
60 04.685 PIPE ASM; BRK
(B) 		8-98099-742-4 01 1 1410- ● ● ●
60 04.685 PIPE ASM; BRK
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98155-587-2 01 1 1410- ● ●
60 04.685 PIPE ASM; BRK
(B) 		8-98155-587-2 01 1 1410- ●
60 04.685 PIPE ASM; BRK
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98155-588-2 01 1 1410- ● ●
60 04.685 PIPE ASM; BRK
(A) 		8-98155-588-2 01 1 1410- ●
119 04.685 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION(7YC) 		8-98099-740-4 01 1 1410- ● ●
119 04.685 PIPE; BRK,2WAY TO RR 8-98099-740-4 01 1 1410- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98155-586-2 01 1 1410- ● ●
119 04.685 PIPE; BRK,2WAY TO RR 8-98155-586-2 01 1 1410- ●
