0-65 — STARTER (#151406) — 22 parça

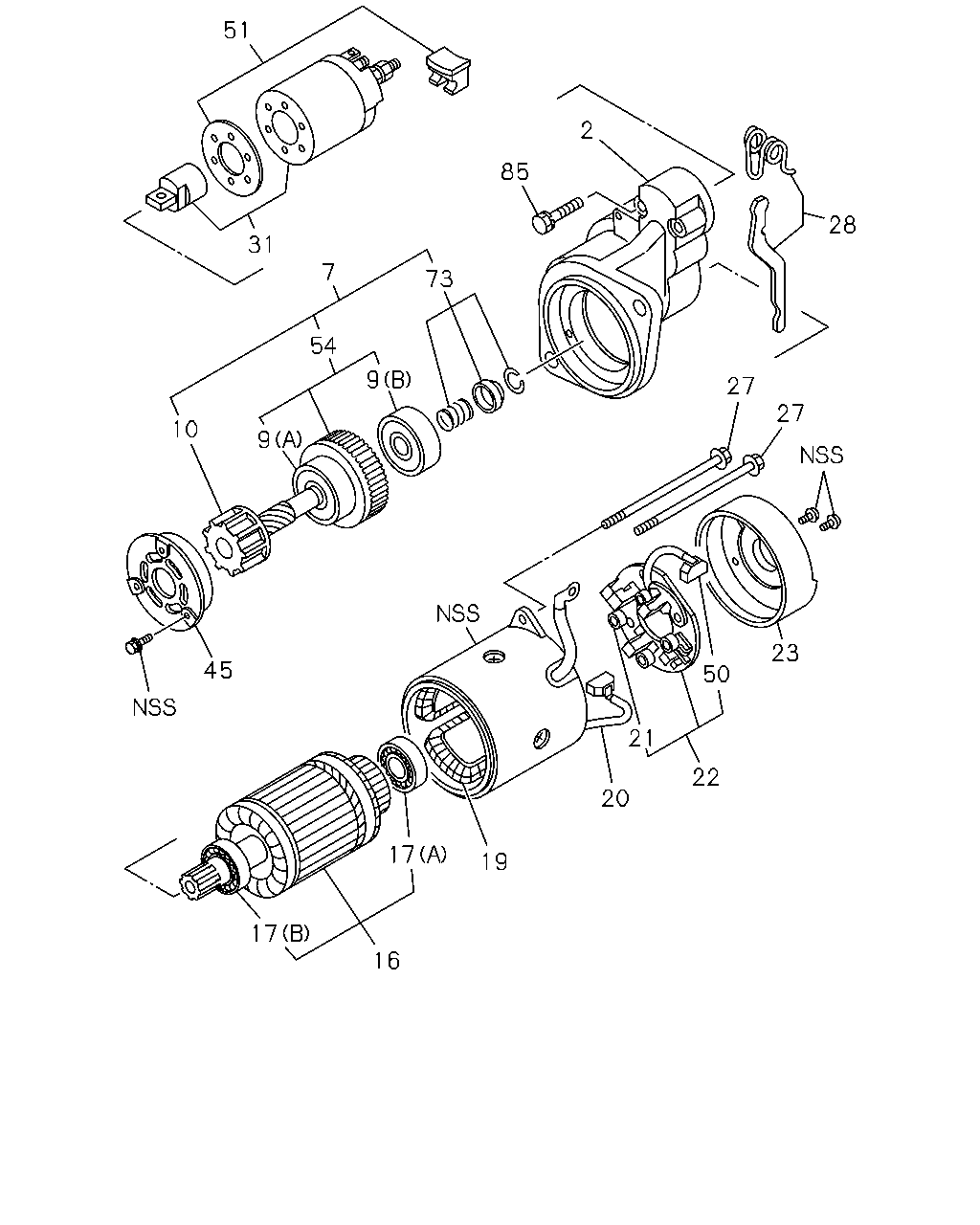

çizim 449754
51 31 2 85 73 7 54 9 10 45 17 16 17 19 20 21 22 50 23 27 27 28 9
BalonParca AdiParca NoAdetTipApplied Date
2 02.085 CASE; PINION,STARTER
ASM PART: A = 8-98183-655-0, 98183655 		8-98186-664-0 01 1 -
7 02.086 CLUTCH ASM; PINION,STARTER
ASM PART: A = 8-98183-655-0, 98183655 		8-97229-910-0 01 1 -
9 02.083 BEARING; GEAR SHAFT STARTER
(A) ASM PART: A = 8-98183-655-0, 98183655 		8-97047-549-0 01 1 -
9 02.083 BEARING; GEAR SHAFT STARTER
(B) ASM PART: A = 8-98183-655-0, 98183655 		8-97047-550-0 01 1 -
10 02.086 SHAFT; GEAR STARTER
ASM PART: A = 8-98183-655-0, 98183655 		8-97130-189-0 01 1 -
16 02.043 ARMATURE; STARTER
ASM PART: A = 8-98183-655-0, 98183655 		8-97262-027-0 01 1 -
17 02.083 BEARING; ARMATURE,STARTER
(A) ASM PART: A = 8-98183-655-0, 98183655 		8-94228-436-0 01 1 -
17 02.083 BEARING; ARMATURE,STARTER
(B) ASM PART: A = 8-98183-655-0, 98183655 		8-94228-437-0 01 1 -
19 02.049 COIL; FIELD,STARTER
ASM PART: A = 8-98183-655-0, 98183655 		8-97376-957-0 01 1 -
20 02.051 BRUSH; (+),STARTER
ASM PART: A = 8-98183-655-0, 98183655 		8-97113-286-0 02 1 -
21 02.053 SPRING; BRUSH HOLDER STARTER
ASM PART: A = 8-98183-655-0, 98183655 		8-94242-064-0 04 1 -
22 02.051 HOLDER; BRUSH STARTER
ASM PART: A = 8-98183-655-0, 98183655 		8-97112-559-1 01 1 -
23 02.067 COVER; RR COVER STARTER
ASM PART: A = 8-98183-655-0, 98183655 		8-97319-418-0 01 1 -
27 02.077 BOLT; THROUGH,STARTER
ASM PART: A = 8-98183-655-0, 98183655 		8-97319-423-0 02 1 -
28 02.108 LEVER; SHIFT,STARTER
ASM PART: A = 8-98183-655-0, 98183655 		8-97351-967-0 01 1 -
31 02.100 SWITCH; ENGAGE STARTER
ASM PART: A = 8-98183-655-0, 98183655 		8-98187-413-0 01 1 -
45 02.042 RETAINER; BEARING,STARTER
02.086 ASM PART: A = 8-98183-655-0, 98183655 		8-94435-570-0 01 1 -
50 02.051 BRUSH; (-),STARTER
ASM PART: A = 8-98183-655-0, 98183655 		8-97113-286-0 02 1 -
51 02.104 COVER SET; DUST ENGAGE SW STARTE
ASM PART: A = 8-98183-655-0, 98183655 		8-97368-563-0 01 1 -
54 02.086 CLUTCH; PINION,STARTER
ASM PART: A = 8-98183-655-0, 98183655 		8-97229-911-0 01 1 -
73 02.063 STOPPER SET; PINION
ASM PART: A = 8-98183-655-0, 98183655 		8-94228-450-0 01 1 -
85 02.102 BOLT; ENGAGE SW FIX,STARTER
ASM PART: A = 8-98183-655-0, 98183655 		8-94408-500-0 02 1 -
