Isuzu WW
▶
PICKUP
▶
TFR
▶
51581 - TFR/TFS LHD EUROPE
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#151405) — 26 parça
◀

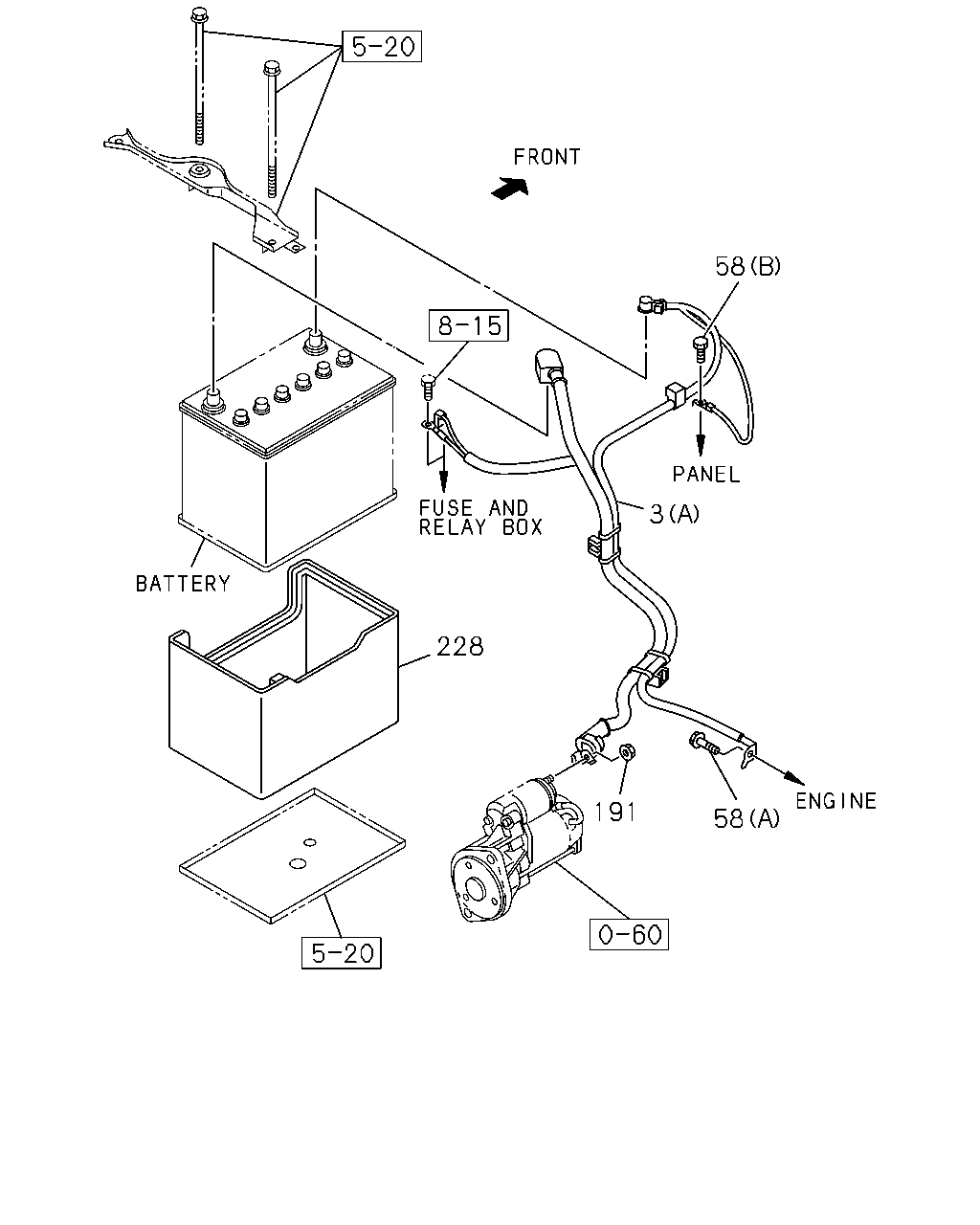

[061A] BATTERY 80D26L,95D31L (13 parça)

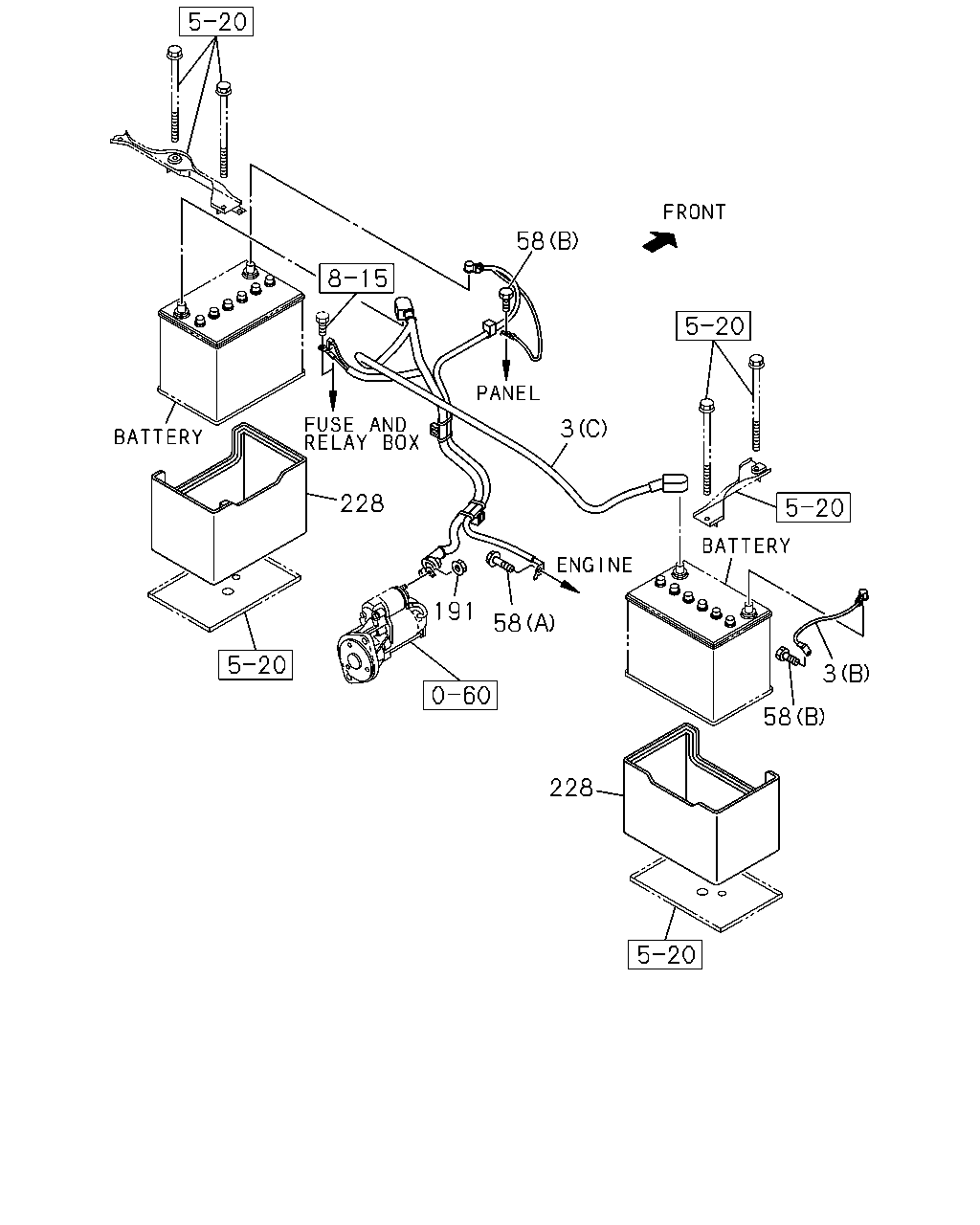

[061A] BATTERY 75D26L-DUAL,80D26L-DUAL (13 parça)
▶
228
3
191
58
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1) (A)
8-98238-380-2
01
1
1410-
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 95D31L(TQ8) (A)
8-98160-809-3
01
1
1410-
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B)
8-98129-414-1
01
1
1410-
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (C)
8-98238-432-1
01
1
1410-
58
02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8), BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) M10X20 FLANGE
0-28651-020-0
01
1
1410-
58
02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8), BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) M6X16 W/LK&PL WASHER
8-97086-823-0
01
1
1410-1501
58
02.343 BOLT; CABLE,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) M6X16 W/LK&PL WASHER
8-97086-823-0
01
1
1410-1501
58
02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8), BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.559 (B) M6X14 W/PL WASHER
8-98164-836-0
01
1
1502-
58
02.343 BOLT; CABLE,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.559 (B) M6X14 W/PL WASHER
8-98164-836-0
01
1
1502-
191
08.155 NUT; STARTER
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8), BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 01.062 M8 FLANGE
0-91180-108-0
01
1
1410-
228
03.602 SHIELD; BATTERY
BATTERY 80D26L(TM1)
8-98154-328-0
01
1
1410-
228
03.602 SHIELD; BATTERY
BATTERY 95D31L(TQ8)
8-98154-327-0
01
1
1410-
228
03.602 SHIELD; BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)
8-98154-328-0
02
1
1410-
228
58
3
58
191
228
3
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1) (A)
8-98238-380-2
01
1
1410-
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 95D31L(TQ8) (A)
8-98160-809-3
01
1
1410-
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B)
8-98129-414-1
01
1
1410-
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (C)
8-98238-432-1
01
1
1410-
58
02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8), BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) M10X20 FLANGE
0-28651-020-0
01
1
1410-
58
02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8), BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) M6X16 W/LK&PL WASHER
8-97086-823-0
01
1
1410-1501
58
02.343 BOLT; CABLE,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) M6X16 W/LK&PL WASHER
8-97086-823-0
01
1
1410-1501
58
02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8), BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.559 (B) M6X14 W/PL WASHER
8-98164-836-0
01
1
1502-
58
02.343 BOLT; CABLE,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.559 (B) M6X14 W/PL WASHER
8-98164-836-0
01
1
1502-
191
08.155 NUT; STARTER
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8), BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 01.062 M8 FLANGE
0-91180-108-0
01
1
1410-
228
03.602 SHIELD; BATTERY
BATTERY 80D26L(TM1)
8-98154-328-0
01
1
1410-
228
03.602 SHIELD; BATTERY
BATTERY 95D31L(TQ8)
8-98154-327-0
01
1
1410-
228
03.602 SHIELD; BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)
8-98154-328-0
02
1
1410-
