0-52 — OIL AND VACUUM PIPING; ENGINE (#151401) — 45 parça

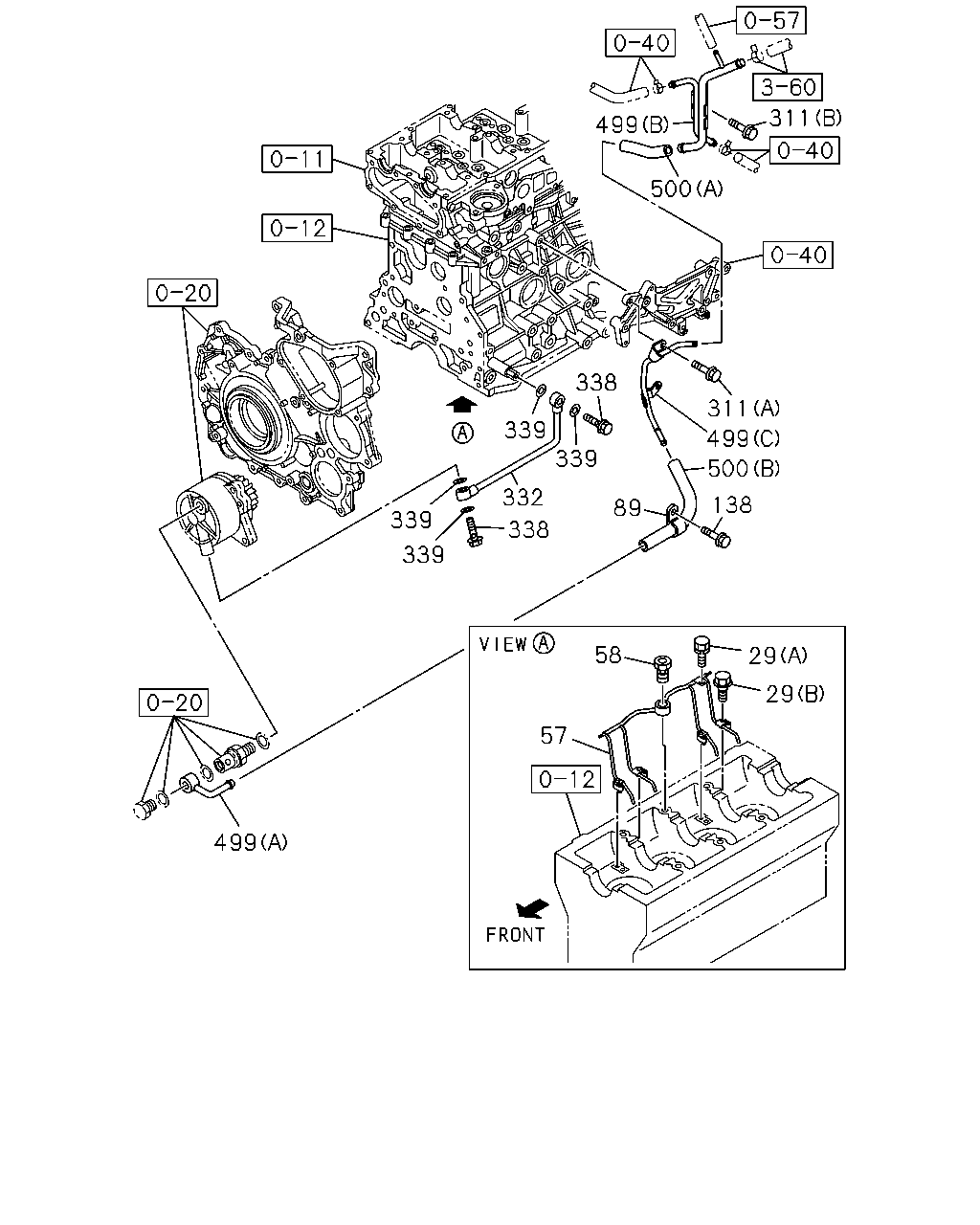

500 499 311 338 339 332 338 339 339 339 89 138 500 499 311 29 29 58 57 499

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1410-
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE	8-97380-673-1	04	1	1410-
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	1410-
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	1410-
89	04.681 CLIP; VAC HOSE ID=16 L=20	0-95235-536-0	01	1	1410-
138	01.531 BOLT; CLIP FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1410-
311	01.531 BOLT; PIPE FIX 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1410-
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1410-
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98038-929-0	01	1	1410-
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	8-97910-296-1	02	1	1410-
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1410-
499	04.681 PIPE; VACUUM (A)	8-98011-527-1	01	1	1410-
499	04.681 PIPE; VACUUM (B)	8-98132-058-2	01	1	1410-
499	04.681 PIPE; VACUUM (C)	8-98172-379-0	01	1	1410-
500	04.681 HOSE; VACUUM (A)	0-08508-090-0	01	1	1410-
500	04.681 HOSE; VACUUM (B)	0-08508-230-0	01	1	1410-

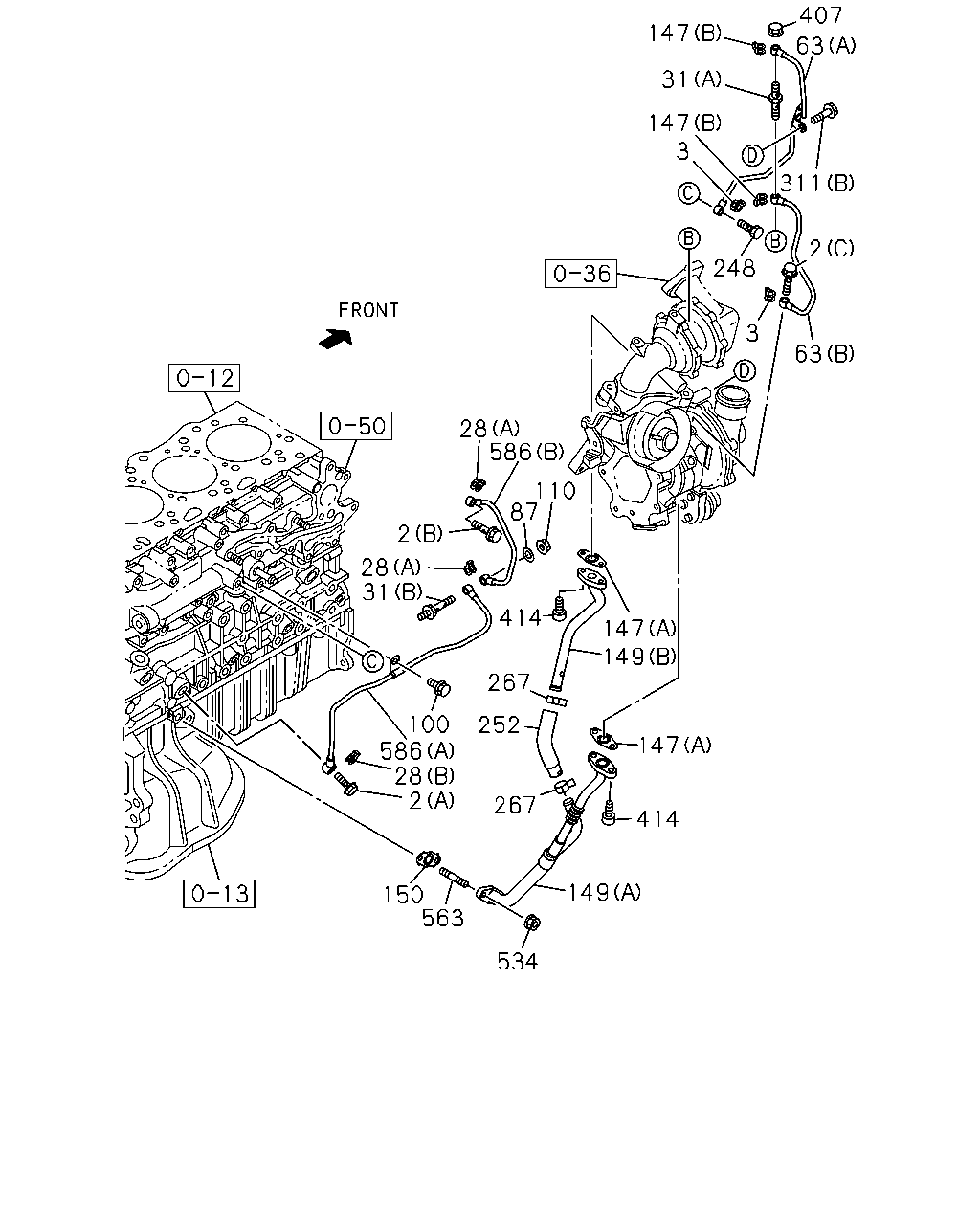

407 63 147 31 147 3 311 2 248 63 3 28 586 110 87 2 28 31 414 267 252 100 586 28 2 267 150 563 534 149 414 147 149 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	01.531 BOLT; EYE,OIL PIPE 03.162 (A) M14X27 FLANGE	1-09675-086-0	01	1	1410-
2	01.531 BOLT; EYE,OIL PIPE (B) M8X23 FLANGE	8-98108-689-0	01	1	1410-
2	01.531 BOLT; EYE,OIL PIPE (C) M10X27	8-98186-729-0	01	1	1410-
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	02	1	1410-
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (A) ID=8.3 OD=15.0	8-98065-992-0	02	1	1410-
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1410-
31	01.540 NIPPLE; OIL PIPE (A)	8-98178-328-2	01	1	1410-
31	01.540 NIPPLE; OIL PIPE (B)	8-98186-104-0	01	1	1410-
63	01.519 PIPE; OIL,TURBOCHARGER FEED (A)	8-98178-927-1	01	1	1410-
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-98178-928-0	01	1	1410-
87	01.531 GASKET; JOINT BOLT 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	1410-
100	01.531 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1410-
110	01.531 NUT; CAP OIL PIPE M8 CAP NUT FLANGE	8-98251-964-0	01	1	1410-
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=16	8-98029-475-0	02	1	1410-
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (B) ID=8.3 OD=15.0	8-98065-992-0	02	1	1410-
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (A)	8-98151-189-0	01	1	1410-
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (B)	8-98151-190-2	01	1	1410-
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1410-
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M10X24	8-98178-353-1	01	1	1410-
252	01.855 HOSE; RUBBER,TURBOCHARGER RETURN	8-98177-334-2	01	1	1410-
267	01.531 CLIP; HOSE 01.540 ID=18.9	8-94478-875-0	02	1	1410-
311	01.531 BOLT; PIPE FIX 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1410-
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1410-
407	01.531 NUT; CAP,TURBOCHARGER OIL FEED P M8 CAP NUT FLANGE	8-98251-964-0	01	1	1410-
414	01.531 BOLT; OIL PIPE 00.724 M6X16 HEX SOCKET	0-58330-616-0	04	1	1410-
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1410-
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	1410-
586	01.519 PIPE; OIL,TENSIONER (A)	8-98186-102-2	01	1	1410-
586	01.519 PIPE; OIL,TENSIONER (B)	8-98186-103-2	01	1	1410-
