Isuzu WW
▶
PICKUP
▶
TFR
▶
51581 - TFR/TFS LHD EUROPE
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶
0-25 — INLET MANIFOLD
(#151389) — 16 parça
◀

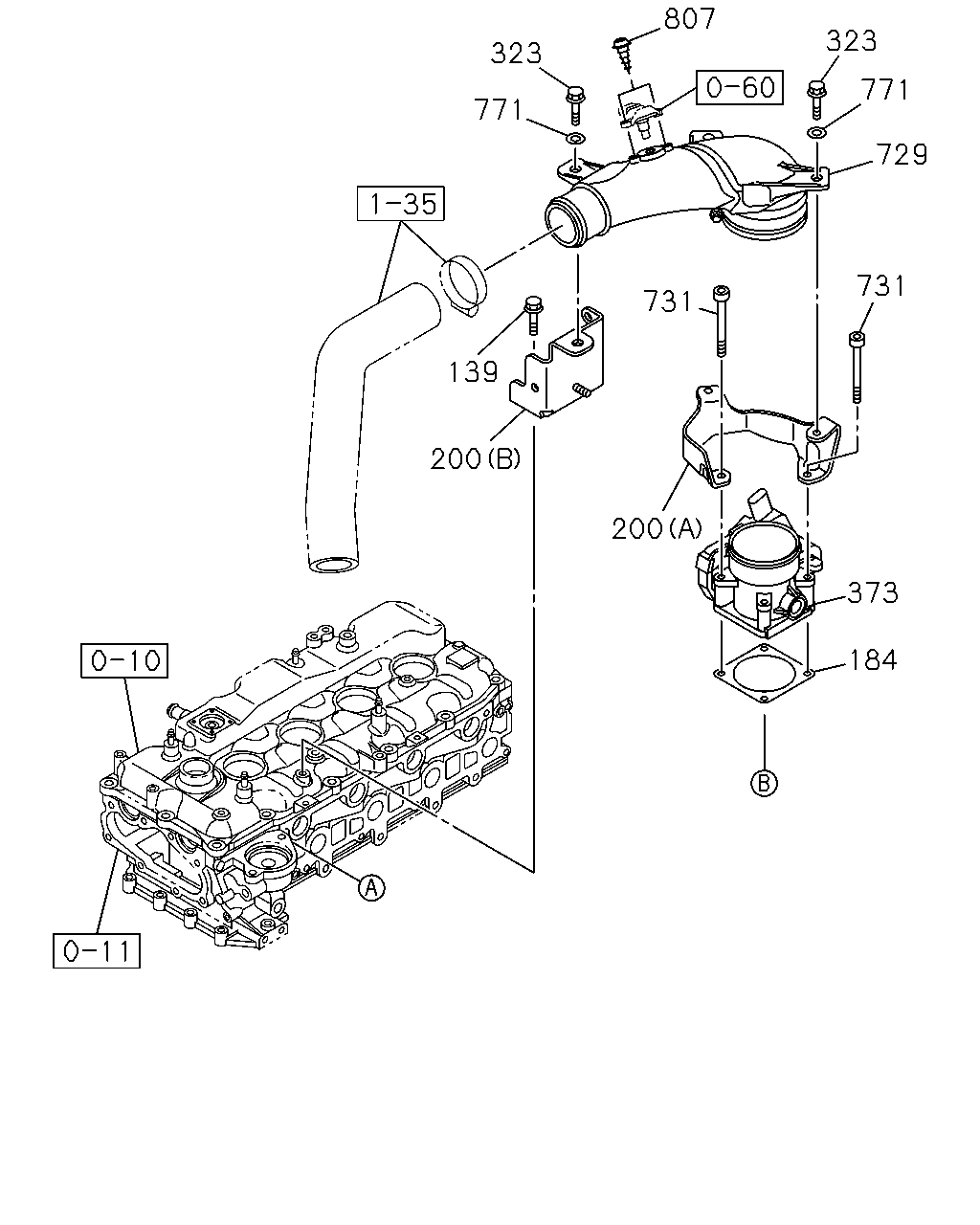

[025A] NO.1 (10 parça)

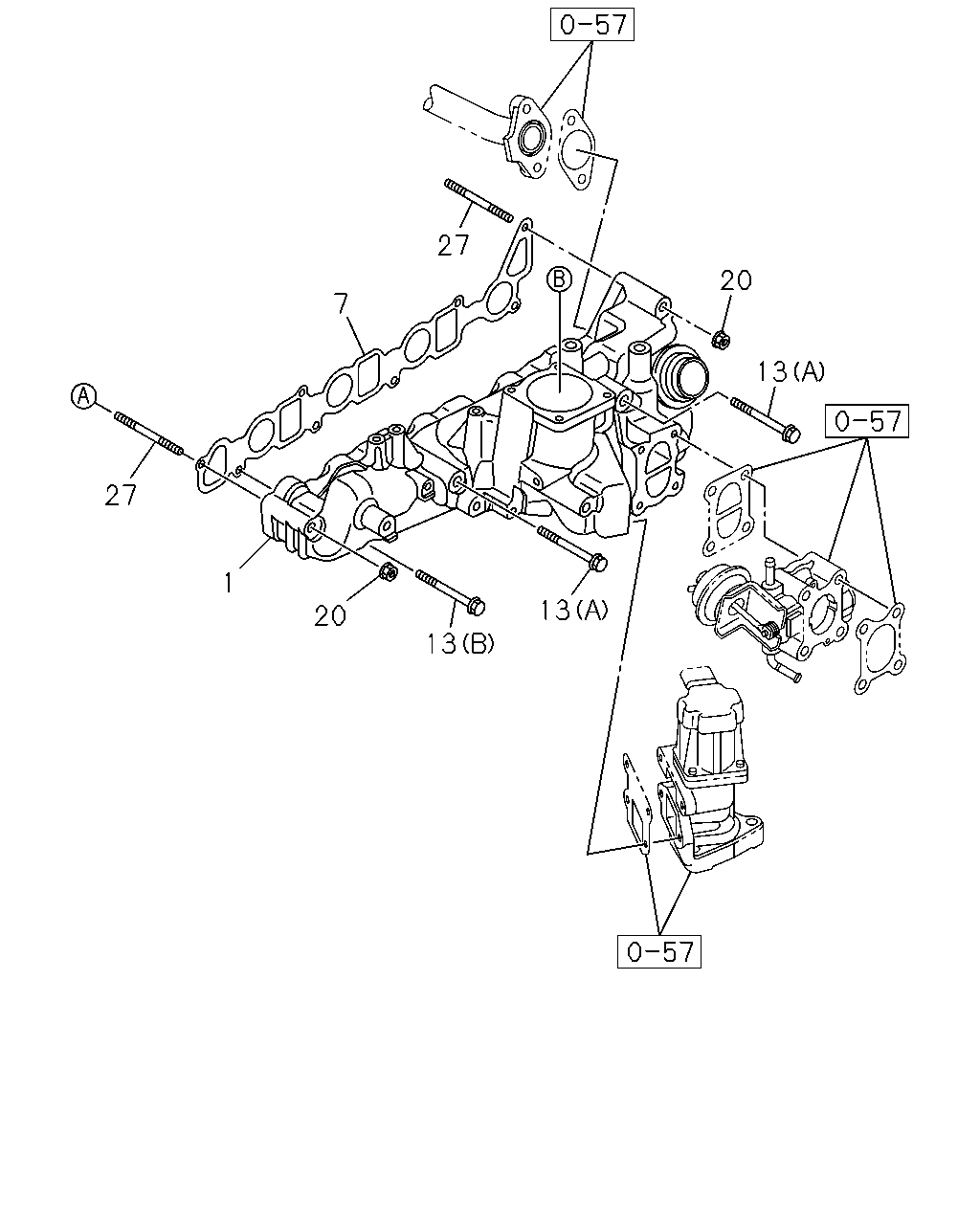

[025A] NO.2 (6 parça)
▶
323
771
807
323
771
729
731
731
139
200
200
373
184
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
139
03.162 BOLT; BRKT FIX
02.343 M8X16 FLANGE
0-28050-816-0
02
1
1410-
184
03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98096-968-0
01
1
1410-
200
03.407 BRACKET; AIR DUCT
(B)
8-98184-529-0
01
1
1410-
200
03.407 BRACKET; AIR DUCT
(A)
8-98184-895-0
01
1
1410-
323
03.275 BOLT; DUCT
09.242 M6X16 FLANGE
0-28050-616-0
03
1
1410-
373
03.265 THROTTLE ASM; INT
8-98131-738-3
01
1
1410-
729
03.265 DUCT; INLET
8-98180-253-0
01
1
1410-
731
02.559 BOLT; THROTTLE ASM
M6X50 HEX SOCKET
0-58330-650-0
04
1
1410-
771
03.417 WASHER; DUCT
00.413 ID=6.4 OD=18
0-91610-706-0
03
1
1410-
807
03.278 SCREW; SENSOR
02.510 M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1410-
27
1
7
27
20
13
13
13
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.265 MANIFOLD; INL
8-98151-203-1
01
1
1410-
7
03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98063-396-0
01
1
1410-
13
03.275 BOLT; INL MANIF
(A) M8X110 FLANGE
0-28055-811-0
02
1
1410-
13
03.275 BOLT; INL MANIF
(B) M8X70 12-POINT HEAD
8-97101-065-0
04
1
1410-
20
03.275 NUT; INL MANIF
01.540 M8 FLANGE
0-91180-208-0
02
1
1410-
27
03.275 STUD; INL MANIF
M8X71 L=83
8-97367-083-0
02
1
1410-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
