◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51581 - TFR/TFS LHD EUROPE ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶
0-12 — CYLINDER BLOCK (#151383) — 34 parça

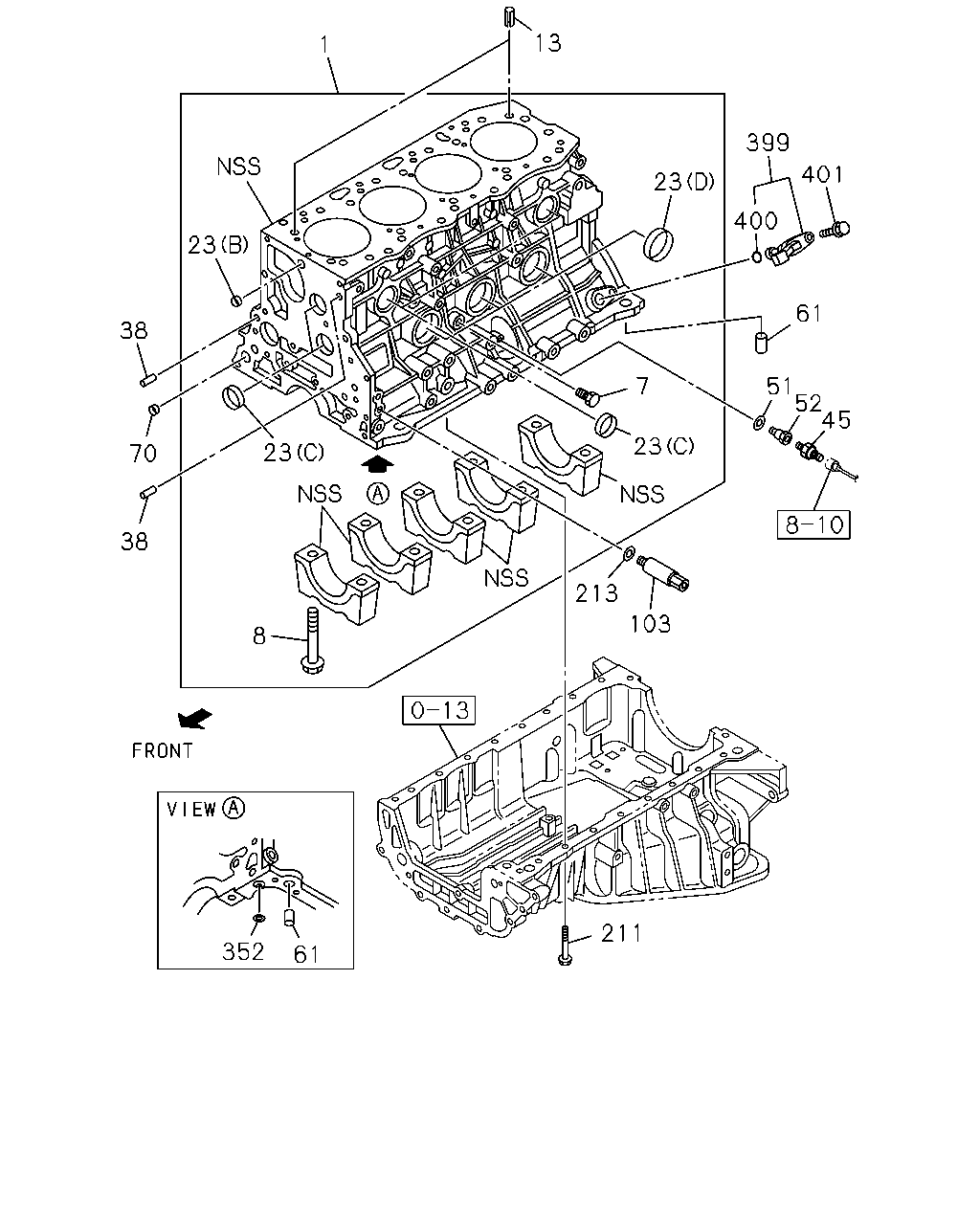

çizim 448049
1 13 23 399 400 401 61 51 52 45 23 7 213 103 211 61 352 38 70 38 23 8 23
BalonParca AdiParca NoAdetTipApplied Date
1 00.033 BLOCK ASM; CYL 8-98239-517-2 01 1 1410-
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 1410-
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 1410-
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 1410-
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) OD=18 		5-11219-008-0 02 1 1410-
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=32 		5-11219-015-0 04 1 1410-
23 00.034 CUP; SEALING,C/BL FRT & RR
(A) OD=36 		5-11219-018-0 02 1 1410-
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=45 		8-97036-550-1 03 1 1410-
38 00.206 PIN; TIMING GEAR CASE
00.669 OD=10 L=20 		9-08151-020-0 02 1 1410-
45 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 1410-
51 01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97912-498-0 01 1 1410-
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-98089-872-0 01 1 1410-1502
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-94167-750-2 01 1 1503-
61 00.206 PIN; STRAIGHT
01.453 L=31 		8-97920-964-1 02 1 1410-
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 06 1 1410-
103 01.531 NIPPLE; OIL FEED 8-97316-983-4 01 1 1410-
211 01.428 BOLT; CRANKCASE
00.206 M8X30 FLANGE 		0-28050-830-0 05 1 1410-
211 01.428 BOLT; CRANKCASE
06.216 M8X25 FLANGE 		0-28650-825-0 14 1 1410-
211 01.428 BOLT; CRANKCASE
00.685 M8X40 FLANGE 		0-28650-840-0 01 1 1410-
213 01.531 GASKET; NIPPLE,OIL FEED
08.955 ID=10.2 OD=16.0 		9-09571-410-0 01 1 1410-
352 01.429 GASKET; C/BL TO CRANKCASE
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09566-116-0 01 1 1410-
399 00.724 SENSOR; CRANKSHAFT POSITION
02.361 		8-97312-108-1 01 1 1410-
400 00.724 GASKET; CRANKSHAFT POSITION SENS
ID=14.2 OD=18.8 		8-97369-404-0 01 1 1410-
401 00.724 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1410-

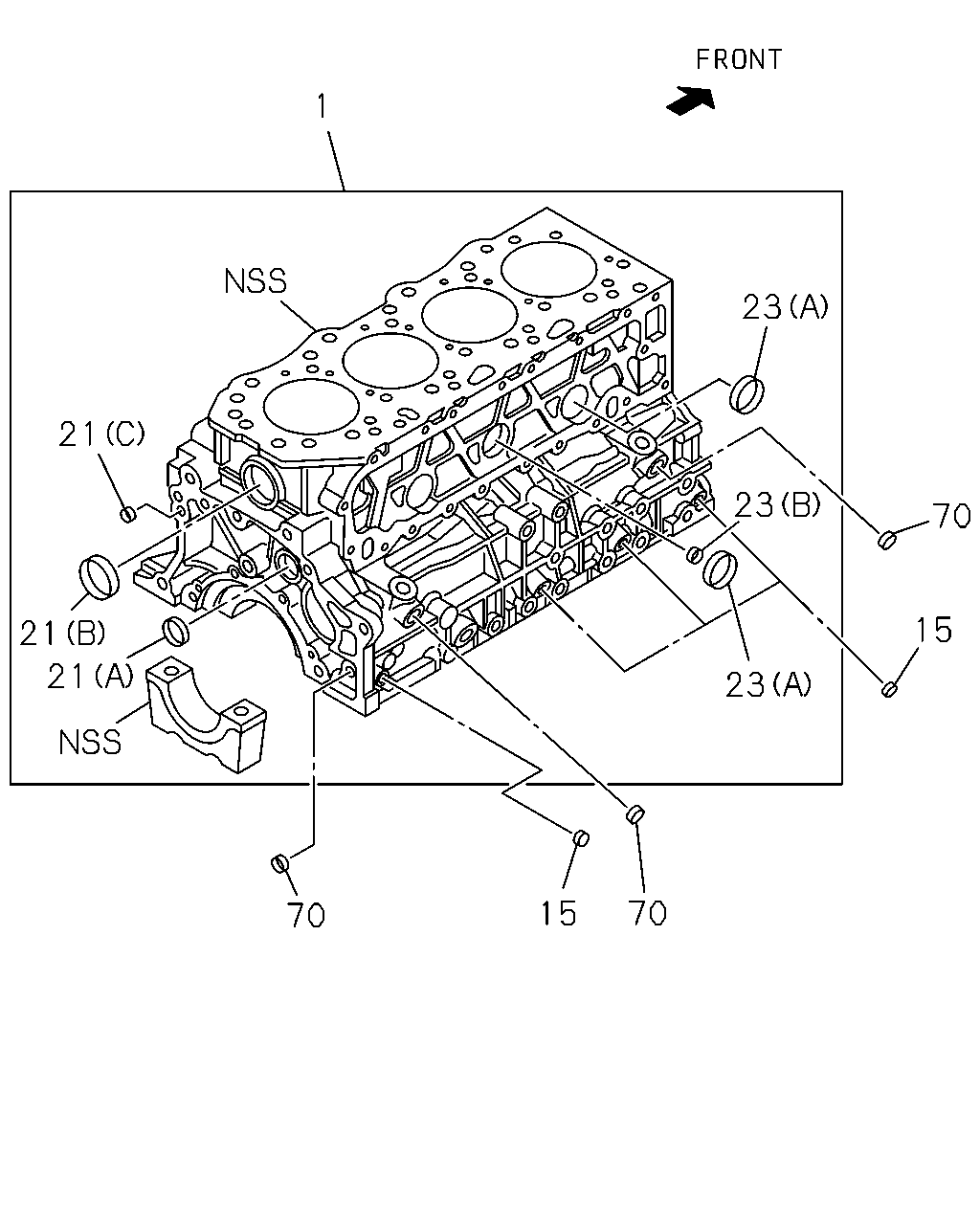

çizim 448054
1 21 23 23 70 15 23 70 15 70 21 21
BalonParca AdiParca NoAdetTipApplied Date
1 00.033 BLOCK ASM; CYL 8-98239-517-2 01 1 1410-
15 01.531 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 04 1 1410-
21 00.034 CUP; SEALING,RR
00.253 (C) OD=12.3 		5-09600-013-0 01 1 1410-
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 1410-
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 1410-
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) OD=18 		5-11219-008-0 02 1 1410-
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=32 		5-11219-015-0 04 1 1410-
23 00.034 CUP; SEALING,C/BL FRT & RR
(A) OD=36 		5-11219-018-0 02 1 1410-
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=45 		8-97036-550-1 03 1 1410-
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 06 1 1410-
