8-90 — RADIO AND TV (#151377) — 15 parça

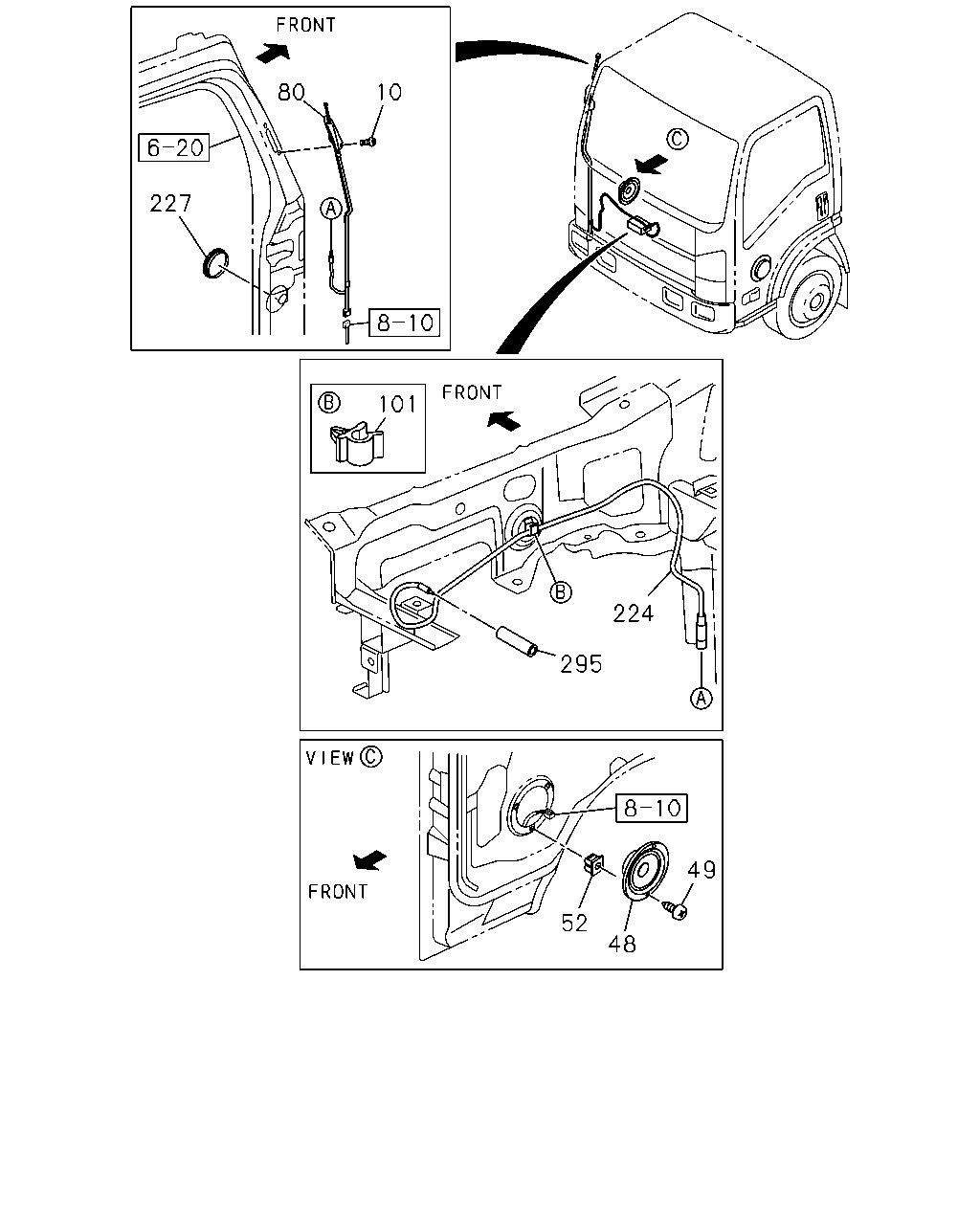

10 80 227 101 224 295 52 48 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	SCREW; ANTENNA CABLE M5X11 TAPPING W/TORQUES THA	8-98061-742-0	02	1	1410-	●	●
48	SPEAKER; AUDIO THA	8-97317-001-1	02	1	1410-	●	●
49	SCREW; SPEAKER M5X14 TAPPING W/TORQUES THA	8-98061-856-0	06	1	1410-	●	●
52	GROMMET; SCREW,SPEAKER D=8.6X7.7 L=7.5 THA	8-94279-078-0	06	1	1410-	●	●
80	ANTENNA THA	8-97387-265-3	01	1	1410-	●	●
101	CLIP; FEEDER TO BRKT ID=4.8 THA	8-94128-483-0	01	1	1410-	●	●
224	CABLE; EXT,FEEDER 4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2011<VZB> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-98029-970-1	01	1	1410-	●
224	CABLE; EXT,FEEDER 4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER<8GF> THA	8-98029-970-1	01	1	1410-	●
224	CABLE; EXT,FEEDER 4HK1-TCS ENG<RJS> VIN MODEL YEAR 2011<VZB> THA	8-98029-970-1	01	1	1410-		●
227	PROTECTOR; EDGE THA	8-98053-117-0	01	1	1410-	●	●
295	INSULATOR; ANTENNA THA	8-98095-617-1	01	1	1410-	●	●

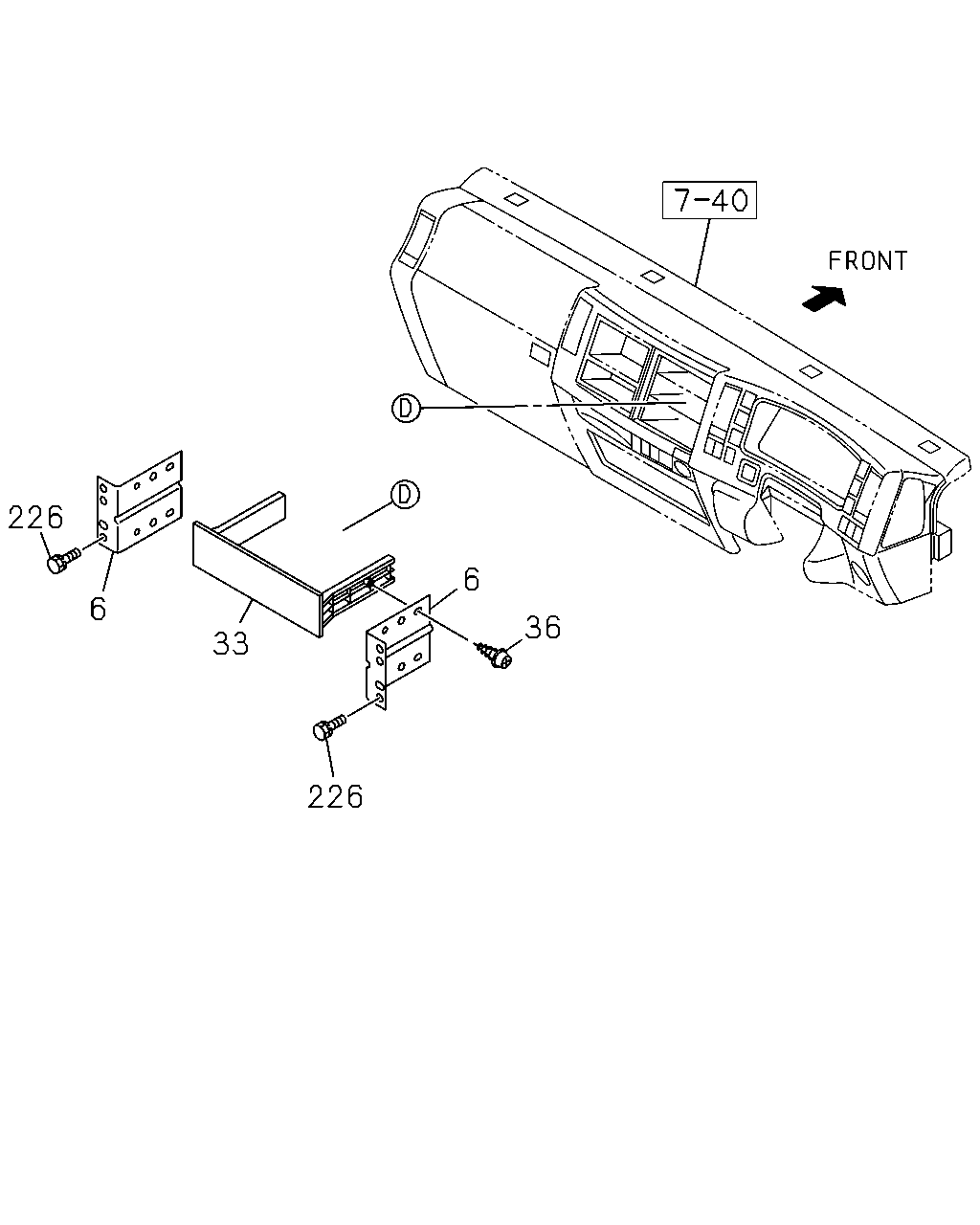

6 36 226 33 6 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	BRACKET; RADIO TO PANEL THA	8-97585-617-0	02	1	1410-	●	●
33	COVER; RADIO THA	8-97926-926-0	01	1	1410-	●	●
36	SCREW; COVER M5X10 TAPPING W/TORQUES THA	8-98058-632-0	02	1	1410-	●	●
226	BOLT; BRKT M5X20 HEXALOBULAR SOCKET THA	0-72180-520-0	02	1	1410-	●	●
