8-73 — BLOWER UNIT (#151374) — 19 parça

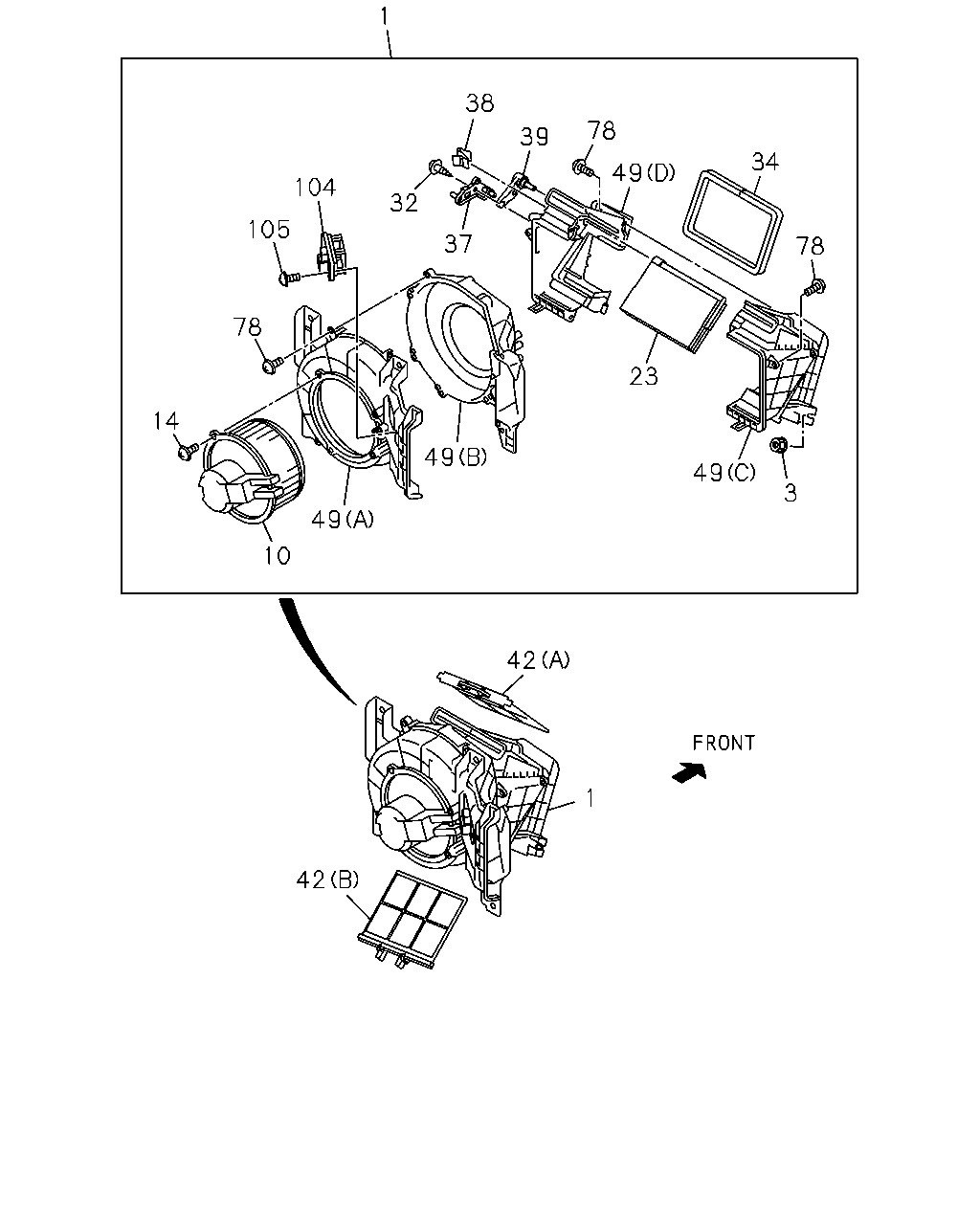

çizim 451799
1 38 39 78 49 34 78 23 49 3 37 32 104 105 78 49 49 10 14 42 1 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM
COOLER WO/HEATER<C65> THA 		8-98171-719-0 01 1 1410- ● ●
3 NUT; CASE
COOLER WO/HEATER<C65> M6 THA 		1-83539-354-0 02 1 1410- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
COOLER WO/HEATER<C65> THA 		8-98183-924-0 01 1 1410- ● ●
14 SCREW; COVER TO CASE
COOLER WO/HEATER<C65> M5X16 THA 		8-98047-448-0 03 1 1410- ● ●
23 SHUTTER; BLOWER UNIT
COOLER WO/HEATER<C65> THA 		8-98171-863-0 01 1 1410- ● ●
32 SCREW; LEVER
COOLER WO/HEATER<C65> M4X16 THA 		8-98047-416-0 01 1 1410- ● ●
34 LINING; BLOWER UNIT
COOLER WO/HEATER<C65> THA 		8-98047-430-0 01 1 1410- ● ●
37 LEVER; MODE LEVER
COOLER WO/HEATER<C65> THA 		8-98047-436-0 01 1 1410- ● ●
38 CLIP; BLOWER UNIT
COOLER WO/HEATER<C65> THA 		8-98047-417-0 01 1 1410- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
COOLER WO/HEATER<C65> THA 		8-98047-435-0 01 1 1410- ● ●
42 FILTER; BLOWER UNIT
COOLER WO/HEATER<C65> (A) THA 		8-97387-096-1 01 1 1410- ● ●
42 FILTER; BLOWER UNIT
COOLER WO/HEATER<C65> (B) THA 		8-98025-006-1 01 1 1410- ● ●
49 CASE; BLOWER UNIT
COOLER WO/HEATER<C65> (A) THA 		8-98047-440-0 01 1 1410- ● ●
49 CASE; BLOWER UNIT
COOLER WO/HEATER<C65> (B) THA 		8-98047-441-0 01 1 1410- ● ●
49 CASE; BLOWER UNIT
COOLER WO/HEATER<C65> (C) THA 		8-98047-442-0 01 1 1410- ● ●
49 CASE; BLOWER UNIT
COOLER WO/HEATER<C65> (D) THA 		8-98047-443-0 01 1 1410- ● ●
78 SCREW; CASE TO CASE
COOLER WO/HEATER<C65> M4X16 TAPPING THA 		8-97957-708-0 15 1 1410- ● ●
104 RESISTOR; BLOWER UNIT
COOLER WO/HEATER<C65> THA 		8-98074-113-0 01 1 1410- ● ●
105 SCREW; RESISTOR
COOLER WO/HEATER<C65> M4X16 TAPPING THA 		8-97957-708-0 02 1 1410- ● ●
