◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51569 - NPR/NQR THAILAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-65 - CONTROL LEVER; HEATER AND AIR CON ▶
8-65 — CONTROL LEVER; HEATER AND AIR CON (#151372) — 10 parça

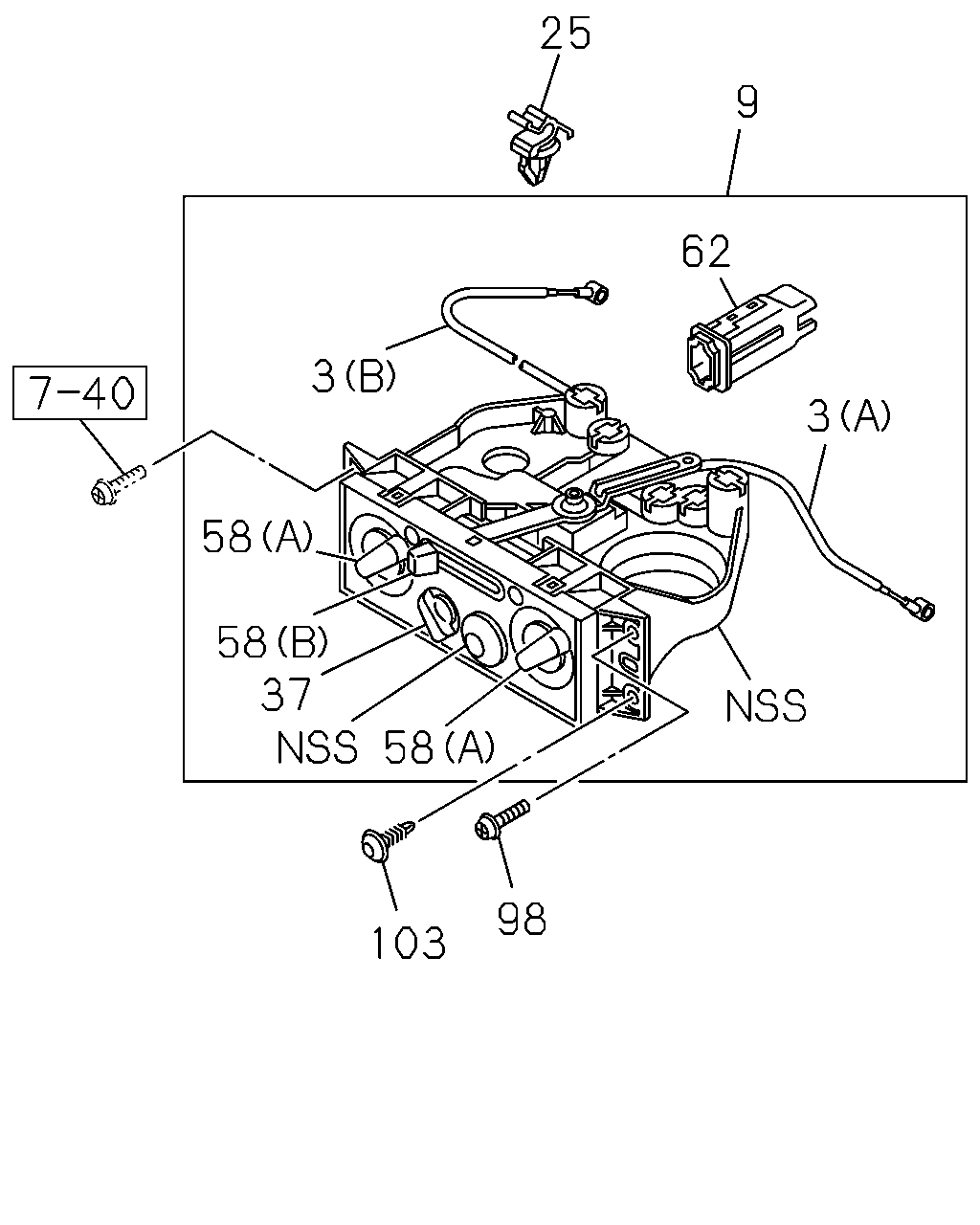

çizim 451516
25 9 3 62 58 58 37 58 103 98 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 CABLE; HTR CONT LVR
COOLER WO/HEATER<C65> (B) FRESH THA 		8-97927-121-0 01 1 1410- ● ●
3 CABLE; HTR CONT LVR
COOLER WO/HEATER<C65> (A) MODE THA 		8-97927-123-0 01 1 1410- ● ●
9 LEVER ASM; HTR & A/C CONT
COOLER WO/HEATER<C65> THA 		8-97926-516-0 01 1 1410- ● ●
25 CLIP; CABLE,CONT LEVER
COOLER WO/HEATER<C65> ID=4.8 THA 		8-94128-483-0 01 1 1410- ● ●
37 KNOB; SW,HTR CONT LVR
COOLER WO/HEATER<C65> THA 		8-97926-674-0 01 1 1410- ● ●
58 KNOB; LVR,HTR CONT LVR
COOLER WO/HEATER<C65> (A) THA 		8-97926-673-0 02 1 1410- ● ●
58 KNOB; LVR,HTR CONT LVR
COOLER WO/HEATER<C65> (B) THA 		8-97926-675-0 01 1 1410- ● ●
62 BULB; HTR CONT LVR
COOLER WO/HEATER<C65> THA 		8-97926-676-0 01 1 1410- ● ●
98 SCREW; CONT PANEL
COOLER WO/HEATER<C65> M5X20 HEXALOBULAR SOCKET THA 		0-72180-520-0 01 1 1410- ● ●
103 CLIP
COOLER WO/HEATER<C65> DARK GRAY THA 		8-97098-326-0 01 1 1410- ● ●
