8-60 — HEATER UNIT; FRONT (#151371) — 28 parça

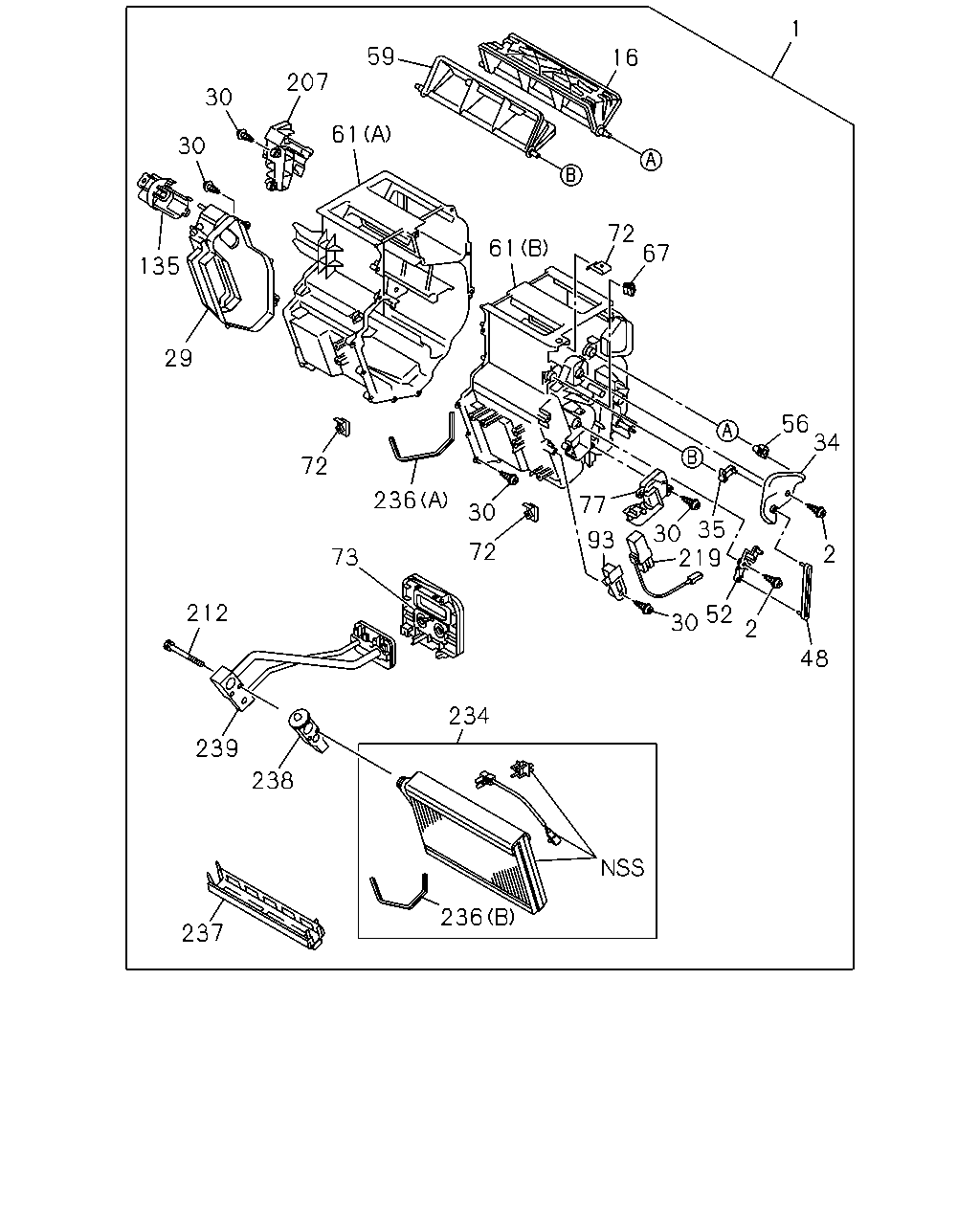

çizim 449688
30 30 135 29 72 73 72 30 236 61 72 67 16 1 61 207 59 77 93 30 35 219 2 34 56 2 52 30 48 234 236 238 239 237 212
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
COOLER WO/HEATER<C65> THA 		8-98057-980-2 01 1 1410- ● ●
2 SCREW; LEVER
COOLER WO/HEATER<C65> M4X16 THA 		8-98047-416-0 02 1 1410- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
COOLER WO/HEATER<C65> THA 		8-98047-387-0 01 1 1410- ● ●
29 COVER; HTR UNIT
COOLER WO/HEATER<C65> THA 		8-98074-119-0 01 1 1410- ● ●
30 SCREW; HTR UNIT
COOLER WO/HEATER<C65> M4X16 TAPPING THA 		8-97957-708-0 27 1 1410- ● ●
34 LEVER; SHUTTER,HTR UNIT
COOLER WO/HEATER<C65> THA 		8-98047-389-0 01 1 1410- ● ●
35 LEVER; SHUTTER,HTR UNIT
COOLER WO/HEATER<C65> THA 		8-98047-392-0 01 1 1410- ● ●
48 LEVER; HTR UNIT
COOLER WO/HEATER<C65> THA 		8-98047-391-0 01 1 1410- ● ●
52 LEVER; SHUTTER,HTR UNIT
COOLER WO/HEATER<C65> THA 		8-98047-390-0 01 1 1410- ● ●
56 LEVER; SHUTTER,HTR UNIT
COOLER WO/HEATER<C65> THA 		8-98047-393-0 01 1 1410- ● ●
59 SHUTTER; HTR UNIT,SIDE
COOLER WO/HEATER<C65> THA 		8-98047-386-0 01 1 1410- ● ●
61 CASE; HTR UNIT
COOLER WO/HEATER<C65> (A) THA 		8-98077-422-0 01 1 1410- ● ●
61 CASE; HTR UNIT
COOLER WO/HEATER<C65> (B) THA 		8-98077-423-0 01 1 1410- ● ●
67 CLIP; HTR UNIT
COOLER WO/HEATER<C65> THA 		8-98047-417-0 01 1 1410- ● ●
72 NUT; CASE,HTR UNIT
COOLER WO/HEATER<C65> M6 THA 		8-98047-428-0 03 1 1410- ● ●
73 PLATE; HTR UNIT
COOLER WO/HEATER<C65> THA 		8-98077-420-0 01 1 1410- ● ●
77 COVER; HTR CASE
COOLER WO/HEATER<C65> THA 		8-98047-414-0 01 1 1410- ● ●
93 PLATE; HTR UNIT
COOLER WO/HEATER<C65> THA 		8-98047-427-0 01 1 1410- ● ●
135 COVER; HTR
COOLER WO/HEATER<C65> THA 		8-98047-384-0 01 1 1410- ● ●
207 CLAMP; HTR UNIT
COOLER WO/HEATER<C65> THA 		8-98047-379-0 01 1 1410- ● ●
212 BOLT; HTR UNIT
COOLER WO/HEATER<C65> M5X61 THA 		8-98047-415-0 02 1 1410- ● ●
219 AMPLIFIER; HEATER UNIT
COOLER WO/HEATER<C65> THA 		8-98064-733-0 01 1 1410- ● ●
234 EVAPORATOR ASM; HEATER
COOLER WO/HEATER<C65> THA 		8-98074-116-1 01 1 1410- ● ●
236 GASKET; HEATER
COOLER WO/HEATER<C65> (A) THA 		8-98047-420-0 01 1 1410- ● ●
236 GASKET; HEATER
COOLER WO/HEATER<C65> (B) THA 		8-98047-421-0 01 1 1410- ● ●
237 INSULATOR; EVAPORATOR
COOLER WO/HEATER<C65> THA 		8-98047-382-0 01 1 1410- ● ●
238 VALVE; EXPANSION
COOLER WO/HEATER<C65> THA 		8-98047-383-0 01 1 1410- ● ●
239 TUBE ASM; HEATER
COOLER WO/HEATER<C65> THA 		8-98074-115-0 01 1 1410- ● ●
