◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51569 - NPR/NQR THAILAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#151369) — 22 parça

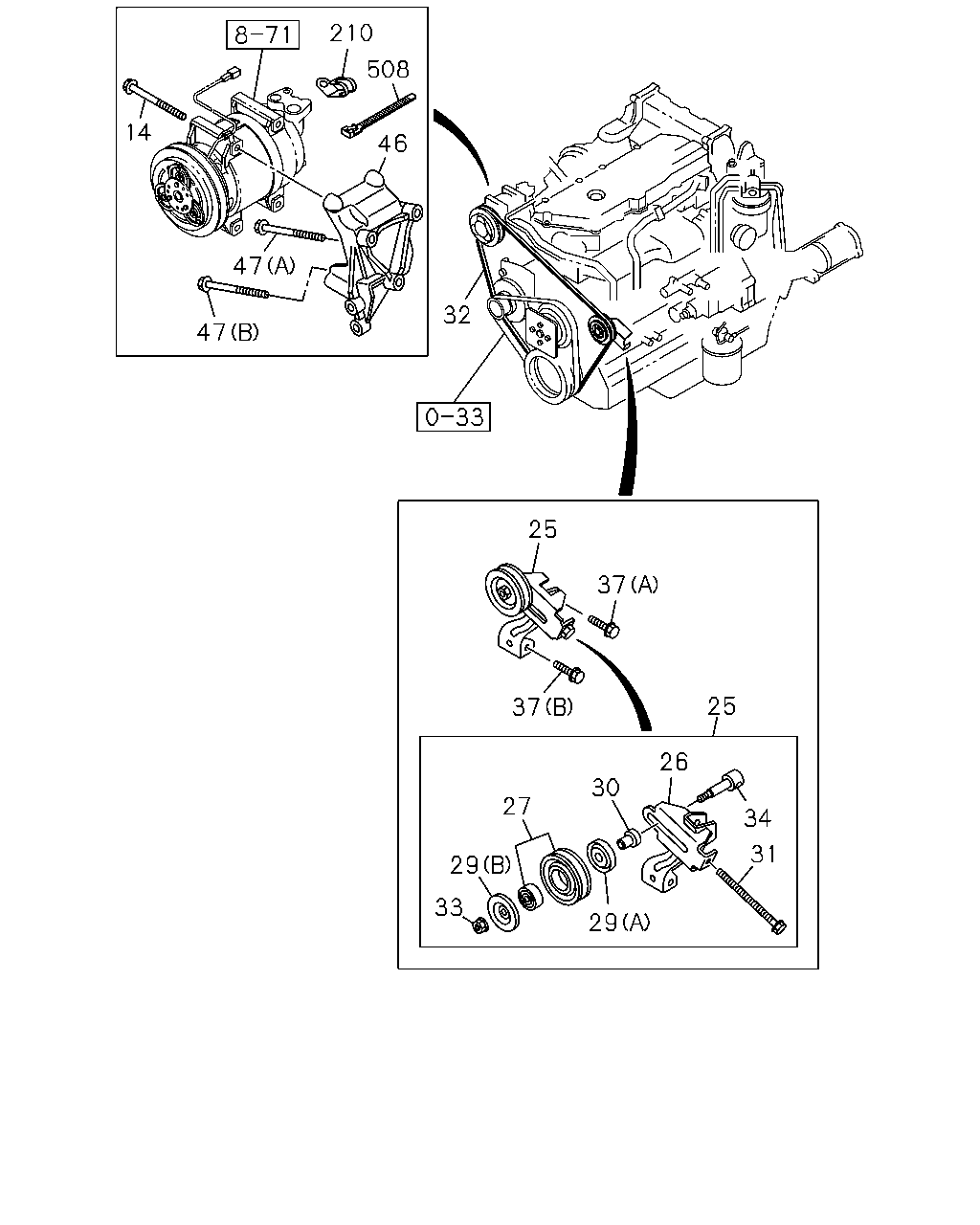

çizim 451632
210 508 46 47 47 14 32 25 37 37 25 26 30 27 29 33 29 34 31
BalonParca AdiParca NoAdetTipApplied Date A B
14 BOLT; CMPR
COOLER WO/HEATER<C65> M8X90 FLANGE THA 		0-28050-890-0 04 1 1410- ● ●
25 PULLEY ASM; IDLER,CMPR
COOLER WO/HEATER<C65> 1-GROOVE THA 		8-97161-198-1 01 1 1410- ● ●
26 BRACKET; IDLE PULLEY,A/C
COOLER WO/HEATER<C65> THA 		8-97161-031-1 01 1 1410- ● ●
27 PULLEY; IDLE,A/C
COOLER WO/HEATER<C65> THA 		8-97386-869-0 01 1 1410- ● ●
29 COVER; DUST,IDLE PULLEY
COOLER WO/HEATER<C65> (B) THA 		8-97384-114-0 01 1 1410- ● ●
29 COVER; DUST,IDLE PULLEY
COOLER WO/HEATER<C65> (A) THA 		8-97384-115-0 01 1 1410- ● ●
30 COLLAR; IDLE PULLEY
COOLER WO/HEATER<C65> THA 		8-97384-117-0 01 1 1410- ● ●
31 BOLT; ADJ,IDLE PULLEY
COOLER WO/HEATER<C65> THA 		8-97384-113-0 01 1 1410- ● ●
32 BELT; A/C CMPR
COOLER WO/HEATER<C65> L=1674 THA 		8-98010-841-1 01 1 1410- ● ●
33 NUT; IDLER PULLEY
COOLER WO/HEATER<C65> THA 		8-97384-118-0 01 1 1410- ● ●
34 SHAFT; IDLE PULLEY
COOLER WO/HEATER<C65> THA 		8-97384-116-0 01 1 1410- ● ●
37 BOLT; PULLEY BRKT
COOLER WO/HEATER<C65> (B) M10X65 FLANGE THA 		8-94344-540-1 01 1 1410- ● ●
37 BOLT; PULLEY BRKT
COOLER WO/HEATER<C65> (A) M8X50 FLANGE THA 		0-28050-850-0 01 1 1410- ● ●
46 BRACKET; CMPR
COOLER WO/HEATER<C65> THA 		8-98006-515-3 01 1 1410- ● ●
47 BOLT; BRKT TO BODY
COOLER WO/HEATER<C65> (A) M10X90 FLANGE THA 		0-28151-090-0 02 1 1410- ● ●
47 BOLT; BRKT TO BODY
COOLER WO/HEATER<C65> (B) M10X120 FLANGE THA 		0-28156-012-0 01 1 1410- ● ●
210 CLIP; HARNESS
ID=12 VINYL CHLORIDE THA 		8-97367-984-1 01 1 1410- ● ●
508 CLIP; HARNESS
L=140 THA 		5-09707-031-1 01 1 1410- ● ●

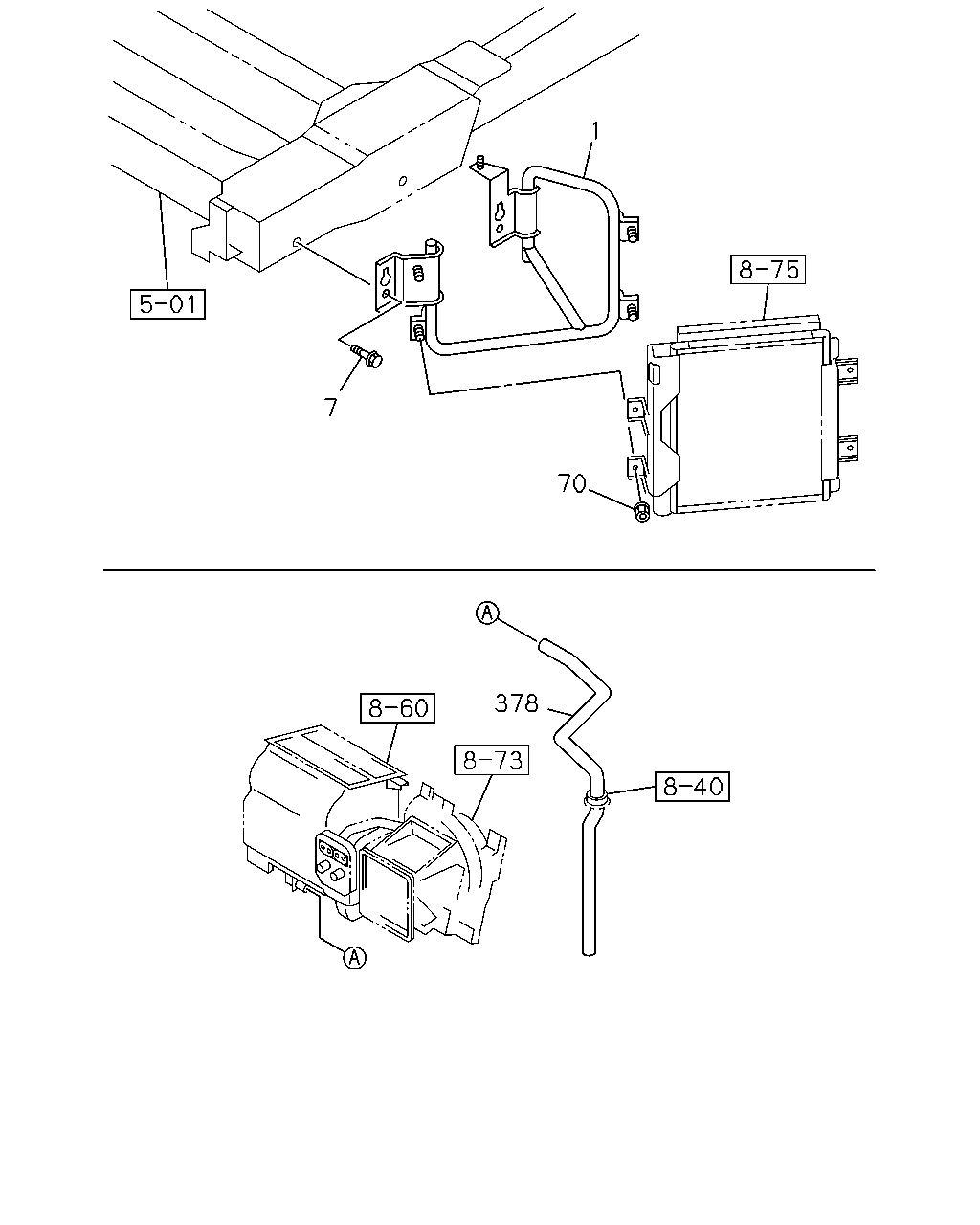

çizim 451728
7 70 378 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; A/C
COOLER WO/HEATER<C65> THA 		8-98214-411-0 01 1 1410- ● ●
7 BOLT; BRKT
COOLER WO/HEATER<C65> M12X30 FLANGE THA 		0-28651-230-0 04 1 1410- ● ●
70 NUT; EVAP,A/C
COOLER WO/HEATER<C65> M8 FLANGE THA 		0-91180-108-0 04 1 1410- ● ●
378 HOSE; DRAIN,EVAPORATOR
COOLER WO/HEATER<C65> THA 		8-97387-174-2 01 1 1410- ● ●
