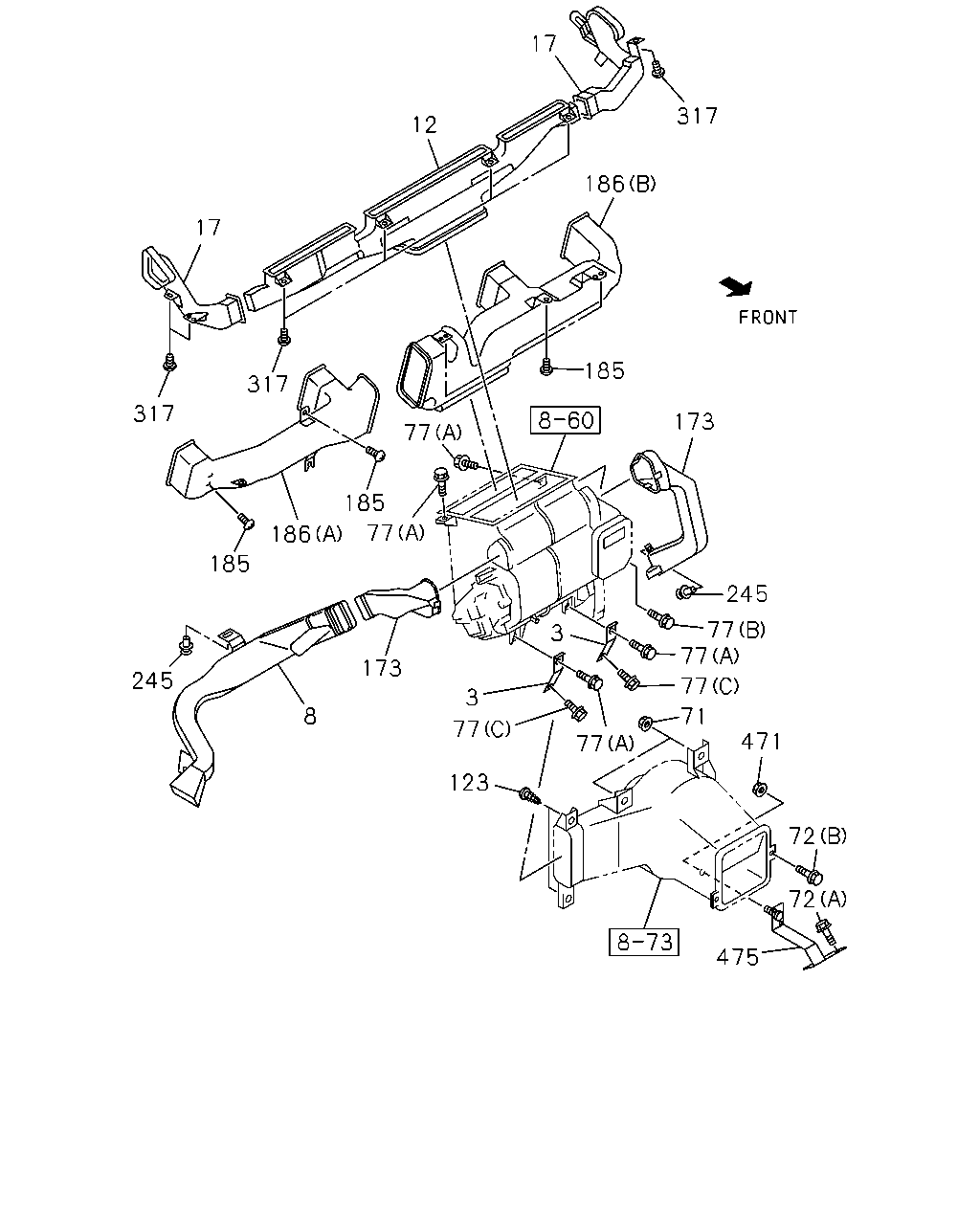

8-40 — HEATER SYSTEM (#151367) — 27 parça

17 12 17 317 186 185 173 77 185 186 185 77 173 3 8 245 77 77 77 71 471 72 72 475 123 77 317 317 245 3 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	BRACKET; HTR UNIT COOLER WO/HEATER<C65> THA	8-98082-473-1	02	1	1410-	●	●
8	DUCT; HTR AIR,DRIVER FOOT COOLER WO/HEATER<C65> THA	8-98084-146-0	01	1	1410-	●	●
12	NOZZLE; DEFROSTER THA	8-97585-480-4	01	1	1410-	●	●
17	NOZZLE; DEFROSTER,SIDE COOLER WO/HEATER<C65> THA	8-97585-469-1	01	1	1410-	●	●
17	NOZZLE; DEFROSTER,SIDE COOLER WO/HEATER<C65> THA	8-97585-475-5	01	1	1410-	●	●
71	NUT; BLOWER UNIT TO DASH COOLER WO/HEATER<C65> M6 FLANGE THA	0-91180-106-0	02	1	1410-	●	●
72	BOLT; BLOWER UNIT COOLER WO/HEATER<C65> (A) M8X20 W/LK&PL WASHER THA	8-97359-709-0	01	1	1410-	●	●
72	BOLT; BLOWER UNIT COOLER WO/HEATER<C65> (B) M6X20 W/LK&PL WASHER THA	8-98081-030-0	02	1	1410-	●	●
77	BOLT; HTR UNIT COOLER WO/HEATER<C65> (B) M6X20 W/LK&PL WASHER THA	8-98081-030-0	01	1	1410-	●	●
77	BOLT; HTR UNIT COOLER WO/HEATER<C65> (C) M6X20 W/LK&PL WASHER THA	8-98081-175-0	02	1	1410-	●	●
77	BOLT; HTR UNIT COOLER WO/HEATER<C65> (A) M6X16 FLANGE THA	0-28650-616-0	04	1	1410-	●	●
123	SCREW; DUCT COOLER WO/HEATER<C65> M5X16 TAPPING THA	0-72180-516-0	02	1	1410-	●	●
173	DUCT; FOOT,HTR COOLER WO/HEATER<C65> THA	8-97585-504-3	01	1	1410-	●	●
173	DUCT; FOOT,HTR COOLER WO/HEATER<C65> THA	8-98084-145-0	01	1	1410-	●	●
185	SCREW; VENT DUCT COOLER WO/HEATER<C65> M5X16 TAPPING THA	0-72180-516-0	04	1	1410-	●	●
186	DUCT; VENTILATOR COOLER WO/HEATER<C65> (A) THA	8-97585-466-7	01	1	1410-	●	●
186	DUCT; VENTILATOR COOLER WO/HEATER<C65> (B) THA	8-97585-486-6	01	1	1410-	●	●
245	CLIP; FOOT DUCT COOLER WO/HEATER<C65> THA	1-09987-144-0	02	1	1410-	●	●
317	SCREW; DEFROSTER NOZZLE COOLER WO/HEATER<C65> M5X16 TAPPING THA	0-72180-516-0	02	1	1410-	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING THA	0-72180-516-0	04	1	1410-	●	●
471	NUT; BLOWER COOLER WO/HEATER<C65> M6 FLANGE THA	0-91180-106-0	01	1	1410-	●	●
475	BRACKET; BLOWER COOLER WO/HEATER<C65> THA	8-97387-092-2	01	1	1410-	●	●

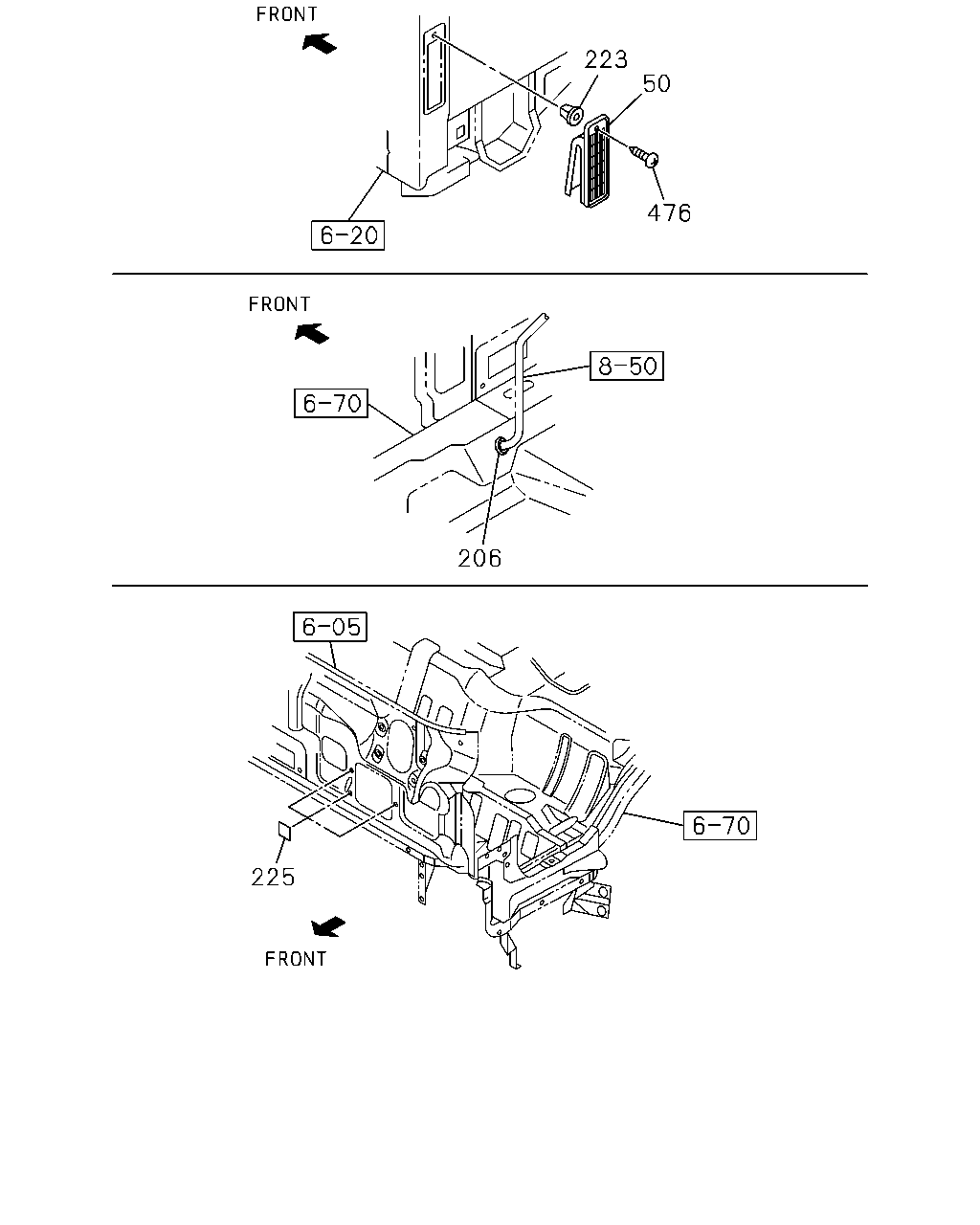

223 476 206 225 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	VALVE ASM; HTR THA	8-97925-112-0	01	1	1410-	●	●
206	GROMMET; A/C PIPE TO BLOWER UNIT THA	8-98019-649-0	01	1	1410-	●	●
223	GROMMET; SCREW D=7.9X7.9 L=20 M5 THA	8-94441-539-0	01	1	1410-	●	●
225	SEAL; WATER COOLER WO/HEATER<C65> THA	8-97856-616-0	03	1	1410-	●	●
476	SCREW; VALVE M5X16 HEX SOCKET THA	8-98062-675-0	01	1	1410-	●	●
