Isuzu WW
▶
TRUCKS
▶
NPR
▶
51569 - NPR/NQR THAILAND
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#151364) — 40 parça
Tümü
A - NPR5SN
B - NPR5SS
◀

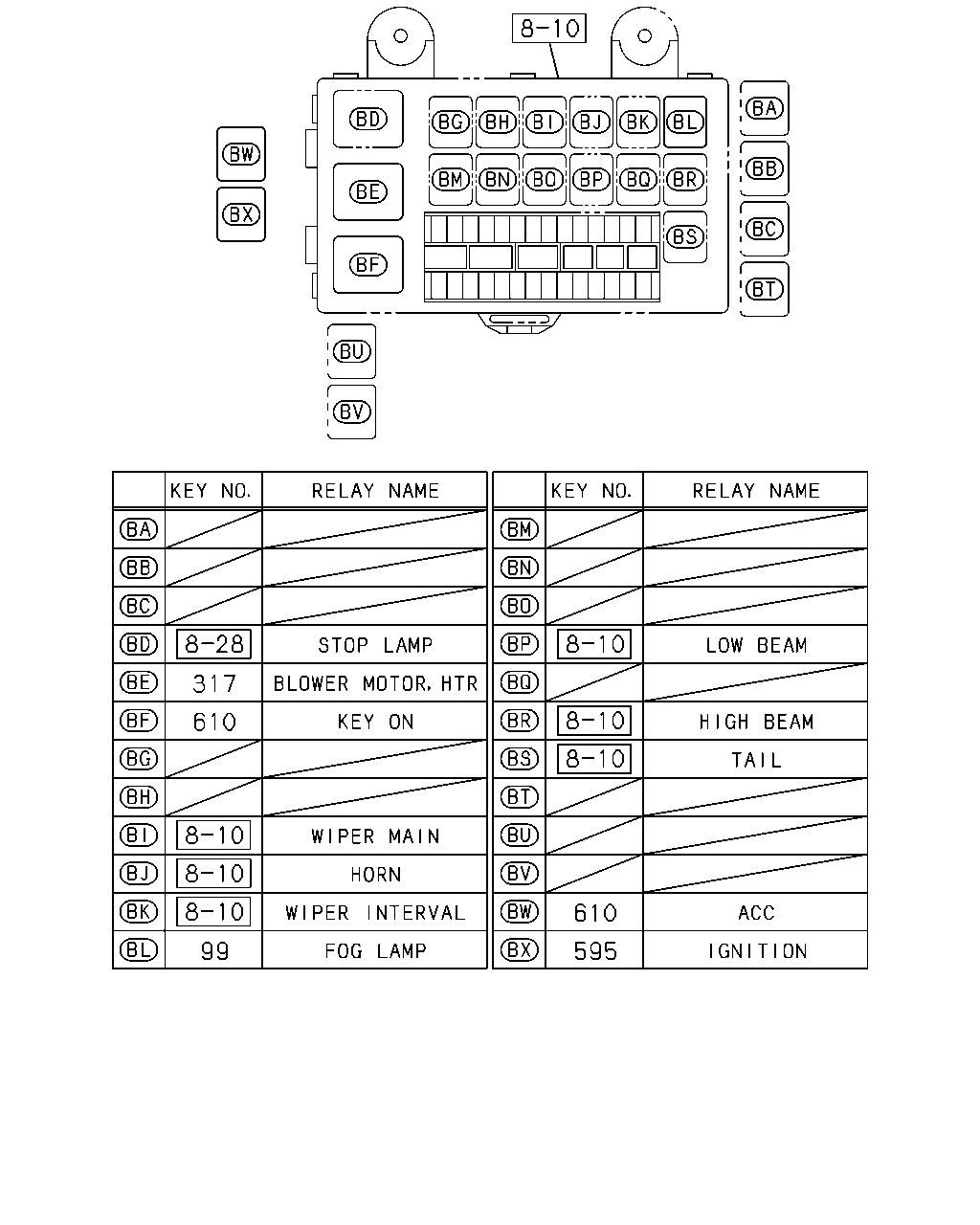

[825A] RELAY;FRAME HARNESS (3 parça)
[825A] RELAY;CAB HARNESS (5 parça)

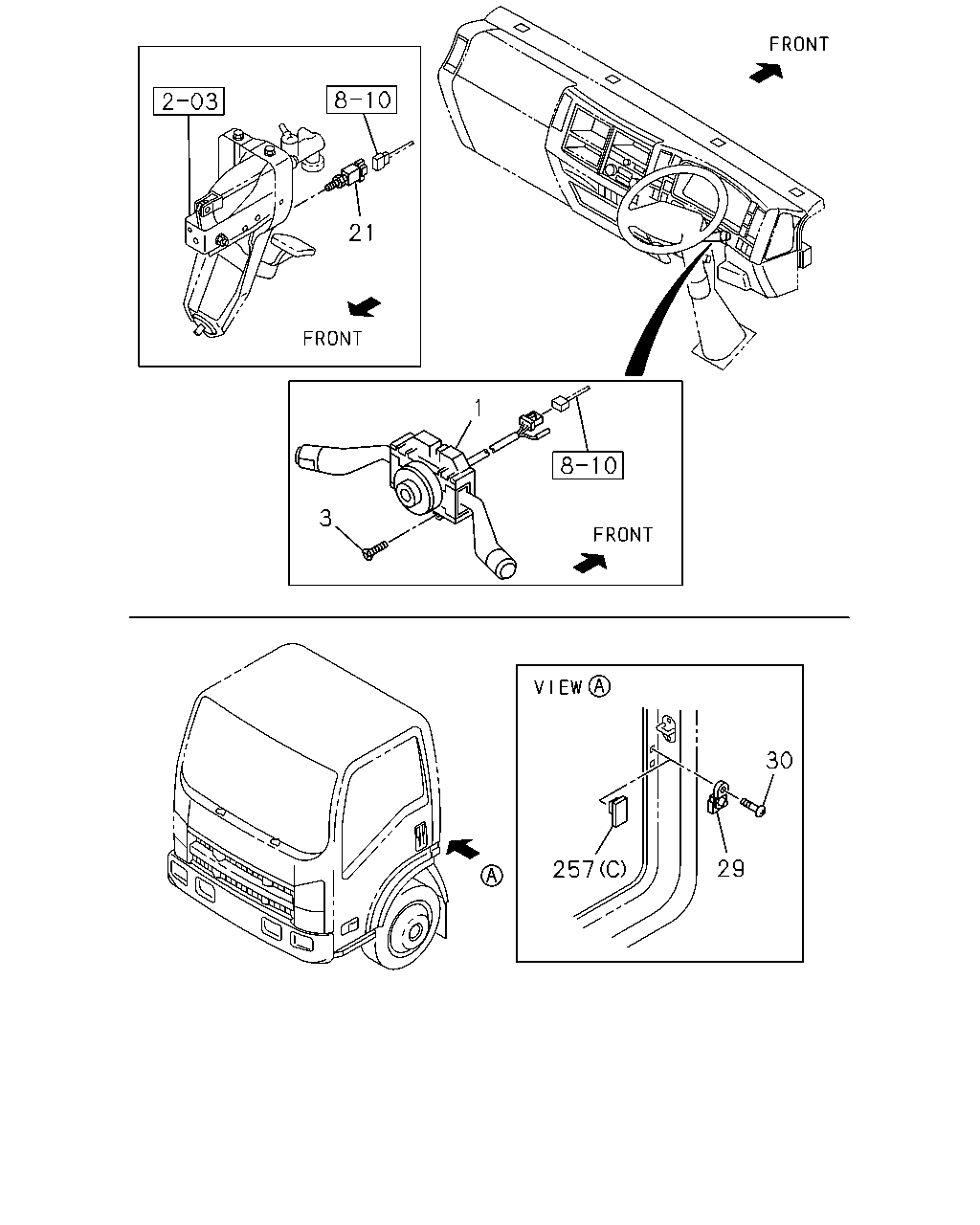

[825A] SWITCH(NO.1) (20 parça)
[825A] SWITCH(NO.2) (12 parça)
▶
151
154
315
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
151
RELAY; HTR & A/C
COOLER WO/HEATER<C65> 24V 12.5A MATSUSHITA THA
8-97262-933-0
01
1
1410-
●
●
154
RELAY; CONDENSER FAN
COOLER WO/HEATER<C65> 24V 10A MATSUSHITA THA
8-97173-035-1
01
1
1410-
●
●
315
RELAY; EXH BRAKE CONT
24V 10A MATSUSHITA THA
8-97173-035-1
01
1
1410-
●
●
317
610
99
610
595
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
99
RELAY; FOG LAMP
24V 10A MATSUSHITA THA
8-97173-035-1
01
1
1410-
●
●
317
RELAY; BLOWER MOTOR,HTR
COOLER WO/HEATER<C65> 24V 12.5A MATSUSHITA THA
8-97262-933-0
01
1
1410-
●
●
595
RELAY; IGNITION
24V 12.5A MATSUSHITA THA
8-97262-933-0
01
1
1410-
●
●
610
RELAY; KEY ON
24V 12.5A MATSUSHITA THA
8-97262-933-0
01
1
1410-
●
●
610
RELAY; KEY ON
24V 12.5A MATSUSHITA THA
8-97262-933-0
01
1
1410-
●
●
21
3
1
257
29
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SWITCH; COMB
THA
8-98243-729-0
01
1
1410-
●
●
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES THA
8-98061-743-0
02
1
1410-
●
●
21
SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA
8-97358-248-0
01
1
1410-
●
21
SWITCH; CLU
THA
8-97358-248-0
01
1
1410-
●
29
SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW<SDF> TRANSMISSION CONTROL-SMOOTHER<8GF> BLACK THA
8-98022-211-0
01
1
1410-
●
29
SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW<SDF> TRANSMISSION CONTROL-SMOOTHER<8GF> BLACK THA
8-98022-211-0
01
1
1410-
●
29
SWITCH; DOOR
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. ROOM LAMP W/ALL DOORS SW<SDF> BLACK THA
8-98022-211-0
01
1
1410-
●
29
SWITCH; DOOR
BLACK THA
8-98022-211-0
01
1
1410-
●
30
SCREW; DOOR SW
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. ROOM LAMP W/ALL DOORS SW<SDF> M5X18 THA
8-98047-201-0
01
1
1410-
●
30
SCREW; DOOR SW
M5X18 THA
8-98047-201-0
01
1
1410-
●
257
COVER; HOLE,SW
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) THA
8-98025-954-1
01
1
1410-
●
257
COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER<8GF>,TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> (A) THA
8-98025-954-1
01
1
1410-
●
257
COVER; HOLE,SW
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> (A) THA
8-98025-954-1
01
1
1410-
●
257
COVER; HOLE,SW
EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> (A) THA
8-98025-954-1
01
1
1410-
●
257
COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) THA
8-98025-954-1
02
1
1410-
●
257
COVER; HOLE,SW
(A) THA
8-98025-954-1
02
1
1410-
●
257
COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. ROOM LAMP W/ALL DOORS SW<SDF> (C) THA
8-98029-917-0
01
1
1410-
●
257
COVER; HOLE,SW
(C) THA
8-98029-917-0
01
1
1410-
●
257
COVER; HOLE,SW
(A) THA
8-98025-954-1
07
1
1410-
●
●
257
COVER; HOLE,SW
(B) THA
8-98029-914-1
01
1
1410-
●
●
249
257
257
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
96

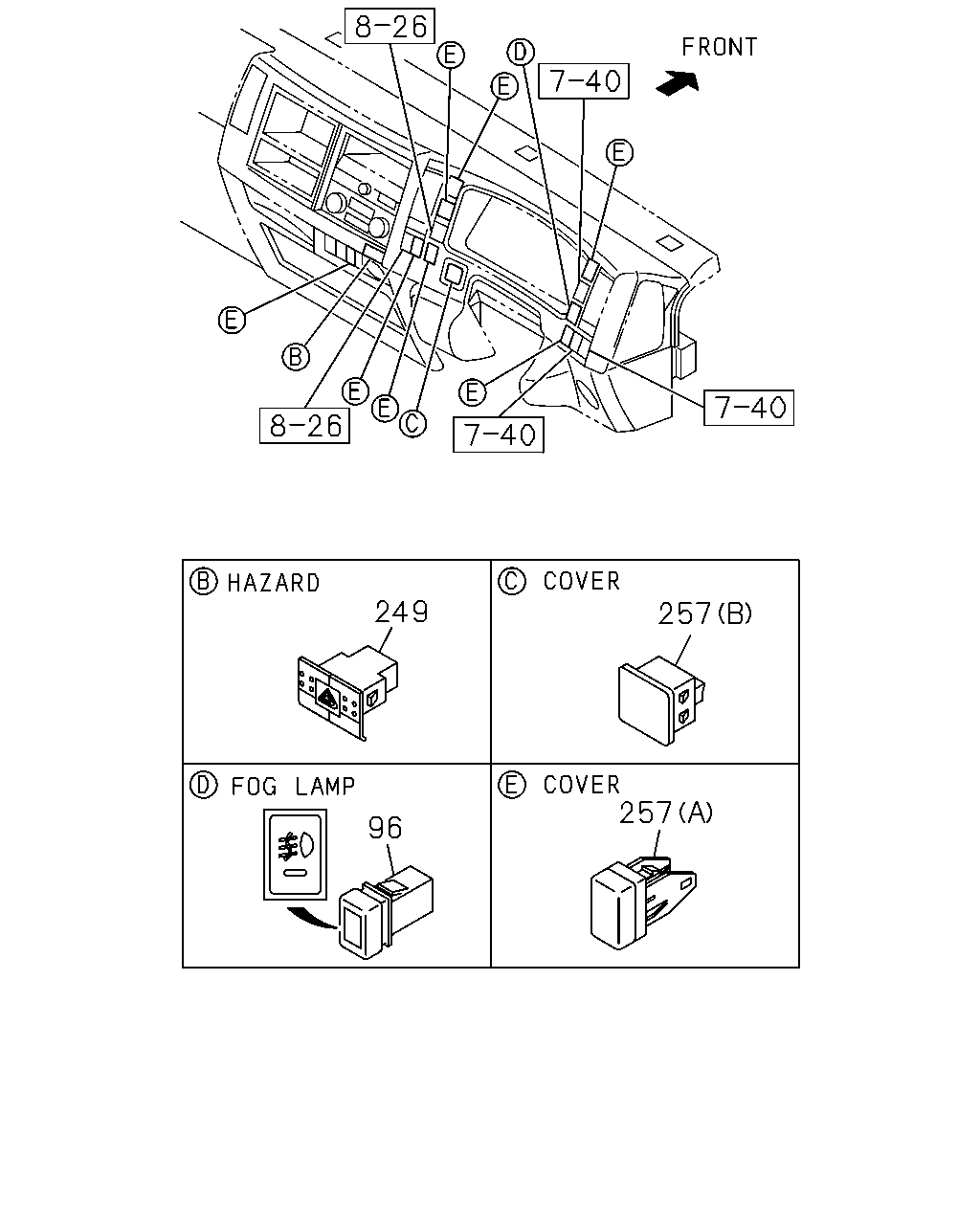

SWITCH; FOG LAMP
THA
8-97387-031-4
01
1
1410-
●
●
249
SWITCH; HAZARD
THA
8-97948-258-0
01
1
1410-
●
●
257
COVER; HOLE,SW
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) THA
8-98025-954-1
01
1
1410-
●
257
COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER<8GF>,TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> (A) THA
8-98025-954-1
01
1
1410-
●
257
COVER; HOLE,SW
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> (A) THA
8-98025-954-1
01
1
1410-
●
257
COVER; HOLE,SW
EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> (A) THA
8-98025-954-1
01
1
1410-
●
257
COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) THA
8-98025-954-1
02
1
1410-
●
257
COVER; HOLE,SW
(A) THA
8-98025-954-1
02
1
1410-
●
257
COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. ROOM LAMP W/ALL DOORS SW<SDF> (C) THA
8-98029-917-0
01
1
1410-
●
257
COVER; HOLE,SW
(C) THA
8-98029-917-0
01
1
1410-
●
257
COVER; HOLE,SW
(A) THA
8-98025-954-1
07
1
1410-
●
●
257
COVER; HOLE,SW
(B) THA
8-98029-914-1
01
1
1410-
●
●
