◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51569 - NPR/NQR THAILAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#151363) — 13 parça
çizim 448665
110 2 1 81 480
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		8-98021-249-4 01 1 1410- ●
1 METER COMPL; CLUSTER
4HK1-TCS ENG<RJS> THA 		8-98021-249-4 01 1 1410- ●
2 PANEL; CLUSTER
THA 		8-98054-432-0 01 1 1410- ● ●
81 METER SUB ASM
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		8-98073-677-0 01 1 1410- ●
81 METER SUB ASM
4HK1-TCS ENG<RJS> THA 		8-98073-677-0 01 1 1410- ●
110 GLASS; CLUSTER METER
THA 		8-98054-431-0 01 1 1410- ● ●
480 COVER; METER
BLACK THA 		8-98054-433-0 01 1 1410- ● ●

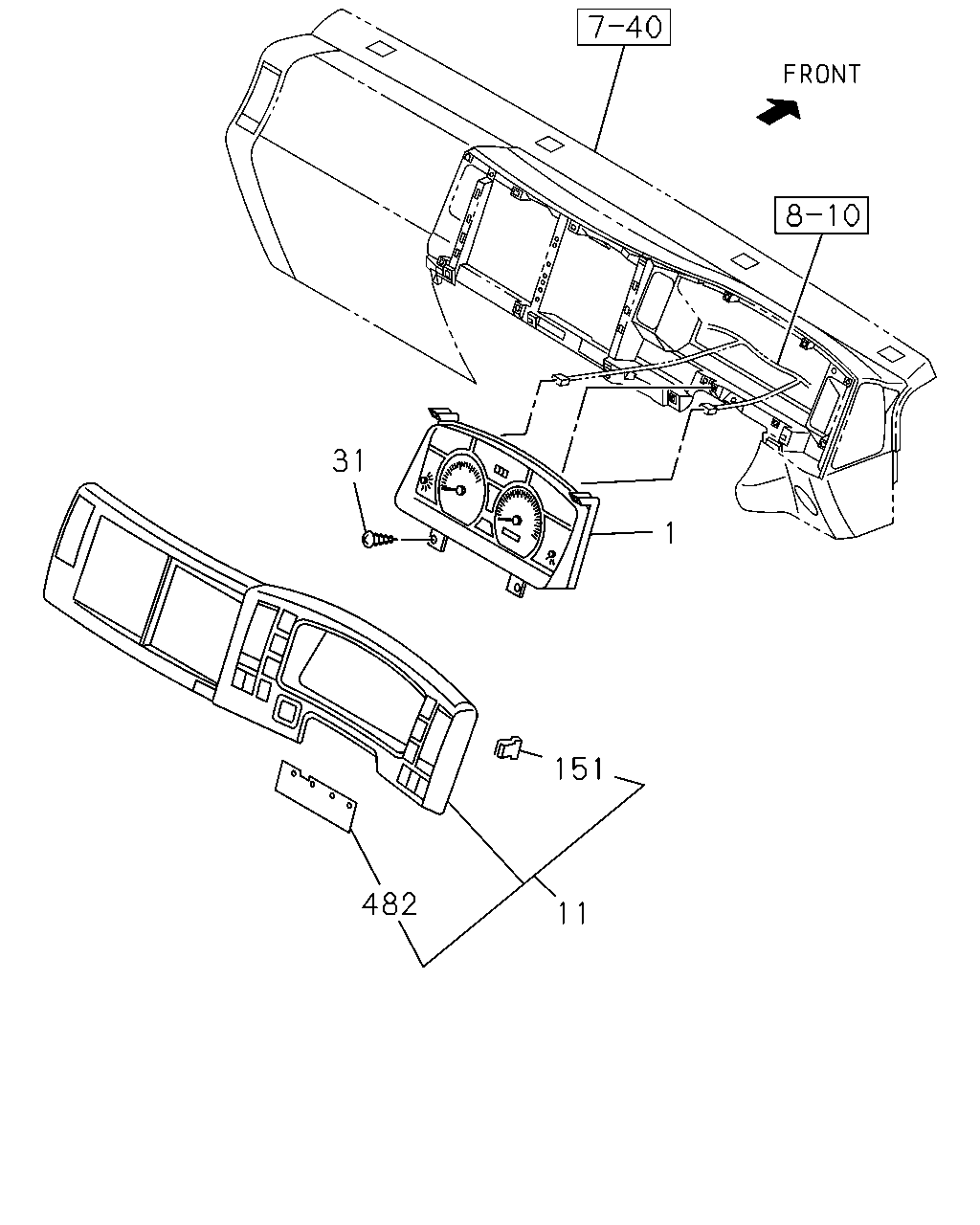

çizim 451753
1 31 151 11 482
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		8-98021-249-4 01 1 1410- ●
1 METER COMPL; CLUSTER
4HK1-TCS ENG<RJS> THA 		8-98021-249-4 01 1 1410- ●
11 CLUSTER ASM; METER
THA 		8-97926-378-2 01 1 1410- ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING THA 		0-72180-516-0 04 1 1410- ● ●
151 CLIP; METER CLUSTER
THA 		8-97926-387-0 13 1 1410- ● ●
482 SEAL; CLUSTER METER
THA 		8-97926-388-0 01 1 1410- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
