8-15 — FIXING PARTS; WIRING HARNESS
(#151362) — 99 parça
Tümü
A - NPR5SN
B - NPR5SS
◀

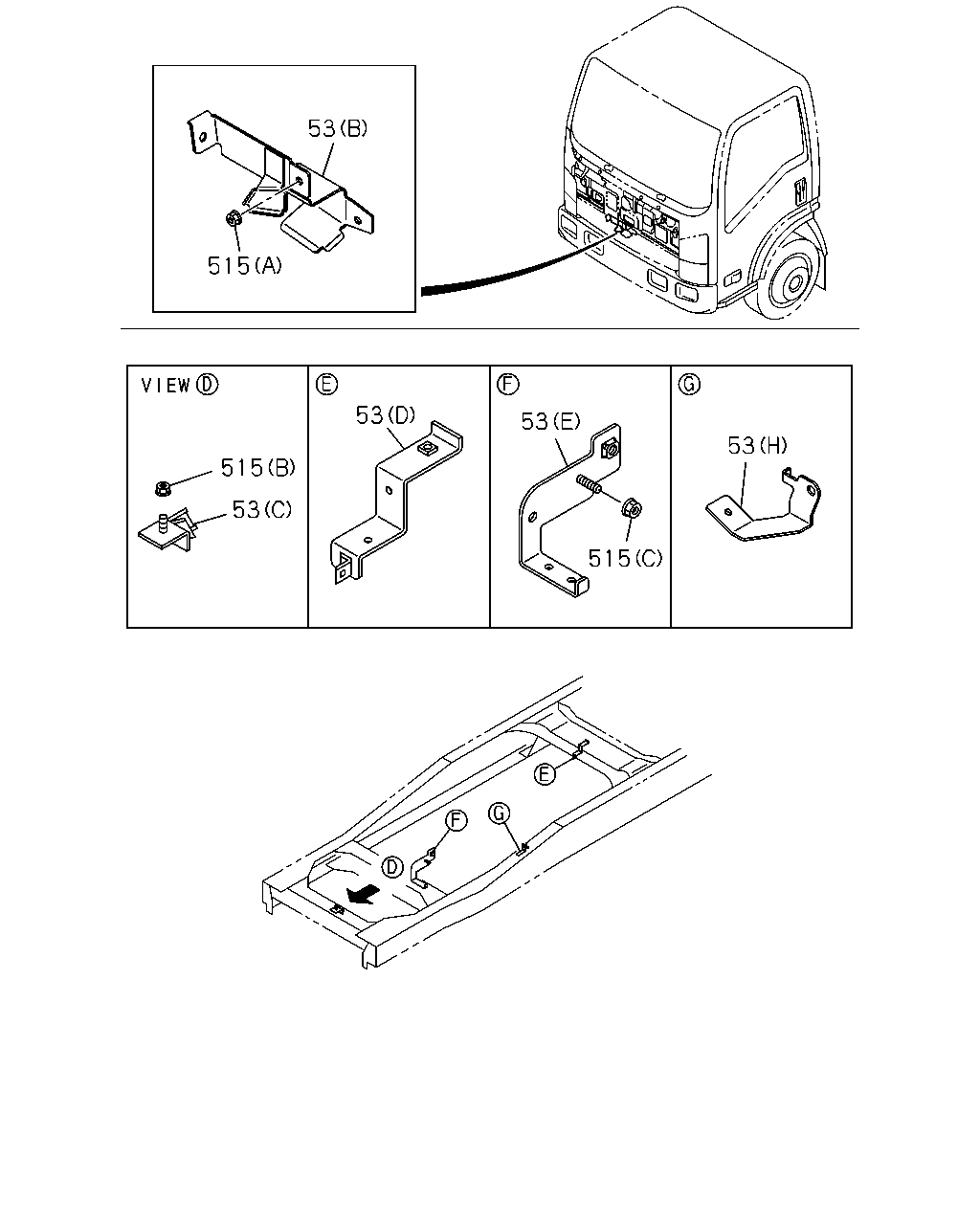

[815A] FIXING;BRACKET(NO.2) (13 parça)
[815A] CLIP AND OTHER PARTS (15 parça)
[815A] FIXING;BRACKET(NO.3) (9 parça)
[815A] FIXING;BRACKET(NO.1) (14 parça)
[815A] CLIP (22 parça)
[815A] BOLT AND NUT (26 parça)
▶
53
515
515
53
53
53
515
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
53
BRACKET; HARNESS
(C) THA
8-98018-900-2
01
1
1410-
●
●
53
BRACKET; HARNESS
(B) THA
8-98051-457-0
01
1
1410-
●
●
53
BRACKET; HARNESS
(D) THA
8-98077-504-0
01
1
1410-
●
●
53
BRACKET; HARNESS
(H) THA
8-98094-629-0
01
1
1410-
●
●
53
BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (E) THA
8-98077-503-1
01
1
1410-
●
●
53
BRACKET; HARNESS
(A) THA
8-98052-458-0
01
1
1410-
●
●
53
BRACKET; HARNESS
(G) THA
8-98052-804-0
01
1
1410-
●
●
53
BRACKET; HARNESS
(F) THA
8-98055-636-0
01
1
1410-
●
●
515
NUT; BRKT
(B) M8 FLANGE THA
8-98040-024-0
01
1
1410-
●
●
515
NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> (C) M10 FLANGE THA
0-91180-110-0
01
1
1410-
●
●
515
NUT; BRKT
4HK1-TCN ENG<RDQ> (C) M10 FLANGE THA
0-91180-110-0
01
1
1410-
●
515
NUT; BRKT
4HK1-TCS ENG<RJS> (C) M10 FLANGE THA
0-91180-110-0
01
1
1410-
●
515
NUT; BRKT
(A) M6 FLANGE THA
0-91180-106-0
01
1
1410-
●
●
16
16
16
16
530
53
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
16
CLIP; HARNESS
(E) THA
8-97101-436-0
01
1
1410-
●
●
16
CLIP; HARNESS
(D) ID=10 & 16 THA
8-94413-325-0
01
1
1410-
●
●
16
CLIP; HARNESS
(B) ID=6 & 10-13 THA
8-97069-515-0
02
1
1410-
●
●
16
CLIP; HARNESS
(A) L=155 THA
8-97173-307-0
14
1
1410-
●
●
16
CLIP; HARNESS
(F) L=40.6 THA
8-97229-357-0
02
1
1410-
●
●
16
CLIP; HARNESS
(C) THA
8-98052-679-0
02
1
1410-
●
●
53
BRACKET; HARNESS
(C) THA
8-98018-900-2
01
1
1410-
●
●
53
BRACKET; HARNESS
(B) THA
8-98051-457-0
01
1
1410-
●
●
53
BRACKET; HARNESS
(D) THA
8-98077-504-0
01
1
1410-
●
●
53
BRACKET; HARNESS
(H) THA
8-98094-629-0
01
1
1410-
●
●
53
BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (E) THA
8-98077-503-1
01
1
1410-
●
●
53
BRACKET; HARNESS
(A) THA
8-98052-458-0
01
1
1410-
●
●
53
BRACKET; HARNESS
(G) THA
8-98052-804-0
01
1
1410-
●
●
53
BRACKET; HARNESS
(F) THA
8-98055-636-0
01
1
1410-
●
●
530
SEAL; HARNESS
OD=32 BLACK THA
8-98031-126-0
01
1
1410-
●
●

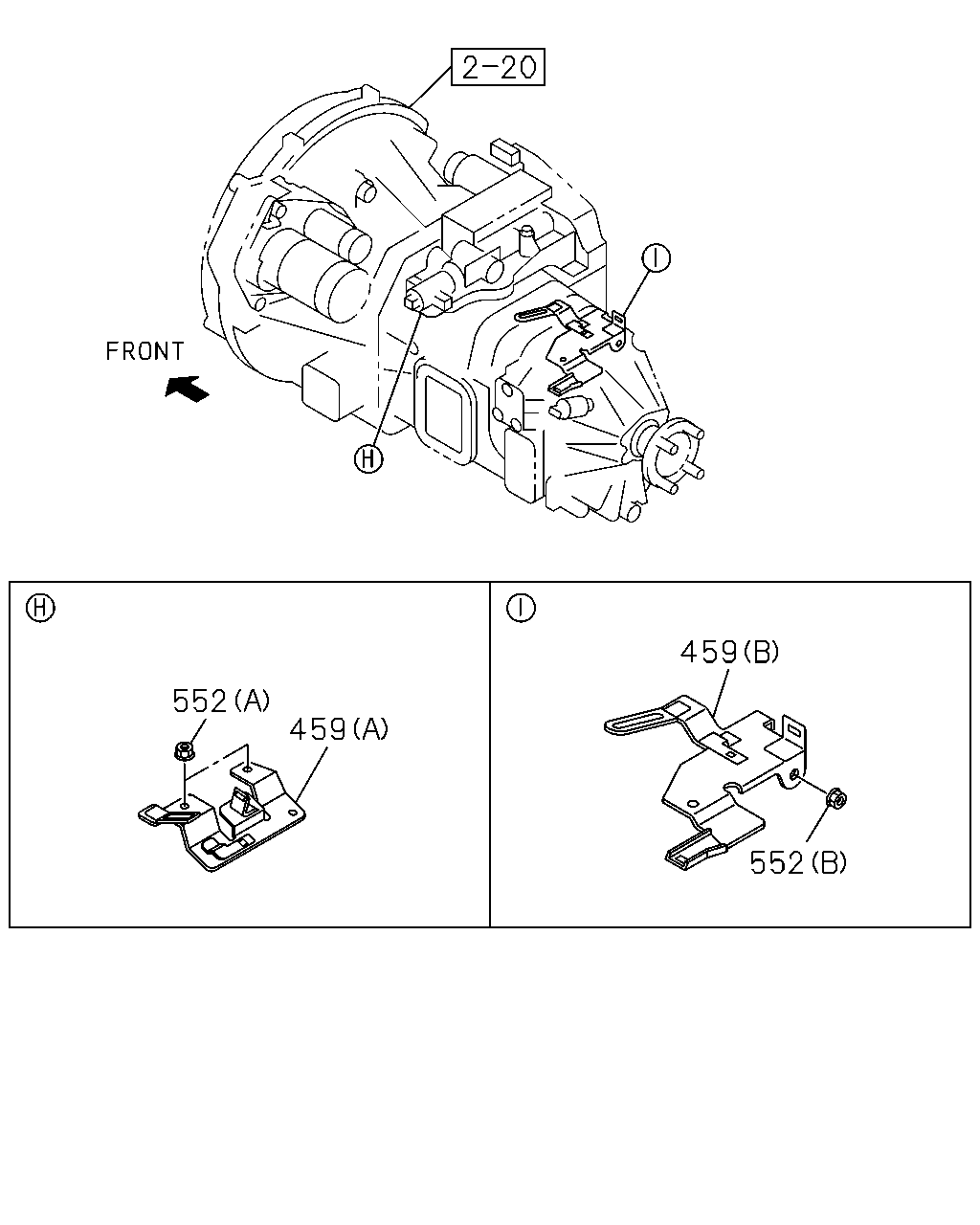

552
459
459
552
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
459
BRACKET; SUPPORT,HARNESS
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) THA
8-98020-227-3
01
1
1410-
●
459
BRACKET; SUPPORT,HARNESS
4HK1-TCS ENG<RJS> (A) THA
8-98020-227-3
01
1
1410-
●
459
BRACKET; SUPPORT,HARNESS
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) THA
8-98196-974-0
01
1
1410-
●
459
BRACKET; SUPPORT,HARNESS
4HK1-TCS ENG<RJS> (B) THA
8-98196-974-0
01
1
1410-
●
552
NUT; BRKT,HARNESS
4HK1-TCN ENG<RDQ> (B) M10 FLANGE THA
0-91180-110-0
01
1
1410-
●
552
NUT; BRKT,HARNESS
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M10 FLANGE THA
0-91180-110-0
01
1
1410-
●
552
NUT; BRKT,HARNESS
4HK1-TCS ENG<RJS> (B) M10 FLANGE THA
0-91180-110-0
01
1
1410-
●
552
NUT; BRKT,HARNESS
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M8 FLANGE THA
0-91180-108-0
02
1
1410-
●
552
NUT; BRKT,HARNESS
4HK1-TCS ENG<RJS> (A) M8 FLANGE THA
0-91180-108-0
02
1
1410-
●

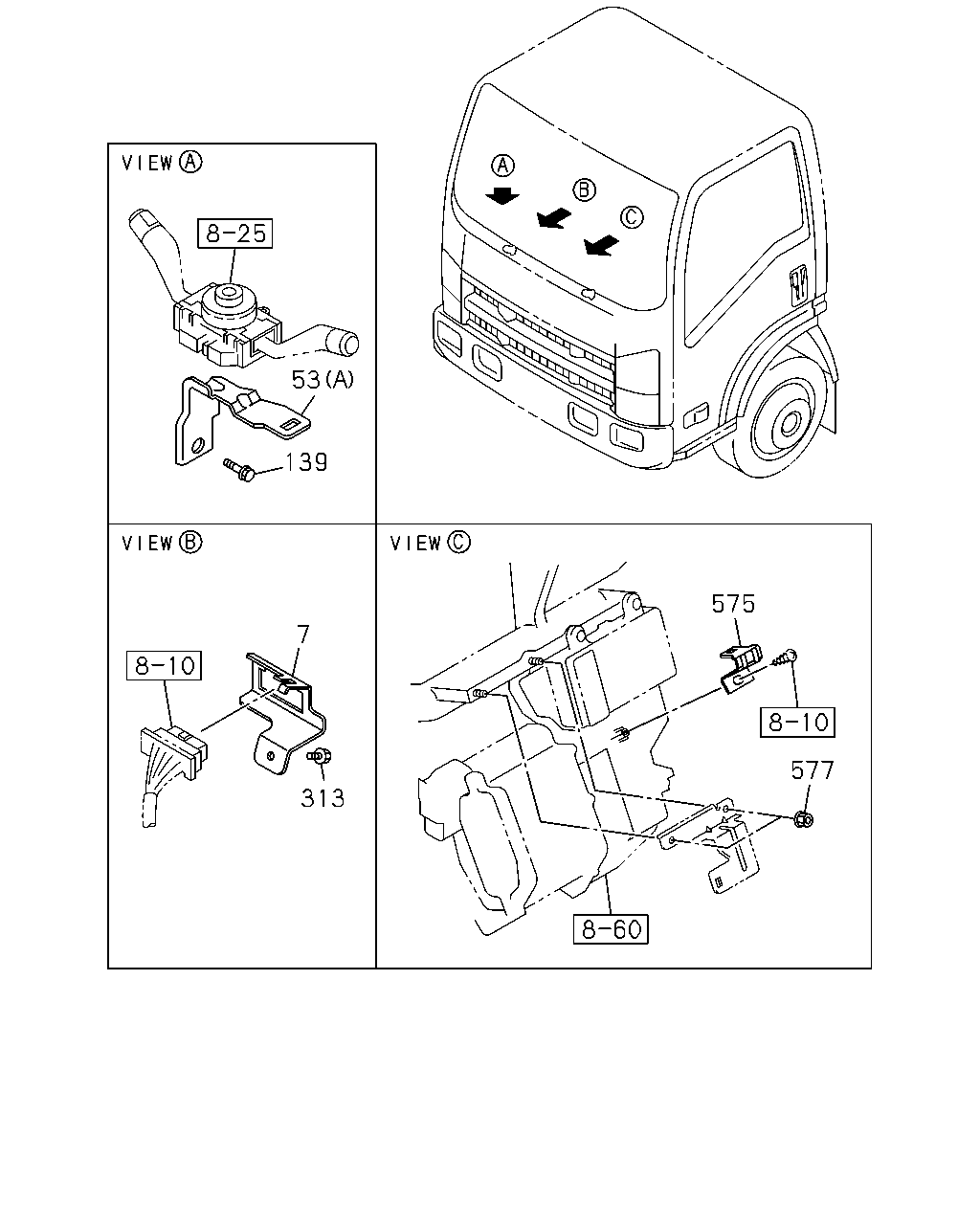

53
139
7
313
575
577
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
7
BRACKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA
8-98043-070-1
01
1
1410-
●
7
BRACKET; CONNECTOR
THA
8-98043-070-1
01
1
1410-
●
53
BRACKET; HARNESS
(C) THA
8-98018-900-2
01
1
1410-
●
●
53
BRACKET; HARNESS
(B) THA
8-98051-457-0
01
1
1410-
●
●
53
BRACKET; HARNESS
(D) THA
8-98077-504-0
01
1
1410-
●
●
53
BRACKET; HARNESS
(H) THA
8-98094-629-0
01
1
1410-
●
●
53
BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (E) THA
8-98077-503-1
01
1
1410-
●
●
53
BRACKET; HARNESS
(A) THA
8-98052-458-0
01
1
1410-
●
●
53
BRACKET; HARNESS
(G) THA
8-98052-804-0
01
1
1410-
●
●
53
BRACKET; HARNESS
(F) THA
8-98055-636-0
01
1
1410-
●
●
139
BOLT; BRKT
M8X12 FLANGE THA
0-28050-812-0
01
1
1410-
●
●
313
BOLT; BRKT
M6X16 FLANGE THA
0-28450-616-0
01
1
1410-
●
●
575
BRACKET; FUSE BOX
THA
8-98042-656-2
01
1
1410-
●
●
577
NUT; FUSE BOX
M6 FLANGE THA
0-91180-106-0
02
1
1410-
●
●
483
22
483
48
483
483
48
48
16
102
488
16
14
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
14
CLIP; BAND,HARNESS
L=150 THA
8-97355-273-0
01
1
1410-
●
●
16
CLIP; HARNESS
(E) THA
8-97101-436-0
01
1
1410-
●
●
16
CLIP; HARNESS
(D) ID=10 & 16 THA
8-94413-325-0
01
1
1410-
●
●
16
CLIP; HARNESS
(B) ID=6 & 10-13 THA
8-97069-515-0
02
1
1410-
●
●
16
CLIP; HARNESS
(A) L=155 THA
8-97173-307-0
14
1
1410-
●
●
16
CLIP; HARNESS
(F) L=40.6 THA
8-97229-357-0
02
1
1410-
●
●
16
CLIP; HARNESS
(C) THA
8-98052-679-0
02
1
1410-
●
●
22
CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE THA
8-97367-984-1
01
1
1410-
●
●
48
CLIP; FRAME HARNESS
(C) L=450 THA
1-09707-142-1
01
1
1410-
●
●
48
CLIP; FRAME HARNESS
(A) ID=10 & 16.5 THA
8-94424-440-0
01
1
1410-
●
●
48
CLIP; FRAME HARNESS
WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> (B) ID=14 L=47 THA
5-09700-319-0
01
1
1410-
●
48
CLIP; FRAME HARNESS
WHEEL BASE 3400MM<34W> (B) ID=14 L=47 THA
5-09700-319-0
01
1
1410-
●
48
CLIP; FRAME HARNESS
(B) ID=14 L=47 THA
5-09700-319-0
05
1
1410-
●
●
48
CLIP; FRAME HARNESS
WHEEL BASE 4100MM<41W> (B) ID=14 L=47 THA
5-09700-319-0
03
1
1410-
●
102
CLIP; BAND
(A) L=140 THA
5-09707-031-1
03
1
1410-
●
●
102
CLIP; BAND
(B) L=170 THA
5-09707-054-0
01
1
1410-
●
●
483
CLIP; ENG HARNESS
(A) ID=14.5 L=40 THA
1-09701-014-0
01
1
1410-
●
●
483
CLIP; ENG HARNESS
(B) ID=19 H=33 L=45 THA
1-09701-045-0
01
1
1410-
●
●
483
CLIP; ENG HARNESS
(C) L=36 THA
8-94224-891-1
01
1
1410-
●
●
483
CLIP; ENG HARNESS
(D) ID=12 VINYL CHLORIDE THA
8-97367-984-1
02
1
1410-
●
●
483
CLIP; ENG HARNESS
(D) ID=12 THA
8-98170-218-0
01
1
1410-
●
●
488
CLIP; CABLE,TRAILER
L=250 THA
5-09707-030-1
01
1
1410-
●
●
516
150
313
139
480
304
529
480
377
377
386
386
24
294
24
515
515
552
552
515
577
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
24
NUT; HARNESS
(B) M10 FLANGE THA
0-91180-110-0
01
1
1410-
●
●
24
NUT; HARNESS
(A) M6 FLANGE THA
0-91180-106-0
01
1
1410-
●
●
139
BOLT; BRKT
M8X12 FLANGE THA
0-28050-812-0
01
1
1410-
●
●
150
BOLT; CLIP
M6X10 FLANGE THA
0-28050-610-0
01
1
1410-
●
●
294
NUT
M8 FLANGE THA
0-91180-108-0
01
1
1410-
●
●
304
BOLT; ENG HARNESS CLIP
M10X16 FLANGE THA
0-28151-016-0
01
1
1410-
●
●
313
BOLT; BRKT
M6X16 FLANGE THA
0-28450-616-0
01
1
1410-
●
●
377
BOLT; CAB EARTH
(B) M8X18.5 W/PL WASHER THA
8-98141-255-0
03
1
1410-
●
●
377
BOLT; CAB EARTH
(A) M6X14 W/PL WASHER THA
8-98164-836-0
01
1
1410-
●
●
386
BOLT; GRAND HARNESS
(A) M8X18.5 W/PL WASHER THA
8-98141-255-0
01
1
1410-
●
●
386
BOLT; GRAND HARNESS
(B) M8X24 W/PL WASHER THA
8-98141-256-1
01
1
1410-
●
●
480
BOLT; BRKT
(A) M8X25 FLANGE THA
0-28650-825-0
01
1
1410-
●
●
480
BOLT; BRKT
(B) M10X30 FLANGE THA
0-28651-030-0
01
1
1410-
●
●
515
NUT; BRKT
(B) M8 FLANGE THA
8-98040-024-0
01
1
1410-
●
●
515
NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> (C) M10 FLANGE THA
0-91180-110-0
01
1
1410-
●
●
515
NUT; BRKT
4HK1-TCN ENG<RDQ> (C) M10 FLANGE THA
0-91180-110-0
01
1
1410-
●
515
NUT; BRKT
4HK1-TCS ENG<RJS> (C) M10 FLANGE THA
0-91180-110-0
01
1
1410-
●
515
NUT; BRKT
(A) M6 FLANGE THA
0-91180-106-0
01
1
1410-
●
●
516
BOLT; HARNESS
M5X7 HEXALOBULAR SOCKET THA
8-98063-767-0
01
1
1410-
●
●
529
BOLT; RELAY BOX
M8X35 W/LK&PL WASHER THA
1-09030-094-0
03
1
1410-
●
●
552
NUT; BRKT,HARNESS
4HK1-TCN ENG<RDQ> (B) M10 FLANGE THA
0-91180-110-0
01
1
1410-
●
552
NUT; BRKT,HARNESS
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M10 FLANGE THA
0-91180-110-0
01
1
1410-
●
552
NUT; BRKT,HARNESS
4HK1-TCS ENG<RJS> (B) M10 FLANGE THA
0-91180-110-0
01
1
1410-
●
552
NUT; BRKT,HARNESS
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M8 FLANGE THA
0-91180-108-0
02
1
1410-
●
552
NUT; BRKT,HARNESS
4HK1-TCS ENG<RJS> (A) M8 FLANGE THA
0-91180-108-0
02
1
1410-
●
577
NUT; FUSE BOX
M6 FLANGE THA
0-91180-106-0
02
1
1410-
●
●
