◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51569 - NPR/NQR THAILAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#151361) — 85 parça

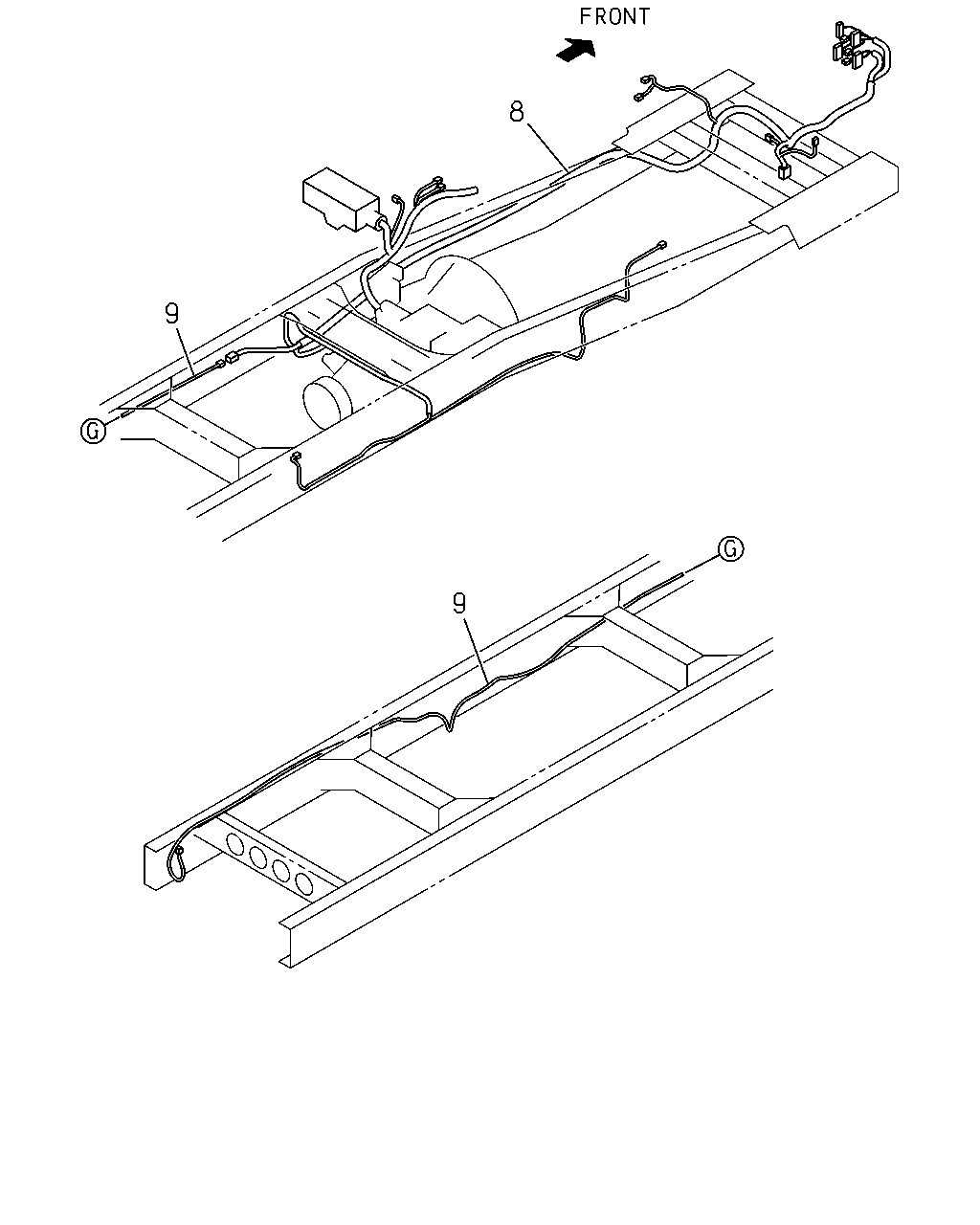

çizim 451455
9 9 8
BalonParca AdiParca NoAdetTipApplied Date A B
8 HARNESS; FRAME,FRT
4HK1-TCN ENG<RDQ> M/T MYY6S<RST> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		8-97924-463-0 01 1 1410- ●
8 HARNESS; FRAME,FRT
4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> THA 		8-97924-464-0 01 1 1410- ●
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM<34W> THA 		8-97923-930-1 01 1 1410- ● ●
9 HARNESS; FRAME,RR
WHEEL BASE 3800MM<38W> THA 		8-97923-931-1 01 1 1410- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4100MM<41W> THA 		8-97923-932-1 01 1 1410- ●

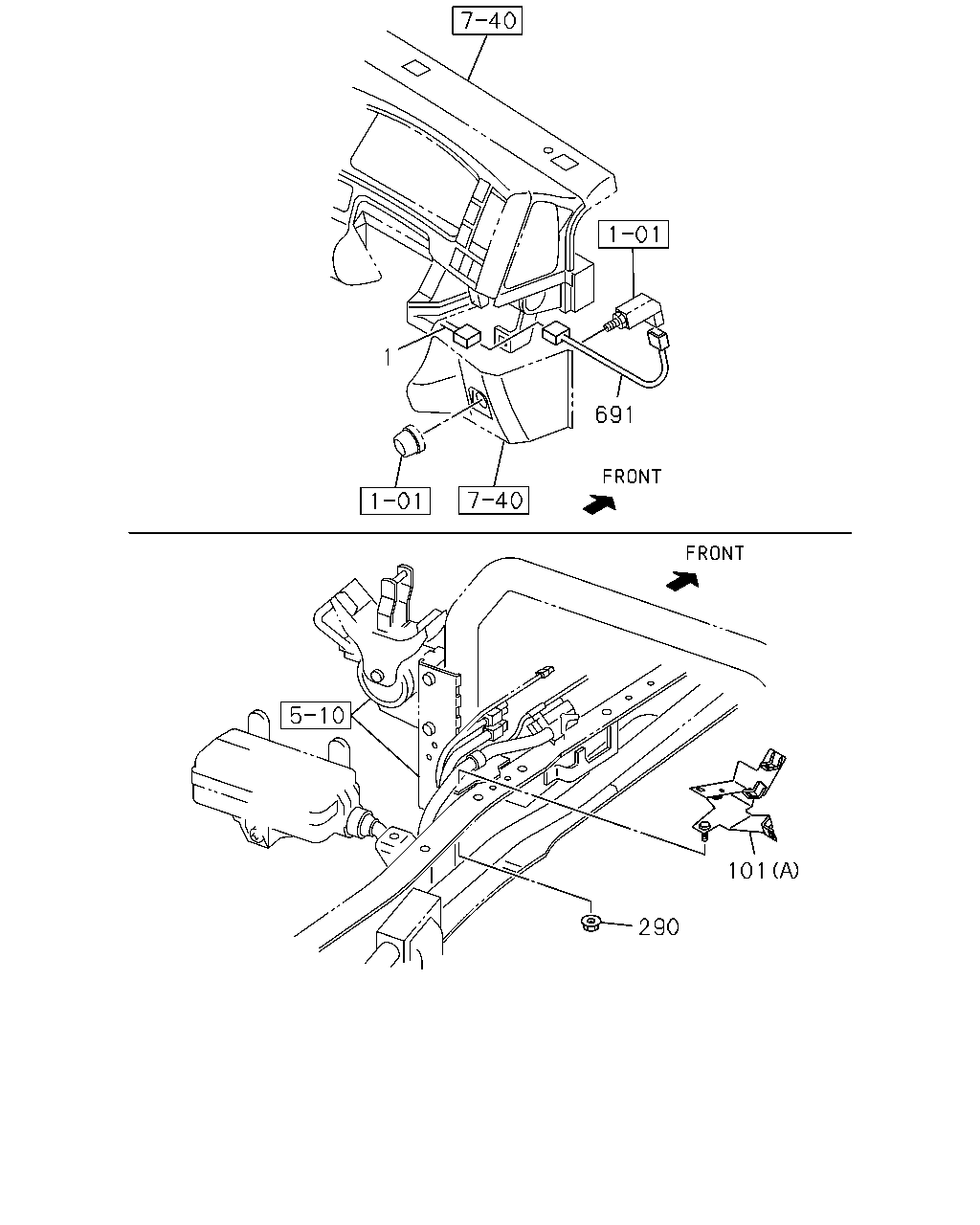

çizim 451497
1 691 101 290
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2011<VZB> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		8-97926-444-0 01 1 1410- ●
1 HARNESS; CAB
4HK1-TCS ENG<RJS> VIN MODEL YEAR 2011<VZB> THA 		8-97926-444-0 01 1 1410- ●
101 BRACKET; HARNESS CONNECTOR
(B) THA 		8-98052-805-0 01 1 1410- ● ●
101 BRACKET; HARNESS CONNECTOR
4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98079-137-2 01 1 1410- ●
101 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98079-137-2 01 1 1410- ●
290 NUT; BRKT
4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA 		0-91180-108-0 01 1 1410- ●
290 NUT; BRKT
4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA 		0-91180-108-0 01 1 1410- ●
691 HARNESS; IDLE CONT
4HK1-TCN ENG<RDQ> SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> THA 		8-97948-238-0 01 1 1410- ●
691 HARNESS; IDLE CONT
4HK1-TCS ENG<RJS> SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> THA 		8-97948-238-0 01 1 1410- ●

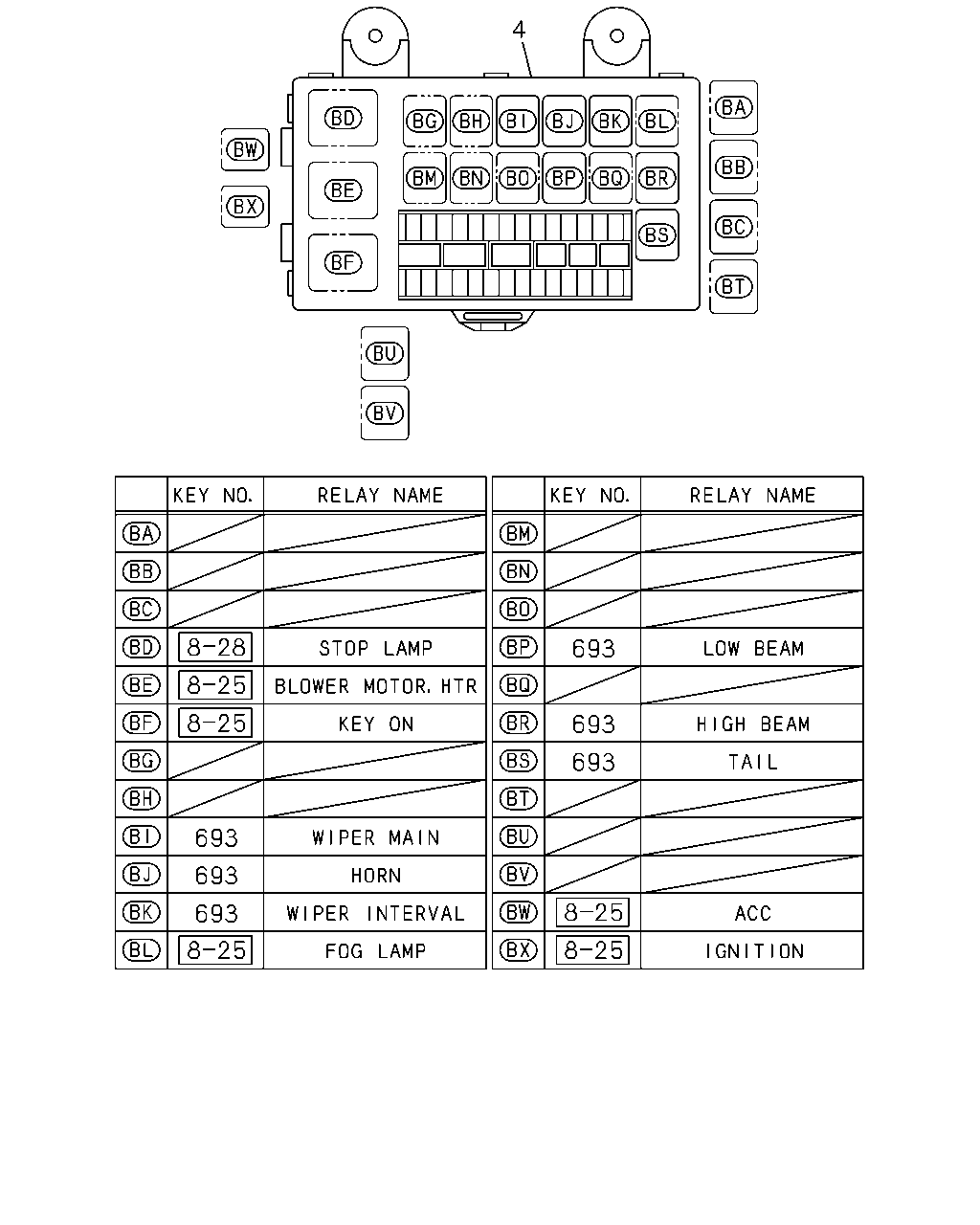

çizim 451536
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOX ASM; FUSE,HARNESS
4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2011<VZB> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		8-98067-619-1 01 1 1410- ●
4 BOX ASM; FUSE,HARNESS
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER<8GF> THA 		8-98067-619-1 01 1 1410- ●
4 BOX ASM; FUSE,HARNESS
4HK1-TCS ENG<RJS> VIN MODEL YEAR 2011<VZB> THA 		8-98067-619-1 01 1 1410- ●
693 RELAY; FUSE BOX
4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2011<VZB> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 24V 10A MATSUSHITA THA 		8-97173-035-1 AR 1 1410- ●
693 RELAY; FUSE BOX
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER<8GF> 24V 10A MATSUSHITA THA 		8-97173-035-1 AR 1 1410- ●
693 RELAY; FUSE BOX
4HK1-TCS ENG<RJS> VIN MODEL YEAR 2011<VZB> 24V 10A MATSUSHITA THA 		8-97173-035-1 AR 1 1410- ●

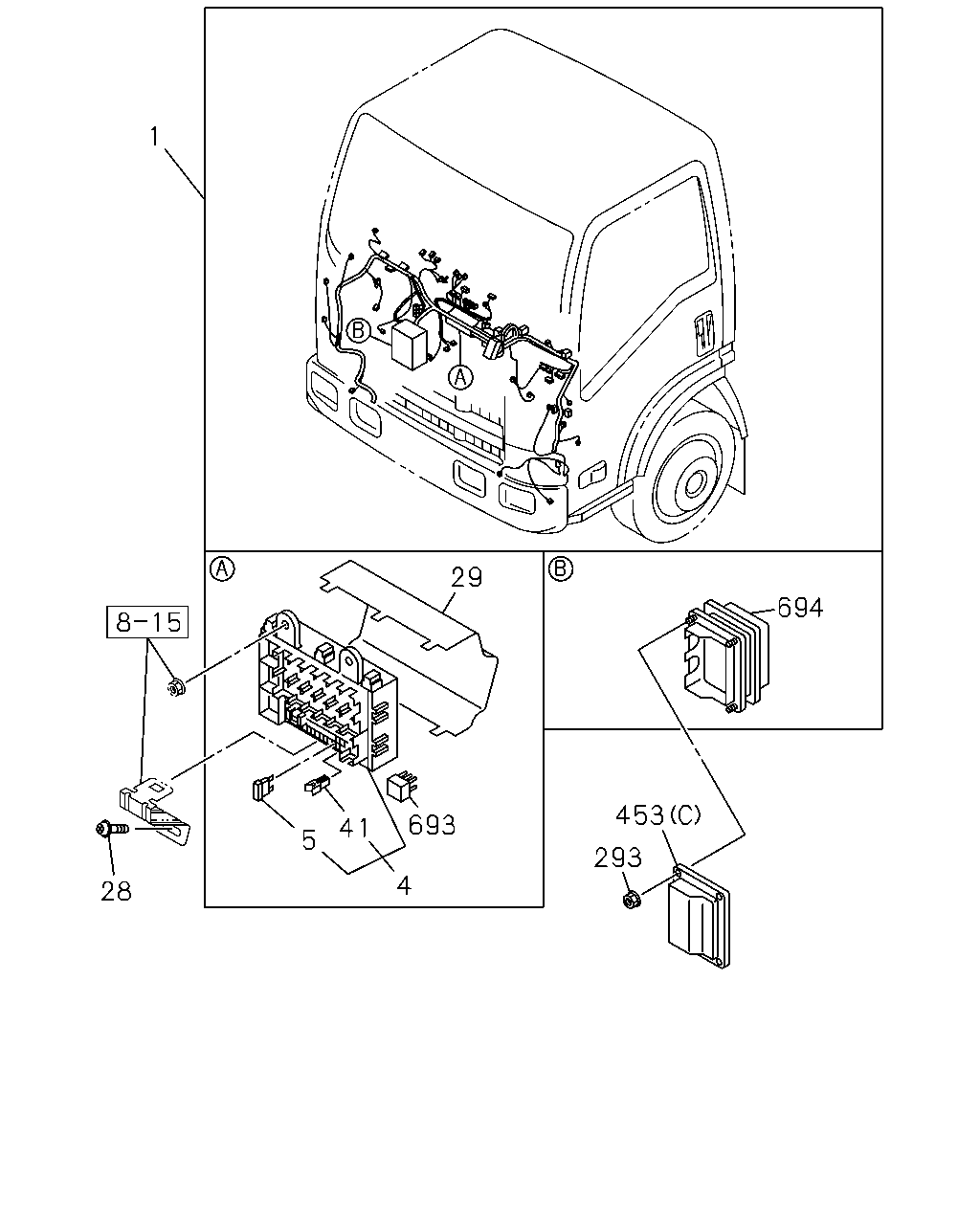

çizim 451655
29 694 453 293 693 4 41 5 28 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2011<VZB> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		8-97926-444-0 01 1 1410- ●
1 HARNESS; CAB
4HK1-TCS ENG<RJS> VIN MODEL YEAR 2011<VZB> THA 		8-97926-444-0 01 1 1410- ●
4 BOX ASM; FUSE,HARNESS
4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2011<VZB> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		8-98067-619-1 01 1 1410- ●
4 BOX ASM; FUSE,HARNESS
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER<8GF> THA 		8-98067-619-1 01 1 1410- ●
4 BOX ASM; FUSE,HARNESS
4HK1-TCS ENG<RJS> VIN MODEL YEAR 2011<VZB> THA 		8-98067-619-1 01 1 1410- ●
5 FUSE; FACIA HARNESS
4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2011<VZB> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 10A RED THA 		8-98054-257-0 AR 1 1410- ●
5 FUSE; FACIA HARNESS
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER<8GF> 10A RED THA 		8-98054-257-0 AR 1 1410- ●
5 FUSE; FACIA HARNESS
4HK1-TCS ENG<RJS> VIN MODEL YEAR 2011<VZB> 10A RED THA 		8-98054-257-0 AR 1 1410- ●
5 FUSE; FACIA HARNESS
4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2011<VZB> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 15A BLUE THA 		8-98054-258-0 AR 1 1410- ●
5 FUSE; FACIA HARNESS
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER<8GF> 15A BLUE THA 		8-98054-258-0 AR 1 1410- ●
5 FUSE; FACIA HARNESS
4HK1-TCS ENG<RJS> VIN MODEL YEAR 2011<VZB> 15A BLUE THA 		8-98054-258-0 AR 1 1410- ●
5 FUSE; FACIA HARNESS
4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2011<VZB> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 20A YELLOW THA 		8-98054-259-0 AR 1 1410- ●
5 FUSE; FACIA HARNESS
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER<8GF> 20A YELLOW THA 		8-98054-259-0 AR 1 1410- ●
5 FUSE; FACIA HARNESS
4HK1-TCS ENG<RJS> VIN MODEL YEAR 2011<VZB> 20A YELLOW THA 		8-98054-259-0 AR 1 1410- ●
28 SCREW; FUSE BOX
M5X16 TAPPING THA 		0-72180-516-0 01 1 1410- ● ●
29 COVER; FUSE BOX
4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2011<VZB> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		8-98056-968-0 01 1 1410- ●
29 COVER; FUSE BOX
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER<8GF> THA 		8-98056-968-0 01 1 1410- ●
29 COVER; FUSE BOX
4HK1-TCS ENG<RJS> VIN MODEL YEAR 2011<VZB> THA 		8-98056-968-0 01 1 1410- ●
41 PULLER; FUSE
4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2011<VZB> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		8-98054-260-0 01 1 1410- ●
41 PULLER; FUSE
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER<8GF> THA 		8-98054-260-0 01 1 1410- ●
41 PULLER; FUSE
4HK1-TCS ENG<RJS> VIN MODEL YEAR 2011<VZB> THA 		8-98054-260-0 01 1 1410- ●
293 NUT
M6 FLANGE THA 		0-91180-106-0 04 1 1410- ● ●
453 PROTECTOR; HARNESS
(C) THA 		8-98034-039-1 01 1 1410- ● ●
453 PROTECTOR; HARNESS
(A) THA 		8-94417-716-0 01 1 1410- ● ●
453 PROTECTOR; HARNESS
(B) THA 		8-98031-620-1 01 1 1410- ● ●
693 RELAY; FUSE BOX
4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2011<VZB> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 24V 10A MATSUSHITA THA 		8-97173-035-1 AR 1 1410- ●
693 RELAY; FUSE BOX
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER<8GF> 24V 10A MATSUSHITA THA 		8-97173-035-1 AR 1 1410- ●
693 RELAY; FUSE BOX
4HK1-TCS ENG<RJS> VIN MODEL YEAR 2011<VZB> 24V 10A MATSUSHITA THA 		8-97173-035-1 AR 1 1410- ●
694 BOX ASM; CONNECTOR
4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2011<VZB> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		8-98057-772-0 01 1 1410- ●
694 BOX ASM; CONNECTOR
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER<8GF> THA 		8-98057-772-0 01 1 1410- ●
694 BOX ASM; CONNECTOR
4HK1-TCS ENG<RJS> VIN MODEL YEAR 2011<VZB> THA 		8-98057-772-0 01 1 1410- ●

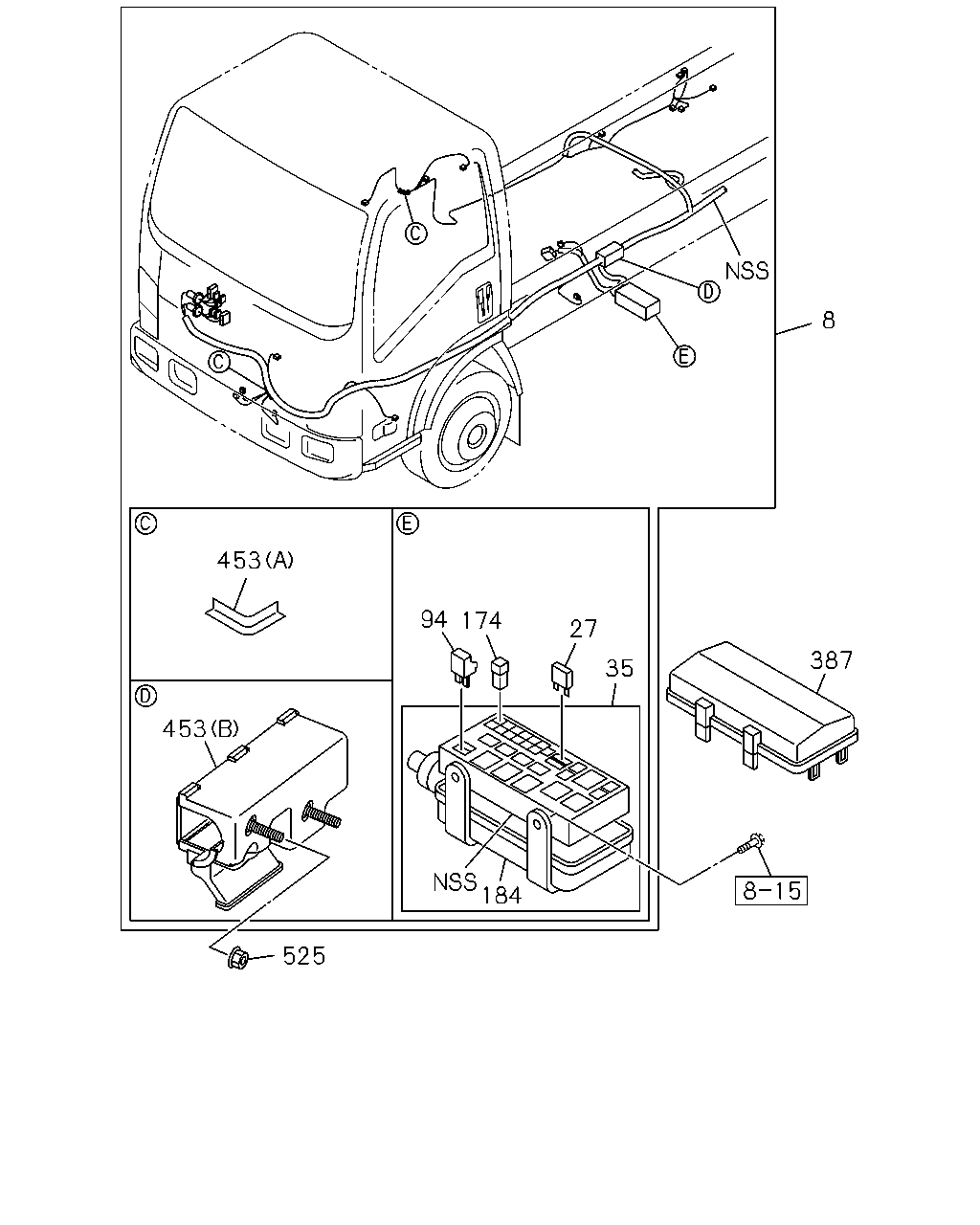

çizim 451749
453 453 525 184 94 174 27 35 387 8
BalonParca AdiParca NoAdetTipApplied Date A B
8 HARNESS; FRAME,FRT
4HK1-TCN ENG<RDQ> M/T MYY6S<RST> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		8-97924-463-0 01 1 1410- ●
8 HARNESS; FRAME,FRT
4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> THA 		8-97924-464-0 01 1 1410- ●
27 FUSE UNIT
10A RED THA 		8-98054-257-0 AR 1 1410- ● ●
35 BOX; RELAY & FUSE
THA 		8-98030-763-0 01 1 1410- ● ●
94 DIODE; FRAME HARNESS
BLACK 2P-1.5A THA 		8-94422-639-1 AR 1 1410- ● ●
174 FUSE; SLOW BLOW
30A PINK THA 		8-98079-191-0 AR 1 1410- ● ●
174 FUSE; SLOW BLOW
40A GREEN THA 		8-98079-192-0 AR 1 1410- ● ●
174 FUSE; SLOW BLOW
50A RED THA 		8-98079-193-0 AR 1 1410- ● ●
174 FUSE; SLOW BLOW
60A YELLOW THA 		8-97219-407-0 AR 1 1410- ● ●
184 COVER; RELAY & FUSE BOX
THA 		8-98030-766-0 01 1 1410- ● ●
387 COVER; RELAY BOX
THA 		8-98081-367-0 01 1 1410- ● ●
453 PROTECTOR; HARNESS
(C) THA 		8-98034-039-1 01 1 1410- ● ●
453 PROTECTOR; HARNESS
(A) THA 		8-94417-716-0 01 1 1410- ● ●
453 PROTECTOR; HARNESS
(B) THA 		8-98031-620-1 01 1 1410- ● ●
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 02 1 1410- ● ●

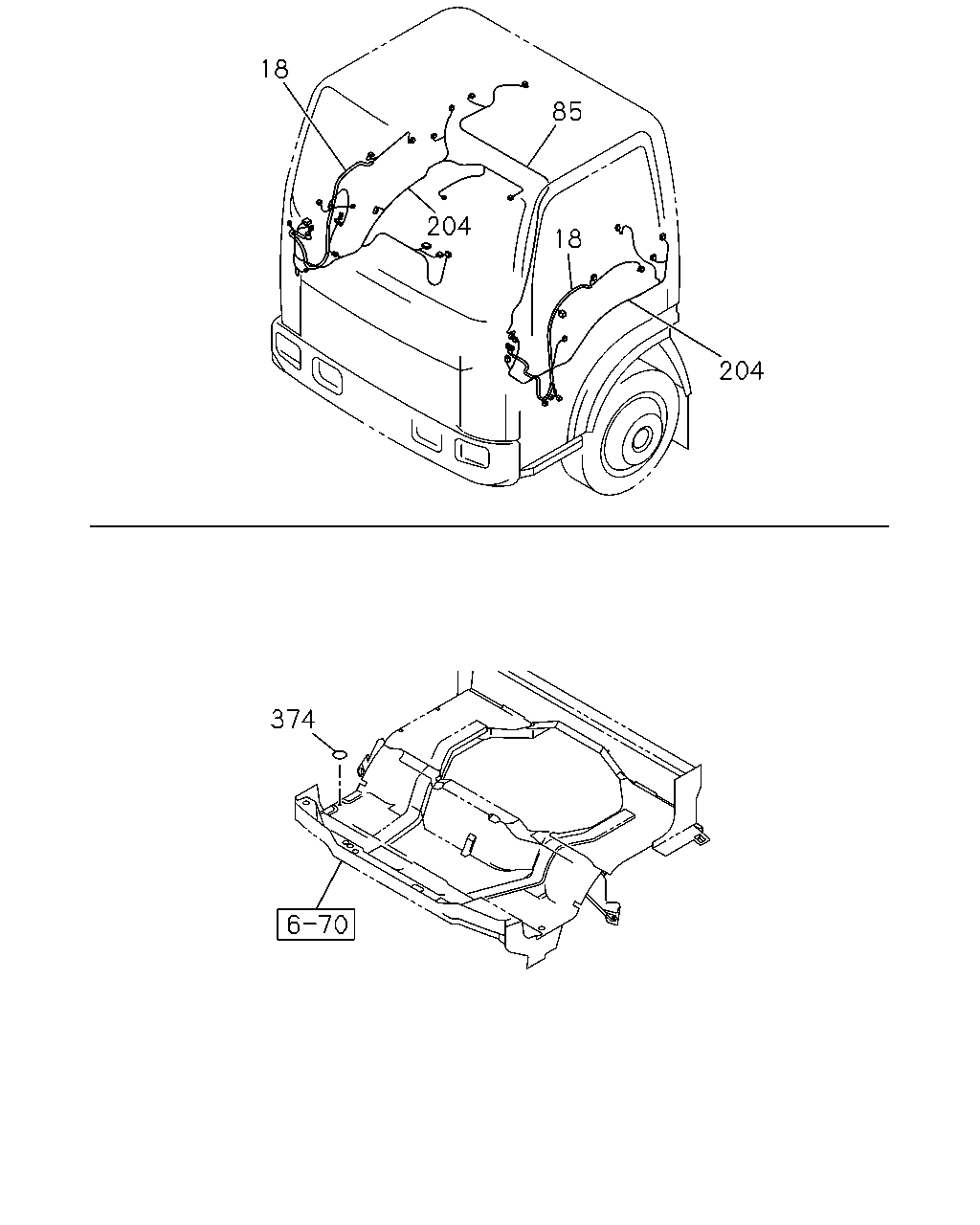

çizim 451849
374 204 204 18 85 18
BalonParca AdiParca NoAdetTipApplied Date A B
18 HARNESS; DOOR
THA 		8-98071-075-2 01 1 1410- ● ●
18 HARNESS; DOOR
THA 		8-98071-083-2 01 1 1410- ● ●
85 HARNESS; ROOM LAMP
THA 		8-98047-149-3 01 1 1410- ● ●
204 HARNESS; CABLE,FLOOR
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		8-98070-787-4 01 1 1410- ●
204 HARNESS; CABLE,FLOOR
4HK1-TCS ENG<RJS> THA 		8-98070-787-4 01 1 1410- ●
374 PLUG; HARNESS CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> OD=32 BLACK THA 		8-98031-126-0 01 1 1410- ●
374 PLUG; HARNESS CONNECTOR
OD=32 BLACK THA 		8-98031-126-0 01 1 1410- ●

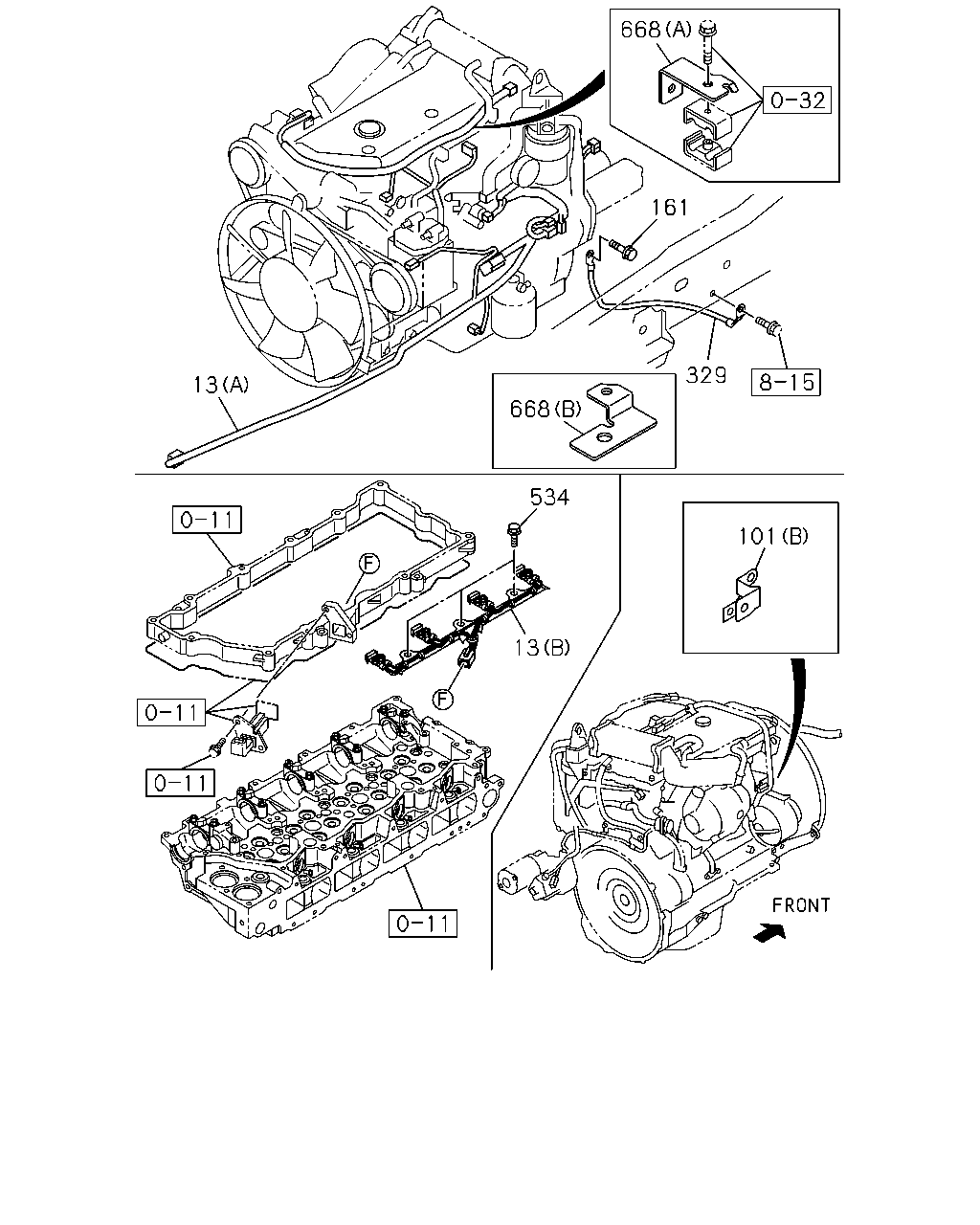

çizim 451952
13 329 161 668 668 534 13 101
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG
(B) THA 		8-98171-638-0 01 1 1410- ● ●
13 HARNESS; ENG
4HK1-TCN ENG<RDQ> GENERATOR 24V50A<6QN> TRANSMISSION CONTROL-SMOOTHER<8GF>,TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) THA 		8-98260-418-0 01 1 1410- ●
13 HARNESS; ENG
4HK1-TCS ENG<RJS> GENERATOR 24V50A<6QN> (A) THA 		8-98260-418-0 01 1 1410- ●
101 BRACKET; HARNESS CONNECTOR
(B) THA 		8-98052-805-0 01 1 1410- ● ●
101 BRACKET; HARNESS CONNECTOR
4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98079-137-2 01 1 1410- ●
101 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98079-137-2 01 1 1410- ●
161 BOLT; GROUND,HARNESS
M8X16 FLANGE THA 		0-28050-816-0 01 1 1410- ● ●
161 BOLT; GROUND,HARNESS
M8X16 FLANGE THA 		0-28050-816-0 01 1 1410- ● ●
329 CABLE; ENG TO FRAME
THA 		8-97924-248-0 01 1 1410- ● ●
534 BOLT
M10X55 FLANGE THA 		8-97365-449-0 03 1 1410- ● ●
668 BRACKET; HARNESS
(A) THA 		8-98001-095-0 01 1 1410- ● ●
668 BRACKET; HARNESS
(B) THA 		8-98205-089-0 01 1 1410- ● ●
