◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51569 - NPR/NQR THAILAND ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#151357) — 10 parça
çizim 451446
166
BalonParca AdiParca NoAdetTipApplied Date A B
166 BOLT; SEAT BELT ANCHOR
M8X20 FLANGE THA 		0-28050-820-0 02 1 1410- ● ●

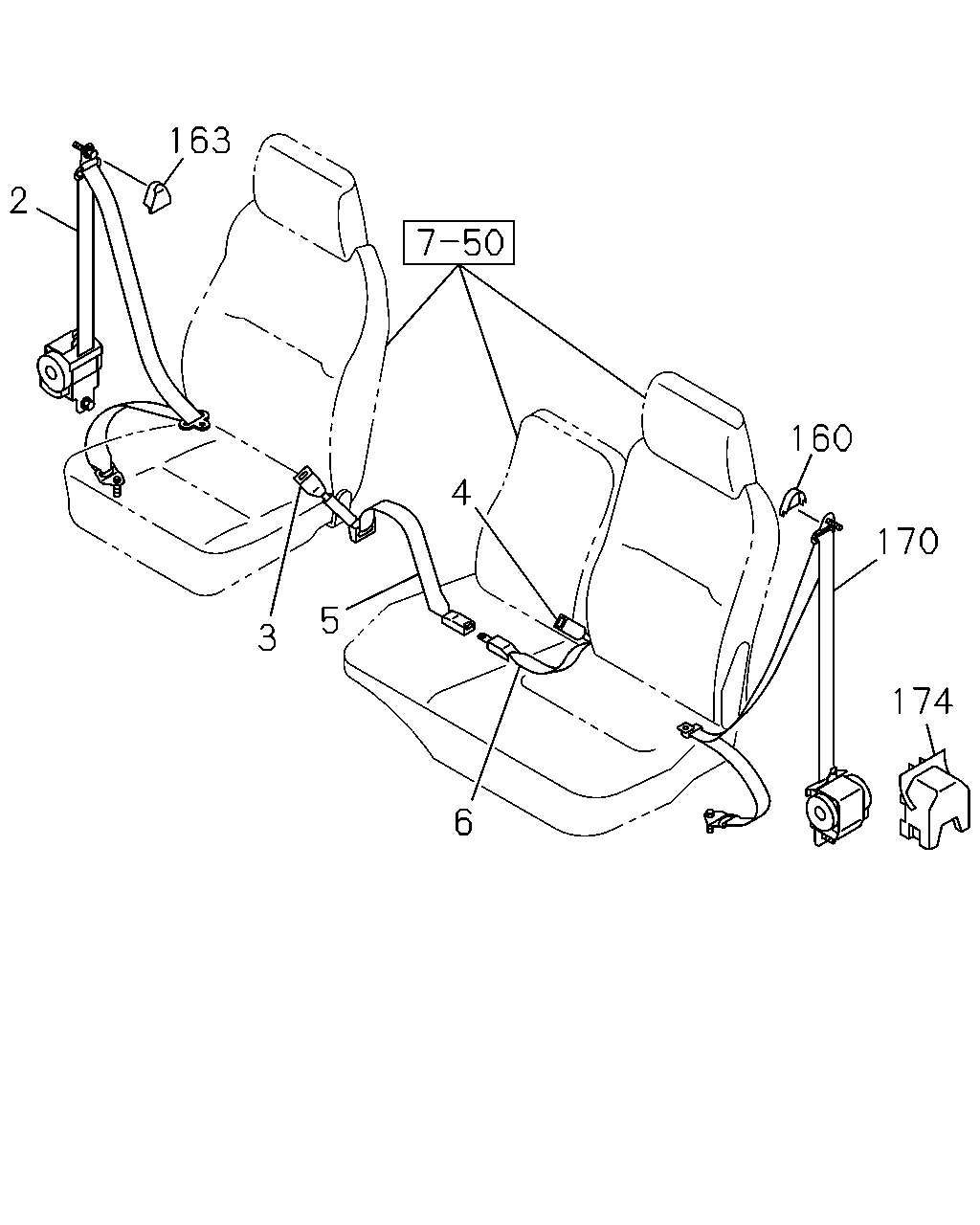

çizim 451945
163 2 5 4 3 6 160 170 174
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
GRAY THA 		8-97423-503-0 01 1 1410- ● ●
3 BELT; SEAT,BUCKLE SIDE
GRAY THA 		8-97417-606-0 01 1 1410- ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY THA 		8-97417-610-0 01 1 1410- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY THA 		8-97417-608-0 01 1 1410- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY THA 		8-97423-504-0 01 1 1410- ● ●
160 COVER; THROUGH ANCHOR
GRAY THA 		8-97405-991-0 01 1 1410- ● ●
163 COVER; ADJUSTER
GRAY THA 		8-97405-991-0 01 1 1410- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY THA 		8-97423-503-0 01 1 1410- ● ●
174 COVER; RETRACTOR,SEAT BELT
THA 		8-98039-376-1 01 1 1410- ● ●
