◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51569 - NPR/NQR THAILAND ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶

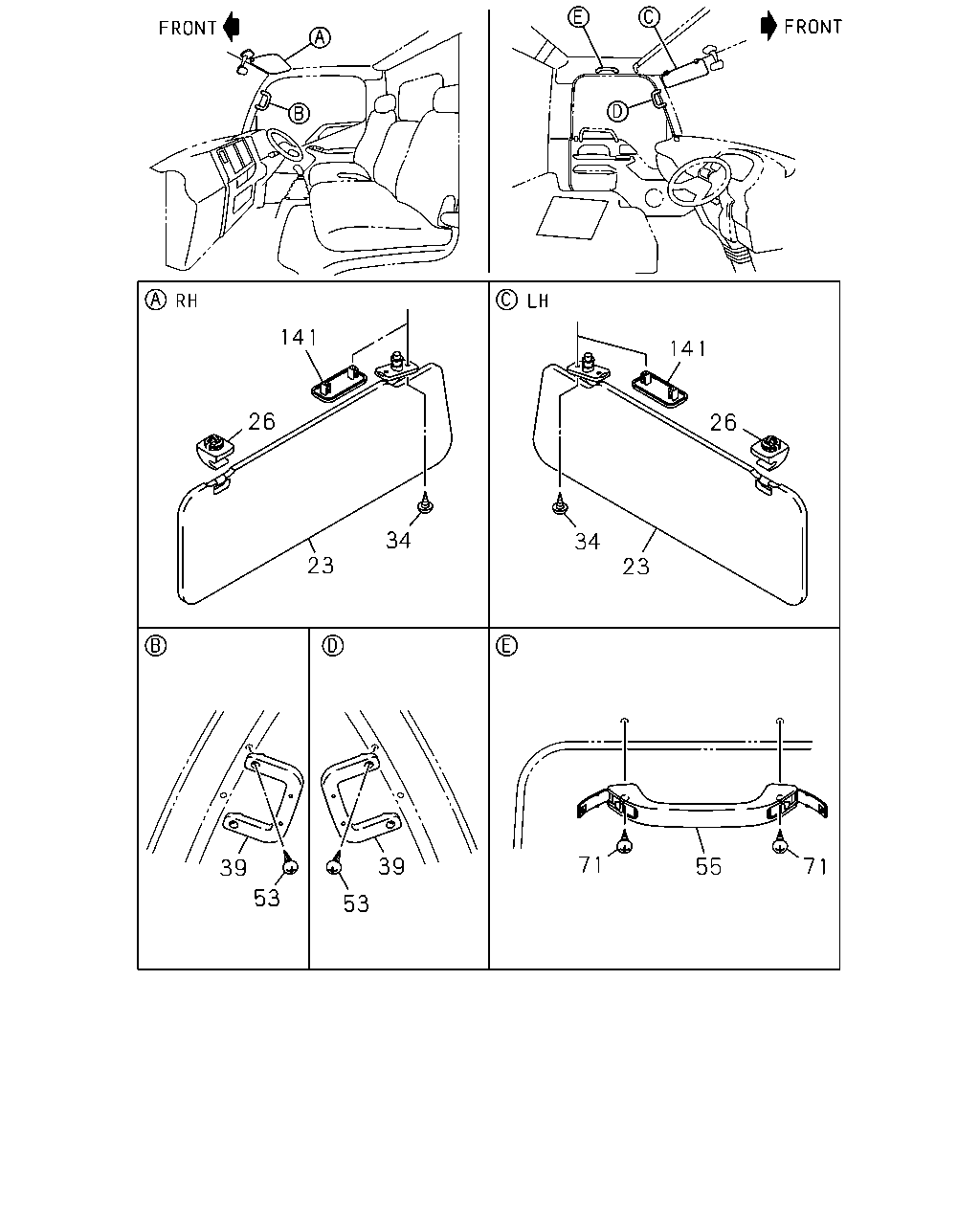

7-43 — SUN VISOR AND ASSIST GRIP (#151354) — 32 parça

141 26 23 34 34 23 141 26 55 71 71 39 53 53 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	SUN VISOR SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> THA	8-97923-767-2	01	1	1410-	●	●
23	SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> THA	8-97923-766-2	01	1	1410-	●	●
26	HOLDER; SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY THA	8-97405-171-0	01	1	1410-	●	●
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY THA	8-97405-171-0	01	1	1410-	●	●
34	SCREW; SUN VISOR M6X26 THA	8-98033-674-0	02	1	1410-	●	●
34	SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> M6X26 THA	8-98033-674-0	02	1	1410-	●	●
34	SCREW; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> M6X26 THA	8-98033-674-0	02	1	1410-	●	●
39	HANDLE; ASSIST,A-POST DARK GRAY THA	8-97405-249-2	02	1	1410-	●	●
53	SCREW; ASSIST HANDLE M6X28 THA	8-98004-344-0	04	1	1410-	●	●
55	GRIP; ASSIST,CAB SIDE UPR DARK GRAY THA	8-97405-285-2	01	1	1410-	●	●
71	SCREW M6X28 THA	8-98004-344-0	02	1	1410-	●	●
141	COVER; SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> L=62 B=25 DARK GRAY THA	8-97405-173-0	01	1	1410-	●	●
141	COVER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> L=62 B=25 DARK GRAY THA	8-97405-173-0	01	1	1410-	●	●
141	COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> L=62 B=25 DARK GRAY THA	8-97405-173-0	01	1	1410-	●	●

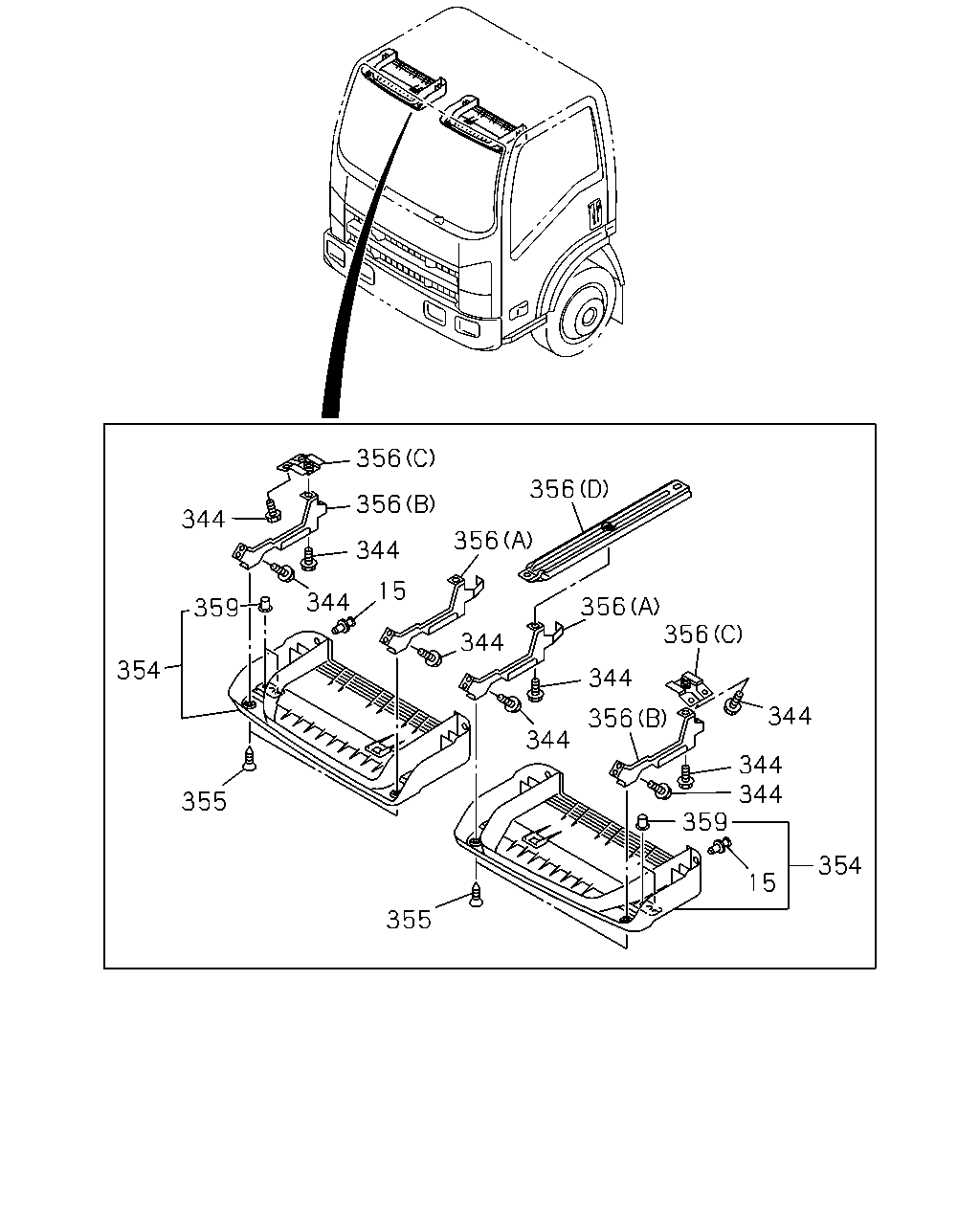

356 356 356 356 15 344 356 356 344 356 344 344 344 344 359 15 354 355 355 354 359 344 344 344

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	FASTENER; HEADER SHELF BOARD HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY THA	8-97406-299-0	02	1	1410-	●	●
15	FASTENER; HEADER SHELF BOARD HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY THA	8-97406-299-0	02	1	1410-	●	●
344	BOLT; BRKT,FRT HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> M6X12 FLANGE THA	8-97108-669-0	08	1	1410-	●	●
344	BOLT; BRKT,FRT HEADER TRAY DRIVER & PASSENGER<8LY> M6X12 FLANGE THA	8-97108-669-0	08	1	1410-	●	●
354	TRAY; HEADER ROOF HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY THA	8-97408-064-2	01	1	1410-	●	●
354	TRAY; HEADER ROOF HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY THA	8-97408-065-2	01	1	1410-	●	●
355	SCREW; TRAY HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> M5X16 HEX SOCKET THA	0-72380-516-0	04	1	1410-	●	●
355	SCREW; TRAY HEADER TRAY DRIVER & PASSENGER<8LY> M5X16 HEX SOCKET THA	0-72380-516-0	04	1	1410-	●	●
356	BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (C) THA	8-97386-874-1	01	1	1410-	●	●
356	BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (C) THA	8-97386-874-1	01	1	1410-	●	●
356	BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) THA	8-97585-576-4	01	1	1410-	●	●
356	BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (B) THA	8-97585-576-4	01	1	1410-	●	●
356	BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (D) THA	8-97585-577-1	01	1	1410-	●	●
356	BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (D) THA	8-97585-577-1	01	1	1410-	●	●
356	BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) THA	8-98036-022-4	01	1	1410-	●	●
356	BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (A) THA	8-98036-023-4	01	1	1410-	●	●
359	HOLDER; HEADER TRAY HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> THA	8-98041-754-0	02	1	1410-	●	●
359	HOLDER; HEADER TRAY HEADER TRAY DRIVER & PASSENGER<8LY> THA	8-98041-754-0	02	1	1410-	●	●
