7-40 — INSTRUMENT PANEL AND BOX (#151352) — 93 parça

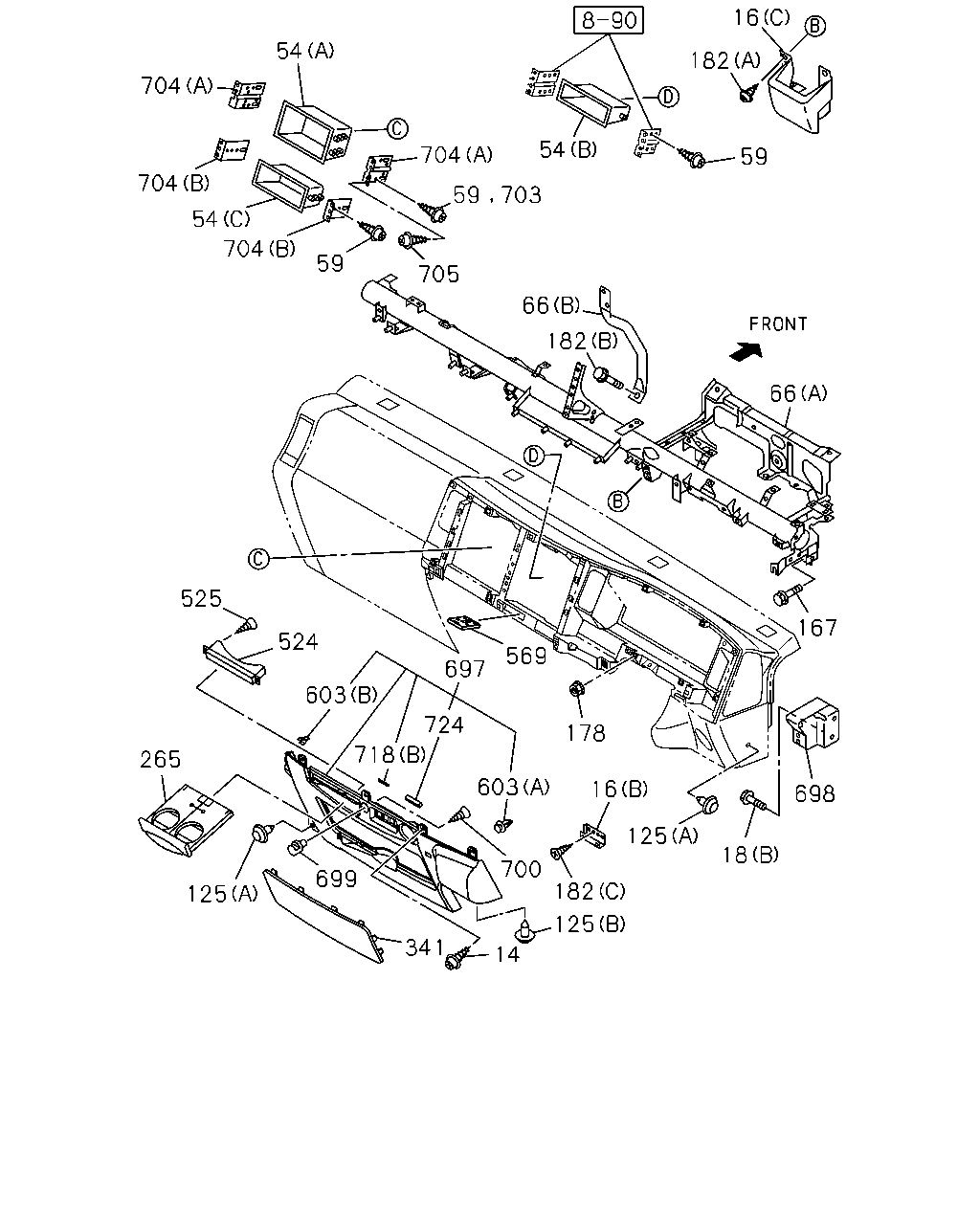

çizim 448859
16 182 59 54 54 704 59 703 704 704 54 704 59 705 66 182 66 167 569 178 698 16 697 525 524 603 718 724 603 125 18 700 182 125 265 125 699 341 14
BalonParca AdiParca NoAdetTipApplied Date A B
14 SCREW; INST PNL
M5X16 TAPPING THA 		0-72180-516-0 04 1 1410- ● ●
16 BRACKET; INST PNL
COOLER WO/HEATER<C65> (B) THA 		8-97585-532-0 01 1 1410- ● ●
16 BRACKET; INST PNL
COOLER WO/HEATER<C65> (A) THA 		8-97585-612-2 01 1 1410- ● ●
16 BRACKET; INST PNL
(C) THA 		8-98053-711-0 01 1 1410- ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 04 1 1410- ● ●
18 BOLT; BRKT
(A) M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1410- ● ●
54 POCKET; CENTER CLUSTER
(C) THA 		8-97926-412-0 01 1 1410- ● ●
54 POCKET; CENTER CLUSTER
EXC. COOLER WO/HEATER<C65> (C) THA 		8-97926-412-0 01 1 1410- ● ●
54 POCKET; CENTER CLUSTER
(B) THA 		8-97926-414-0 01 1 1410- ● ●
54 POCKET; CENTER CLUSTER
(A) THA 		8-97926-874-0 01 1 1410- ● ●
59 SCREW; CLUSTER POCKET
M5X10 TAPPING W/TORQUES THA 		8-98058-632-0 04 1 1410- ● ●
66 REINFORCEMENT; INST PANEL
(B) THA 		8-97585-578-1 01 1 1410- ● ●
66 REINFORCEMENT; INST PANEL
(A) THA 		8-98199-358-1 01 1 1410- ● ●
70 GRILLE; CENTER,AIR OUTLET
THA 		8-98028-563-2 01 1 1410- ● ●
125 CLIP; INST PANEL
(B) GRAY THA 		8-97408-063-0 02 1 1410- ● ●
125 CLIP; INST PANEL
(A) GRAY THA 		8-97408-817-0 02 1 1410- ● ●
125 CLIP; INST PANEL
(C) GRAY THA 		8-97419-968-1 02 1 1410- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE THA 		8-97264-766-0 04 1 1410- ● ●
178 NUT; INST PANEL
M6 FLANGE THA 		0-91180-106-0 03 1 1410- ● ●
182 BOLT; BRKT,INST PANEL
COOLER WO/HEATER<C65> (C) M5X16 TAPPING THA 		0-72180-516-0 02 1 1410- ● ●
182 BOLT; BRKT,INST PANEL
(B) M8X20 W/LK&PL WASHER THA 		8-97359-709-0 01 1 1410- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 03 1 1410- ● ●
265 HOLDER; CUP
GRAY THA 		8-97418-528-0 01 1 1410- ● ●
341 LID; FUSE BOX
GRAY THA 		8-97423-658-0 01 1 1410- ● ●
524 STAND ASM; CUP,INST
THA 		8-98054-414-0 01 1 1410- ● ●
525 SCREW; CUP STAND
M5X16 TAPPING THA 		0-72180-516-0 03 1 1410- ● ●
569 HOLDER; CARD
THA 		8-97410-276-0 01 1 1410- ● ●
603 CLIP; COVER
(A) THA 		8-98004-025-0 01 1 1410- ● ●
603 CLIP; COVER
(B) THA 		8-98021-271-0 10 1 1410- ● ●
697 PANEL; INST CENTER
GRAY THA 		8-97423-656-1 01 1 1410- ● ●
698 BRACKET; INST BAR SIDE
THA 		8-98089-256-1 01 1 1410- ● ●
698 BRACKET; INST BAR SIDE
THA 		8-98089-257-1 01 1 1410- ● ●
699 HOOK; INST PANEL
GRAY THA 		8-97408-927-0 01 1 1410- ● ●
700 BOLT; HOOK
M5X16 TAPPING THA 		0-72180-516-0 01 1 1410- ● ●
703 SCREW; CENTER POCKET
M5X10 TAPPING W/TORQUES THA 		8-98058-632-0 04 1 1410- ● ●
704 BRACKET; CENTER POCKET
(B) THA 		8-97585-616-2 02 1 1410- ● ●
704 BRACKET; CENTER POCKET
(A) THA 		8-97585-618-2 02 1 1410- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET THA 		0-72180-520-0 08 1 1410- ● ●
718 SEAL; COVER
(A) 30X15 THA 		8-98097-696-0 01 1 1410- ● ●
718 SEAL; COVER
(B) 5X30 THA 		8-98176-199-0 01 1 1410- ● ●
718 SEAL; COVER
(B) 8X80 THA 		8-98200-040-0 01 1 1410- ● ●
718 SEAL; COVER
(B) 4X35 THA 		8-98200-041-0 01 1 1410- ● ●
724 INSULATOR; INST PANEL
THA 		8-98200-042-0 01 1 1410- ● ●

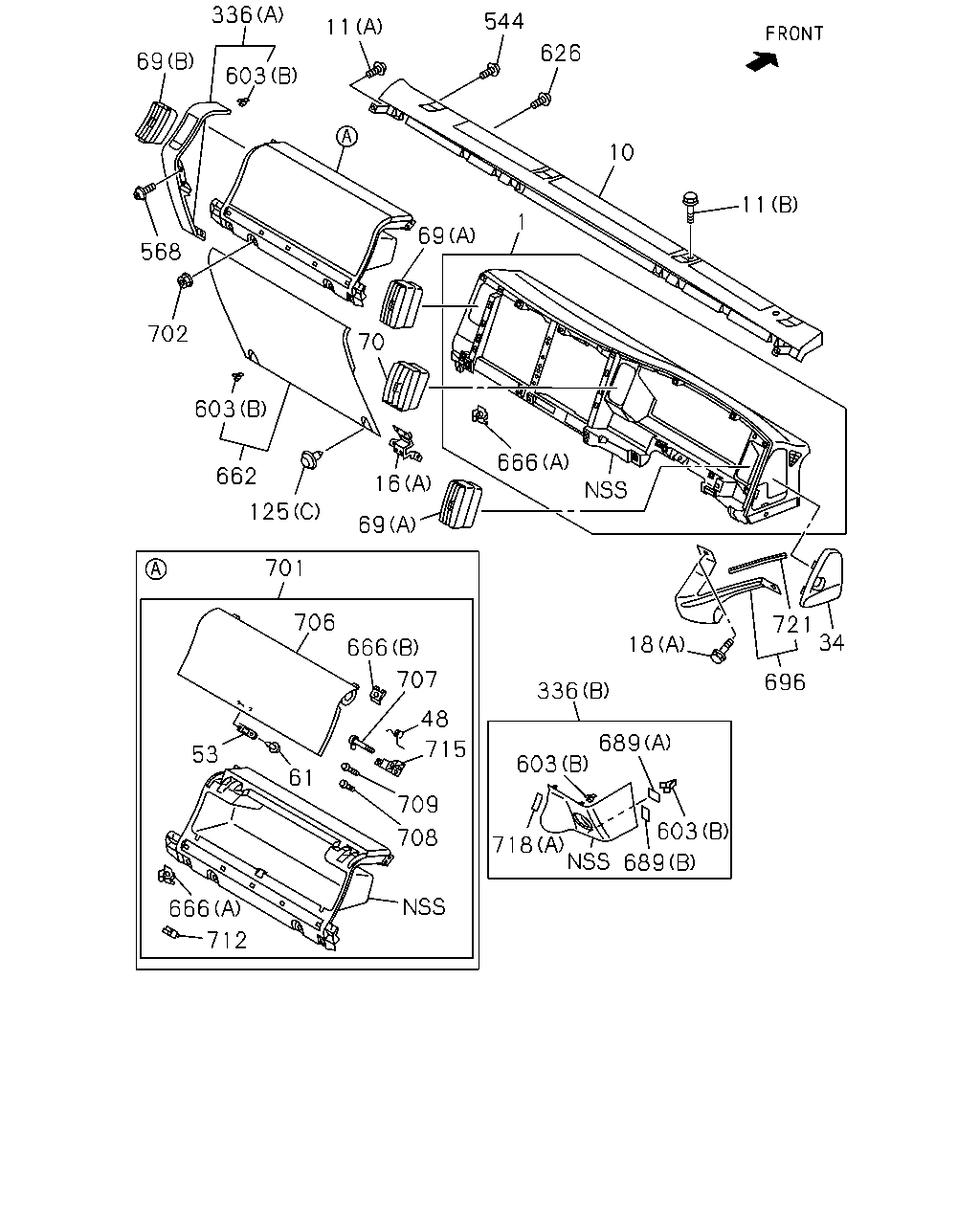

çizim 448874
336 11 544 626 10 11 1 603 69 568 702 603 662 125 16 69 69 666 18 696 721 34 336 689 603 718 689 603 712 666 708 709 715 48 707 666 706 701 61 53
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
THA 		8-97926-375-1 01 1 1410- ● ●
10 PANEL ASM; GARNISH
GRAY THA 		8-97419-683-5 01 1 1410- ● ●
11 BOLT; INST PNL
(A) M5X16 TAPPING THA 		0-72180-516-0 08 1 1410- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER THA 		8-98018-440-0 04 1 1410- ● ●
16 BRACKET; INST PNL
COOLER WO/HEATER<C65> (B) THA 		8-97585-532-0 01 1 1410- ● ●
16 BRACKET; INST PNL
COOLER WO/HEATER<C65> (A) THA 		8-97585-612-2 01 1 1410- ● ●
16 BRACKET; INST PNL
(C) THA 		8-98053-711-0 01 1 1410- ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 04 1 1410- ● ●
18 BOLT; BRKT
(A) M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1410- ● ●
34 LID; OIL TANK
GRAY THA 		8-97405-260-1 01 1 1410- ● ●
48 SPRING; GLOVE BOX LID
THA 		8-97926-410-0 01 1 1410- ● ●
48 SPRING; GLOVE BOX LID
THA 		8-97926-411-0 01 1 1410- ● ●
53 STRIKER; GLOVE BOX
THA 		8-97926-403-1 01 1 1410- ● ●
61 SCREW; GLOVE BOX
THA 		8-97926-404-0 01 1 1410- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) THA 		8-98028-561-2 02 1 1410- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) THA 		8-98028-562-2 01 1 1410- ● ●
70 GRILLE; CENTER,AIR OUTLET
THA 		8-98028-563-2 01 1 1410- ● ●
125 CLIP; INST PANEL
(B) GRAY THA 		8-97408-063-0 02 1 1410- ● ●
125 CLIP; INST PANEL
(A) GRAY THA 		8-97408-817-0 02 1 1410- ● ●
125 CLIP; INST PANEL
(C) GRAY THA 		8-97419-968-1 02 1 1410- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY THA 		8-97405-259-4 01 1 1410- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY THA 		8-97414-688-1 01 1 1410- ● ●
544 SCREW; TRAY
M5X16 TAPPING THA 		0-72180-516-0 03 1 1410- ● ●
568 BOLT; COVER
M5X16 TAPPING THA 		0-72180-516-0 01 1 1410- ● ●
603 CLIP; COVER
(A) THA 		8-98004-025-0 01 1 1410- ● ●
603 CLIP; COVER
(B) THA 		8-98021-271-0 10 1 1410- ● ●
626 RETAINER
OD=15 BLACK THA 		8-94279-804-0 02 1 1410- ● ●
662 COVER; LWR,INST PANEL
GRAY THA 		8-97414-904-2 01 1 1410- ● ●
666 INSERT; INST PANEL
(A) THA 		8-97926-385-0 02 1 1410- ● ●
666 INSERT; INST PANEL
(A) THA 		8-97926-385-0 30 1 1410- ● ●
666 INSERT; INST PANEL
(B) M5 THA 		8-97926-400-0 04 1 1410- ● ●
689 SEAL; INST
(A) 7X31 THA 		8-98061-777-0 01 1 1410- ● ●
689 SEAL; INST
(B) 18X170 THA 		8-98061-778-1 01 1 1410- ● ●
696 BRACKET; KNEE
THA 		8-98199-366-0 01 1 1410- ● ●
701 TRAY; INST
THA 		8-97926-382-1 01 1 1410- ● ●
702 NUT; TRAY
M6 FLANGE THA 		0-91180-106-0 02 1 1410- ● ●
706 LID; TRAY INST
THA 		8-97926-402-1 01 1 1410- ● ●
707 SHAFT; TRAY INST LID
THA 		8-97926-393-0 02 1 1410- ● ●
708 STOPPER; TRAY INST LID
THA 		8-97926-394-0 02 1 1410- ● ●
709 SCREW; TRAY INST
M5X16 TAPPING THA 		0-71040-516-0 04 1 1410- ● ●
712 LOCK; TRAY INST LID
THA 		8-97926-395-0 01 1 1410- ● ●
715 SUPPORT; TRAY,HINGE
THA 		8-97926-396-0 01 1 1410- ● ●
715 SUPPORT; TRAY,HINGE
THA 		8-97926-397-0 01 1 1410- ● ●
718 SEAL; COVER
(A) 30X15 THA 		8-98097-696-0 01 1 1410- ● ●
718 SEAL; COVER
(B) 5X30 THA 		8-98176-199-0 01 1 1410- ● ●
718 SEAL; COVER
(B) 8X80 THA 		8-98200-040-0 01 1 1410- ● ●
718 SEAL; COVER
(B) 4X35 THA 		8-98200-041-0 01 1 1410- ● ●
721 FINISHER; BRKT,KNEE
L=75 THA 		8-98176-240-0 01 1 1410- ● ●

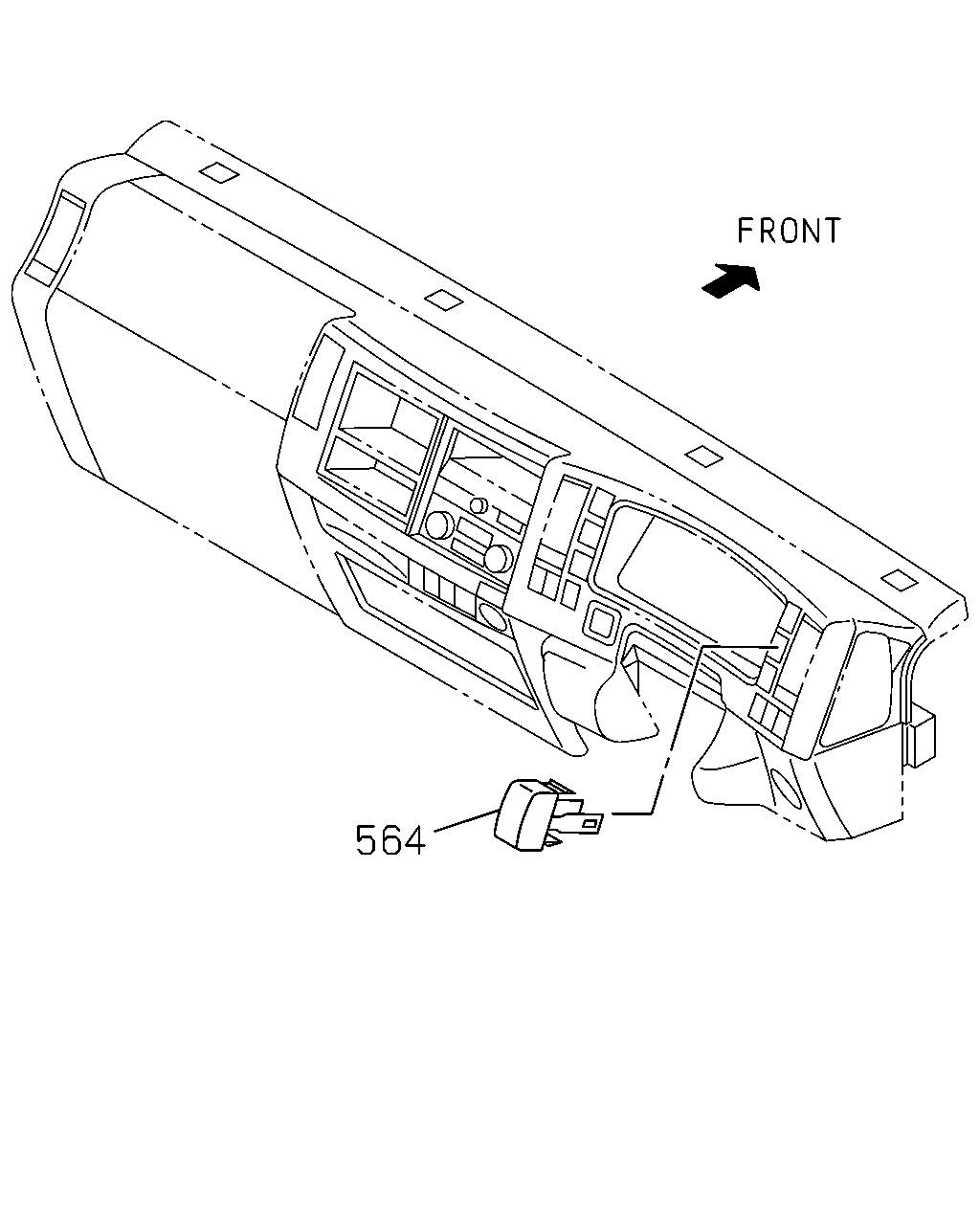

çizim 449144
564
BalonParca AdiParca NoAdetTipApplied Date A B
70 GRILLE; CENTER,AIR OUTLET
THA 		8-98028-563-2 01 1 1410- ● ●
564 COVER; SW
THA 		8-98025-954-1 03 1 1410- ● ●
