Isuzu WW
▶
TRUCKS
▶
NPR
▶
51569 - NPR/NQR THAILAND
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶

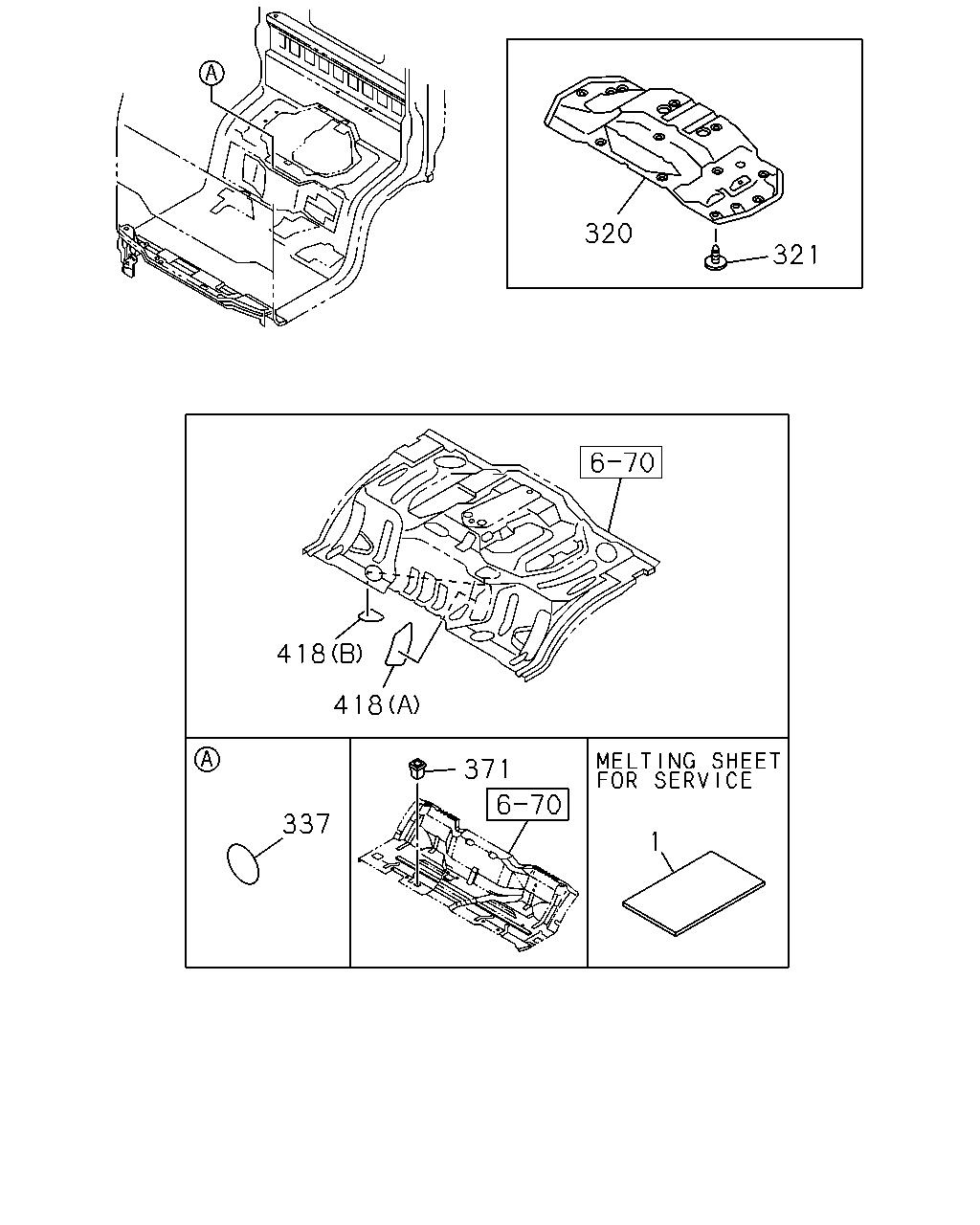

6-76 — FLOOR EQUIPMENT AND SEALING
(#151342) — 11 parça
Tümü
A - NPR5SN
B - NPR5SS
321
320
418
418
337
371
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY THA
8-94262-093-0
AR
1
1410-
●
●
320
INSULATOR; FLOOR,FRT
THA
8-98285-272-0
01
1
1410-
●
●
321
CLIP; INSULATOR,FLOOR
ID=6.2 L=11.4 THA
8-97808-623-0
15
1
1410-
●
●
337
SEAL; CLIP HOLE
OD=32 BLACK THA
8-98031-126-0
04
1
1410-
●
●
337
SEAL; CLIP HOLE
OD=32 BLACK THA
8-98031-126-0
08
1
1410-
●
●
371
GROMMET; LOCATION HOLE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 14.5X14.5 BLACK THA
8-94279-714-0
02
1
1410-
●
371
GROMMET; LOCATION HOLE
14.5X14.5 BLACK THA
8-94279-714-0
02
1
1410-
●
418
SEAL; PROTECTOR
(A) THA
8-98090-191-1
01
1
1410-
●
●
418
SEAL; PROTECTOR
(A) THA
8-98090-192-1
01
1
1410-
●
●
418
SEAL; PROTECTOR
(B) THA
8-98138-276-1
01
1
1410-
●
●
418
SEAL; PROTECTOR
(B) THA
8-98138-277-1
01
1
1410-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
