◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51569 - NPR/NQR THAILAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#151340) — 37 parça

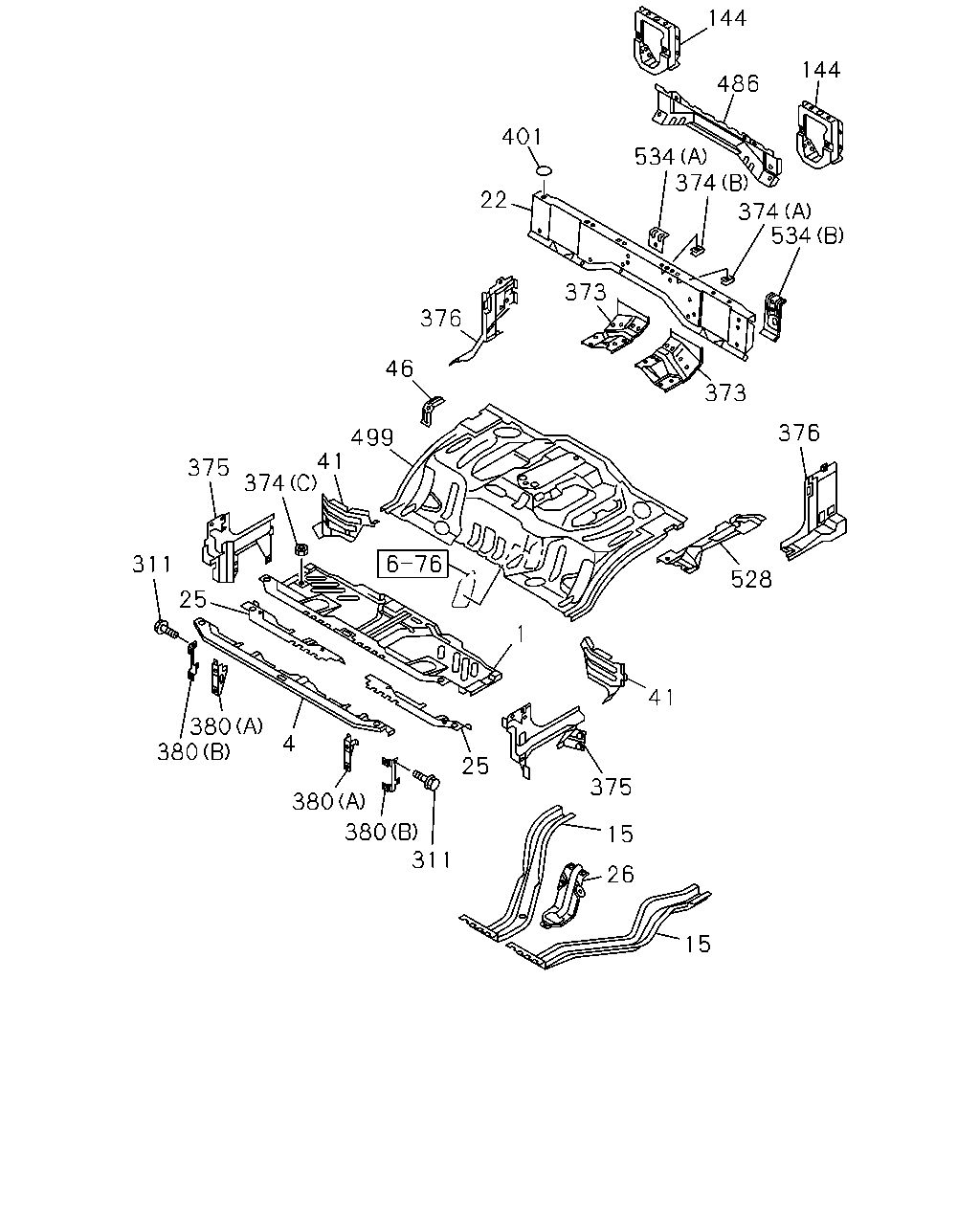

çizim 448943
144 486 144 401 534 374 374 534 22 373 373 376 46 376 499 41 374 375 311 25 380 380 4 380 380 311 25 1 528 41 375 15 26 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR
THA 		8-98112-870-0 01 1 1410- ● ●
4 FRAME; FLOOR,FRT
THA 		8-98107-595-0 01 1 1410- ● ●
15 FRAME; UNDER
THA 		8-98059-497-1 01 1 1410- ● ●
15 FRAME; UNDER
THA 		8-98059-498-1 01 1 1410- ● ●
22 FRAME; FLOOR REAR
THA 		8-97583-848-4 01 1 1410- ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT
THA 		8-97583-823-0 01 1 1410- ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT
THA 		8-98107-587-0 01 1 1410- ● ●
26 PANEL; GEAR CONT REINF
THA 		8-97589-382-1 01 1 1410- ● ●
41 SUPPORT; STEP,RR
THA 		8-97583-880-1 01 1 1410- ● ●
41 SUPPORT; STEP,RR
THA 		8-97583-881-1 01 1 1410- ● ●
46 BRACKET; FRT SEAT,RR OUTER
THA 		8-97583-834-0 01 1 1410- ● ●
144 BRACKET; MTG,RR
THA 		8-97589-544-2 02 1 1410- ● ●
311 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 04 1 1410- ● ●
373 REINFORCEMENT; SEAT BELT
THA 		8-98014-523-2 01 1 1410- ● ●
373 REINFORCEMENT; SEAT BELT
THA 		8-98014-524-2 01 1 1410- ● ●
374 NUT; FLOOR
(B) M6 THA 		1-09984-110-0 02 1 1410- ● ●
374 NUT; FLOOR
(A) M8 THA 		1-09984-111-0 01 1 1410- ● ●
374 NUT; FLOOR
(C) M8 THA 		9-09114-068-0 04 1 1410- ● ●
375 CLOSING; PILLAR
THA 		8-97583-882-3 01 1 1410- ● ●
375 CLOSING; PILLAR
THA 		8-97583-883-2 01 1 1410- ● ●
376 CLOSING; PILLAR,LWR
THA 		8-97583-888-2 01 1 1410- ● ●
376 CLOSING; PILLAR,LWR
THA 		8-97584-618-2 01 1 1410- ● ●
380 BRACKET; HEAD LAMP
(B) THA 		8-98029-288-0 01 1 1410- ● ●
380 BRACKET; HEAD LAMP
(B) THA 		8-98029-289-0 01 1 1410- ● ●
380 BRACKET; HEAD LAMP
(A) THA 		8-97589-384-4 01 1 1410- ● ●
380 BRACKET; HEAD LAMP
(A) THA 		8-97589-385-3 01 1 1410- ● ●
401 GROMMET; HOLE
OD=24.5 T=7.5 THA 		8-97224-683-0 01 1 1410- ● ●
486 REINFORCEMENT; FRAME FLOOR,REAR
THA 		8-98030-613-2 01 1 1410- ● ●
499 PANEL; FLOOR,RR
THA 		8-98206-873-0 01 1 1410- ● ●
528 REINFORCEMENT; PARKING BRAKE
THA 		8-97584-619-4 01 1 1410- ● ●
534 REINFORCEMENT; SEAT BACK
(B) THA 		8-97583-851-3 01 1 1410- ● ●
534 REINFORCEMENT; SEAT BACK
(A) THA 		8-98019-181-2 01 1 1410- ● ●

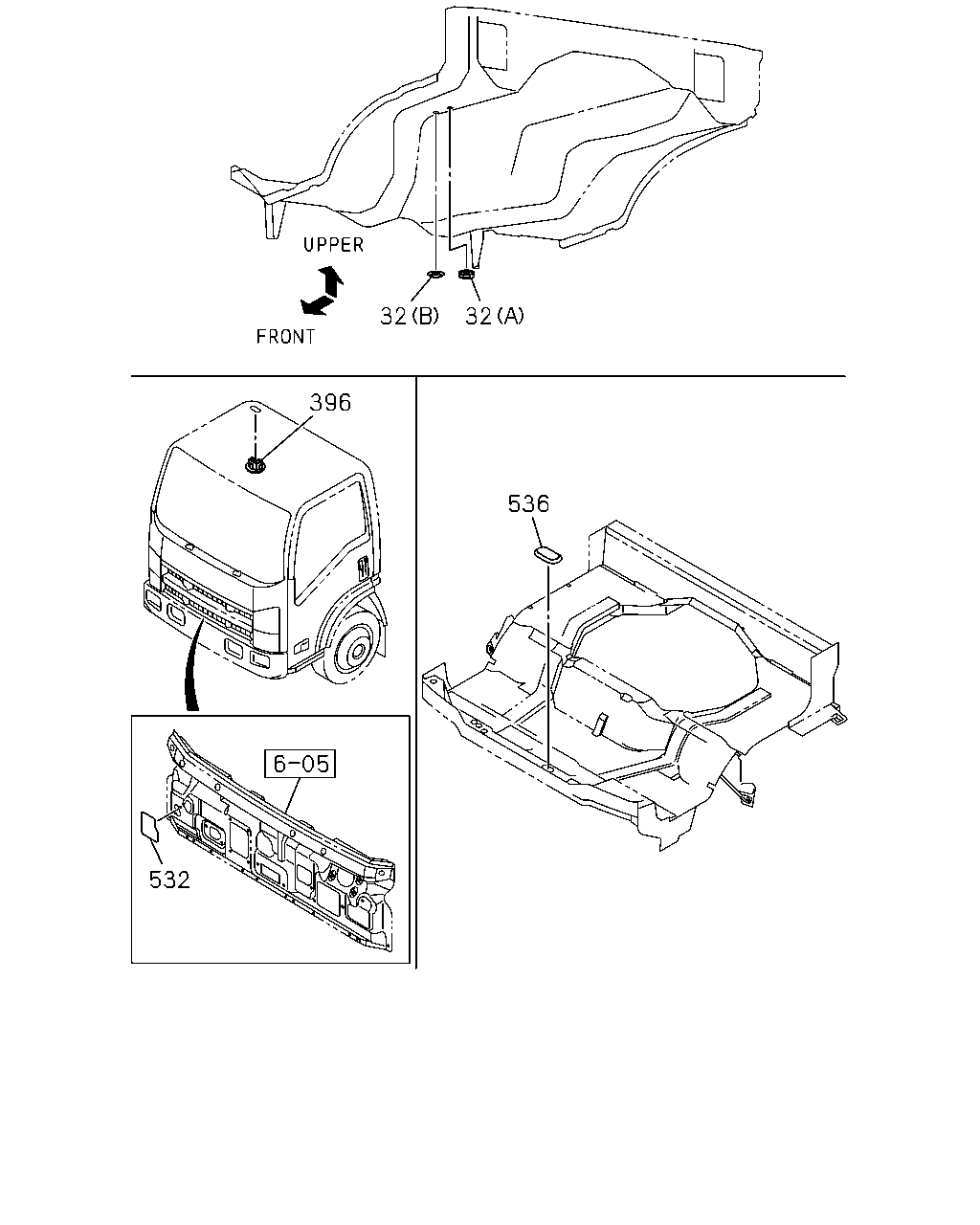

çizim 449499
32 32 396 532 536
BalonParca AdiParca NoAdetTipApplied Date A B
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(A) OD=15.0 THA 		8-94279-040-0 02 1 1410- ● ●
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(B) OD=12.1 THA 		8-97898-423-0 02 1 1410- ● ●
396 GROMMET; LOCATION HOLE
VIN MODEL YEAR 2011<VZB> THA 		8-98054-990-0 02 1 1410- ● ●
532 SEAL; CABLE
EXC. PTO MANUAL CONTROL<6WC> THA 		8-98042-432-1 01 1 1410- ● ●
536 PLUG; CABLE,PTO
THA 		8-98029-219-1 01 1 1410- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
