6-66 — HEAD LINING AND TRIM (#151339) — 13 parça

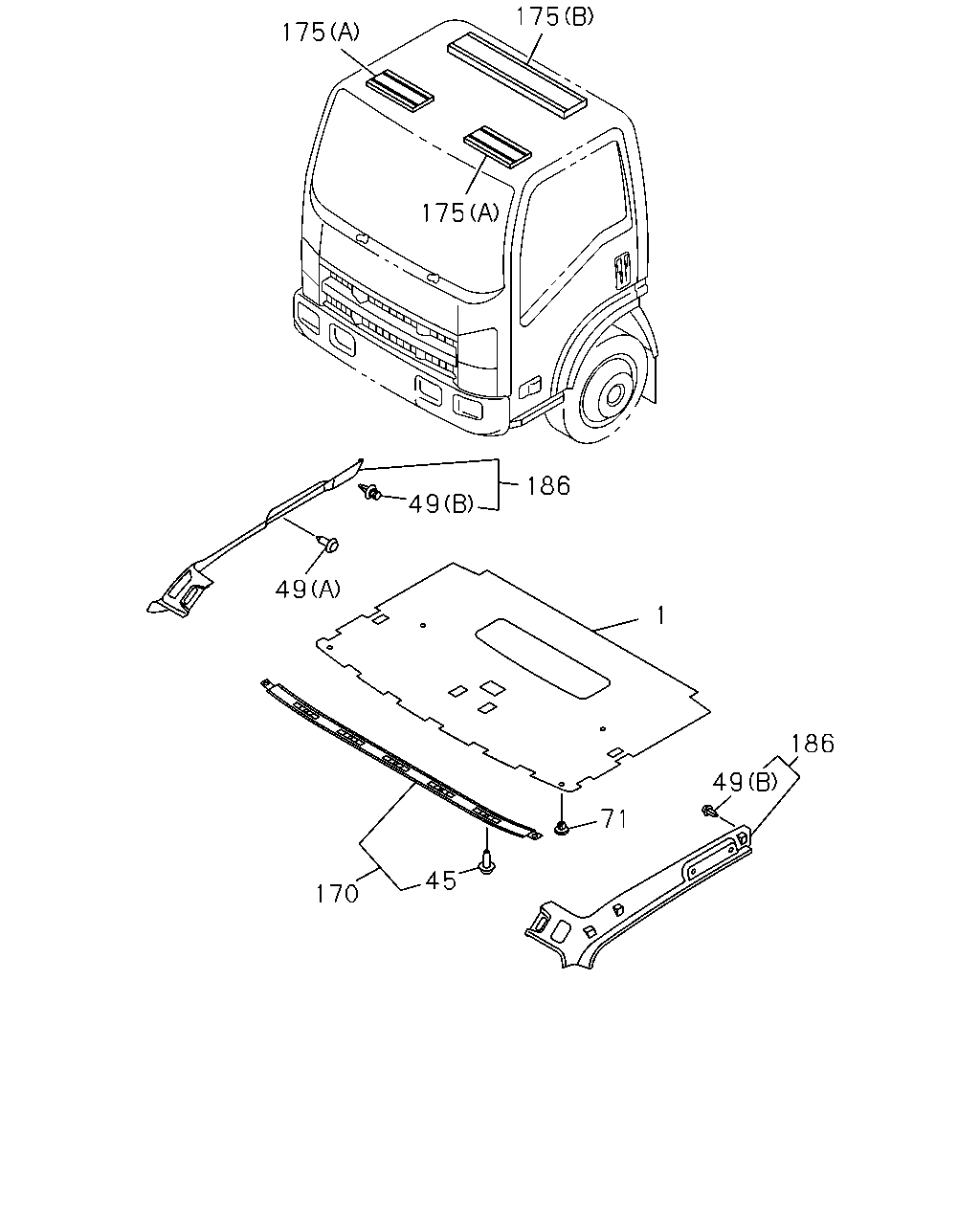

çizim 451346
175 175 175 186 49 49 170 45 71 186 49 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> THA 		8-97926-921-0 01 1 1410- ● ●
45 CLIP; FINISHER
THA 		8-98035-592-1 03 1 1410- ● ●
49 CLIP; TRIM COVER
(A) DARK GRAY THA 		8-97407-768-0 02 1 1410- ● ●
49 CLIP; TRIM COVER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) THA 		8-98059-610-0 03 1 1410-1410 ● ●
49 CLIP; TRIM COVER
(B) THA 		8-98059-610-0 03 1 1410-1410 ● ●
49 CLIP; TRIM COVER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) THA 		8-98059-610-0 02 1 1411- ● ●
49 CLIP; TRIM COVER
(B) THA 		8-98059-610-0 02 1 1411- ● ●
71 FASTENER; HD LINING
D=8.7X16.5 DARK GRAY THA 		8-97405-282-0 06 1 1410- ● ●
170 FINISHER; HEAD LINING
DARK GRAY THA 		8-97405-281-5 01 1 1410- ● ●
175 CUSHION; HEAD LINING
(A) THA 		8-98037-299-3 02 1 1410- ● ●
175 CUSHION; HEAD LINING
(B) THA 		8-98037-300-3 01 1 1410- ● ●
186 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY THA 		8-97405-250-3 01 1 1410- ● ●
186 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY THA 		8-97405-252-3 01 1 1410- ● ●
