◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51569 - NPR/NQR THAILAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#151335) — 20 parça

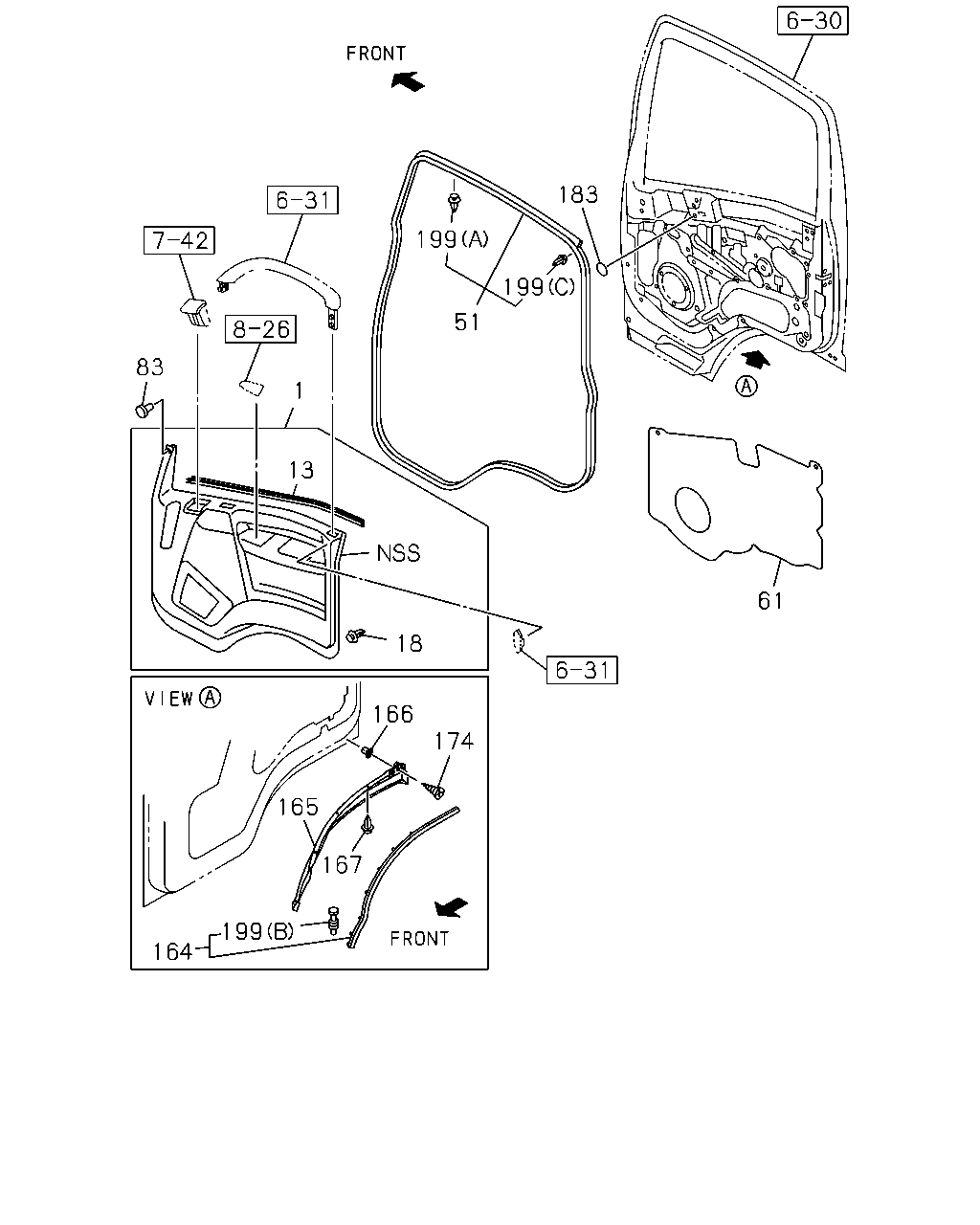

çizim 450871
183 61 199 199 51 83 1 13 18 166 174 165 167 199 164
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR
THA 		8-97923-889-1 01 1 1410- ● ●
1 PAD; TRIM,FRT DOOR
THA 		8-97923-890-1 01 1 1410- ● ●
13 SEAL; DOOR TRIM
THA 		8-97923-891-0 01 1 1410- ● ●
13 SEAL; DOOR TRIM
THA 		8-97923-892-0 01 1 1410- ● ●
18 CLIP; DOOR PAD
THA 		8-98004-025-0 14 1 1410- ● ●
51 WEATHERSTRIP; FRONT DOOR
THA 		8-97926-952-0 01 1 1410- ● ●
51 WEATHERSTRIP; FRONT DOOR
THA 		8-97927-014-0 01 1 1410- ● ●
61 SEAL; WATER,DOOR PAD
THA 		8-97948-264-0 01 1 1410- ● ●
61 SEAL; WATER,DOOR PAD
THA 		8-97948-265-0 01 1 1410- ● ●
83 CLIP; DOOR TRIM
GRAY THA 		8-97405-308-0 02 1 1410- ● ●
164 SEAL; SUB,SILL SIDE
THA 		8-98022-741-1 02 1 1410- ● ●
165 LINER; DOOR LWR
THA 		8-98022-738-1 01 1 1410- ● ●
165 LINER; DOOR LWR
THA 		8-98022-739-1 01 1 1410- ● ●
166 PLUG; HOLE
D=8.6X7.7 L=7.5 THA 		8-94279-078-0 04 1 1410- ● ●
167 CLIP; LINER
D6X16 PUSH RIVET THA 		1-09983-105-0 06 1 1410- ● ●
174 SCREW; LINER
M5X12 TAPPING THA 		0-72180-512-0 04 1 1410- ● ●
183 SEAL; LOCATION HOLE
OD=25 BLACK THA 		1-76798-019-0 02 1 1410- ● ●
199 CLIP; SEAL
(B) NATURAL THA 		8-98027-457-0 20 1 1410- ● ●
199 CLIP; SEAL
(A) NATURAL THA 		8-98062-270-0 80 1 1410- ● ●
199 CLIP; SEAL
(C) RED THA 		8-98062-271-0 02 1 1410- ● ●
