5-15 — CAB MOUNTING; CAB SIDE (#151324) — 48 parça

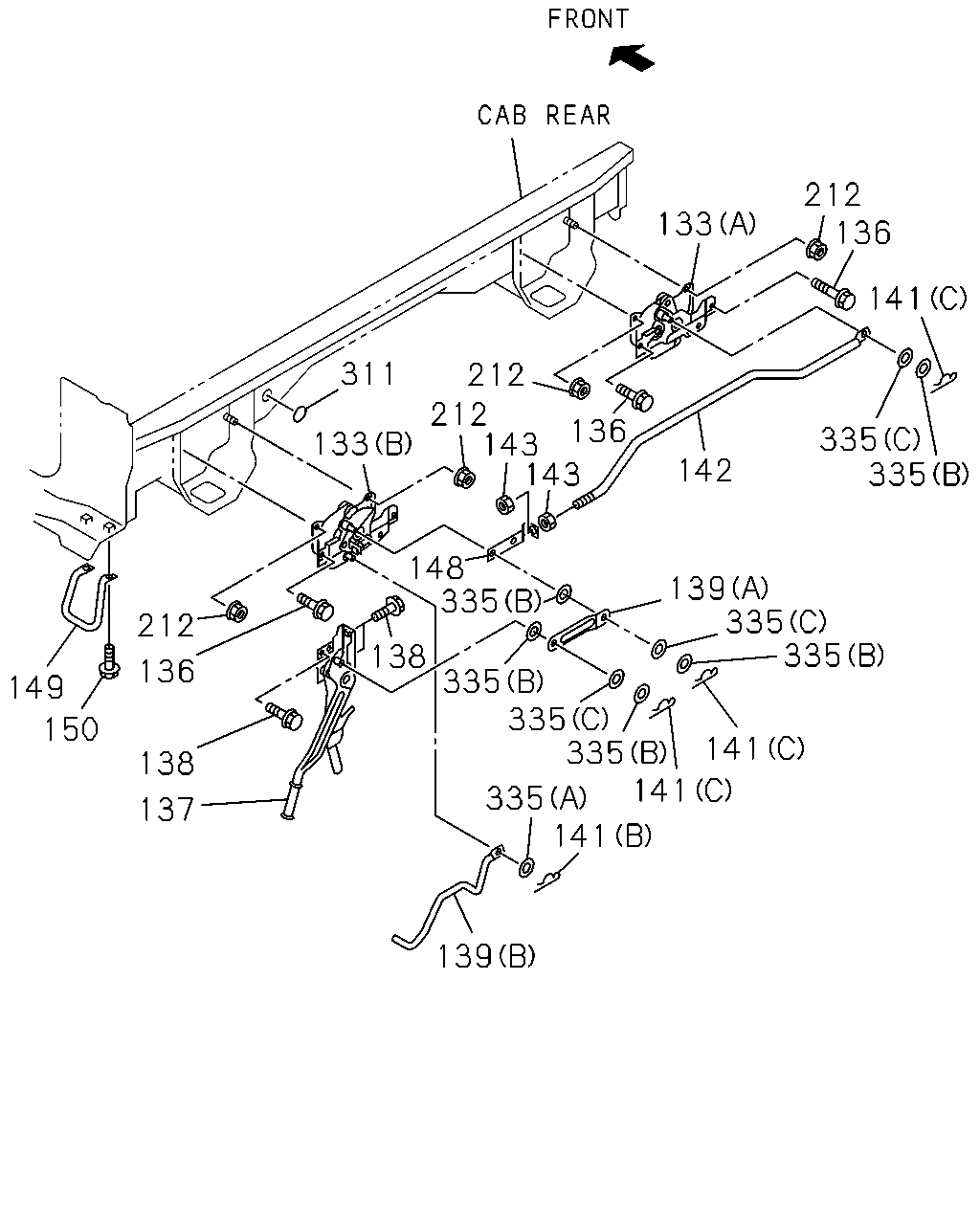

133 212 136 141 335 335 335 335 335 335 335 335 335 311 212 136 142 139 141 141 141 139 137 138 150 149 212 136 133 138 212 143 143 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
133	LOCK ASM; CAB (B) THA	8-97410-270-2	01	1	1410-	●	●
133	LOCK ASM; CAB (A) THA	8-98182-353-0	01	1	1410-	●	●
136	BOLT; CAB LK M8X20 FLANGE THA	0-28650-820-0	04	1	1410-	●	●
137	CONTROL UNIT; CAB LOCK THA	8-97584-469-3	01	1	1410-	●	●
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE THA	0-28650-820-0	03	1	1410-	●	●
139	ROD; CAB LOCK,LEVER TO HOOK (A) THA	8-97584-483-2	01	1	1410-	●	●
139	ROD; CAB LOCK,LEVER TO HOOK (B) THA	8-98128-202-0	01	1	1410-	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=32.6 THA	1-09987-142-0	01	1	1410-	●	●
141	PIN; SNAP,CAB LOCK ROD (B) L=25.3 THA	8-98039-045-1	01	1	1410-	●	●
141	PIN; SNAP,CAB LOCK ROD (C) L=34 THA	8-98039-426-1	03	1	1410-	●	●
142	ROD; HOOK TO HOOK THA	8-97410-633-0	01	1	1410-	●	●
143	NUT; JAW JOINT,HOOK TO HOOK M10 THA	0-91110-510-0	02	1	1410-	●	●
148	JOINT; JAW,HOOK TO HOOK THA	8-97410-736-0	01	1	1410-	●	●
149	HANDLE; TILT THA	8-98067-938-0	01	1	1410-	●	●
150	BOLT; TILT HANDLE M8X25 FLANGE THA	0-28650-825-0	02	1	1410-	●	●
212	NUT; BRKT,CAB LOCK M8 FLANGE THA	0-91180-108-0	04	1	1410-	●	●
311	SEAL; CAB LOCK OD=32 BLACK THA	8-98031-126-0	01	1	1410-	●	●
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=22 THA	0-91610-512-0	05	1	1410-	●	●
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=14 THA	5-09550-002-0	01	1	1410-	●	●
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22 THA	8-98060-839-0	03	1	1410-	●	●

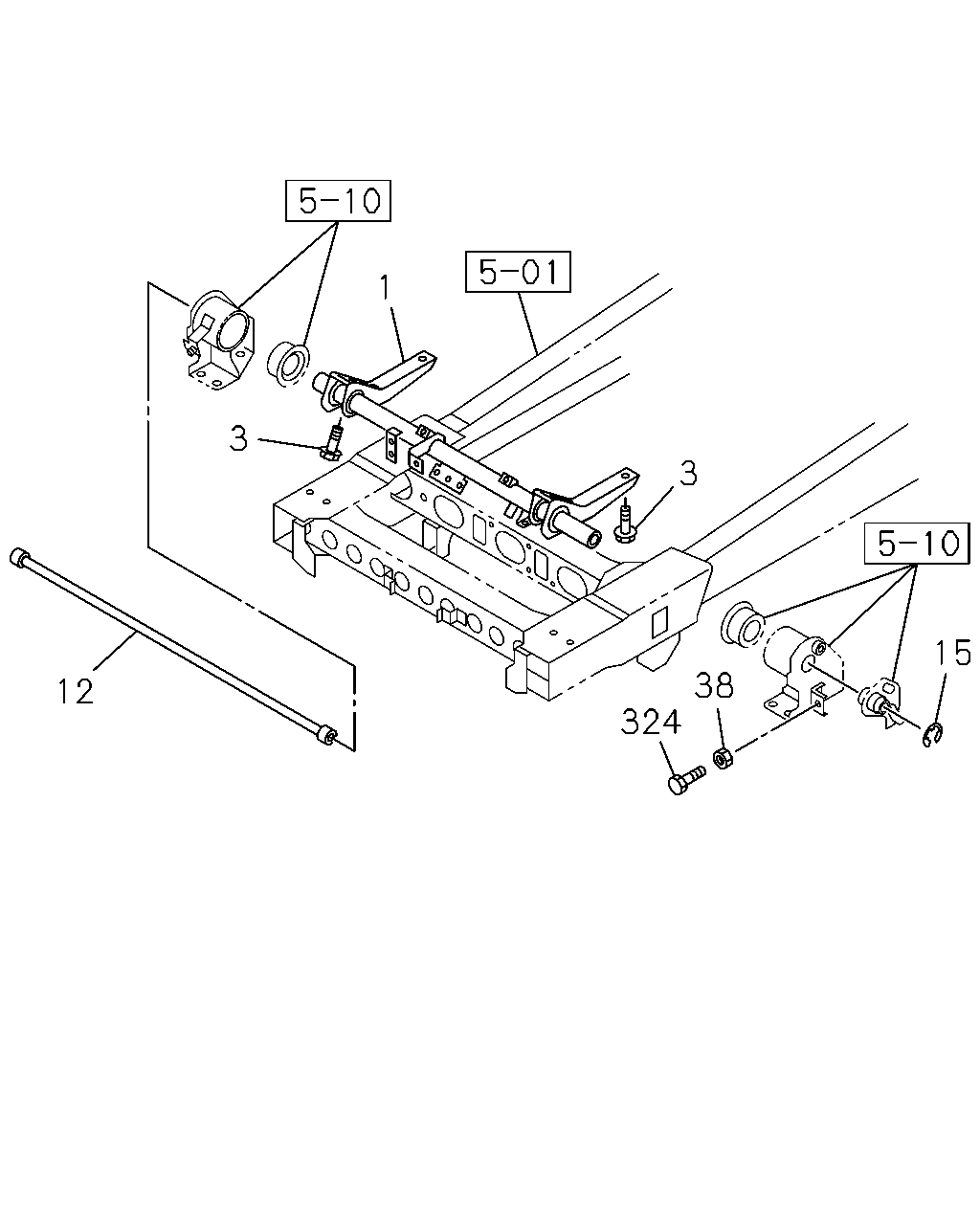

12 3 1 3 324 38 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER; TORSION BAR THA	8-98074-174-1	01	1	1410-	●	●
3	BOLT; LEVER M12X37 W/LK&PL WASHER THA	8-97359-033-0	06	1	1410-	●	●
12	BAR; TORSION,UPR THA	8-98166-027-0	01	1	1410-	●	●
15	RING; SNAP,TORSION BAR THA	8-97359-034-0	01	1	1410-	●	●
38	NUT; LK M14 THA	8-98039-988-0	01	1	1410-	●	●
324	BOLT; ADJUST M14X55 THA	8-98004-319-1	01	1	1410-	●	●

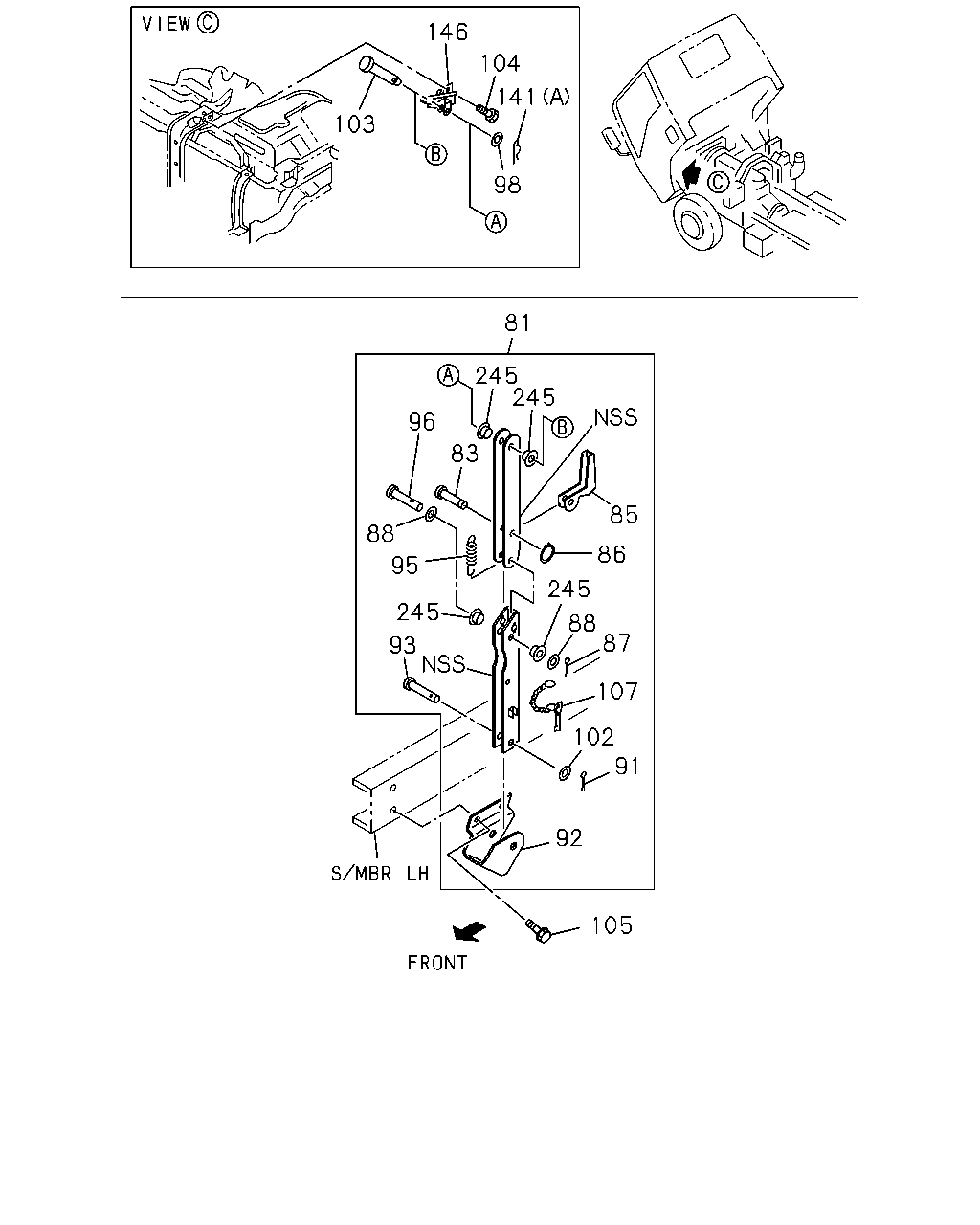

85 86 245 88 87 107 102 91 105 92 93 88 96 83 245 245 81 245 95 98 141 104 146 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	STAY ASM; CAB TILT FRAME STRAIGHT TYPE<7KJ> THA	8-98123-310-0	01	1	1410-	●	●
83	PIN; JOINT,CAB STAY FRAME STRAIGHT TYPE<7KJ> THA	8-98122-493-0	01	1	1410-	●	●
85	LEVER; LOCK,CAB STAY FRAME STRAIGHT TYPE<7KJ> THA	8-94331-481-0	01	1	1410-	●	●
86	RING; SNAP,LOCK LEVER,CAB STAY FRAME STRAIGHT TYPE<7KJ> ID=6 THA	0-91805-506-0	01	1	1410-	●	●
87	PIN; SPLIT,CAB STAY PIN FRAME STRAIGHT TYPE<7KJ> OD=2.8 L=20 THA	0-81123-020-0	01	1	1410-	●	●
88	WASHER; PL,CAB STAY PIN FRAME STRAIGHT TYPE<7KJ> ID=10.5 OD=22 T=1.6 THA	0-91610-610-0	02	1	1410-	●	●
91	PIN; SPLIT,CAB STAY FRAME STRAIGHT TYPE<7KJ> OD=3.7 L=20 THA	0-81124-020-0	01	1	1410-	●	●
92	BRACKET; CAB STAY TO FRAME FRAME STRAIGHT TYPE<7KJ> THA	8-98011-317-0	01	1	1410-	●	●
93	PIN; CAB STAY FRAME STRAIGHT TYPE<7KJ> THA	8-98122-498-0	01	1	1410-	●	●
95	SPRING; RETURN,CAB STAY FRAME STRAIGHT TYPE<7KJ> THA	8-94160-167-2	01	1	1410-	●	●
96	PIN; JOINT FRAME STRAIGHT TYPE<7KJ> THA	8-98123-513-0	01	1	1410-	●	●
98	WASHER; CAB STAY ID=10.5 T=2.0 THA	1-09985-183-0	01	1	1410-	●	●
102	WASHER; PL,CAB STAY FRAME STRAIGHT TYPE<7KJ> ID=12.5 OD=26 THA	0-91610-612-0	01	1	1410-	●	●
103	PIN; JOINT,CAB STAY OD=10 L=48 THA	1-09744-107-0	01	1	1410-	●	●
104	BOLT; CAB STAY BRKT M8X20 FLANGE THA	0-28660-820-0	03	1	1410-	●	●
105	BOLT; CAB STAY M10X30 FLANGE THA	0-28651-030-0	02	1	1410-	●	●
107	PIN; LK LEVER FRAME STRAIGHT TYPE<7KJ> THA	8-94331-482-0	01	1	1410-	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=32.6 THA	1-09987-142-0	01	1	1410-	●	●
141	PIN; SNAP,CAB LOCK ROD (B) L=25.3 THA	8-98039-045-1	01	1	1410-	●	●
141	PIN; SNAP,CAB LOCK ROD (C) L=34 THA	8-98039-426-1	03	1	1410-	●	●
146	BRACKET ASM; CAB STAY UPR THA	8-97387-328-2	01	1	1410-	●	●
245	BUSHING; CAB STAY FRAME STRAIGHT TYPE<7KJ> THA	1-62500-587-0	04	1	1410-	●	●
