◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51569 - NPR/NQR THAILAND ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#151323) — 24 parça
çizim 450863
300 159 199 168 149 199 151 156 159 199 168 149 199 300 151 156 199 191 191 192 18 199
BalonParca AdiParca NoAdetTipApplied Date A B
18 PLATE; MTG BRKT FIX
(A) THA 		8-97034-139-2 02 1 1410- ● ●
18 PLATE; MTG BRKT FIX
(B) THA 		8-98029-285-1 02 1 1410- ● ●
149 RUBBER; MTG,CAB,UPR RR
THA 		8-98021-561-1 02 1 1410- ● ●
151 WASHER; CAB MTG,RR UPR
ID=17 OD=62 THA 		8-97359-042-1 02 1 1410- ● ●
156 NUT; CAB MTG RR
M16 THA 		0-91111-516-0 02 1 1410- ● ●
159 RUBBER; CUSHION,CAB MTG
THA 		8-97113-340-0 04 1 1410- ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M8 FLANGE THA 		0-91180-108-0 04 1 1410- ● ●
191 BOLT; BRKT FIX
M12X40 FLANGE THA 		0-28651-240-0 08 1 1410- ● ●
192 NUT; BRKT FIX
M12 FLANGE THA 		0-91180-112-0 08 1 1410- ● ●
199 BRACKET; CAB RR MTG
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98178-618-1 01 1 1410- ● ●
199 BRACKET; CAB RR MTG
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98178-617-1 01 1 1410- ● ●
199 BRACKET; CAB RR MTG
(B) THA 		8-98036-883-0 02 1 1410- ● ●
300 BOLT; MTG RUBBER
M10X20 FLANGE THA 		0-28651-020-0 08 1 1410- ● ●

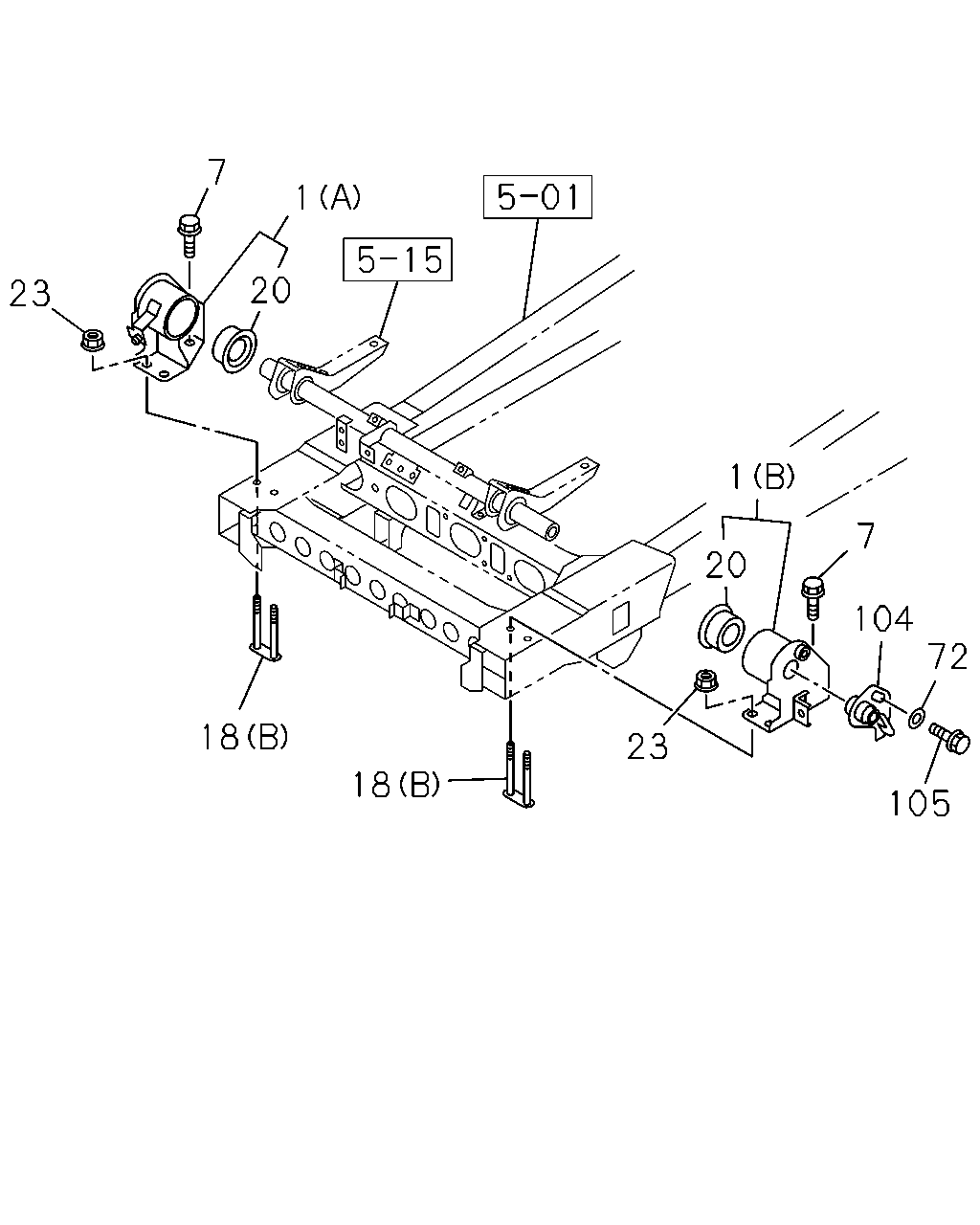

çizim 451294
23 7 1 20 18 18 23 20 1 7 104 72 105
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; CAB MTG
(B) THA 		8-98020-467-5 01 1 1410- ● ●
1 BRACKET; CAB MTG
(A) THA 		8-98074-798-2 01 1 1410- ● ●
7 BOLT; BRKT,CAB TILT
M14X40 FLANGE THA 		0-28661-440-0 02 1 1410- ● ●
18 PLATE; MTG BRKT FIX
(A) THA 		8-97034-139-2 02 1 1410- ● ●
18 PLATE; MTG BRKT FIX
(B) THA 		8-98029-285-1 02 1 1410- ● ●
20 RUBBER; MTG,CAB BRKT
THA 		8-98007-037-1 01 1 1410- ● ●
20 RUBBER; MTG,CAB BRKT
THA 		8-98007-037-1 01 1 1410- ● ●
23 NUT; MTG BRKT
M14 THA 		8-98039-989-0 04 1 1410- ● ●
72 WASHER; PL,BRKT TO FRAME
ID=15 OD=36 THA 		0-91614-714-0 01 1 1410- ● ●
104 BRACKET; CAB FRAME,CAB FRT MTG
THA 		8-97383-788-1 01 1 1410- ● ●
105 BOLT; BRKT TO CAB FRAME
M14X35 FLANGE THA 		0-28661-435-0 01 1 1410- ● ●
