◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51569 - NPR/NQR THAILAND ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#151314) — 12 parça

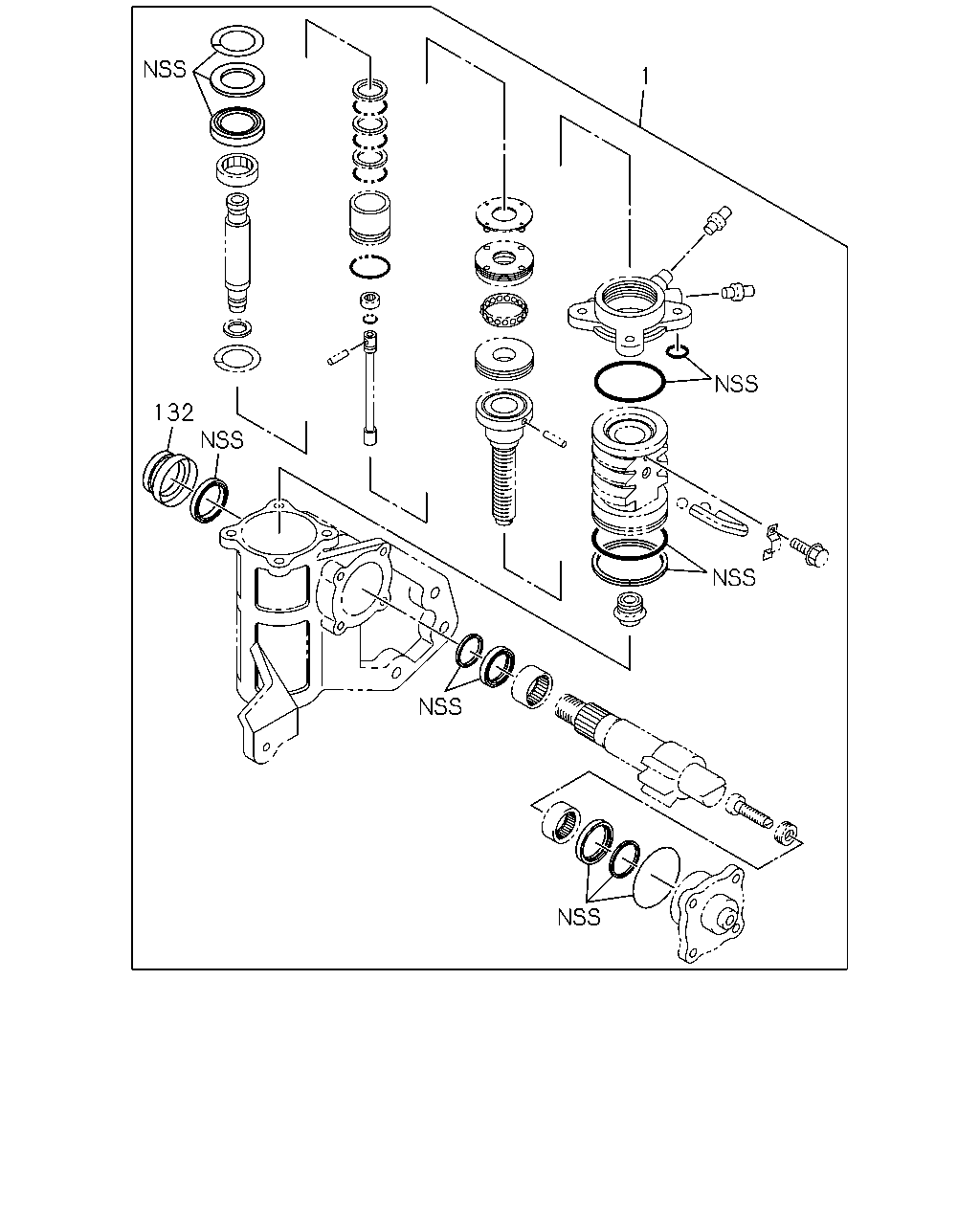

çizim 449560
1 132
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
THA ASM PART: A = 8-98110-219-5 		8-98172-286-0 01 1 -
132 COVER; DUST,STRG UNIT
THA ASM PART: A = 8-98110-219-5 		8-97078-179-0 01 1 -
çizim 450695
35 72 132 8 19 14 23 24 30 32
BalonParca AdiParca NoAdetTipApplied Date
8 BOX ASM; STRG UNIT
THA ASM PART: A = 8-98110-219-5 		8-98036-324-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
THA ASM PART: A = 8-98110-219-5 		8-98036-331-0 01 1 -
19 COVER; SIDE STRG UNIT
THA ASM PART: A = 8-98110-219-5 		8-98036-333-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
THA ASM PART: A = 8-98110-219-5 		8-97014-842-0 01 1 -
24 RETAINER; STRG UNIT
THA ASM PART: A = 8-98110-219-5 		8-97014-841-0 01 1 -
30 BOLT; COVER STRG UNIT
THA ASM PART: A = 8-98110-219-5 		8-98036-336-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
THA ASM PART: A = 8-98110-219-5 		8-98036-337-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
THA ASM PART: A = 8-98110-219-5 		8-98112-933-3 01 1 -
72 BOLT; HSG FIX STRG UNIT
THA ASM PART: A = 8-98110-219-5 		8-98036-335-0 03 1 -
132 COVER; DUST,STRG UNIT
THA ASM PART: A = 8-98110-219-5 		8-97078-179-0 01 1 -
