4-36 — POWER STEERING CONTROL; ENGINE SIDE (#151313) — 10 parça

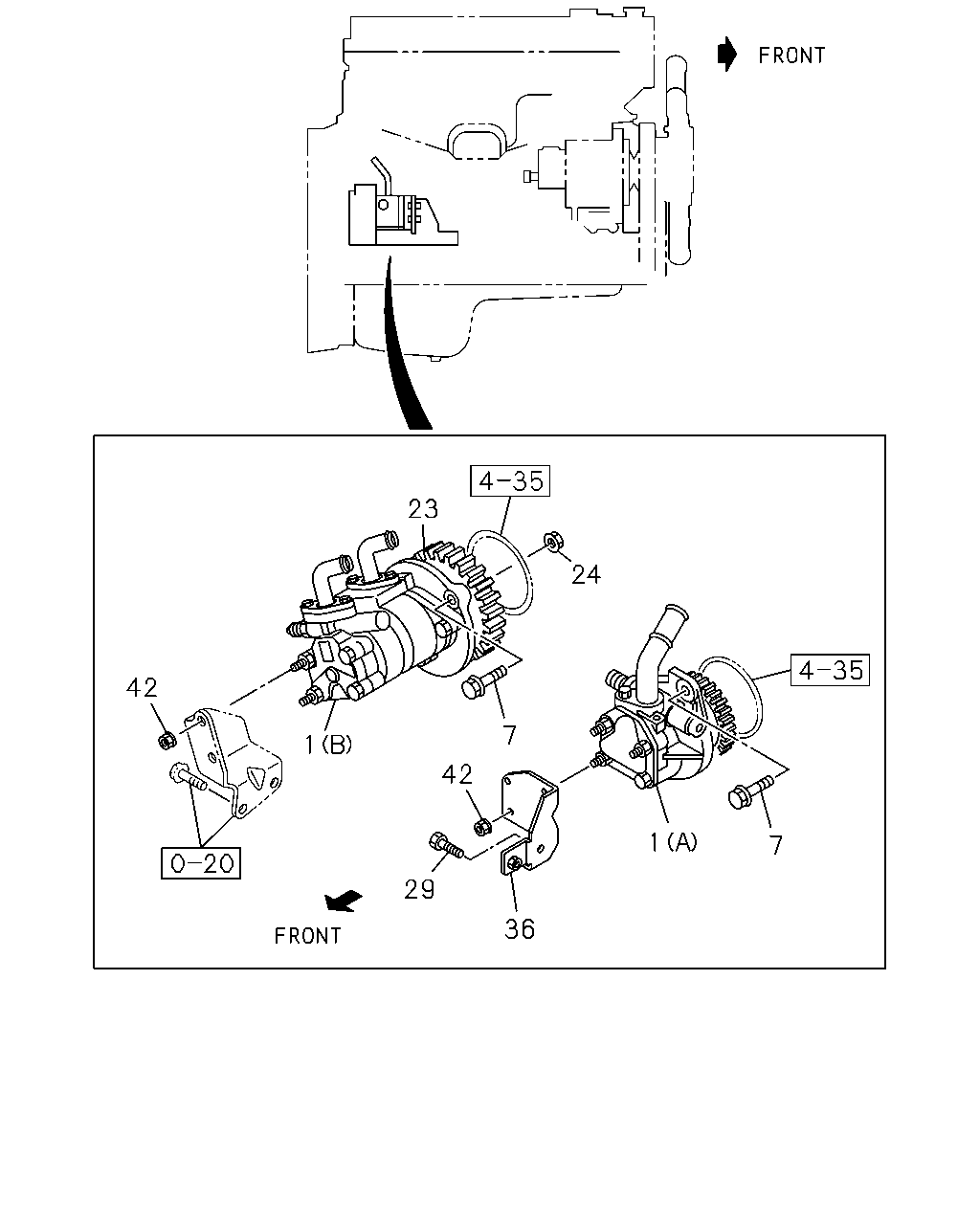

çizim 450626
23 24 42 1 29 36 42 7 1 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG<RDQ> (A) THA 		8-98006-793-4 01 1 1410- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG<RJS> (B) THA 		8-98055-007-2 01 1 1410- ●
7 BOLT; OIL PUMP,P/S
M10X30 FLANGE THA 		0-28751-030-0 02 1 1410- ● ●
23 GEAR; OIL PUMP
4HK1-TCS ENG<RJS> THA 		8-97114-550-1 01 1 1410- ●
24 NUT; GEAR,P/S PUMP
4HK1-TCS ENG<RJS> M12 FLANGE THA 		0-91180-212-0 01 1 1410- ●
29 BOLT; BRKT,POWER STRG
4HK1-TCN ENG<RDQ> M14X20 FLANGE THA 		0-28851-420-0 01 1 1410- ●
36 BRACKET; PLATE,P/S PUMP
4HK1-TCN ENG<RDQ> THA 		8-98036-532-0 01 1 1410- ●
42 NUT; ADJ PLATE
4HK1-TCN ENG<RDQ> M8 FLANGE THA 		0-91180-108-0 04 1 1410- ●
42 NUT; ADJ PLATE
4HK1-TCN ENG<RDQ> M8 FLANGE THA 		0-91180-108-0 02 1 1410- ●
42 NUT; ADJ PLATE
4HK1-TCS ENG<RJS> M8 FLANGE THA 		0-91180-108-0 01 1 1410- ●
