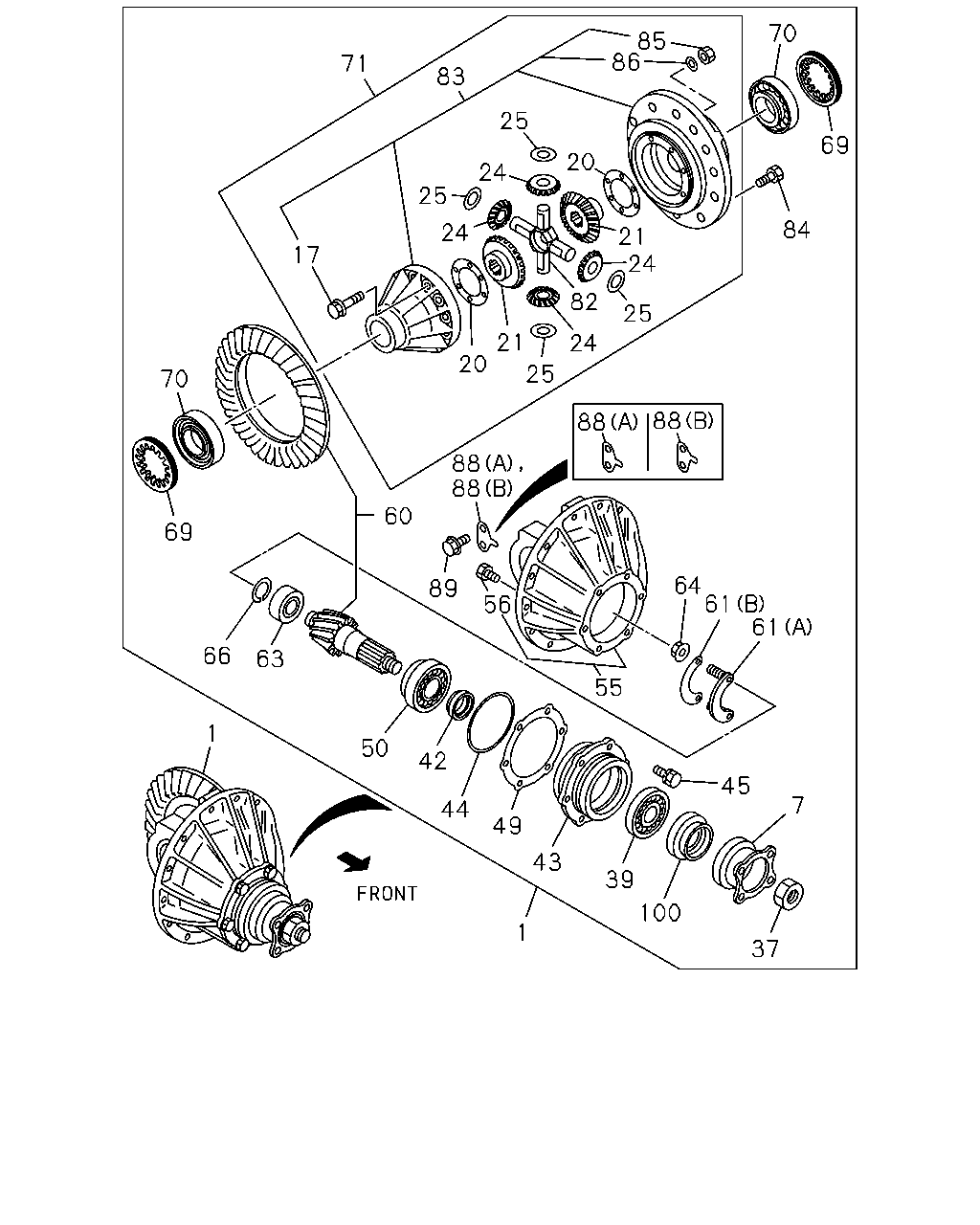

4-25 — REAR FINAL DRIVE (#151308) — 54 parça

85 86 25 83 71 25 24 24 20 17 20 21 25 24 82 25 24 21 70 69 84 70 69 60 88 88 89 56 55 64 61 61 66 63 50 42 44 49 43 39 100 37 7 45 1 1 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9<S2J> 43/9 THA	8-97388-703-0	01	1	1410-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10<S7C> 43/10 THA	8-97388-701-0	01	1	1410-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10<GT5> 41/10 THA	8-97388-700-0	01	1	1410-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9<HC6> 41/9 THA	8-97388-702-0	01	1	1410-		●
7	FLANGE; FINAL THA	8-97047-095-2	01	1	1410-	●	●
17	BOLT; DIFF CAGE SETTING THA	8-98219-448-0	12	1	1410-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80 THA	1-41562-073-0	AR	1	1410-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90 THA	1-41562-074-0	AR	1	1410-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00 THA	1-41562-075-0	AR	1	1410-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10 THA	1-41562-076-0	AR	1	1410-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20 THA	1-41562-077-0	AR	1	1410-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30 THA	1-41562-078-0	AR	1	1410-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40 THA	1-41562-079-0	AR	1	1410-	●	●
21	GEAR; SIDE,DIFF Z=16 THA	8-98165-935-0	02	1	1410-	●	●
24	GEAR; PINION,DIFF Z=10 THA	1-41551-050-0	04	1	1410-	●	●
25	WASHER; THRUST,PINION THA	1-41552-020-0	04	1	1410-	●	●
37	NUT; DRIVING PINION M30 FLANGE THA	8-97047-146-0	01	1	1410-	●	●
39	BEARING; FINAL PINION KOYO THA	5-09812-062-1	01	1	1410-	●	●
39	BEARING; FINAL PINION NSK THA	5-09812-063-0	01	1	1410-	●	●
42	COLLAR; DIST,COLLAPSIBLE THA	8-97047-097-0	01	1	1410-	●	●
43	CAGE; FINAL PINION THA	8-97047-098-0	01	1	1410-	●	●
44	GASKET; PINION CAGE THA	8-97048-053-0	01	1	1410-	●	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER THA	8-98220-227-0	06	1	1410-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.12 THA	8-97047-298-0	AR	1	1410-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.15 THA	8-97047-299-0	AR	1	1410-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.20 THA	8-97047-300-0	AR	1	1410-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.25 THA	8-97048-418-0	AR	1	1410-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.50 THA	8-97048-419-0	AR	1	1410-	●	●
50	BEARING; FINAL PINION NSK THA	1-09812-041-2	01	1	1410-	●	●
50	BEARING; FINAL PINION KOYO THA	1-09812-042-1	01	1	1410-	●	●
55	CARRIER; DIFF THA	8-97094-637-0	01	1	1410-	●	●
56	BOLT; BRG CAP M14X95 FLANGE THA	1-09070-027-0	04	1	1410-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9<S2J> 43/9 THA	8-97061-850-0	01	1	1410-	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10<S7C> 43/10 THA	8-97047-115-0	01	1	1410-	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10<GT5> 41/10 THA	8-97061-846-0	01	1	1410-		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9<HC6> 41/9 THA	8-97078-635-1	01	1	1410-		●
61	RETAINER; PILOT BRG,PINION (A) W/STUD THA	8-97047-149-0	01	1	1410-	●	●
61	RETAINER; PILOT BRG,PINION (B) THA	8-97047-150-0	01	1	1410-	●	●
63	BEARING; PINION PILOT NSK THA	8-97047-296-0	01	1	1410-	●	●
63	BEARING; PINION PILOT KOYO THA	8-97047-928-0	01	1	1410-	●	●
64	NUT; RET M6 FLANGE THA	0-91180-106-0	02	1	1410-	●	●
66	RING; SNAP,PILOT BRG THA	8-97047-297-0	01	1	1410-	●	●
69	NUT; ADJ,DIFF CAGE M115 H=20 THA	1-41121-039-0	02	1	1410-	●	●
70	BEARING; DIFF CAGE KOYO ID=66.7 OD=113 T=30 THA	9-00093-130-0	02	1	1410-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE THA	8-97047-099-4	01	1	1410-	●	●
82	SPIDER; DIFF PINION THA	1-41521-035-2	01	1	1410-	●	●
83	CAGE ASM; DIFF THA	8-98219-705-0	01	1	1410-	●	●
84	BOLT; FINAL DRIVE GEAR M16X30 THA	8-97047-147-0	12	1	1410-	●	●
85	NUT; DIFF CAGE SETTING M12 THA	8-97065-214-0	12	1	1410-	●	●
86	WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2 THA	8-97047-294-0	12	1	1410-	●	●
88	PLATE; LK,ADJ NUT (A) THA	8-97087-821-0	AR	1	1410-	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3 THA	9-41124-015-0	AR	1	1410-	●	●
89	BOLT; LK PLATE M8X16 FLANGE THA	0-28050-816-0	04	1	1410-	●	●
100	SEAL; OIL,FINAL PINION NOK THA	1-09625-484-1	01	1	1410-	●	●
