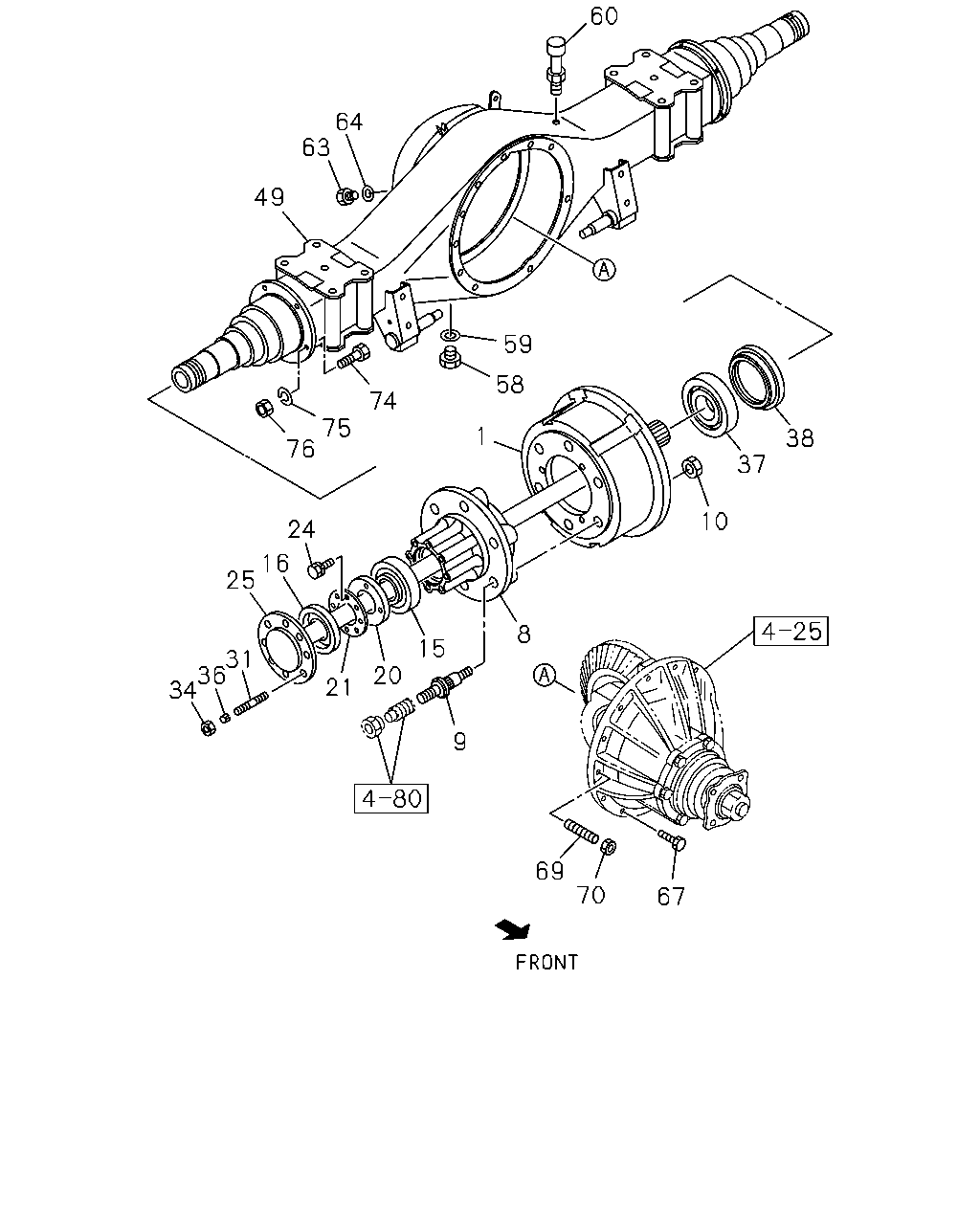

1 |
DRUM; BRK,RR
THA
|
8-97940-562-0 |
02 |
1 |
1410- |
● |
|
| |
1 |
DRUM; BRK,RR
THA
|
8-97940-563-0 |
02 |
1 |
1410- |
|
● |
| |
8 |
HUB; RR AXLE
THA
|
8-97940-280-0 |
02 |
1 |
1410- |
● |
|
| |
8 |
HUB; RR AXLE
THA
|
8-97942-200-0 |
02 |
1 |
1410- |
|
● |
| |
9 |
PIN; WHEEL,RR AXLE
M20X28,M22X57 RH THREAD
THA
|
8-97081-584-4 |
06 |
1 |
1410- |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
M20X28 LH THREAD,M22X57 RH THREAD
THA
|
8-97081-585-4 |
06 |
1 |
1410- |
● |
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
M22
THA
|
0-91110-522-0 |
12 |
1 |
1410- |
● |
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
NSK
THA
|
9-00093-607-0 |
02 |
1 |
1410- |
● |
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
NOK
THA
|
8-98202-912-0 |
02 |
1 |
1410- |
● |
● |
| |
20 |
NUT; BRG,RR HUB
M55
THA
|
8-97137-094-0 |
02 |
1 |
1410- |
● |
● |
| |
21 |
WASHER; LK,BRG NUT
ID=55
THA
|
9-09653-002-0 |
02 |
1 |
1410- |
● |
● |
| |
24 |
BOLT; LK WASHER
M6X10 FLANGE
THA
|
0-28050-610-0 |
04 |
1 |
1410- |
● |
● |
| |
25 |
SHAFT; AXLE,RR
L=885
THA
|
8-97134-439-0 |
02 |
1 |
1410- |
● |
● |
| |
31 |
STUD; AXLE SHAFT TO HUB
M10X30 L=49
THA
|
8-97359-803-0 |
16 |
1 |
1410- |
● |
● |
| |
34 |
NUT; AXLE SHAFT
M10 FLANGE
THA
|
0-91180-210-0 |
16 |
1 |
1410- |
● |
● |
| |
36 |
WASHER; SPECIAL,AXLE SHAFT
ID=10.5
THA
|
8-97360-004-0 |
16 |
1 |
1410- |
● |
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
NSK
THA
|
9-00093-624-0 |
02 |
1 |
1410- |
● |
|
| |
37 |
BEARING; HUB INNER,RR AXLE
NSK
THA
|
8-97122-938-0 |
02 |
1 |
1410- |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
KOYO
THA
|
8-97123-119-0 |
02 |
1 |
1410- |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
THA
|
8-97023-977-1 |
02 |
1 |
1410- |
● |
|
| |
38 |
SEAL; OIL,RR HUB,INNER
NOK
THA
|
8-97147-681-0 |
02 |
1 |
1410- |
|
● |
| |
49 |
CASE; RR AXLE
THA
|
8-97262-091-2 |
01 |
1 |
1410- |
● |
|
| |
49 |
CASE; RR AXLE
THA
|
8-97287-599-3 |
01 |
1 |
1410- |
|
● |
| |
58 |
PLUG; DRAIN,AXLE CASE
M16X12.5
THA
|
8-97307-060-0 |
01 |
1 |
1410- |
● |
● |
| |
59 |
GASKET; DRAIN PLUG
ID=16.2 OD=24
THA
|
9-09571-416-0 |
01 |
1 |
1410- |
● |
● |
| |
60 |
BREATHER; RR AXLE CASE
L=29
THA
|
8-98006-960-0 |
01 |
1 |
1410- |
● |
● |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
M20X10.5
THA
|
8-98009-333-0 |
01 |
1 |
1410- |
● |
● |
| |
64 |
GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
THA
|
8-94462-734-0 |
01 |
1 |
1410- |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER
THA
|
0-50561-040-0 |
07 |
1 |
1410- |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER
THA
|
0-50561-050-0 |
04 |
1 |
1410- |
● |
● |
| |
69 |
STUD; AXLE CASE
M10X40.5 L=52.5
THA
|
8-97359-802-0 |
02 |
1 |
1410- |
● |
● |
| |
70 |
NUT; CARRIER
M10 FLANGE
THA
|
0-91180-210-0 |
02 |
1 |
1410- |
● |
● |
| |
74 |
BOLT; RR BRK ASM SETTING
M12X32
THA
|
8-97359-819-0 |
12 |
1 |
1410- |
● |
|
| |
74 |
BOLT; RR BRK ASM SETTING
M14X40
THA
|
8-98007-879-0 |
12 |
1 |
1410- |
|
● |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=12.2
THA
|
0-91510-612-0 |
12 |
1 |
1410- |
● |
|
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=14.2
THA
|
0-91510-814-0 |
12 |
1 |
1410- |
|
● |
| |
76 |
NUT; RR BRK ASM SETTING
M12
THA
|
0-91110-512-0 |
12 |
1 |
1410- |
● |
|
| |
76 |
NUT; RR BRK ASM SETTING
M14
THA
|
0-91110-514-0 |
12 |
1 |
1410- |
|
● |
