◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51569 - NPR/NQR THAILAND ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#151303) — 29 parça

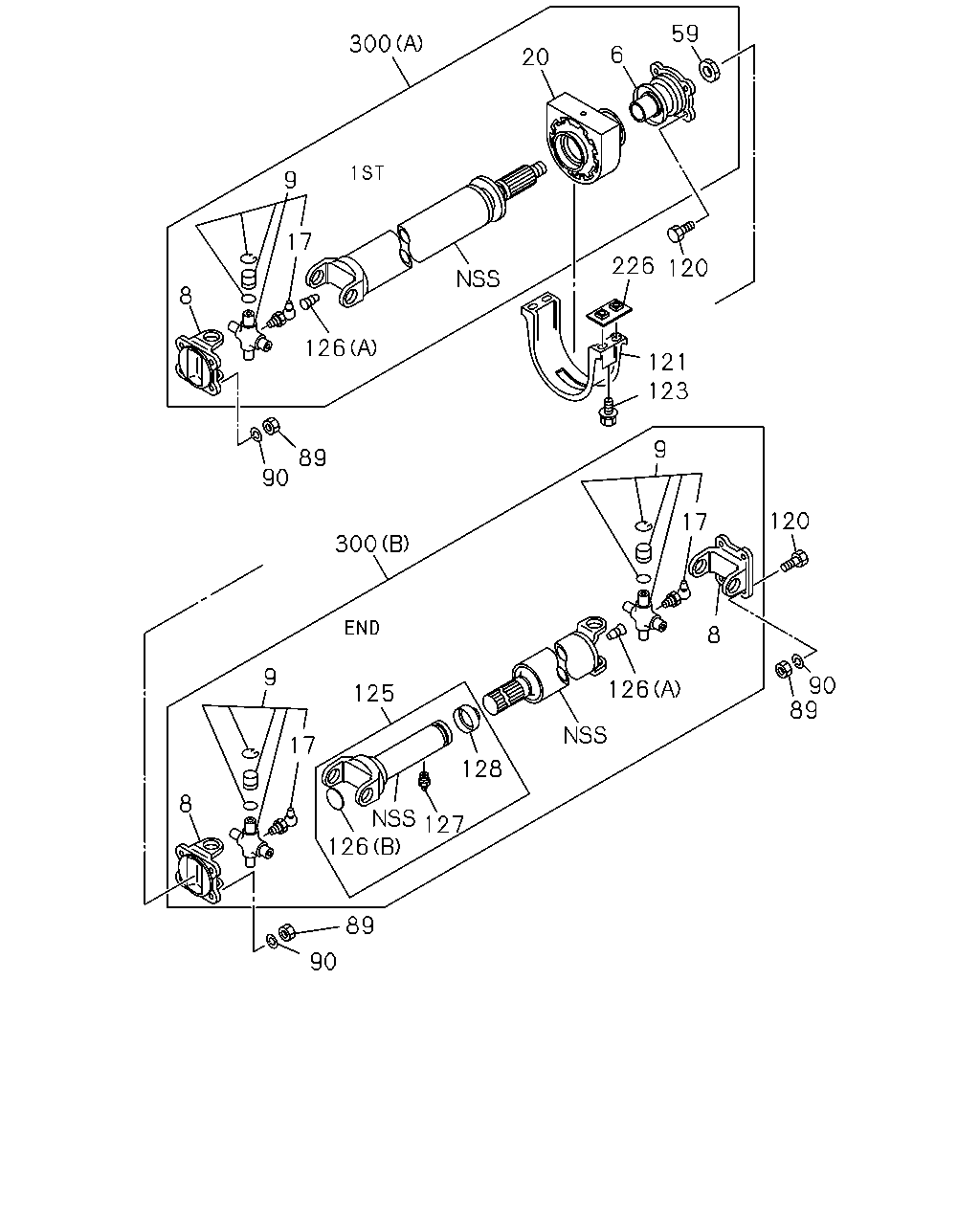

çizim 450393
300 8 9 17 20 6 59 126 90 89 226 120 121 128 300 8 9 17 125 9 17 120 126 127 128 126 8 90 89 89 90
BalonParca AdiParca NoAdetTipApplied Date A B
6 COUPLING ASM; DRIVER,PROP SHAFT
THA 		8-98020-796-0 01 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
D=80 THA 		1-37211-037-4 02 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
D=80 THA 		1-37211-037-4 01 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
THA 		8-98020-789-1 02 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
THA 		8-98020-789-1 01 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW THA 		0-90301-610-0 02 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW THA 		0-90301-610-0 01 1 1410- ● ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98020-880-0 01 1 1410- ● ●
59 NUT; RET TO SUPPORT
M30 THA 		8-97160-857-0 01 1 1410- ● ●
89 NUT; YOKE TO RR AXLE
M12 THA 		8-97365-450-1 12 1 1410- ● ●
90 WASHER; LK,YOKE TO RR AXLE
ID=12.2 THA 		0-91510-812-0 12 1 1410- ● ●
120 BOLT; YOKE TO RR AXLE
M12X35 THA 		8-97365-451-1 08 1 1410- ● ●
121 RETAINER; CUSHION RUBBER
THA 		8-97035-623-1 01 1 1410- ● ●
123 BOLT; RET
M10X25 W/LK&PL WASHER THA 		0-50641-025-0 04 1 1410- ● ●
125 YOKE ASM; SPLINED,PROP SHAFT
L=224 THA 		8-98044-229-0 01 1 1410- ● ●
126 PLUG; SPLINED YOKE
(A) THA 		1-09600-023-0 01 1 1410- ● ●
126 PLUG; SPLINED YOKE
(A) THA 		1-09600-023-0 01 1 1410- ● ●
126 PLUG; SPLINED YOKE
(B) THA 		8-94366-900-0 01 1 1410- ● ●
127 NIPPLE; GREASE,SPLINED YOKE
M6 STRAIGHT THA 		0-90301-406-0 01 1 1410- ● ●
128 SEAL; SLEEVE
THA 		8-97145-746-0 01 1 1410- ● ●
226 PLATE; LK,CENTER BRG
THA 		8-97371-572-0 02 1 1410- ● ●
300 SHAFT ASM; PROP,RR
4HK1-TCN ENG<RDQ> M/T MYY6S<RST> WHEEL BASE 3400MM<34W> FRAME STRAIGHT TYPE<7KJ> (B) L=1001 THA 		8-98024-923-1 01 1 1410- ●
300 SHAFT ASM; PROP,RR
4HK1-TCN ENG<RDQ> M/T MYY6S<RST> WHEEL BASE 3400MM<34W> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) L=630 THA 		8-98024-913-1 01 1 1410- ●
300 SHAFT ASM; PROP,RR
4HK1-TCN ENG<RDQ> M/T MYY6S<RST> WHEEL BASE 3800MM<38W> FRAME STRAIGHT TYPE<7KJ> (B) L=1011 THA 		8-98040-477-1 01 1 1410- ●
300 SHAFT ASM; PROP,RR
4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> WHEEL BASE 3400MM<34W> FRAME STRAIGHT TYPE<7KJ> (B) L=1011 THA 		8-98040-477-1 01 1 1410- ●
300 SHAFT ASM; PROP,RR
4HK1-TCN ENG<RDQ> M/T MYY6S<RST> WHEEL BASE 3800MM<38W> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) L=1070 THA 		8-98024-914-1 01 1 1410- ●
300 SHAFT ASM; PROP,RR
4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> WHEEL BASE 3400MM<34W> (A) L=683 THA 		8-98006-982-1 01 1 1410- ●
300 SHAFT ASM; PROP,RR
4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> WHEEL BASE 4100MM<41W> (A) L=1127 THA 		8-98040-793-1 01 1 1410- ●
300 SHAFT ASM; PROP,RR
4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> WHEEL BASE 4100MM<41W> FRAME STRAIGHT TYPE<7KJ> (B) L=1252 THA 		8-98063-805-1 01 1 1410- ●
