◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10633 - FVZ-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#1513) — 38 parça

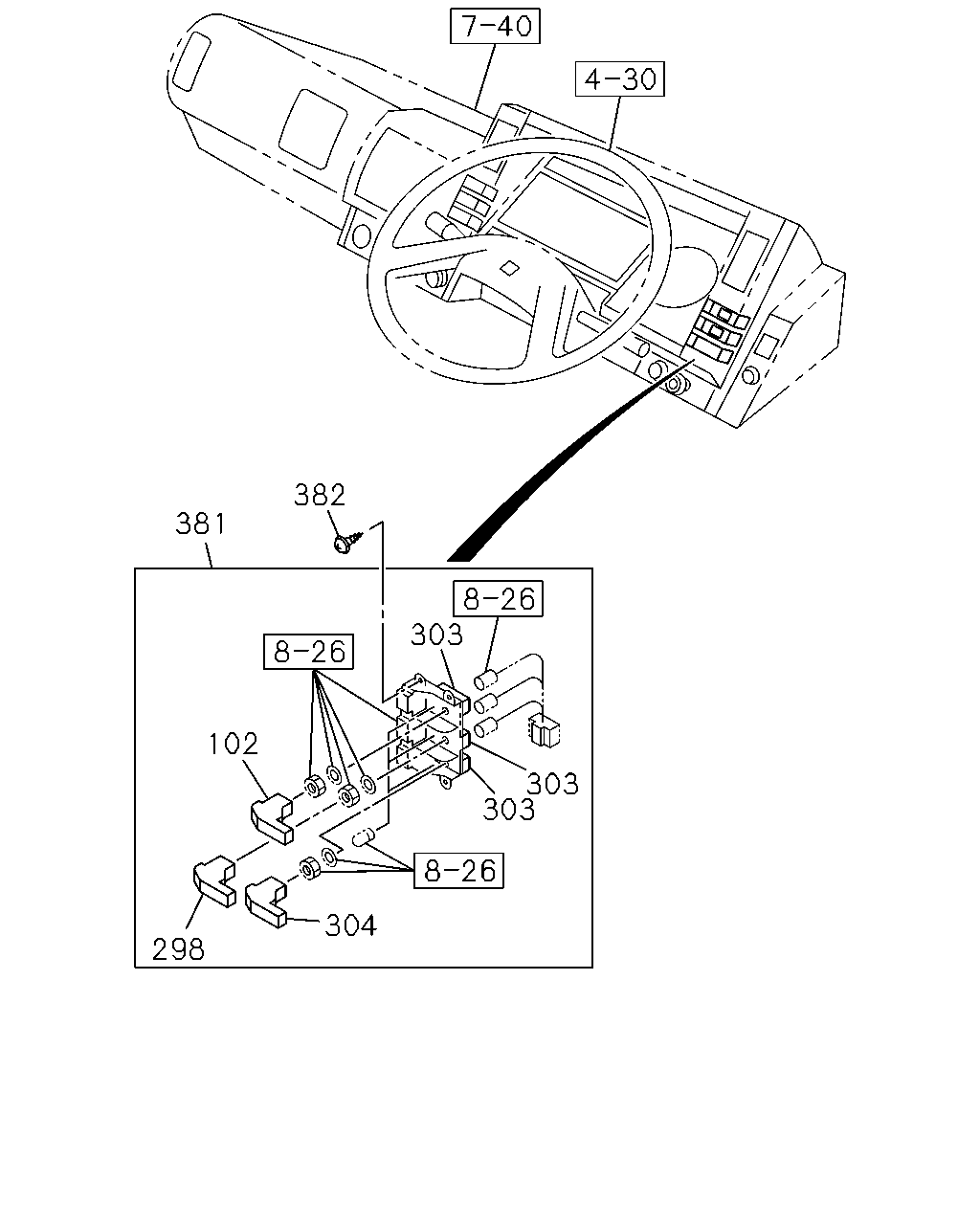

çizim 94003
382 381 303 102 303 303 304 298
BalonParca AdiParca NoAdetTipApplied Date
102 KNOB ASM; FOG LAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-82356-031-0 01 1 9203-9406
102 KNOB ASM; FOG LAMP
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82356-031-0 01 1 9407-
298 KNOB ASM; PARKING LAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-82356-028-0 01 1 9203-9406
298 KNOB ASM; PARKING LAMP
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82356-028-0 01 1 9407-
303 SWITCH; MICRO
HAZARD 		1-82350-181-0 01 1 9203-
303 SWITCH; MICRO
EXC. BUMPER W/HEADLAMPS<SLB> FOG 		1-82350-091-0 01 1 9203-9406
303 SWITCH; MICRO
EXC. LIGHTING SYSTEM ECE<SLC> FOG 		1-82350-091-0 01 1 9407-
303 SWITCH; MICRO
EXC. BUMPER W/HEADLAMPS<SLB> PARKING 		1-82350-127-0 01 1 9203-9406
303 SWITCH; MICRO
EXC. LIGHTING SYSTEM ECE<SLC> PARKING 		1-82350-127-0 01 1 9407-
304 KNOB ASM; HAZARD 1-82356-068-0 01 1 9203-
381 SWITCH ASM; METER CLUSTER SIDE
BUMPER W/HEADLAMPS<SLB> 		1-82350-206-0 01 1 9203-9406
381 SWITCH ASM; METER CLUSTER SIDE
LIGHTING SYSTEM ECE<SLC> 		1-82350-206-0 01 1 9407-
381 SWITCH ASM; METER CLUSTER SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-82350-171-0 01 1 9203-9406
381 SWITCH ASM; METER CLUSTER SIDE
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82350-171-0 01 1 9407-
382 SCREW; SW,METER CLUSTER SIDE
M5X14 W/PL WASHER 		5-09981-050-0 08 1 9203-

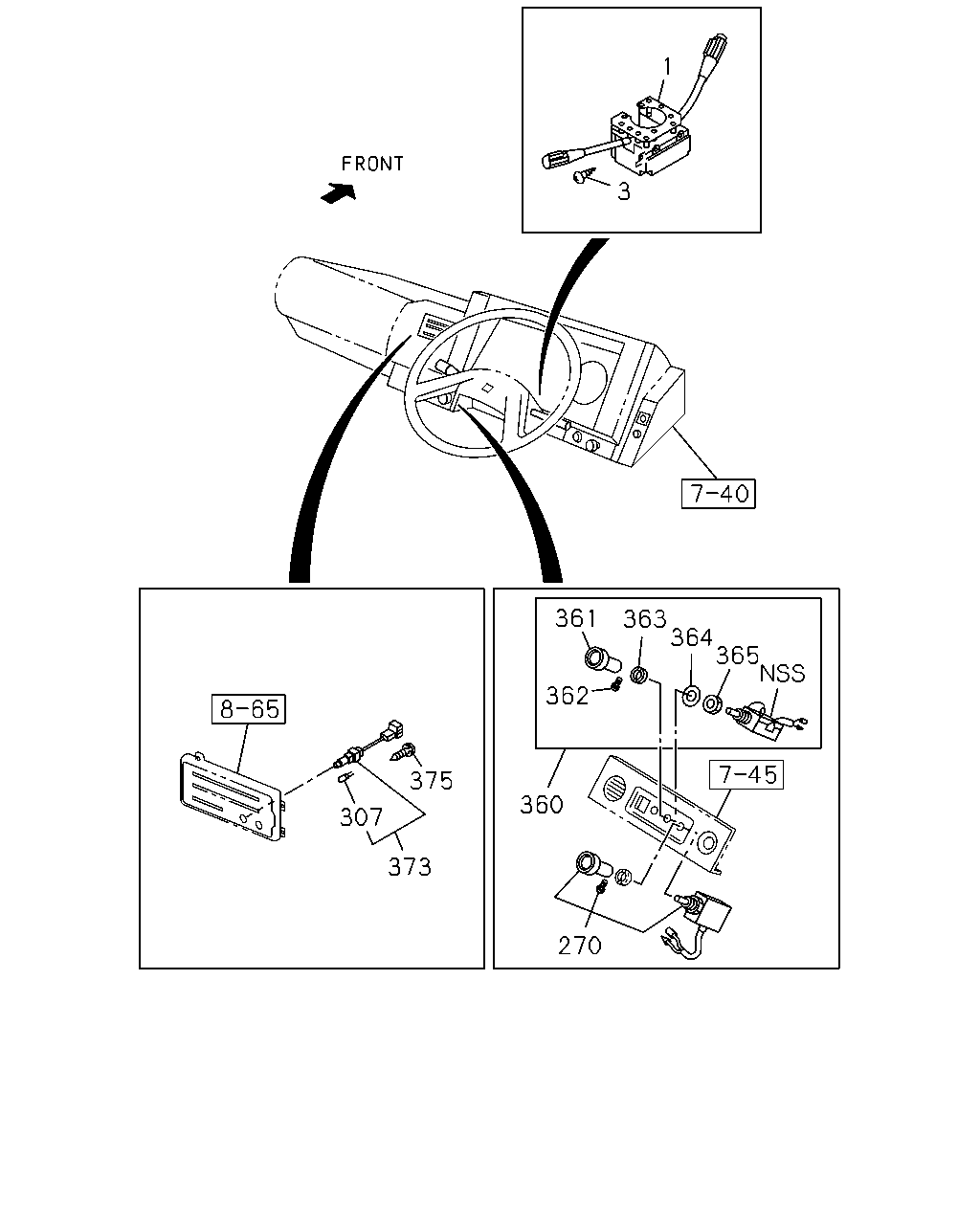

çizim 94990
1 3 361 363 364 365 362 375 360 307 373 270
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) 		1-82360-314-1 01 1 9203-9409
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) 		1-82360-383-0 01 1 9410-
1 SWITCH; COMB
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-301-3 01 1 9203-9409
1 SWITCH; COMB
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-338-0 01 1 9410-
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 03 1 9203-9409
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 9410-
270 SWITCH; PRESS,WHEEL PARKING
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82340-278-0 01 1 9203-
307 BULB ASM; SW
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82194-082-0 01 1 9203-
360 SWITCH ASM; DIFF LK 1-82340-241-0 01 1 9203-
361 KNOB; DIFF LK 1-82346-070-0 01 1 9203-
362 SCREW; DIFF LK 1-09106-002-0 01 1 9203-
363 NUT 1-09449-033-0 01 1 9203-
364 WASHER; LK
ID=12.5 TOOTH LK INT 		9-09151-212-0 01 1 9203-
365 NUT; DIFF LOCK SW 1-09400-035-0 01 1 9203-
373 SWITCH; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82340-197-0 01 1 9203-
375 SCREW; A/C SW
AIR CONDITIONER MANUAL CONTROL(C60) M5X14 W/PL WASHER 		5-09981-050-0 02 1 9203-

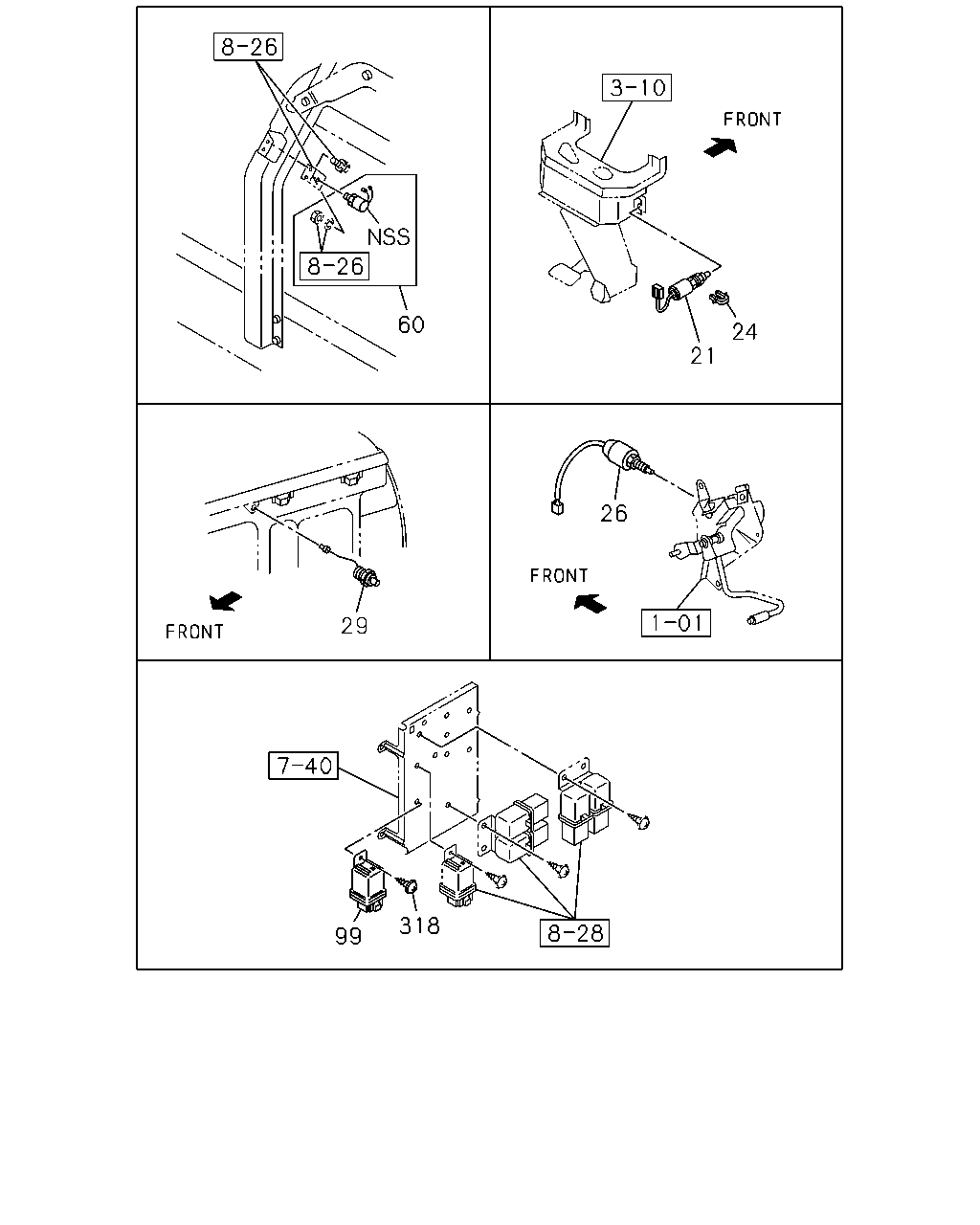

çizim 95090
60 24 21 26 29 318 99
BalonParca AdiParca NoAdetTipApplied Date
21 SWITCH; CLU 1-82380-009-3 01 1 9203-
24 CLIP; CLU SW,EXH BRK 1-09987-161-0 01 1 9203-
26 SWITCH; ACCEL 1-82380-089-0 01 1 9203-
29 SWITCH; DOOR 1-82440-091-0 01 1 9203-
60 SWITCH; IGNITION SUB 1-82380-065-0 01 1 9203-
99 RELAY; FOG LAMP
NEW ZEALAND EQUIPMENT(PK5) 24V 12.5A JIDECO 		1-82550-197-0 01 1 9203-
318 SCREW; RELAY
NEW ZEALAND EQUIPMENT(PK5) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9203-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
