Isuzu WW
▶
TRUCKS
▶
NPR
▶
51569 - NPR/NQR THAILAND
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶
3-52 — BRAKE PIPING; OIL,FRONT
(#151299) — 18 parça
Tümü
A - NPR5SN
B - NPR5SS
◀

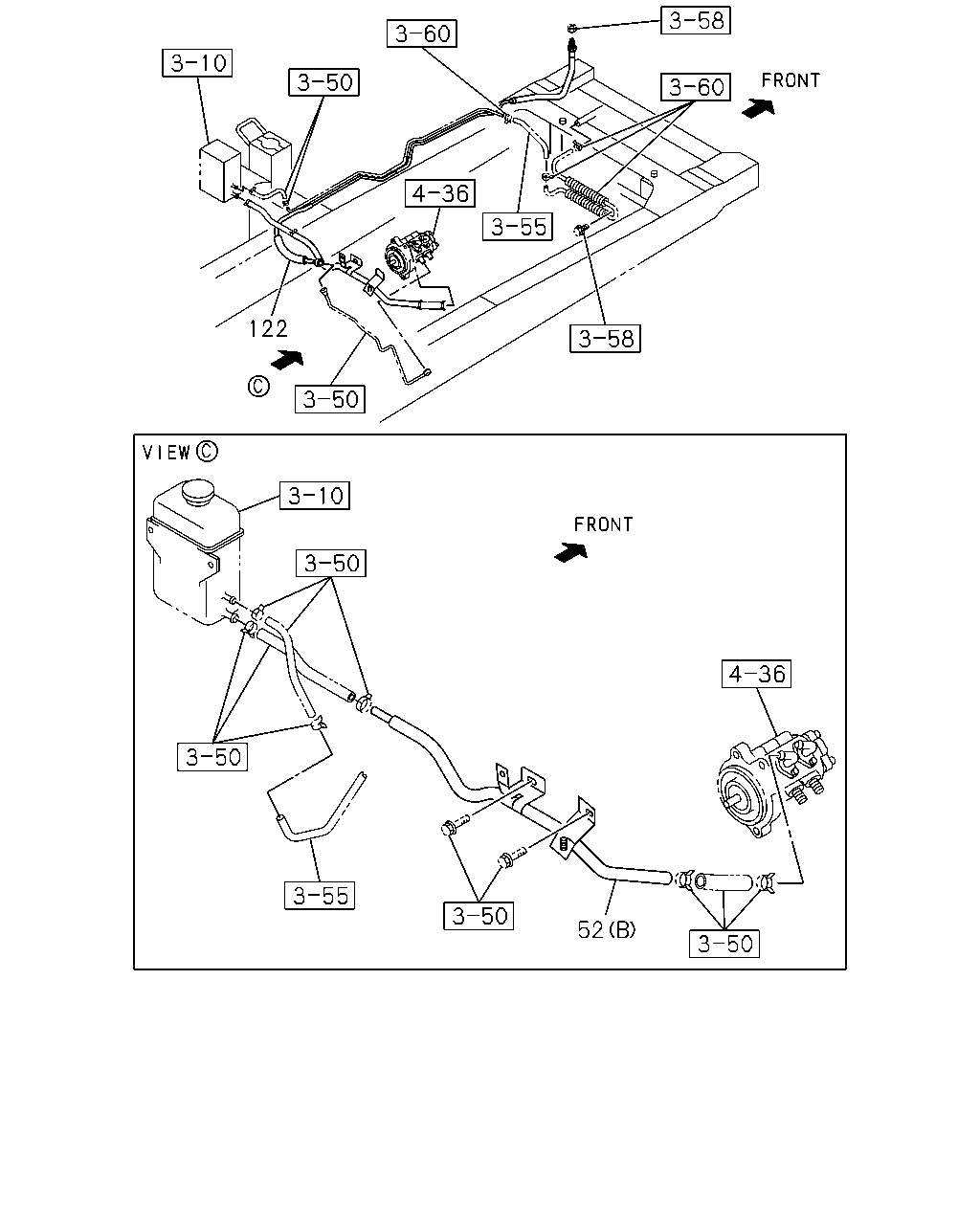

[352A] NO.3 (5 parça)
[352A] NO.1 (7 parça)

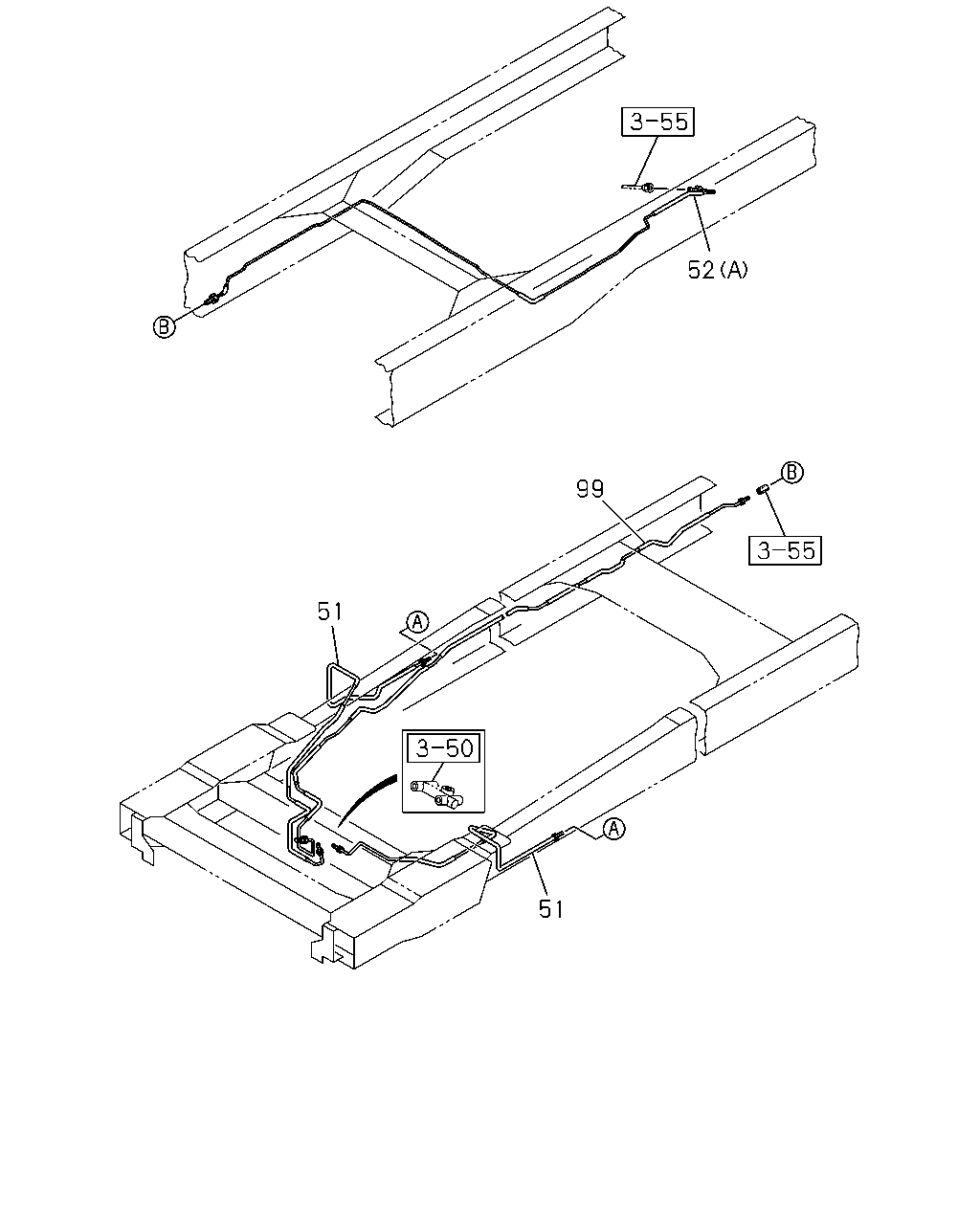

[352A] NO.2 (5 parça)
[352A] NO.4 (1 parça)
▶
122
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
52
PIPE; BRK
WHEEL BASE 3400MM<34W> FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR THA
8-98057-262-0
01
1
1410-
●
●
52
PIPE; BRK
WHEEL BASE 3800MM<38W> FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR THA
8-98057-263-0
01
1
1410-
●
52
PIPE; BRK
4HK1-TCS ENG<RJS> (B) THA
8-97924-251-0
01
1
1410-
●
52
PIPE; BRK
WHEEL BASE 4100MM<41W> FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR THA
8-98057-264-0
01
1
1410-
●
122
PIPE ASM; BRK,2 WAY
FRAME STRAIGHT TYPE<7KJ> THA
8-97948-669-0
01
1
1410-
●
52
51
99
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
51
PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> 5/6WAY TO FRONT THA
8-98065-765-1
01
1
1410-
●
●
51
PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> 5/6WAY TO FRONT THA
8-98065-766-1
01
1
1410-
●
●
52
PIPE; BRK
WHEEL BASE 3400MM<34W> FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR THA
8-98057-262-0
01
1
1410-
●
●
52
PIPE; BRK
WHEEL BASE 3800MM<38W> FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR THA
8-98057-263-0
01
1
1410-
●
52
PIPE; BRK
4HK1-TCS ENG<RJS> (B) THA
8-97924-251-0
01
1
1410-
●
52
PIPE; BRK
WHEEL BASE 4100MM<41W> FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR THA
8-98057-264-0
01
1
1410-
●
99
PIPE ASM; 4/5/6 WAY
FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR THA
8-98057-259-0
01
1
1410-
●
●
9
1
9
94
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HOSE; FLEX,FRT BRK
THA
8-97039-543-1
02
1
1410-
●
●
9
CLIP; FLEX HOSE,FRT BRK
THA
8-97360-054-0
02
1
1410-
●
●
9
CLIP; FLEX HOSE,FRT BRK
THA
8-97360-054-0
02
1
1410-
●
●
24
NUT; UNION,OIL PIPE
THA
0-92107-605-0
04
1
1410-
●
●
94
PIPE; BRK,W/C TO W/C
THA
8-97940-705-0
02
1
1410-
●
●

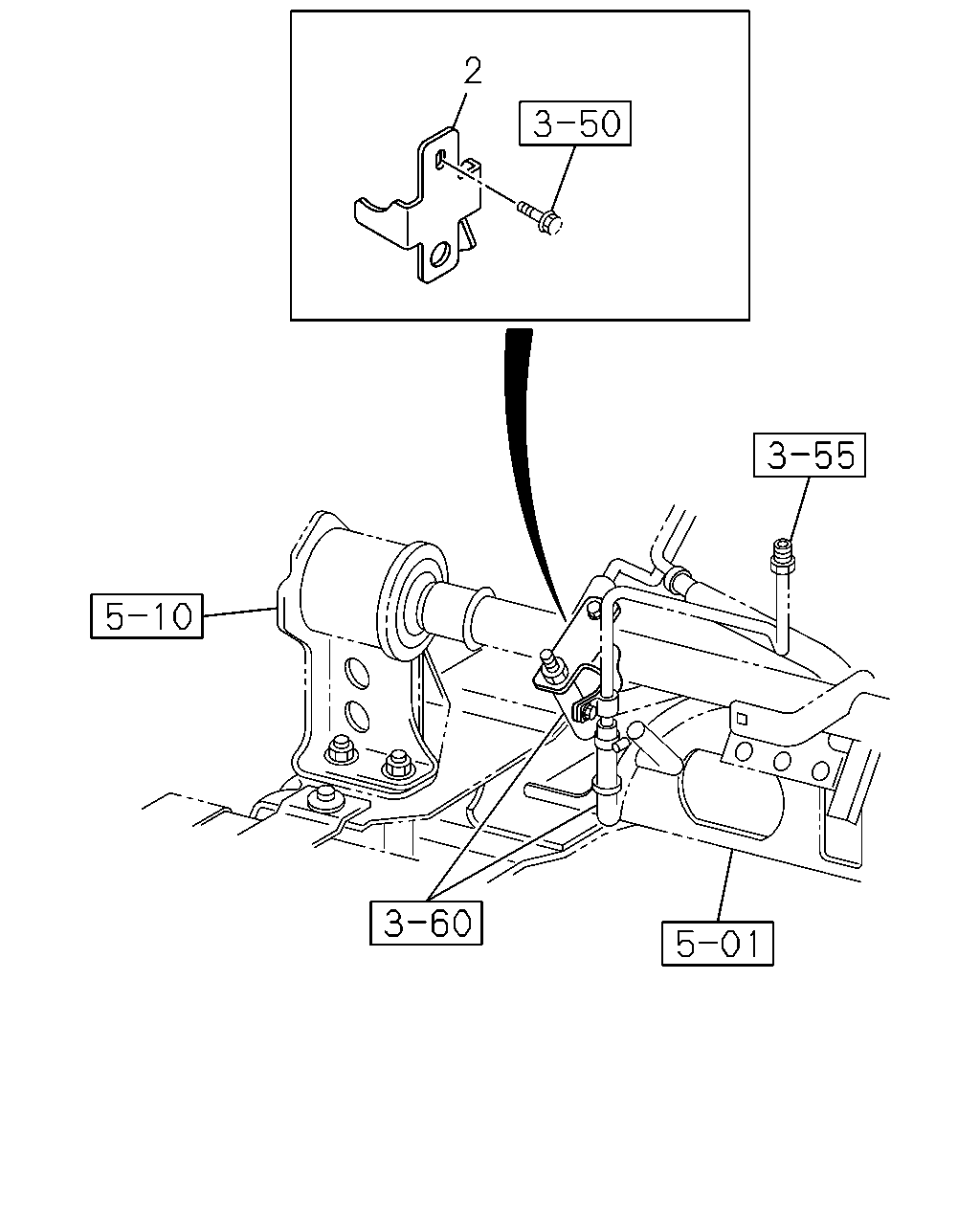

2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
BRACKET; FLEX HOSE,FRT BRK
FRAME STRAIGHT TYPE<7KJ> THA
8-98136-577-0
01
1
1410-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
