3-50 — BRAKE PIPING; OIL,MASTER CYLINDER
(#151298) — 56 parça
Tümü
A - NPR5SN
B - NPR5SS
◀
[350A] NO.1 (6 parça)
[350A] NO.2 (16 parça)
[350A] NO.3 (15 parça)
[350A] NO.5 (4 parça)
[350A] NO.4 (15 parça)
▶

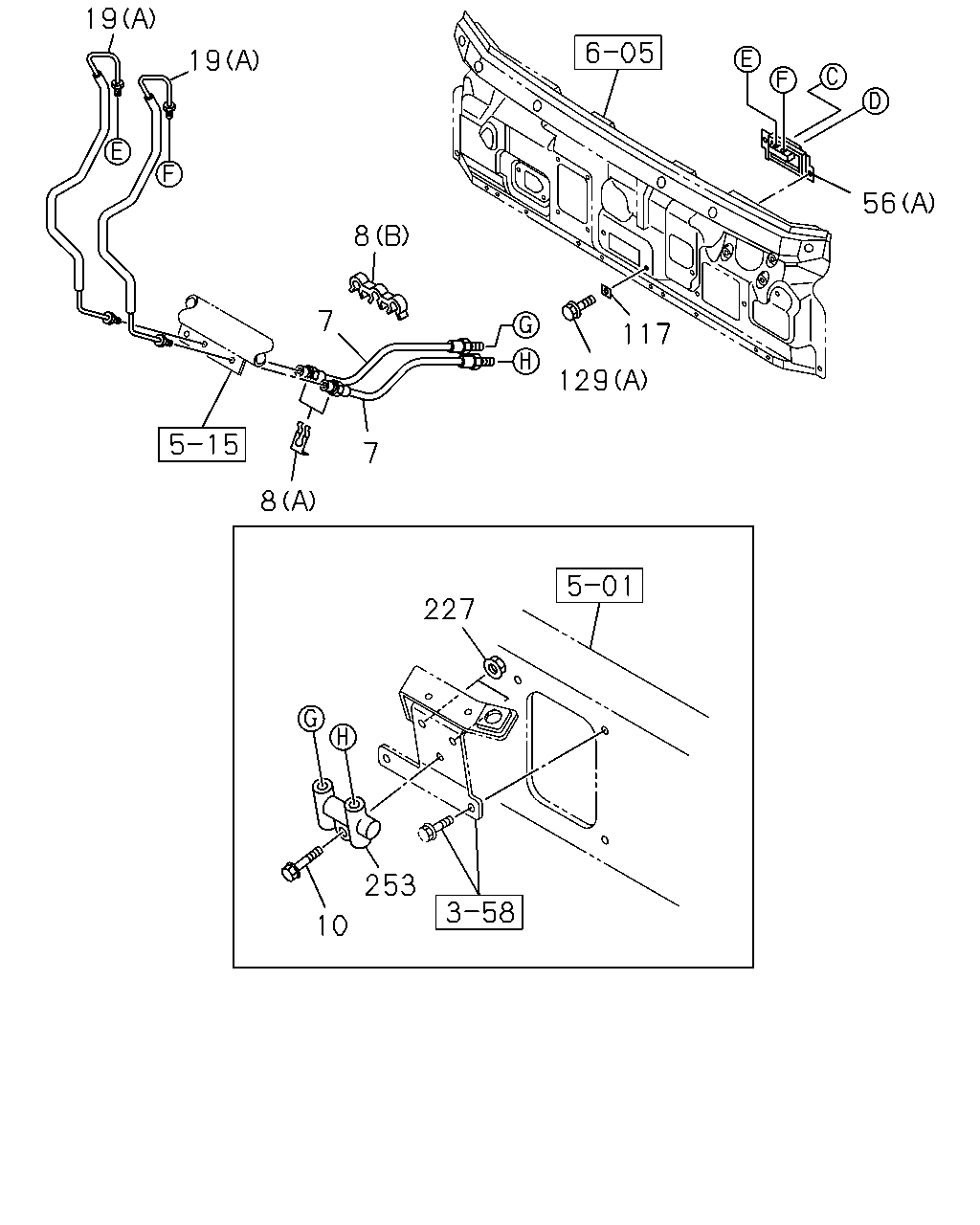

19
145
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
19
PIPE; BRK,M/CYL TO UNION
FRAME STRAIGHT TYPE<7KJ> (A) THA
8-97389-366-1
02
1
1410-
●
19
PIPE; BRK,M/CYL TO UNION
(B) THA
8-97389-337-3
01
1
1410-
●
19
PIPE; BRK,M/CYL TO UNION
FRAME STRAIGHT TYPE<7KJ> (C) THA
8-98043-501-2
02
1
1410-
●
19
PIPE; BRK,M/CYL TO UNION
(D) THA
8-98098-682-1
01
1
1410-
●
145
PIPE; BRK,METERING VLV TO UNION
THA
8-97389-295-3
01
1
1410-
●
145
PIPE; BRK,METERING VLV TO UNION
THA
8-98098-680-1
01
1
1410-
●
19
19
8
7
7
8
227
253
10
129
117
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
7
HOSE; FLEX,PIPE TO 5 WAY JOINT
THA
8-98029-865-0
02
1
1410-
●
●
8
CLIP; FLEX HOSE,CABLE SIDE
(B) THA
8-97076-471-0
01
1
1410-
●
●
8
CLIP; FLEX HOSE,CABLE SIDE
(A) THA
8-97365-304-0
02
1
1410-
●
●
10
BOLT; JOINT
FRAME STRAIGHT TYPE<7KJ> M6X40 FLANGE THA
0-28650-640-0
01
1
1410-
●
●
19
PIPE; BRK,M/CYL TO UNION
FRAME STRAIGHT TYPE<7KJ> (A) THA
8-97389-366-1
02
1
1410-
●
19
PIPE; BRK,M/CYL TO UNION
(B) THA
8-97389-337-3
01
1
1410-
●
19
PIPE; BRK,M/CYL TO UNION
FRAME STRAIGHT TYPE<7KJ> (C) THA
8-98043-501-2
02
1
1410-
●
19
PIPE; BRK,M/CYL TO UNION
(D) THA
8-98098-682-1
01
1
1410-
●
56
BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) THA
8-98154-264-1
01
1
1410-
●
56
BRACKET; UNION,BRK
(C) THA
8-98098-679-0
01
1
1410-
●
56
BRACKET; UNION,BRK
(B) THA
8-98154-266-1
01
1
1410-
●
117
SEAL; UNION,BRK PIPE JOINT
THA
8-97856-616-0
02
1
1410-
●
●
129
BOLT; BRKT
(A) M6X20 W/LK&PL WASHER THA
8-98081-030-0
02
1
1410-
●
●
129
BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> (B) M6X12 FLANGE THA
0-28050-612-0
01
1
1410-
●
227
NUT; JOINT
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA
0-91180-108-0
02
1
1410-
●
●
253
JOINT
FRAME STRAIGHT TYPE<7KJ> THA
5-47456-009-1
01
1
1410-
●
●
192
19
193
146
56
145
192
129
56
19
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
19
PIPE; BRK,M/CYL TO UNION
FRAME STRAIGHT TYPE<7KJ> (A) THA
8-97389-366-1
02
1
1410-
●
19
PIPE; BRK,M/CYL TO UNION
(B) THA
8-97389-337-3
01
1
1410-
●
19
PIPE; BRK,M/CYL TO UNION
FRAME STRAIGHT TYPE<7KJ> (C) THA
8-98043-501-2
02
1
1410-
●
19
PIPE; BRK,M/CYL TO UNION
(D) THA
8-98098-682-1
01
1
1410-
●
56
BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) THA
8-98154-264-1
01
1
1410-
●
56
BRACKET; UNION,BRK
(C) THA
8-98098-679-0
01
1
1410-
●
56
BRACKET; UNION,BRK
(B) THA
8-98154-266-1
01
1
1410-
●
129
BOLT; BRKT
(A) M6X20 W/LK&PL WASHER THA
8-98081-030-0
02
1
1410-
●
●
129
BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> (B) M6X12 FLANGE THA
0-28050-612-0
01
1
1410-
●
145
PIPE; BRK,METERING VLV TO UNION
THA
8-97389-295-3
01
1
1410-
●
145
PIPE; BRK,METERING VLV TO UNION
THA
8-98098-680-1
01
1
1410-
●
146
NUT; BRKT
M8 W/LK WASHER THA
8-94279-050-0
01
1
1410-
●
192
PIPE; PRESSURE
(A) THA
8-98127-262-0
01
1
1410-
●
192
PIPE; PRESSURE
(B) THA
8-98193-137-0
01
1
1410-
●
193
PIPE; RETURN
THA
8-98098-683-0
01
1
1410-
●

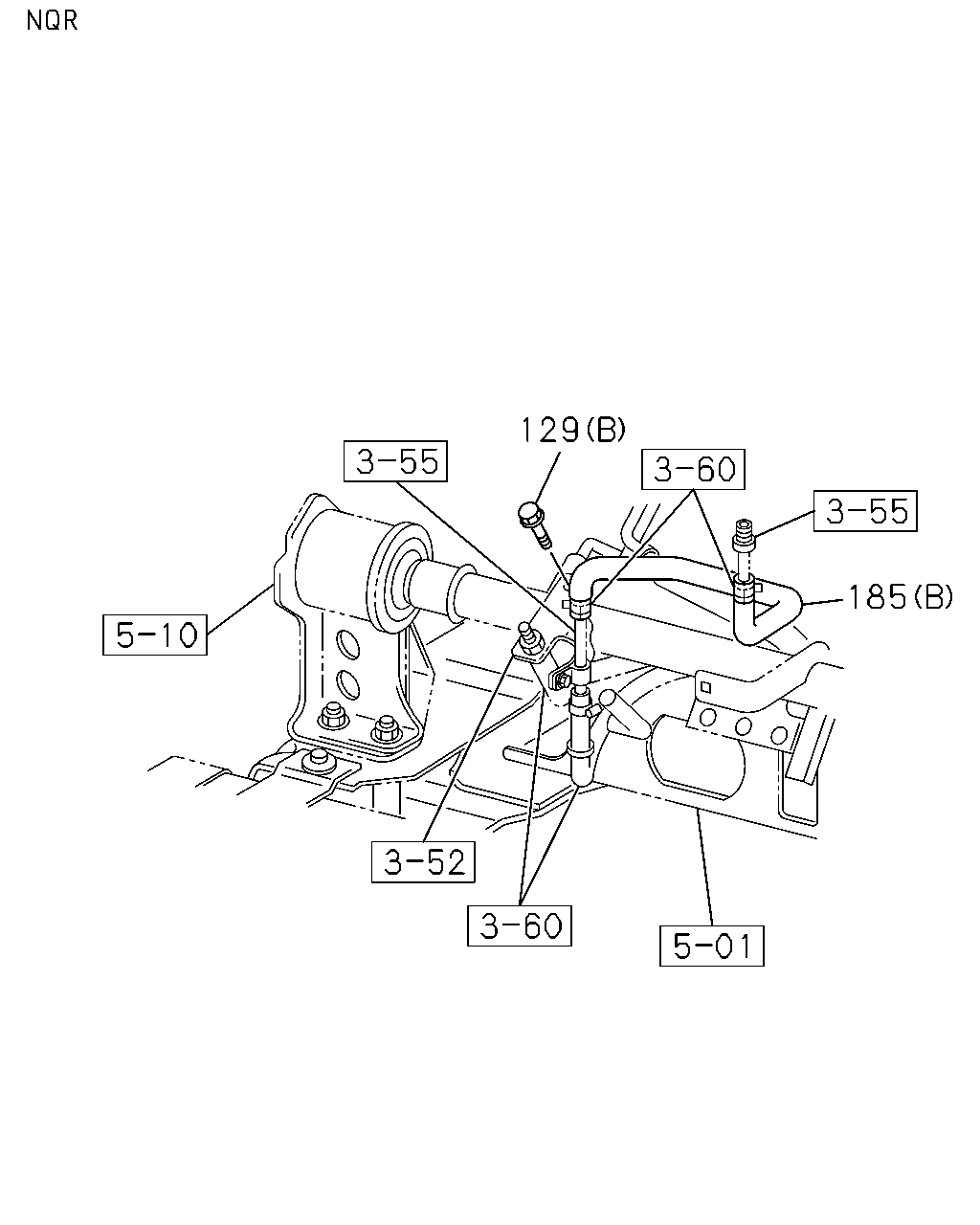

129
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
129
BOLT; BRKT
(A) M6X20 W/LK&PL WASHER THA
8-98081-030-0
02
1
1410-
●
●
129
BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> (B) M6X12 FLANGE THA
0-28050-612-0
01
1
1410-
●
185
HOSE; RUBBER,SUCTION
4HK1-TCS ENG<RJS> (A) THA
8-97330-513-0
01
1
1410-
●
185
HOSE; RUBBER,SUCTION
FRAME STRAIGHT TYPE<7KJ> (B) THA
8-98085-720-0
01
1
1410-
●

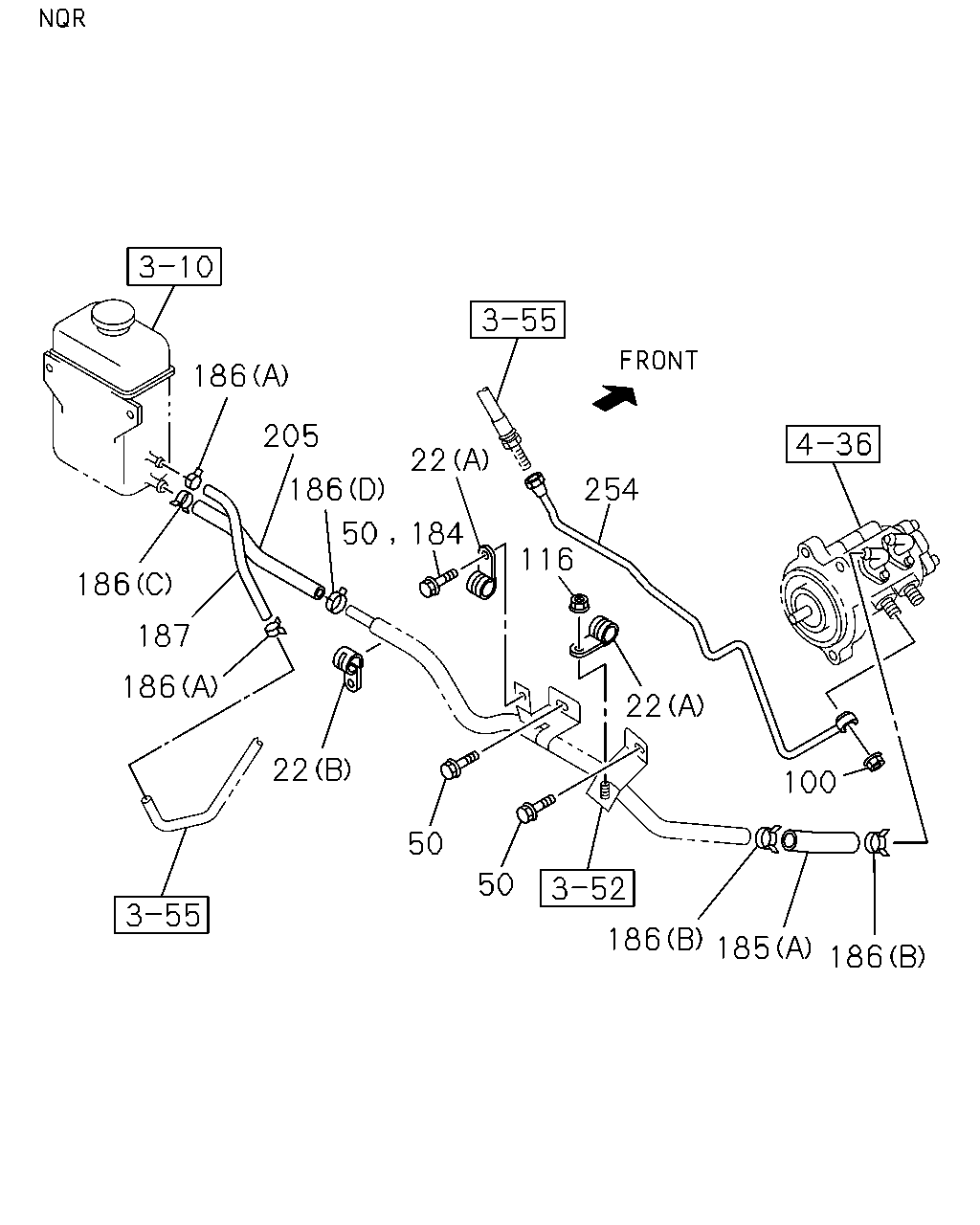

186
205
186
50
22
184
186
187
186
22
50
50
186
185
186
100
22
116
254
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
22
CLIP
4HK1-TCS ENG<RJS> (A) ID=10 L=16.5 THA
8-98082-034-0
02
1
1410-
●
22
CLIP
4HK1-TCS ENG<RJS> (B) ID=17 L=21 THA
8-98082-035-0
01
1
1410-
●
50
BOLT; PIPE
4HK1-TCS ENG<RJS> M8X16 FLANGE THA
0-28050-816-0
03
1
1410-
●
100
NUT; HYDRAULIC UNIT
4HK1-TCS ENG<RJS> THA
8-97358-958-0
01
1
1410-
●
116
NUT
4HK1-TCS ENG<RJS> M8 FLANGE THA
0-91180-108-0
01
1
1410-
●
184
BOLT; CLIP
4HK1-TCS ENG<RJS> M8X16 FLANGE THA
0-28050-816-0
01
1
1410-
●
185
HOSE; RUBBER,SUCTION
4HK1-TCS ENG<RJS> (A) THA
8-97330-513-0
01
1
1410-
●
185
HOSE; RUBBER,SUCTION
FRAME STRAIGHT TYPE<7KJ> (B) THA
8-98085-720-0
01
1
1410-
●
186
CLIP; HOSE
4HK1-TCS ENG<RJS> (B) ID=21 THA
8-94242-034-0
02
1
1410-
●
186
CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> (C) ID=22 THA
8-97359-141-0
01
1
1410-
●
186
CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> (A) ID=16 THA
8-98008-098-0
02
1
1410-
●
186
CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> (D) ID=21 THA
8-98150-355-0
01
1
1410-
●
187
HOSE; RUBBER,OIL TANK
FRAME STRAIGHT TYPE<7KJ> L=220 SERVICED BY L=3000 THA
0-19809-300-0
01
1
1410-
●
205
HOSE; TANK TO PIPE
FRAME STRAIGHT TYPE<7KJ> SERVICED BY L=300 THA
0-09814-300-0
01
1
1410-
●
254
PIPE; BRAKE,2WAY
4HK1-TCS ENG<RJS> THA
8-98036-161-0
01
1
1410-
●
