Isuzu WW
▶
TRUCKS
▶
NPR
▶
51569 - NPR/NQR THAILAND
▶
3 - Brakes, Brake System
▶
3-31 - BRAKE MASTER VAC AND BRAKE BOOSTER
▶
3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER
(#151297) — 17 parça
Tümü
A - NPR5SN
B - NPR5SS
◀
[331A] NPR (9 parça)
[331A] NQR (8 parça)
▶
1
17
16
24
15
12
11
23
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
MASTER VAC ASM; BRK
THA
8-97162-800-1
01
1
1410-
●
3
RETAINER; FRT SHELL,M/VAC
THA
9-83315-319-0
01
1
1410-
●
11
FILTER; M/VAC
THA
8-97205-576-0
01
1
1410-
●
12
SILENCER; M/VAC
THA
8-97205-577-0
01
1
1410-
●
15
RETAINER; GUARD,M/VAC
THA
8-94375-083-0
01
1
1410-
●
16
NUT; VLV ROD,M/VAC
M10 THA
1-52139-008-0
01
1
1410-
●
17
CLEVIS; YOKE,M/VAC
THA
8-97224-610-0
01
1
1410-
●
23
SEAL; M/VAC
THA
8-97079-350-0
01
1
1410-
●
24
GUARD; VLV BODY,M/VAC
THA
8-97205-578-0
01
1
1410-
●

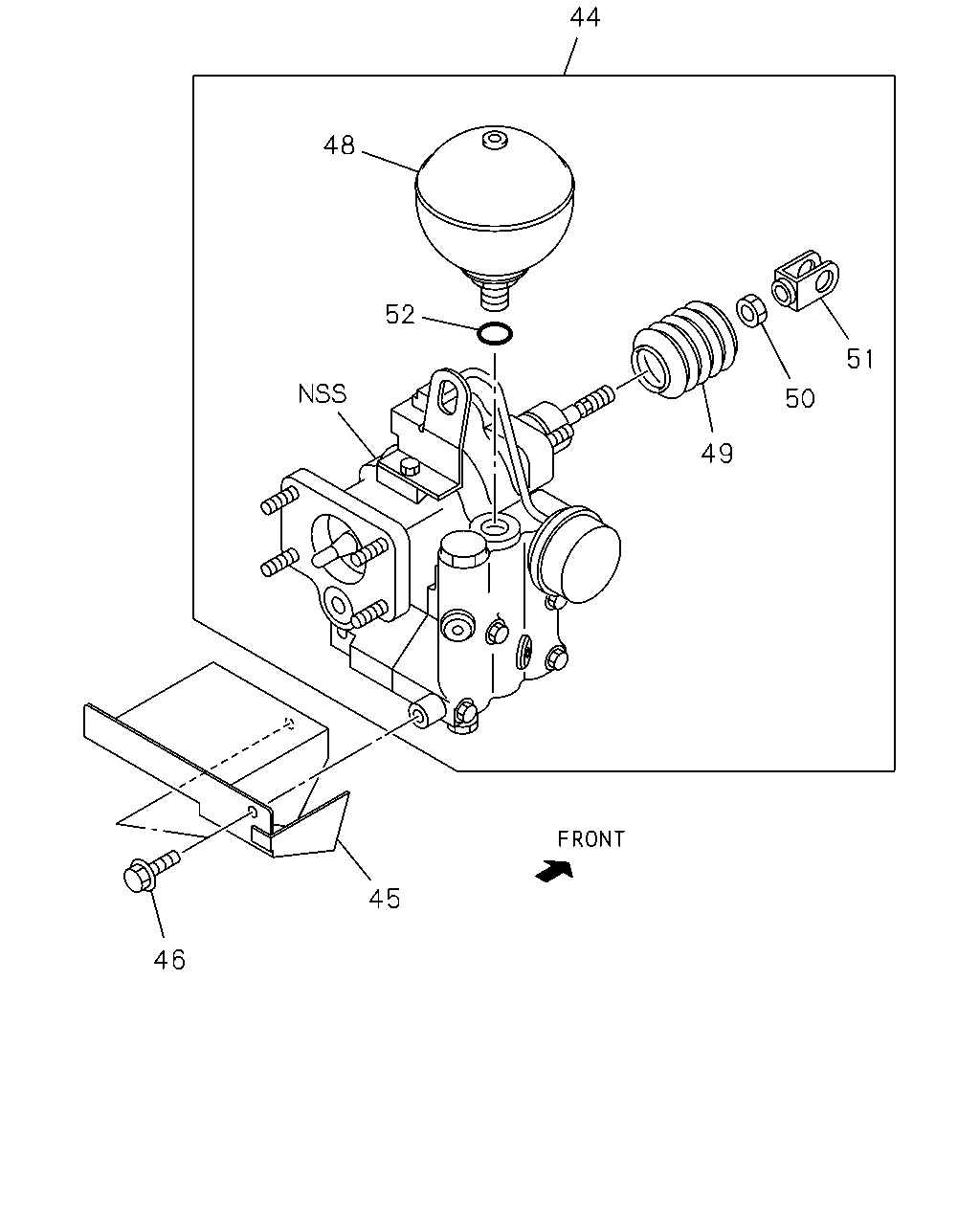

51
50
49
44
52
48
45
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
44
BOOSTER; HYDRAULIC BRK
THA
8-98031-414-0
01
1
1410-
●
45
PROTECTOR; HEAT
THA
8-98031-415-1
01
1
1410-
●
46
BOLT; HEAT PROTECTOR
M6X10 FLANGE THA
0-28050-610-0
02
1
1410-
●
48
ACCUMULATOR; HYDRO BOOSTER
THA
8-98038-346-0
01
1
1410-
●
49
GUARD; HYDRO BRK BOOSTER
THA
8-97191-043-0
01
1
1410-
●
50
NUT; HYDRO BRK BOOSTER
THA
8-98038-349-0
01
1
1410-
●
51
CLEVIS; HYDRO BRK BOOSTER
THA
8-98038-347-0
01
1
1410-
●
52
GASKET; HYDRO BRK BOOSTER
THA
8-97191-038-0
01
1
1410-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
