◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51569 - NPR/NQR THAILAND ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#151294) — 59 parça

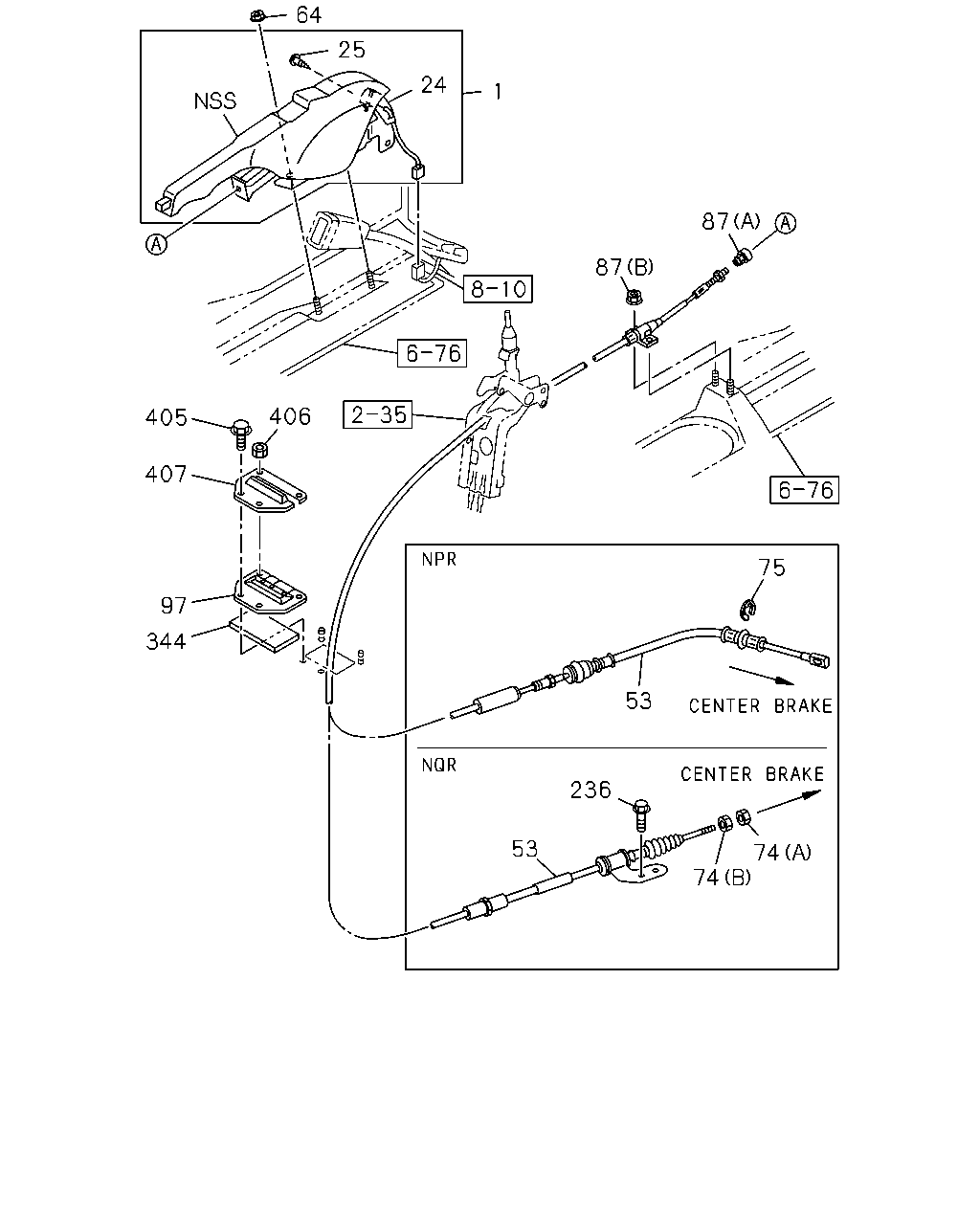

çizim 450434
74 236 74 53 75 53 344 407 97 405 406 1 24 25 64 87 87
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEM ASM; PARKING BRK
GRAY THA 		8-97426-513-0 01 1 1410- ● ●
24 SWITCH ASM; PARK BRK
THA 		8-98238-611-0 01 1 1410- ● ●
25 SCREW; SW,PARKING BRK
THA 		8-98152-463-0 01 1 1410- ● ●
53 CABLE; PARK BRK,FRT LWR
M/T MYY6S<RST> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		8-98041-315-3 01 1 1410- ●
53 CABLE; PARK BRK,FRT LWR
M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> THA 		8-98062-232-3 01 1 1410- ●
64 NUT; PARKING BRK
M8 LOCK NUT FLANGE THA 		0-91380-008-0 02 1 1410- ● ●
74 NUT; CONT WIRE
M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (A) M8 THA 		0-91110-508-0 01 1 1410- ●
74 NUT; CONT WIRE
M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE THA 		9-46259-016-0 01 1 1410- ●
75 RING; SNAP,HAND BRK CABLE
M/T MYY6S<RST> FRAME STRAIGHT TYPE<7KJ> ID=12 THA 		0-91805-512-0 01 1 1410- ●
87 NUT
FRAME STRAIGHT TYPE<7KJ> (A) M6 THA 		8-98034-313-1 01 1 1410- ● ●
87 NUT
FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE THA 		0-91180-108-0 02 1 1410- ● ●
97 GROMMET; PARKING BRK CABLE
THA 		8-97065-212-1 01 1 1410- ● ●
236 BOLT; BRKT TO FRAME
M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE THA 		0-28651-030-0 02 1 1410- ●
344 GASKET; DASH LWR
THA 		8-97096-753-0 01 1 1410- ● ●
405 BOLT; GROMMET
M6X20 FLANGE THA 		0-28450-620-0 02 1 1410- ● ●
406 NUT; GROMMET
M6 FLANGE THA 		0-91180-106-0 02 1 1410- ● ●
407 RETAINER; GROMMET
THA 		1-33657-674-0 01 1 1410- ● ●

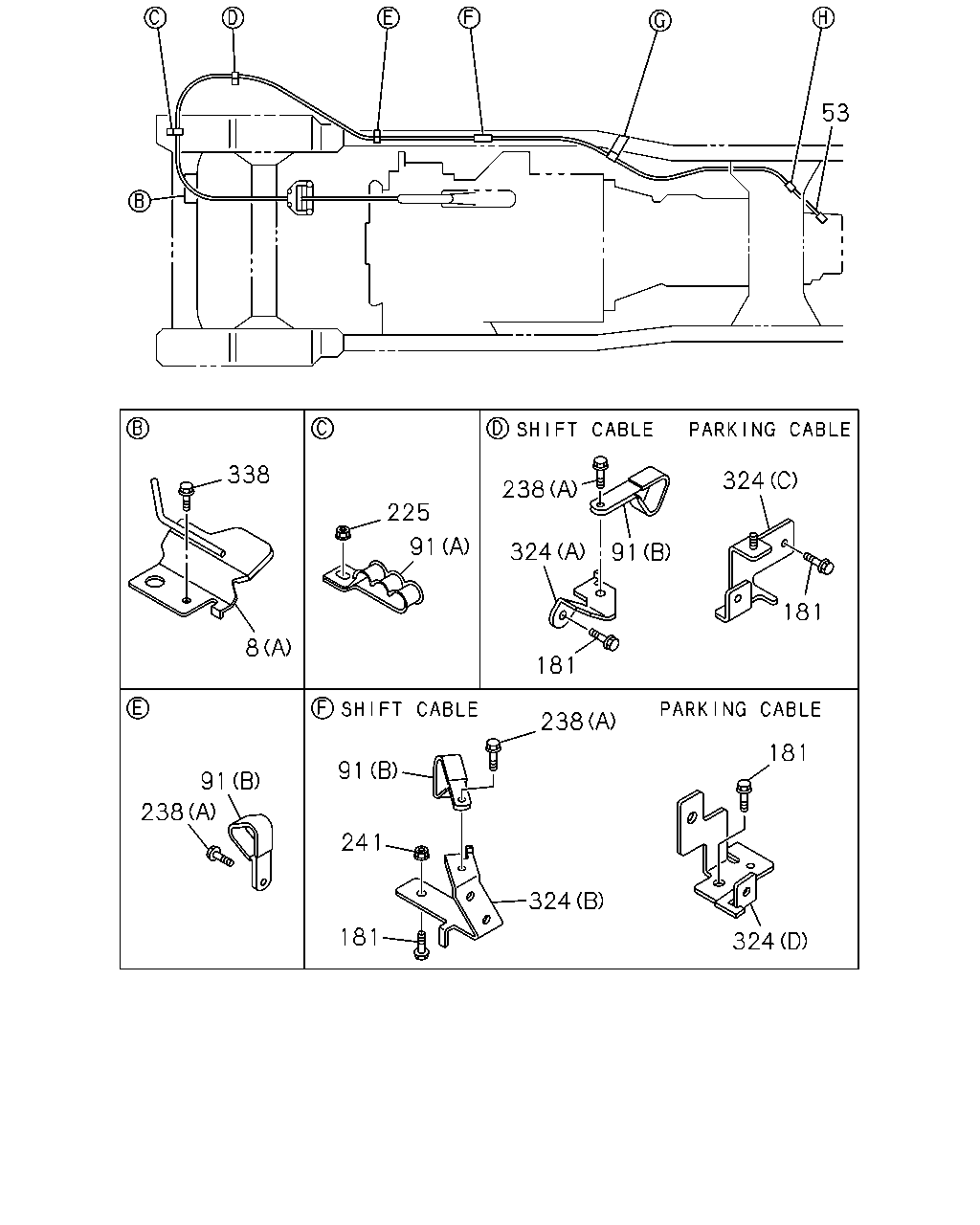

çizim 450597
238 91 241 181 324 91 238 324 181 181 324 238 324 181 91 8 338 91 225 53
BalonParca AdiParca NoAdetTipApplied Date A B
8 GUIDE; PARKING BRK
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98096-374-0 01 1 1410- ● ●
8 GUIDE; PARKING BRK
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98110-964-0 01 1 1410- ● ●
53 CABLE; PARK BRK,FRT LWR
M/T MYY6S<RST> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		8-98041-315-3 01 1 1410- ●
53 CABLE; PARK BRK,FRT LWR
M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> THA 		8-98062-232-3 01 1 1410- ●
91 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) THA 		8-97036-333-1 01 1 1410- ●
91 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97036-333-1 01 1 1410- ●
91 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) THA 		8-97036-333-1 02 1 1410- ●
91 CLIP; PARKING BRK CABLE
(B) THA 		8-97036-333-1 02 1 1410- ●
91 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) THA 		8-98023-622-0 01 1 1410- ●
91 CLIP; PARKING BRK CABLE
(A) THA 		8-98023-622-0 01 1 1410- ●
181 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA 		0-28650-825-0 03 1 1410- ● ●
181 BOLT; BRKT
M8X16 FLANGE THA 		0-28050-816-0 01 1 1410- ● ●
225 NUT; CABLE CLIP
M/T MYY6S<RST> FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE THA 		0-91180-108-0 01 1 1410- ●
225 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA 		0-91180-108-0 02 1 1410- ● ●
238 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE THA 		0-28651-030-0 01 1 1410- ● ●
238 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA 		0-28650-825-0 03 1 1410- ● ●
238 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M8X25 FLANGE THA 		0-28650-825-0 01 1 1410- ●
238 BOLT; CLIP TO BRKT
M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA 		0-28650-825-0 01 1 1410- ●
241 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA 		0-91180-108-0 03 1 1410- ● ●
324 BRACKET
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98034-185-1 01 1 1410- ● ●
324 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98099-516-0 01 1 1410- ● ●
324 BRACKET
FRAME STRAIGHT TYPE<7KJ> (D) THA 		8-98111-394-1 01 1 1410- ● ●
324 BRACKET
(A) THA 		8-98034-115-0 01 1 1410- ● ●
338 SCREW; GUIDE
FRAME STRAIGHT TYPE<7KJ> M8X35 FLANGE THA 		8-98046-876-0 01 1 1410- ● ●
çizim 450668
235 85 238 238 238 85 225 235 237 235 237 241 181 8 237
BalonParca AdiParca NoAdetTipApplied Date A B
8 GUIDE; PARKING BRK
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98096-374-0 01 1 1410- ● ●
8 GUIDE; PARKING BRK
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98110-964-0 01 1 1410- ● ●
85 CLIP; BRKT
M/T MYY6S<RST> FRAME STRAIGHT TYPE<7KJ> (A) ID=14.5 L=20 THA 		1-09701-012-0 01 1 1410- ●
85 CLIP; BRKT
M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (B) ID=13 L=20 THA 		0-95235-236-0 01 1 1410- ●
181 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA 		0-28650-825-0 03 1 1410- ● ●
181 BOLT; BRKT
M8X16 FLANGE THA 		0-28050-816-0 01 1 1410- ● ●
225 NUT; CABLE CLIP
M/T MYY6S<RST> FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE THA 		0-91180-108-0 01 1 1410- ●
225 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA 		0-91180-108-0 02 1 1410- ● ●
235 BRACKET; CONT CABLE TO FRAME
4HK1-TCN ENG<RDQ> M/T MYY6S<RST> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER<8GF> (C) THA 		8-98033-907-0 01 1 1410- ●
235 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98033-907-0 01 1 1410- ●
235 BRACKET; CONT CABLE TO FRAME
4HK1-TCN ENG<RDQ> M/T MYY6S<RST> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) THA 		8-98087-322-0 01 1 1410- ●
235 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98074-995-0 01 1 1410- ● ●
237 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA 		0-91180-110-0 01 1 1410- ● ●
238 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE THA 		0-28651-030-0 01 1 1410- ● ●
238 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA 		0-28650-825-0 03 1 1410- ● ●
238 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M8X25 FLANGE THA 		0-28650-825-0 01 1 1410- ●
238 BOLT; CLIP TO BRKT
M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA 		0-28650-825-0 01 1 1410- ●
241 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA 		0-91180-108-0 03 1 1410- ● ●
