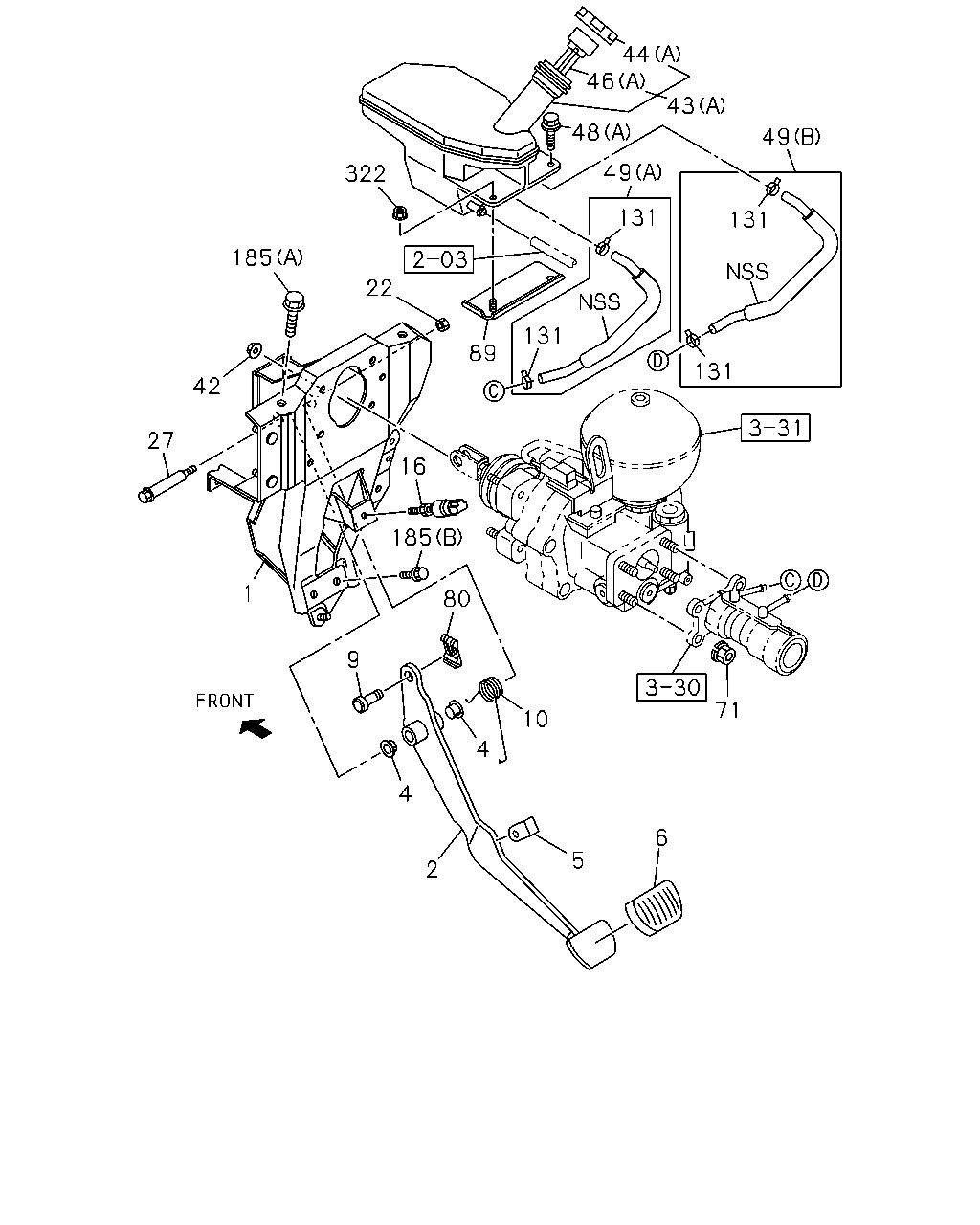

3-10 — BRAKE PEDAL AND CONTROL (#151293) — 82 parça

44 46 48 43 49 49 131 131 131 131 89 22 322 185 42 27 16 185 9 10 4 4 80 2 5 6 71 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET ASM; PEDAL THA	8-98029-185-1	01	1	1410-	●
1	BRACKET ASM; PEDAL THA	8-98091-563-0	01	1	1410-		●
2	PEDAL; BRK THA	8-98003-157-0	01	1	1410-	●
2	PEDAL; BRK THA	8-98011-432-0	01	1	1410-		●
4	BUSHING; BRK PEDAL THA	8-94238-596-0	02	1	1410-	●	●
5	STOPPER; BRK PEDAL THA	8-98029-187-0	01	1	1410-	●	●
6	COVER; BRK PEDAL THA	8-97853-413-2	01	1	1410-	●	●
9	PIN; JAW JOINT THA	8-98147-657-0	01	1	1410-	●	●
10	SPRING; RETURN,BRK PEDAL THA	8-97853-212-1	01	1	1410-	●	●
16	SWITCH; STOP LAMP THA	8-98000-028-0	01	1	1410-	●	●
22	NUT; SHAFT M10 LOCK NUT FLANGE THA	0-91380-010-0	01	1	1410-	●	●
27	SHAFT; BRK PEDAL THA	8-97866-667-0	01	1	1410-	●	●
42	NUT; BRK PEDAL M8 W/LK WASHER THA	8-94279-050-0	04	1	1410-	●	●
43	TANK ASM; OIL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) THA	8-97387-217-3	01	1	1410-	●
43	TANK ASM; OIL (A) THA	8-97387-217-3	01	1	1410-		●
43	TANK ASM; OIL (B) THA	8-97306-217-0	01	1	1410-		●
44	CAP; OIL TANK (A) THA	8-98022-268-0	01	1	1410-	●	●
44	CAP; OIL TANK (B) THA	8-94146-153-2	01	1	1410-		●
46	FILTER; RESERVOIR,BRK (A) THA	8-98022-269-0	01	1	1410-	●	●
46	FILTER; RESERVOIR,BRK (B) THA	8-97094-732-0	01	1	1410-		●
48	BOLT; OIL TANK TO BRKT (A) M6X20 W/PL WASHER THA	8-97370-668-0	01	1	1410-	●	●
48	BOLT; OIL TANK TO BRKT (B) M8X25 FLANGE THA	0-28650-825-0	02	1	1410-		●
49	HOSE; OIL TANK TO BRK M/CYL (A) THA	8-97387-666-1	01	1	1410-	●	●
49	HOSE; OIL TANK TO BRK M/CYL (B) THA	8-97387-667-1	01	1	1410-	●	●
71	NUT; BRK M/CYL M8 W/LK WASHER THA	8-94279-050-0	04	1	1410-	●	●
80	PIN; SNAP,BRK PEDAL THA	8-98007-161-0	01	1	1410-	●	●
89	BRACKET; M/CYL THA	8-98014-337-1	01	1	1410-	●	●
131	CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY THA	8-98031-178-0	04	1	1410-	●	●
185	BOLT; BRKT (B) M10X22 W/PL WASHER THA	8-97313-188-0	02	1	1410-	●	●
185	BOLT; BRKT (A) M10X25 FLANGE THA	0-28661-025-0	02	1	1410-	●	●
185	BOLT; BRKT (C) M8X25 FLANGE THA	0-28650-825-0	04	1	1410-		●
322	NUT; OIL TANK M6 FLANGE THA	0-91180-106-0	01	1	1410-	●	●

6 5 4 71 2 4 10 9 80 1 27 42 185 89 16 185 22 322 49 131 48 43 46 44 49 131 131 131

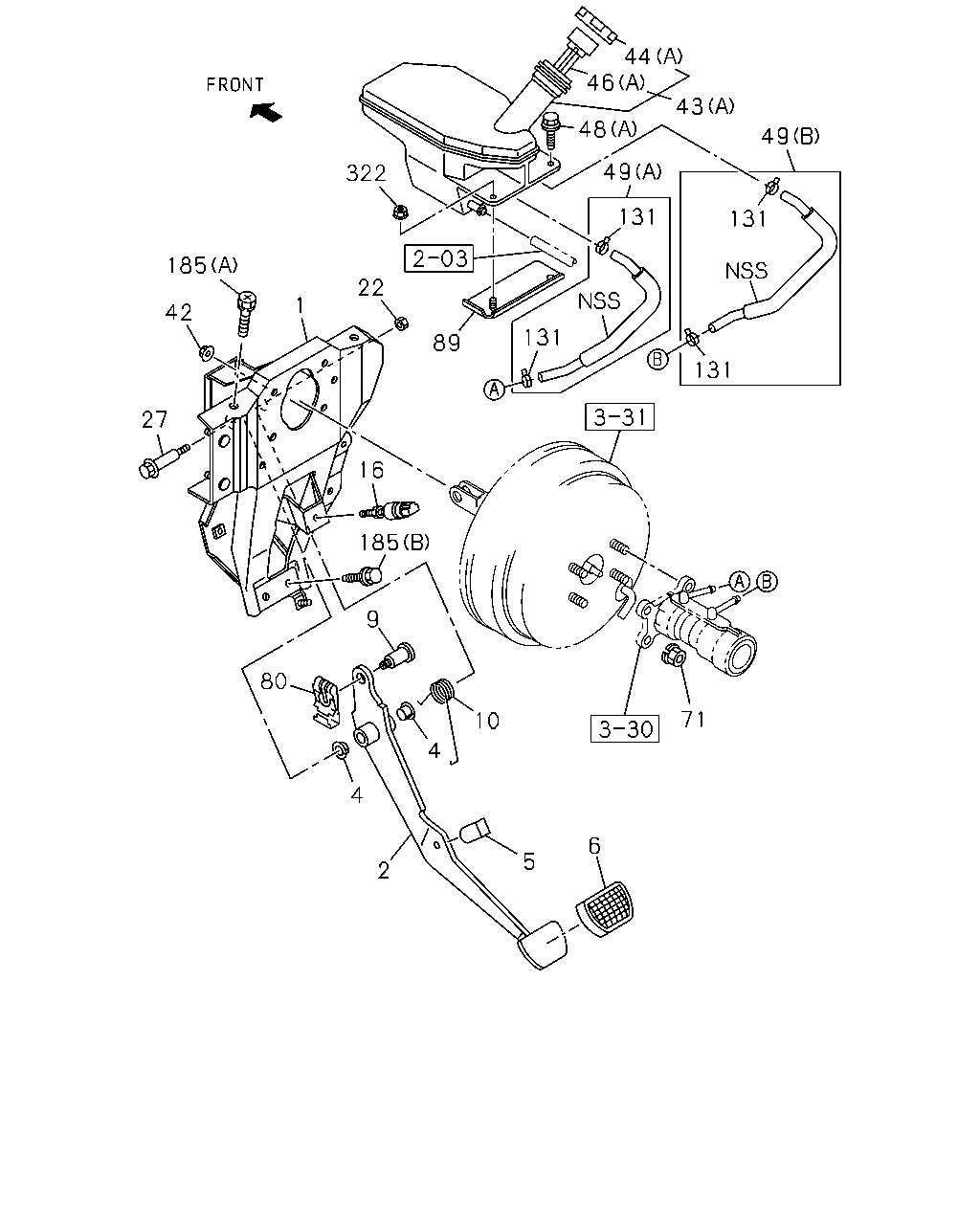

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET ASM; PEDAL THA	8-98029-185-1	01	1	1410-	●
1	BRACKET ASM; PEDAL THA	8-98091-563-0	01	1	1410-		●
2	PEDAL; BRK THA	8-98003-157-0	01	1	1410-	●
2	PEDAL; BRK THA	8-98011-432-0	01	1	1410-		●
4	BUSHING; BRK PEDAL THA	8-94238-596-0	02	1	1410-	●	●
5	STOPPER; BRK PEDAL THA	8-98029-187-0	01	1	1410-	●	●
6	COVER; BRK PEDAL THA	8-97853-413-2	01	1	1410-	●	●
9	PIN; JAW JOINT THA	8-98147-657-0	01	1	1410-	●	●
10	SPRING; RETURN,BRK PEDAL THA	8-97853-212-1	01	1	1410-	●	●
16	SWITCH; STOP LAMP THA	8-98000-028-0	01	1	1410-	●	●
22	NUT; SHAFT M10 LOCK NUT FLANGE THA	0-91380-010-0	01	1	1410-	●	●
27	SHAFT; BRK PEDAL THA	8-97866-667-0	01	1	1410-	●	●
42	NUT; BRK PEDAL M8 W/LK WASHER THA	8-94279-050-0	04	1	1410-	●	●
43	TANK ASM; OIL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) THA	8-97387-217-3	01	1	1410-	●
43	TANK ASM; OIL (A) THA	8-97387-217-3	01	1	1410-		●
43	TANK ASM; OIL (B) THA	8-97306-217-0	01	1	1410-		●
44	CAP; OIL TANK (A) THA	8-98022-268-0	01	1	1410-	●	●
44	CAP; OIL TANK (B) THA	8-94146-153-2	01	1	1410-		●
46	FILTER; RESERVOIR,BRK (A) THA	8-98022-269-0	01	1	1410-	●	●
46	FILTER; RESERVOIR,BRK (B) THA	8-97094-732-0	01	1	1410-		●
48	BOLT; OIL TANK TO BRKT (A) M6X20 W/PL WASHER THA	8-97370-668-0	01	1	1410-	●	●
48	BOLT; OIL TANK TO BRKT (B) M8X25 FLANGE THA	0-28650-825-0	02	1	1410-		●
49	HOSE; OIL TANK TO BRK M/CYL (A) THA	8-97387-666-1	01	1	1410-	●	●
49	HOSE; OIL TANK TO BRK M/CYL (B) THA	8-97387-667-1	01	1	1410-	●	●
71	NUT; BRK M/CYL M8 W/LK WASHER THA	8-94279-050-0	04	1	1410-	●	●
80	PIN; SNAP,BRK PEDAL THA	8-98007-161-0	01	1	1410-	●	●
89	BRACKET; M/CYL THA	8-98014-337-1	01	1	1410-	●	●
131	CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY THA	8-98031-178-0	04	1	1410-	●	●
185	BOLT; BRKT (B) M10X22 W/PL WASHER THA	8-97313-188-0	02	1	1410-	●	●
185	BOLT; BRKT (A) M10X25 FLANGE THA	0-28661-025-0	02	1	1410-	●	●
185	BOLT; BRKT (C) M8X25 FLANGE THA	0-28650-825-0	04	1	1410-		●
322	NUT; OIL TANK M6 FLANGE THA	0-91180-106-0	01	1	1410-	●	●

197 48 203 185 200 185 200 163 185 197 98 46 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
43	TANK ASM; OIL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) THA	8-97387-217-3	01	1	1410-	●
43	TANK ASM; OIL (A) THA	8-97387-217-3	01	1	1410-		●
43	TANK ASM; OIL (B) THA	8-97306-217-0	01	1	1410-		●
44	CAP; OIL TANK (A) THA	8-98022-268-0	01	1	1410-	●	●
44	CAP; OIL TANK (B) THA	8-94146-153-2	01	1	1410-		●
46	FILTER; RESERVOIR,BRK (A) THA	8-98022-269-0	01	1	1410-	●	●
46	FILTER; RESERVOIR,BRK (B) THA	8-97094-732-0	01	1	1410-		●
48	BOLT; OIL TANK TO BRKT (A) M6X20 W/PL WASHER THA	8-97370-668-0	01	1	1410-	●	●
48	BOLT; OIL TANK TO BRKT (B) M8X25 FLANGE THA	0-28650-825-0	02	1	1410-		●
98	NUT; BRKT M8 FLANGE THA	0-91180-108-0	03	1	1410-		●
163	COVER; OIL TANK THA	8-97164-749-1	01	1	1410-		●
185	BOLT; BRKT (B) M10X22 W/PL WASHER THA	8-97313-188-0	02	1	1410-	●	●
185	BOLT; BRKT (A) M10X25 FLANGE THA	0-28661-025-0	02	1	1410-	●	●
185	BOLT; BRKT (C) M8X25 FLANGE THA	0-28650-825-0	04	1	1410-		●
197	BRACKET; OIL TANK (A) THA	8-97173-342-2	01	1	1410-		●
197	BRACKET; OIL TANK (B) THA	8-97333-555-2	01	1	1410-		●
200	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	1410-		●
203	WASHER; PL,OIL TANK ID=8.4 OD=22 THA	0-91610-708-0	02	1	1410-		●
