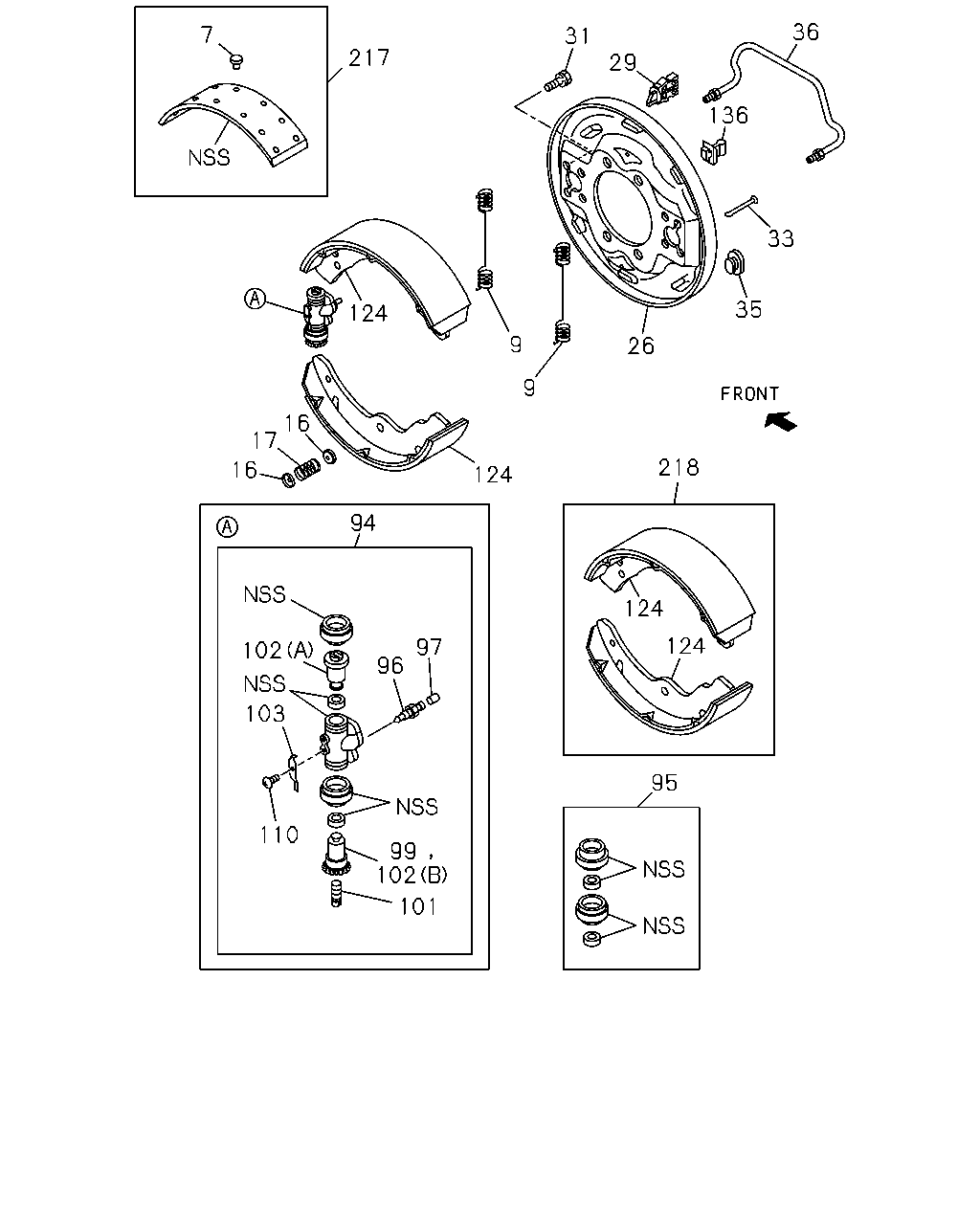

3-05 — REAR WHEEL BRAKE (#151291) — 52 parça

7 217 31 29 136 36 33 35 26 9 9 124 16 17 16 94 124 218 124 124 95 102 103 110 96 97 99 102 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	RIVET; LINING,RR BRK THA	1-09732-029-0	64	1	1410-	●
7	RIVET; LINING,RR BRK THA	8-97520-926-0	48	1	1410-		●
9	SPRING; RETURN,BRK SHOE THA	8-97122-869-0	04	1	1410-	●
9	SPRING; RETURN,BRK SHOE THA	8-97520-674-0	04	1	1410-		●
16	CUP; SHOE HOLDING THA	9-47165-096-0	08	1	1410-	●
16	CUP; SHOE HOLDING THA	8-97520-676-0	08	1	1410-		●
17	SPRING; SHOE HOLD DOWN THA	5-09580-101-1	04	1	1410-	●
17	SPRING; SHOE HOLD DOWN THA	8-97520-675-0	04	1	1410-		●
26	PLATE; BACK,RR BRK THA	8-97134-731-0	01	1	1410-	●
26	PLATE; BACK,RR BRK THA	8-97134-732-0	01	1	1410-	●
26	PLATE; BACK,RR BRK THA	8-97520-680-0	01	1	1410-		●
26	PLATE; BACK,RR BRK THA	8-97520-681-0	01	1	1410-		●
29	CLIP; PIPE,BRK THA	8-97022-086-0	02	1	1410-	●	●
31	BOLT; RR WHEEL CYL THA	8-97081-305-0	16	1	1410-	●
31	BOLT; RR WHEEL CYL THA	8-97520-678-0	16	1	1410-		●
33	PIN; SHOE HOLD DOWN THA	8-97122-870-0	04	1	1410-	●
33	PIN; SHOE HOLD DOWN THA	8-97520-677-0	04	1	1410-		●
35	GROMMET; CHECK HOLE THA	8-97017-507-0	02	1	1410-	●
35	GROMMET; CHECK HOLE THA	8-97520-679-0	02	1	1410-		●
36	PIPE; OIL,RR BRK THA	8-97943-810-0	02	1	1410-		●
36	PIPE; OIL,RR BRK THA	8-97940-705-0	02	1	1410-	●
94	CYLINDER; WHEEL,RR BRK THA	8-97353-570-0	02	1	1410-	●
94	CYLINDER; WHEEL,RR BRK REAR THA	8-97353-571-0	01	1	1410-	●
94	CYLINDER; WHEEL,RR BRK FRONT THA	8-97353-572-0	01	1	1410-	●
94	CYLINDER; WHEEL,RR BRK FRONT THA	8-97332-225-0	01	1	1410-		●
94	CYLINDER; WHEEL,RR BRK REAR THA	8-97332-226-0	01	1	1410-		●
94	CYLINDER; WHEEL,RR BRK THA	8-97332-227-0	02	1	1410-		●
95	CUP SET; RR WHEEL CYL THA	5-87832-051-0	02	1	1410-		●
95	CUP SET; RR WHEEL CYL THA	5-87832-080-0	02	1	1410-	●
96	SCREW; BLEEDER,RR BRK THA	8-98050-477-0	01	1	1410-	●
96	SCREW; BLEEDER,RR BRK THA	8-98050-476-0	01	1	1410-		●
97	CAP; BLEEDER,RR WHEEL CYL 4HK1-TCN ENG<RDQ> FINAL GEAR RATIO 43/9<S2J>,FINAL GEAR RATIO 43/10<S7C> THA	8-98050-479-0	01	1	1409-		●
97	CAP; BLEEDER,RR WHEEL CYL 4HK1-TCS ENG<RJS> FINAL GEAR RATIO 41/10<GT5>,FINAL GEAR RATIO 41/9<HC6> THA	8-98050-479-0	01	1	1409-	●
99	PISTON; RR WHEEL CYL THA	8-97353-579-0	03	1	1410-	●
99	PISTON; RR WHEEL CYL THA	8-97332-229-0	03	1	1410-		●
101	SCREW; ADJ,RR WHEEL CYL 4HK1-TCN ENG<RDQ> FINAL GEAR RATIO 43/9<S2J>,FINAL GEAR RATIO 43/10<S7C> THA	8-94414-702-0	04	1	1409-		●
101	SCREW; ADJ,RR WHEEL CYL 4HK1-TCS ENG<RJS> FINAL GEAR RATIO 41/10<GT5>,FINAL GEAR RATIO 41/9<HC6> THA	8-94414-702-0	04	1	1409-	●
102	PISTON; REAR WHEEL CYL (A) THA	8-97353-578-0	04	1	1410-	●
102	PISTON; REAR WHEEL CYL (B) THA	8-97353-579-0	01	1	1410-	●
102	PISTON; REAR WHEEL CYL (A) THA	8-97332-043-0	04	1	1410-		●
102	PISTON; REAR WHEEL CYL (B) THA	8-97332-229-0	01	1	1410-		●
103	SPRING; LK,RR WHEEL CYL,ADJ 4HK1-TCN ENG<RDQ> FINAL GEAR RATIO 43/9<S2J>,FINAL GEAR RATIO 43/10<S7C> THA	8-94128-486-0	04	1	1409-		●
103	SPRING; LK,RR WHEEL CYL,ADJ 4HK1-TCS ENG<RJS> FINAL GEAR RATIO 41/10<GT5>,FINAL GEAR RATIO 41/9<HC6> THA	8-94128-486-0	04	1	1409-	●
110	SCREW; LOCK SPRING,RR WHEEL CYL 4HK1-TCN ENG<RDQ> FINAL GEAR RATIO 43/9<S2J>,FINAL GEAR RATIO 43/10<S7C> THA	8-94128-727-0	04	1	1409-		●
110	SCREW; LOCK SPRING,RR WHEEL CYL 4HK1-TCS ENG<RJS> FINAL GEAR RATIO 41/10<GT5>,FINAL GEAR RATIO 41/9<HC6> THA	8-94128-727-0	04	1	1409-	●
124	SHOE ASM; BRK,RR THA	8-97188-455-0	04	1	1410-	●
124	SHOE ASM; BRK,RR THA	8-97520-673-0	04	1	1410-		●
136	GROMMET THA	8-97044-742-1	04	1	1410-	●	●
217	LINING KIT; RR BRK THA	5-88300-004-0	01	1	1410-		●
217	LINING KIT; RR BRK THA	5-87831-692-0	01	1	1410-	●
218	SHOE KIT; BRK,RR THA	5-87832-329-0	01	1	1410-		●
218	SHOE KIT; BRK,RR THA	5-87831-693-0	01	1	1410-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
